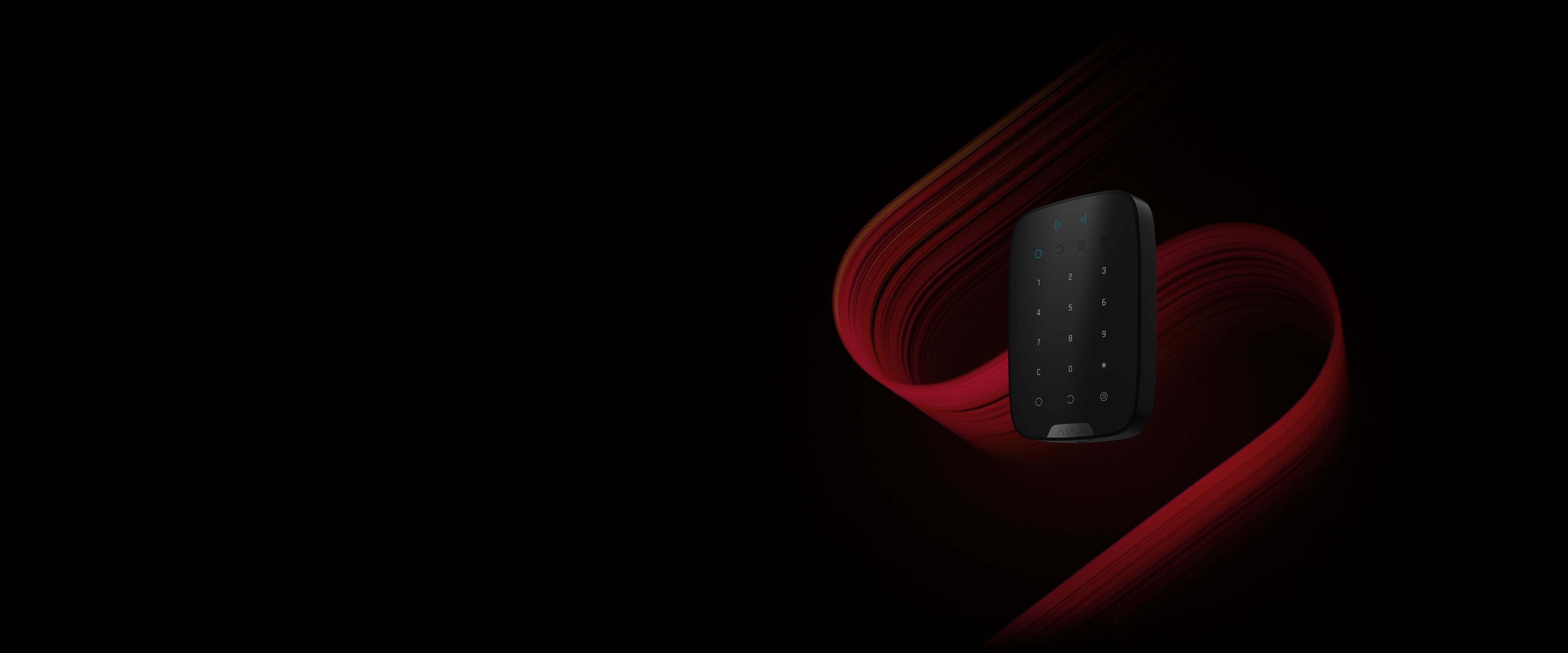

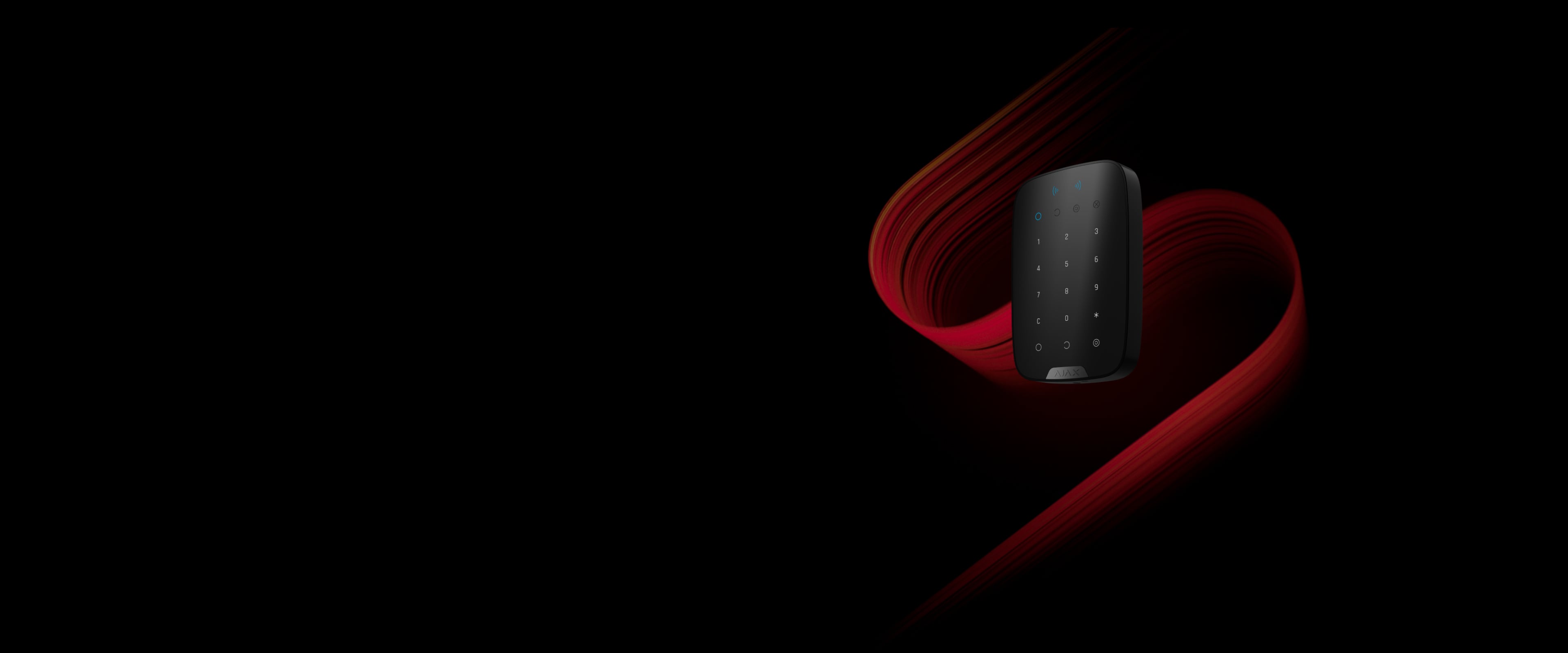

Superior KeyPad Plus G3 Jeweller
Wireless keypad with touch buttons, supporting authentication via Pass, Tag, and codes
Contactless control for high stakes. Now wireless.
Superior KeyPad Plus G3 Jeweller is the wireless keypad certified to Grade 3 requirements. Users can arm and disarm the system, activate Night mode, and manage security groups. The keypad supports Pass cards and Tag key fobs with virtually unhackable DESFire® chips, as well as various access codes, ensuring flexible authentication. The device communicates with the hub at a distance1 of up to 11,450 ft. All settings and updates can be managed remotely via Ajax apps.
Built to stand out
Easy security mode management for the entire system or separate groups
Panic button, duress codes, protection against code guessing, card or key fob copying, and the use of unauthorized access devices
Support for authentication via Pass and Tag contactless access devices and codes
Adding to the system and installation within few minutes
Up to 4.5 years (TBC) of operation on enhanced pre-installed batteries
Superior wireless Grade 3 solution
Discover the world's first fully wireless Grade 3 security system.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Authentication methods
Сontactless Pass cards and Tag key fobs
- Support for DESFire® technology
- Remote configuration of access devices
- Protection against authentication via unauthorized access devices
- Keypad auto wake up during entry delays
Codes
- Four types of codes: for registered users, for unregistered users, a keypad code, and an RRU code
- Auto lock in case of an attempt to guess the code
- Duress codes to simulate system disarming while sending a silent alarm to the monitoring station
- Remote management: codes can be created, changed, or removed via Ajax apps
- Keypad auto wake up during entry delays
Depending on the settings, LED indicators display the current security state of the entire system or a security group.
Contactless access devices
Both Pass cards and Tag key fobs feature original DESFire® chips and provide identical functionality in different form factors. A single access device can control up to 13 security systems. Pass and Tag devices are sold separately in batches of three, 10, or 100 units.
Automation scenarios
- Activation by security mode changes: for the entire system or specific security group
- Activation by the panic button
Complex protection in an emergency
The user presses an emergency alert button
The system transmits the alarm
The monitoring station dispatches a rapid response unit
Panic button protected against accidental presses
Duress codes
Fire alarm mute feature
Enhanced wireless technology
Superior Jeweller is a next-generation Ajax radio protocol developed for wireless devices of the Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.
Up to 11,450 ft of communication range in open space1
Two-way radio communication with enhanced encryption
Instant alarm and malfunction notifications
Device polling interval starting from 12 s
Long-lasting performance
- Up to 4.5 (TBC) years of autonomous operation
- Enhanced batteries from proven manufacturers
- Pre-installation battery testing for reliability
- Early low battery notifications
- Auto wake up during entry delays for battery saving
Sabotage resistance
Tamper button to detect dismantling or detachment
Holding screw to secure the keypad to the SmartBracket mounting panel
Regular polling to control the device states
Communication failure detection2 in 36 s
Protection against code guessing, card/ tag copying, and the use of unverified devices
Frequency hopping to prevent radio interference and jamming
Device authentication against spoofing
Encryption for data exchange between the keypad and the contactless access devices
Anti-sabotage features are compliant with Grade 3 requirements.
Hassle-free installation and setup
- Quick installation without enclosure disassembly
- Ready to operate straight out of the box
- Up to 4.5 years (TBC) of operation on pre-installed batteries
- All necessary fasteners included in the complete set
- Adding to a hub via QR code
- Setup in minutes in an Ajax app — no programming required
- Access device connection within two minutes
- Configuration and testing remotely or on-site
- Remote management of codes, user access rights, and access devices
- Instant notifications about alarms and events
- Event log that shows who and when changed the security mode
- Real-time maintenance notifications
Wherever there is a risk of intrusion
Medical center
Museum
Warehouse
Bank
Office
Jewelry store
House

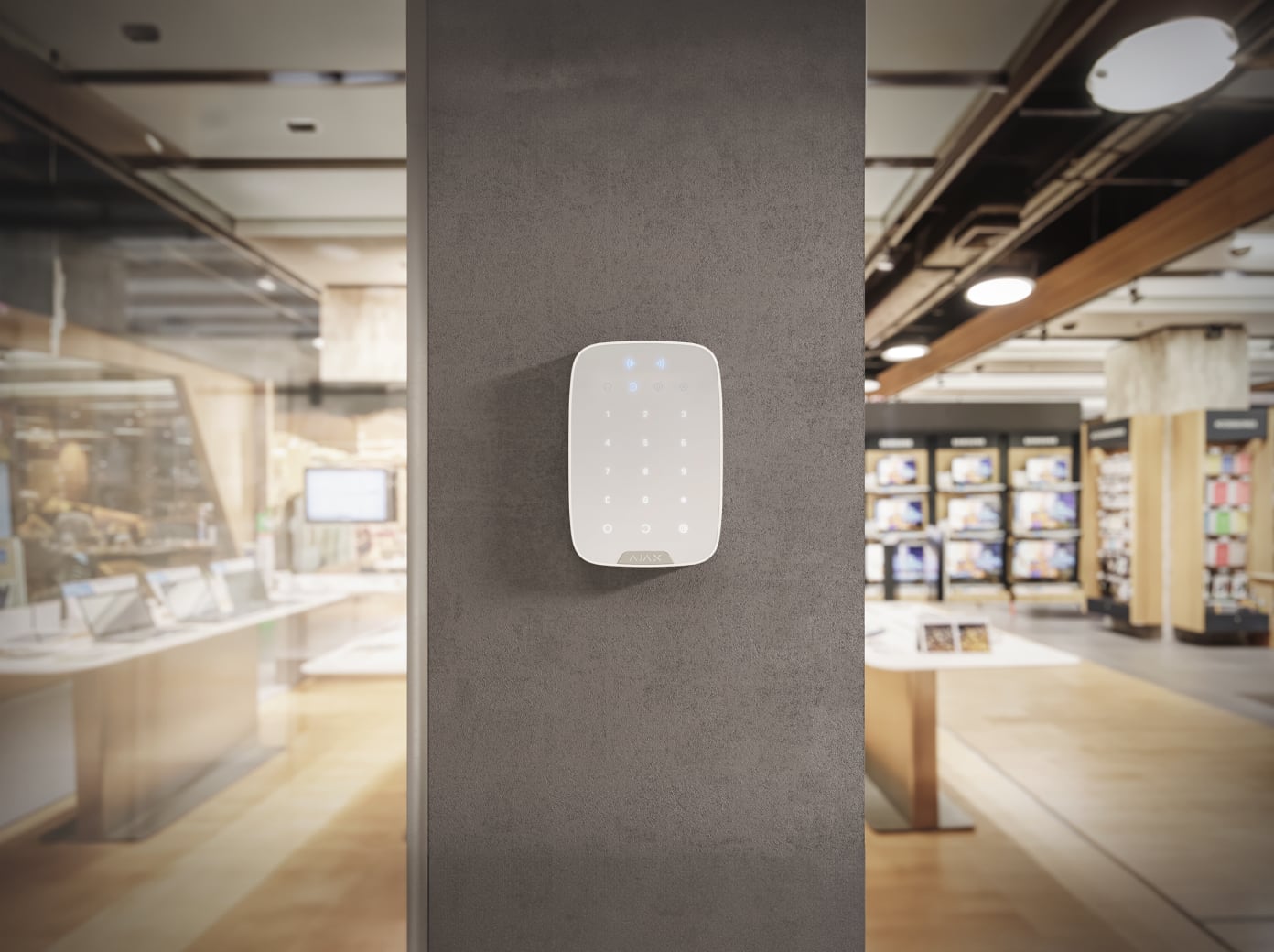

Store
Communication range depends on the hub model.
If the polling interval is set to send three data packets as often as every 12 seconds.
Technical information
Superior KeyPad Plus G3 Jeweller
