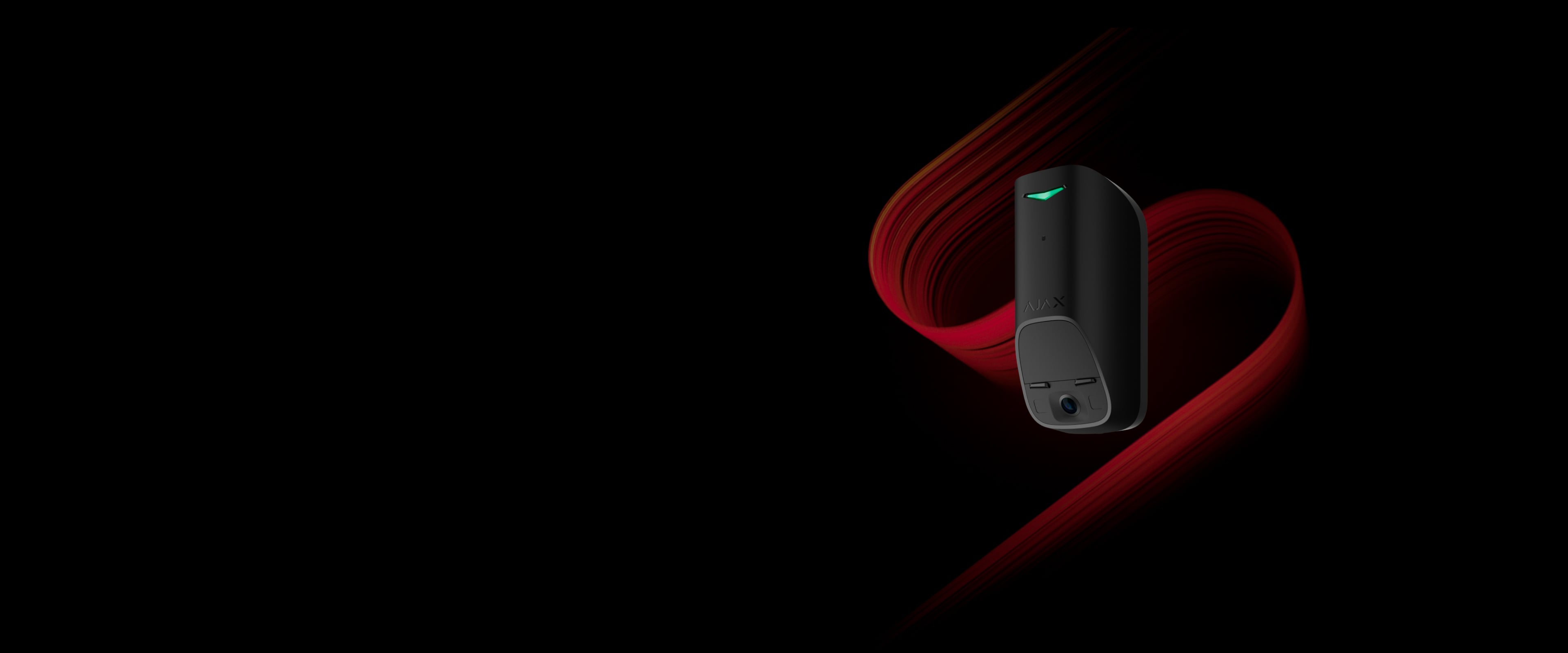

Superior MotionCam G3 (PhOD) Jeweller
Wireless PIR motion detector with an anti-masking system
Verified motion alarms for high stakes. Now wireless.
Keep an eye on any threats with Superior MotionCam G3 (PhOD) Jeweller — the world's first Grade 3 motion detector with a built-in camera. It detects anyone sneaking or rushing up to 49 ft (TBC) away, crawling beneath the detector, or trying to obstruct the sensors. Within seconds, the device captures evidence and delivers a photo series to the monitoring station and system users to give a clear view of the scene. Images come in HD1 and are enhanced with HDR for vivid detail and balanced exposure in any lighting. Choose when to get insight: after an alarm, by set scenarios, or on demand. All to always have the true picture and respond only to real threats quickly and effectively.
Built to stand out
Photo verification of alarms and events delivered in seconds
Clarity in every image with HD and HDR
Detection of any movement: fast or slow, high or low
Advanced protection against intricate sabotage techniques
Fully wireless device with up to four (TBC) years of battery life
Installation and setup within a few minutes
Superior wireless Grade 3 solution
Discover the world's first fully wireless Grade 3 security system.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Visual proof of any threat
Clear evidence in every detail
Superior MotionCam G3 (PhOD) Jeweller is engineered to deliver maximum information in every photo. It features an enhanced optical system, an optimized aspect ratio, and a field of view wider than detection coverage. Together, these improvements allow the device to capture and convey more details for fast and accurate situation assessment.
Four resolutions up to HD
HDR technology
Up to five photos per series
Smart IR illumination
Enhanced motion detection
Horizontal viewing angle: 90°
Proprietary optical system
with a PIR sensor and multifaceted mirror to focus IR radiation
Detection of any movement
fast or slow, and even crawling
Vertical viewing angle: 71°
Temperature compensation
for efficient detection in heat and cold
Software algorithm and three sensitivity levels
to avoid false alarms
Regular self-check
of a PIR sensor, anti-masking sensor, and camera connection
Superior MotionCam G3 (PhOD) Jeweller does not support the pet immunity feature.
Enhanced wireless technology
Superior Jeweller is our next-generation radio protocol developed for the wireless devices of the Superior product line. It delivers stronger encryption, advanced frequency hopping, and outstanding energy efficiency. This makes Superior Jeweller the first-ever wireless communication technology to meet Grade 3 requirements.
Up to 11,450 ft of communication range in open space2
Two-way radio communication with enhanced encryption
Instant alarm and malfunction notifications
Device polling interval starting from 12 s
TurboWings for fast photo transmission over long distances
Superior MotionCam G3 (PhOD) Jeweller not only captures exceptional detail but also transmits it to Ajax apps incredibly fast over long distances. This is possible thanks to TurboWings, an Ajax Systems' enhanced data transfer protocol. With TurboWings, Superior MotionCam G3 (PhOD) Jeweller delivers photos twice as fast as other Ajax motion detectors. The protocol also ensures devices always have the latest firmware through regular updates.
TurboWings
15.5 s (TBC)
Wings
N/A
TurboWings
11 s (TBC)
Wings
17 s (TBC)
TurboWings
4.5 s (TBC)
Wings
9 s (TBC)
TurboWings
3 s (TBC)
Wings
6 s (TBC)
Long-lasting performance
- Up to four (TBC) years of autonomous operation
- High-performance batteries from proven manufacturers
- Pre-installation battery testing for reliability
- Minimal impact of threshold temperatures on battery life
- Early low-battery warnings
- Easy battery replacement within minutes
Sabotage resistance
Advanced anti-masking system
Two tamper buttons to detect dismantling or detachment
Locker for fixing the device on the SmartBracket mounting panel
Frequency hopping for radio interference and jamming protection
Device authentication against spoofing
Communication loss detection3 within 36 seconds
Regular polling to control the device and the built-in sensor states
Automatic device self-check with state report
Instant notifications of camera disconnection
Anti-sabotage features are compliant with Grade 3 requirements.
Hassle-free installation and setup
- Quick installation without enclosure disassembly
- Built-in spirit level
- Option for side installation
- Ready to operate straight out of the box
- Up to four (TBC) years of operation on pre-installed batteries
- All necessary fasteners included in the complete set
- Adding to the system via QR code
- Setup in minutes via an Ajax app — no programming required
- Configuration and testing of the device and photo verification features remotely or on site
- Instant notifications of alarms and events
- Integration with monitoring company software for seamless photo transmission
- Real-time notifications when maintenance is required
Wherever there is a risk of intrusion
Bank
Jewelry store
Warehouse
Office
The resolution of an HD photo is 864 × 720 pixels. The first HD photo is delivered in 15.5 seconds (TBC). Learn more.
Communication range depends on the hub model.
If the polling interval is set to send three data packets as often as every 12 seconds.
Technical information
Superior MotionCam G3 (PhOD) Jeweller
