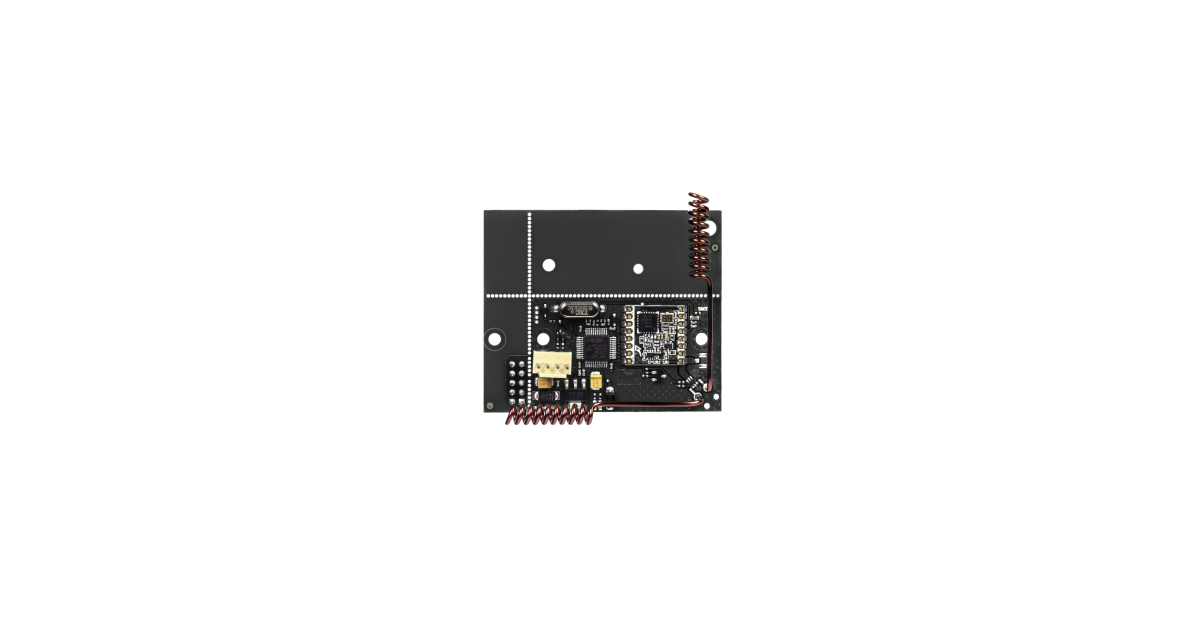

uartBridge
The receiver module for connecting Ajax detectors to wireless security systems and smart home solutions.
-
![]()
Authentication to prevent forgery -
![]()
Jamming detection and communication channels encryption -
![]()
Two-way communication
Sends detailed information about connected detectors via UART interface
Supports arming and disarming capability
Allows implementing own solutions for smart home systems

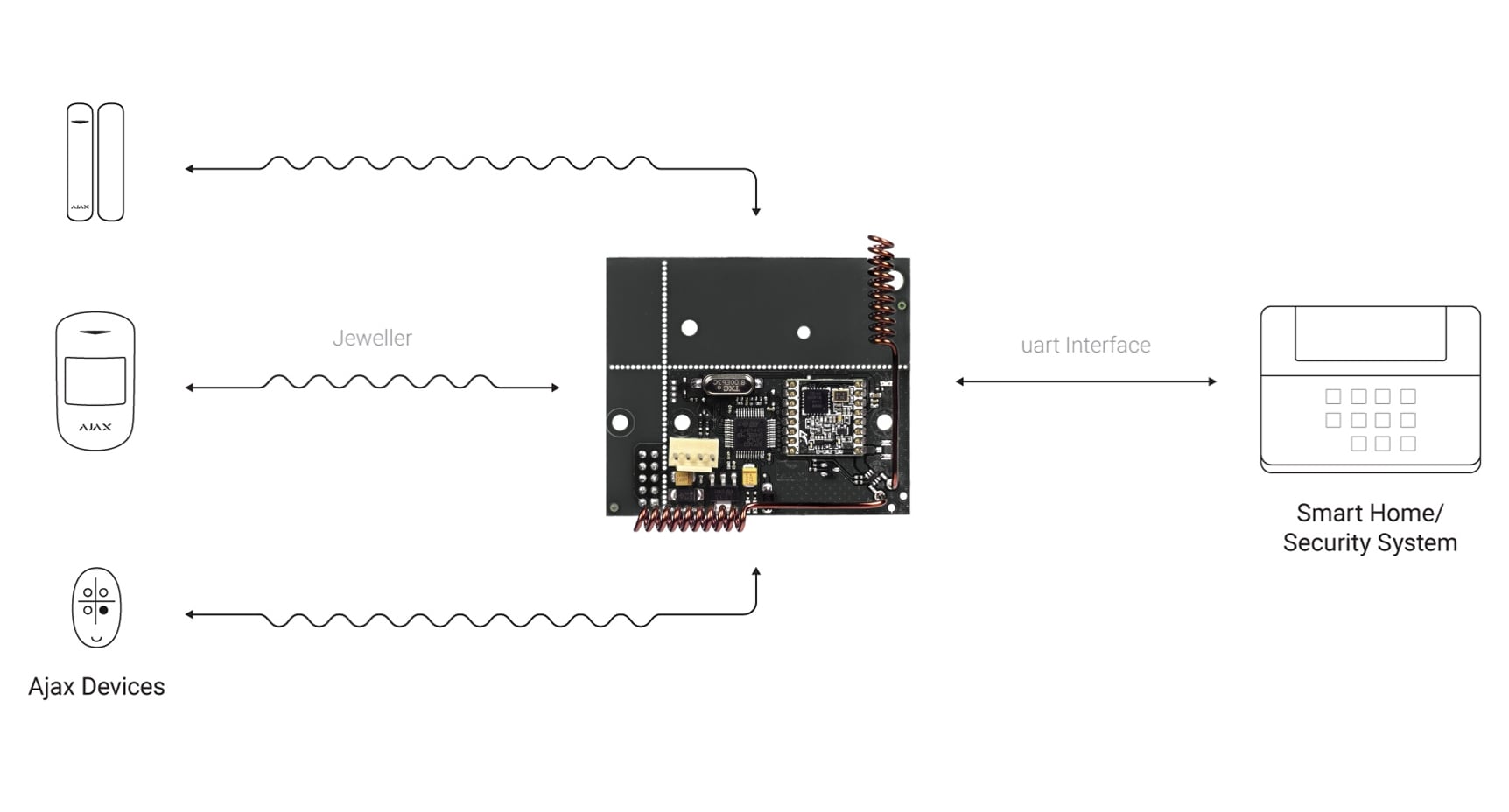

Principle of operation
When the detector activates, the device sends the information to the central unit, which raises an alarm.
Features

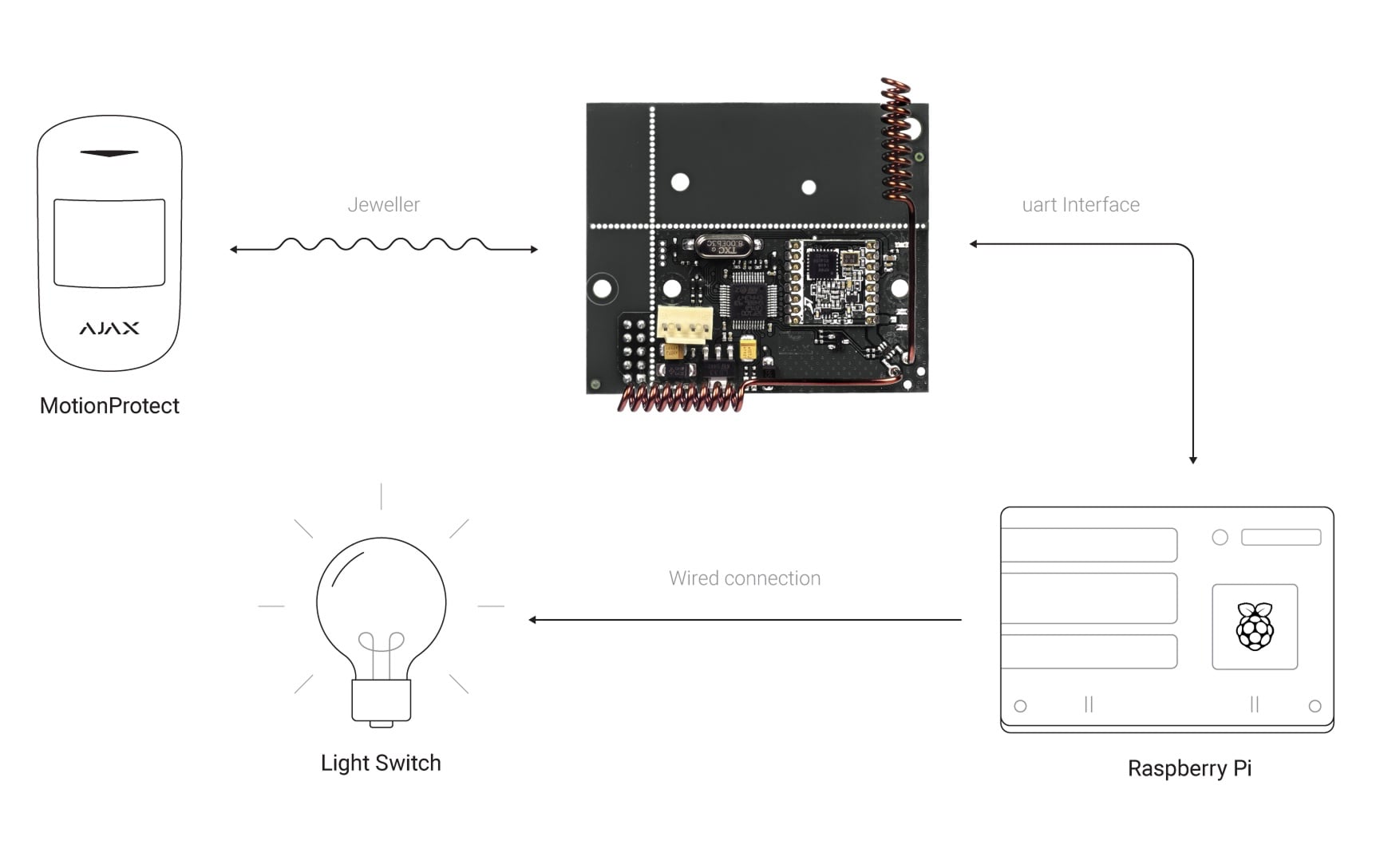

The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas.
Installation and set up

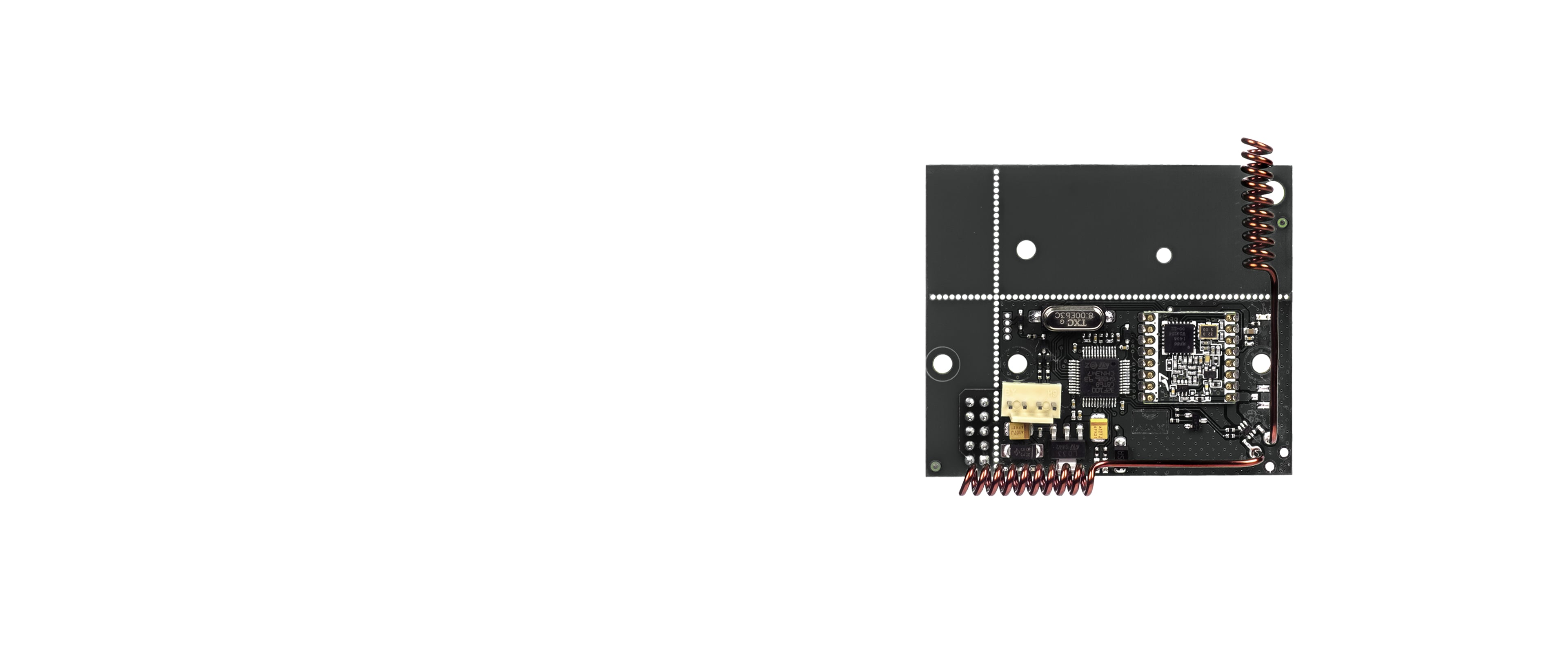

The device is installed into the body of the wired central units and hubs of smart home systems.
Principle of operation
When the detector activates, the device sends the information to the central unit, which raises an alarm.
Features
The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas.
Installation and set up
The device is installed into the body of the wired central units and hubs of smart home systems.
Tech specs
Classification
Receiver of wireless detectors' signal
Device type
Wireless
Installation method
Indoors
Compatibility
Wired security systems and smart home systems
Maximum number of detectors
85
Alarm signal delivery time
0.15 s
Power supply voltage
5 V DC
Jeweller radio technology
Communication range with detectors — up to 2,000 m in an open space
Two-way communication with detectors
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s
Learn more about Jeweller
Two-way communication with detectors
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Device polling period — 12 - 300 s
Learn more about Jeweller
Operating temperature range
From –10°С to +40°С
Permissible humidity
Up to 90%
Anti-sabotage
Protection against fraud
Jamming detection
Jamming detection
Interface
UART
Dimensions
64 × 55 × 13 mm
Weight
32 g
Warranty
Replacement and repair within 24 months of the date of sale
Complete set
uartBridge
Choose the most suitable Ajax set in 2 minutes
Tell us what you need to protect and we will put together a set of detectors and devices for your premises.
Start
Recommended products
Ajax uartBridge wireless alarm sensor receiver
The receiver of wireless detectors in the security system is designed to connect remote control fobs and wireless sensors to various wired security alarms. With the installation of a receiver for wireless sensors of the alarm system, the user gets the opportunity to connect not only motion detectors but devices for monitoring water or gas leakage, increasing the temperature in the room, smoke detection and key fobs for remote control of the control panel and automation scenarios.Application of wireless sensor receiver in security system
Using a wireless type receiver, the security system user has the opportunity not to spoil the repair by laying wires in the finished interior, thereby maintaining its integrity and appearance. The receiver for wireless sensors can be used in a site with a low level of communication or even where there are no power lines, thanks to the built-in battery, designed for a certain period of time. Thus, installing a security system in a country house or on a construction site is possible.Ajax uartBridge wireless sensor receiver for burglar alarms
The Ajax uartBridge wireless detector receiver allows users to integrate Ajax wireless detectors with third-party control panels. The Ajax uartBridge receiver is connected to the control panel using a UART wired interface and is equipped with a radio signal receiver. When the wireless sensor is triggered, the alarm is sent to the uartBridge receiver, which, upon receipt, processes the information. The UART interface lets the security system central receives data on the sensor battery level, ID, signal level, alarm code, etc. Thanks to the Jeweller two-way radio technology, the information processed by the receiver of wireless sensors is protected from substitution and forgery. The system protects information by encryption, and in case of interruptions in communication, it transfers the system to free frequencies. This principle of operation provides protection of the security system from hacking attempts by intruders. The highly reliable communication system of the receiver allows it to successfully operate at a distance of up to 2000 m from the sensors in the absence of obstacles or within several floors of a building.Receiver features for uartBridge wireless alarm sensors
- Detection of jamming of radio sensors.
- The receiver regularly monitors the security detector test signals that are transmitted to the control panel. If the sensor is attempted to be damaged or stolen, the receiver will immediately report this.
- Fraud protection and message encryption;
- The receiver receives a signal from wireless sensors and, according to an agreed system of commands, transmits information about the event to the control panel via the UART interface;
- In operating mode, the device operates in bridge mode: having received a message from the sensor, it transmits it to the security alarm central via UART;
- Receiver antenna optimized and matched for better signal reception inside buildings;
- Transfer of information about the battery discharge to the control panel of a specific sensor, which simplifies system maintenance;
- The maximum distance between the sensors and the receiving device is up to 2000 m, provided there are no obstacles;
- Addressed alarm signal transmission and service information to the alarm control panel. Data is transmitted indicating the detector that transmitted the data or alarm;
- Easy addition of the sensor to the system using the configurator or keyboard;
- To detect jamming, an adaptive algorithm is used, which avoids false alarms due to the presence of interference in the radio channel;
- The receiver supports firmware upgrades. New firmware versions regularly appear on the Ajax Systems website and are available for free download.
