Curtain Outdoor Mini Jeweller
Wireless dual-technology curtain motion detector for outdoor and indoor use
Coming soon
The first line of defense
Curtain Outdoor Mini Jeweller is a curtain-type motion detector with dual motion detection technology and an anti-masking system. This product is engineered to cover windows, doors, narrow passages, and other entry points along the perimeter. Break-in attempts are exposed early — before they leave a scratch. While the device blends in, its effectiveness stands out thanks to near-zero false alarms, no blind zones, and exceptional autonomy.
Key features
Up to 16 ft
motion detection distance
Vertical viewing angle: 100°
Horizontal viewing angle: 15°
Dual motion detection technology
to trigger the alarm only when PIR and K-band microwave sensors detect motion
Software algorithm for false alarm prevention
Temperature compensation
for effective motion detection in heat and cold
2 detection modes
Main and Pet

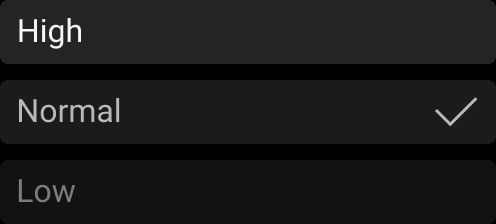

3 sensitivity levels
selectable in the app
Tamper button
Anti-masking system
Accelerometer
Up to 3 years of operation
on pre-installed batteries
protection against dust, water, and harsh temperatures
Over-the-air firmware updates
Up to 5,550 ft
of communication range1 with an Ajax hub or range extender
Jeweller and Wings radio communication
Power adjustment
Informative push notifications
Critical
Ajax
Warehouse: motion detected, Curtain Outdoor Mini Jeweller in Storage area
Ajax
Detector view blocked, check Curtain Outdoor Mini Jeweller in Terrace
Remote control and configuration
Holding screw
for reliable fastening
2 installation options
SmartBracket and the angle mount
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Secure perimeter for any site
Office
House
Balcony
Restaurant
Store
Factory
Garage
Warehouse
Designed for tight spaces
Curtain Outdoor Mini Jeweller is a practical solution for spotting intruders early. It's ideal when an opening detector can't be installed — for example, on the window frames of a historic building. Horizontal, vertical, or angled mounting allows flexible placement options, making it easy to secure compact areas and prevent unwanted access.
Two detection modes
Curtain Outdoor Mini Jeweller has Main and Pet modes activated via the slide switch on the enclosure. In the Main mode, an alarm is triggered whenever the device detects movement.
In the Pet mode, the detector ignores movement from animals of up to 3.3 ft tall.
Pet mode off
Pet mode on
Engineered without compromise
Fresnel lens
PIR sensor
K-band microwave sensor
Masking sensor
Slide switch to change detection modes
Jeweller and Wings antennas
Tamper button
Accelerometer
Holding screw
SmartBracket mounting panel
Angle mount
Near-zero false alarms
PIR sensor
A PIR sensor detects movement by analyzing changes in temperature within the device’s field of view. In a split second, the sensor triggers a proprietary software algorithm to check the collected data and determines whether the alarm is real.
K-band microwave sensor
The K-band microwave sensor verifies alarms triggered by the PIR sensor. It performs a radio-wave scan of an area to minimize false alarms triggered by thermal interference. The K-band sensor provides higher precision and energy efficiency compared to traditional X-band sensors. It reduces false alarms and has minimal impact on battery life. Additionally, the sensor is safe and poses no threat to health.
K-band
X-band
Thermal interference filter
In armed mode, the detector continuously analyzes the thermal diagram from the PIR sensor — IR intensity, thermal spot size, movement speed, time in zone, and other parameters. The SmartDetect software algorithm reliably filters out false alarm triggers and ensures an error-free response to a person moving.
False alarm
Real alarm
False alarm
Real alarm
False alarm
Real alarm
Temperature compensation
Temperature compensation maintains thermal contrast even when ambient temperature is close to the human body temperature. The detector adjusts PIR sensor data using a stored coefficient table. The device is effective throughout the entire operating temperature range.
Sensitivity levels
Curtain Outdoor Mini Jeweller has three sensitivity levels. Low sensitivity reduces the chance of the detector reacting to interference, while high sensitivity guarantees any movement in the detection zone triggers an alarm. Choosing the correct level in Ajax apps helps prevent costly false alarm dispatches.
Hassle-free installation and maintenance
With proper installation, the detector operates with high accuracy and reliably detects threats with minimum false alarms. Pet immunity is ensured by the hardware switch and correct mounting. On top of that, Ajax apps provide remote control, configuration, and adjustable sensitivity levels.
Built to last
The device is wireless and easy to install. It runs on two pre-installed replaceable batteries, each tested before installation. The batteries provide up to three years of operation, and their status is always available in the app. PRO users and monitoring companies receive low-charge alerts months in advance — no need to rush replacements at the last minute.
Every single battery tested during production
Up to 3 years of operation on pre-installed batteries
Early low battery notifications
Jeweller | Wings
Unique wireless technologies
Curtain Outdoor Mini Jeweller uses Jeweller and Wings proprietary radio protocols for reliable communication.
Wireless communication range of up to 5,550 ft
Encrypted two-way radio communication
Notifications of jamming and connection loss
Over-the-air firmware updates
Communication through steel and concrete
Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.
Up to 5 range extenders within one system
Ethernet-equipped model available
System supervision
All Ajax devices perform automatic self-diagnosis and report their states to a hub. Essential parameters, including tamper, communication, and power supply, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for monitoring stations, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Automatic device self-diagnosis with status report
Regular polling to display the current device state in apps
Instant maintenance notifications
Sabotage resistance
Fast mounting, seamless configuration
Curtain Outdoor Mini Jeweller works right out of the box and spares an installer the setup headaches. The PRO can install the device using two mount options — a SmartBracket panel or an angle mount — and add the detector to the system by simply scanning a QR code. Then, they can change device settings via Ajax apps whenever necessary, on-site or remotely.
Adding to the hub via a QR code
Using the SmartBracket mounting panel
Using the angle mount
Configuration and testing via mobile or desktop Ajax app
Ajax PRO Desktop app for macOS and Windows
In open space.
Details in the user manual.
