HomeSiren U Jeweller

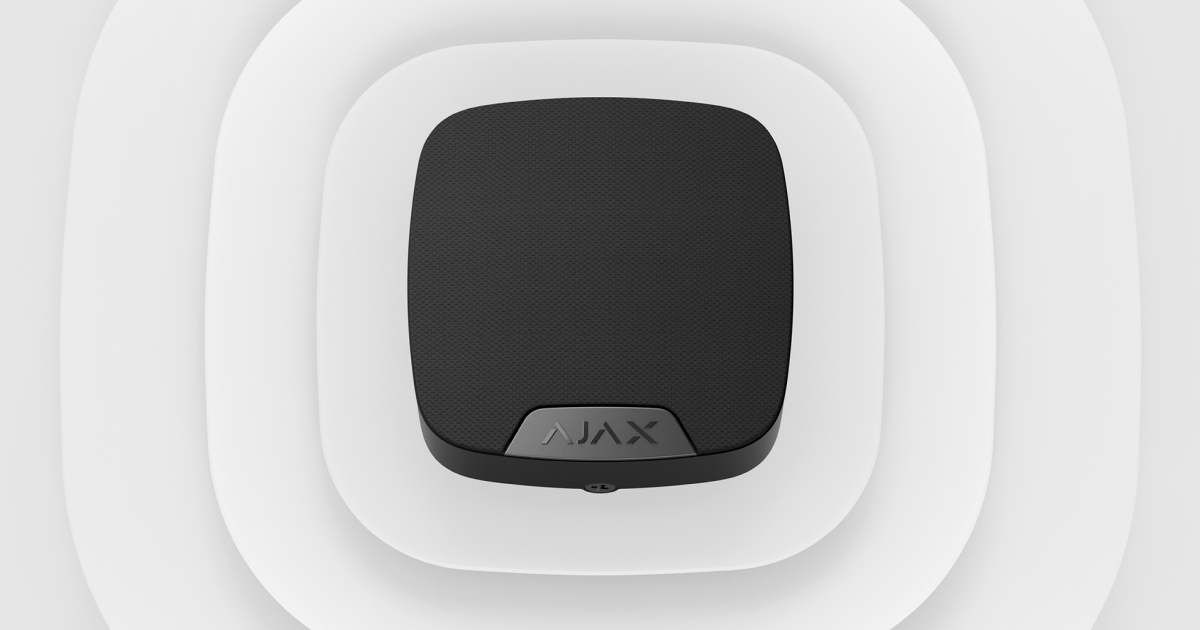

HomeSiren U Jeweller

Wireless siren with an LED connector

Product is not available in your region

When loud is the best defence

HomeSiren U Jeweller is a version of Ajax’s well known siren, refined to meet the strict UK standards. It is more than just a noise-making device. This compact device alerts users when a door is opened and displays delays when entering/leaving, as well as after-alarm notifications. Additionally, the siren can serve as a security status indicator. The device operates on pre-installed batteries that promise up to 5 years of life. The Jeweller wireless protocol ensures reliable communication between the siren and a hub or range extender at distances1 of up to 2,000 m. HomeSiren U Jeweller is fitted with both hardware and software protection to keep user setups tamper-proof. Controlling the device is refreshingly simple thanks to seamless integration with Ajax apps.

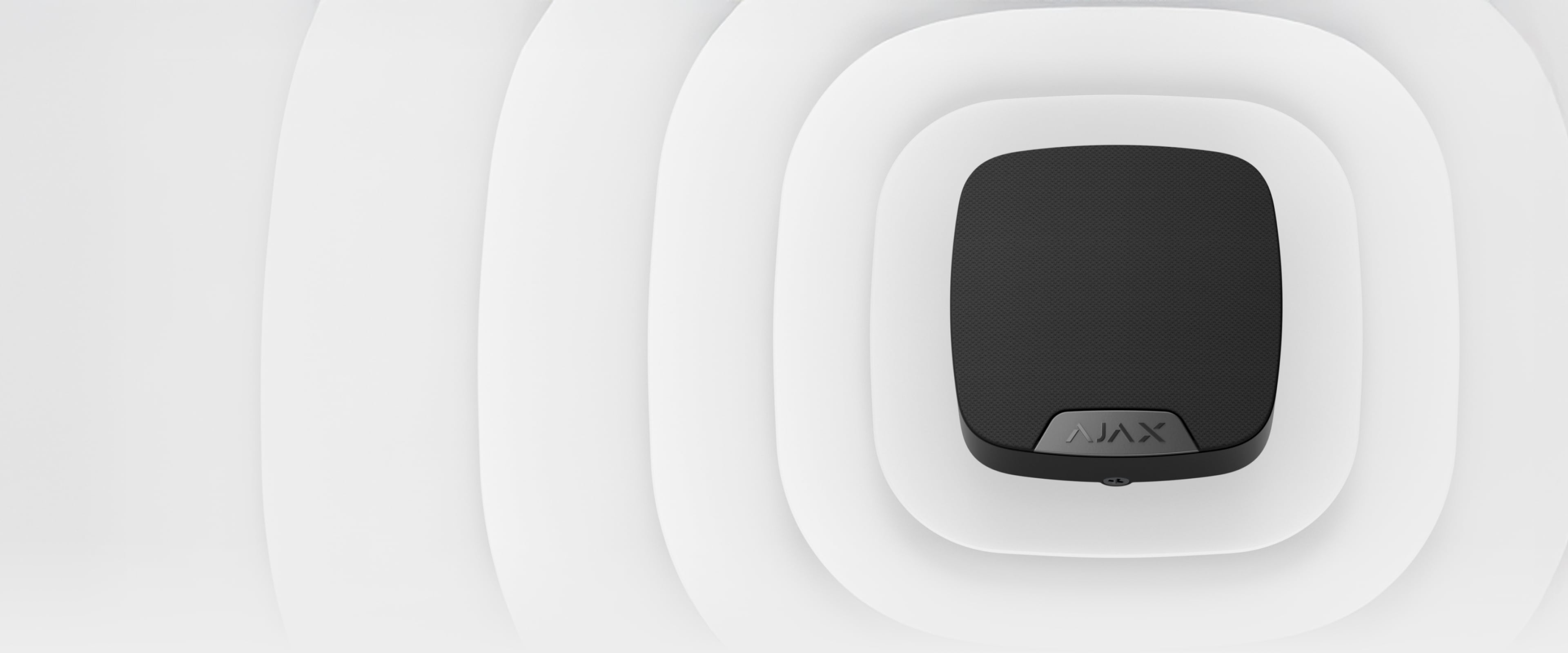

Adjustable volume of alarms and notifications

Siren volume

Adjustable alarm duration3

Built-in LED indicator

indication

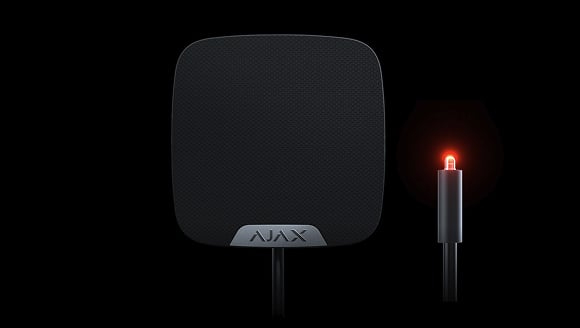

Possibility to connect a third-party LED indicator

indication
Chime feature

Chime feature2

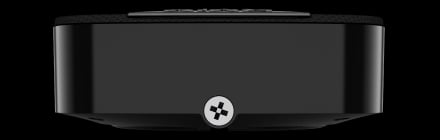

Holding screw

for reliable fastening and protection from quick dismantling

holding-screw

After-alarm indication

after-alarm

Up to 2,000 m

of wireless communication range1 with an Ajax hub or range extender

Jeweller radio communication

Jeweller radio communication

Power adjustment

Two colors

Two colours

Indication of security mode change and delays when entering/leaving

Informative push notifications

Ajax logo
10:00

Ajax

Home: Lid is open, HomeSiren U Jeweller in Bedroom

battery

Up to 5 years

of operation on pre-installed batteries

Remote control and configuration

remote-control

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Alarm and event alerts for any facility type

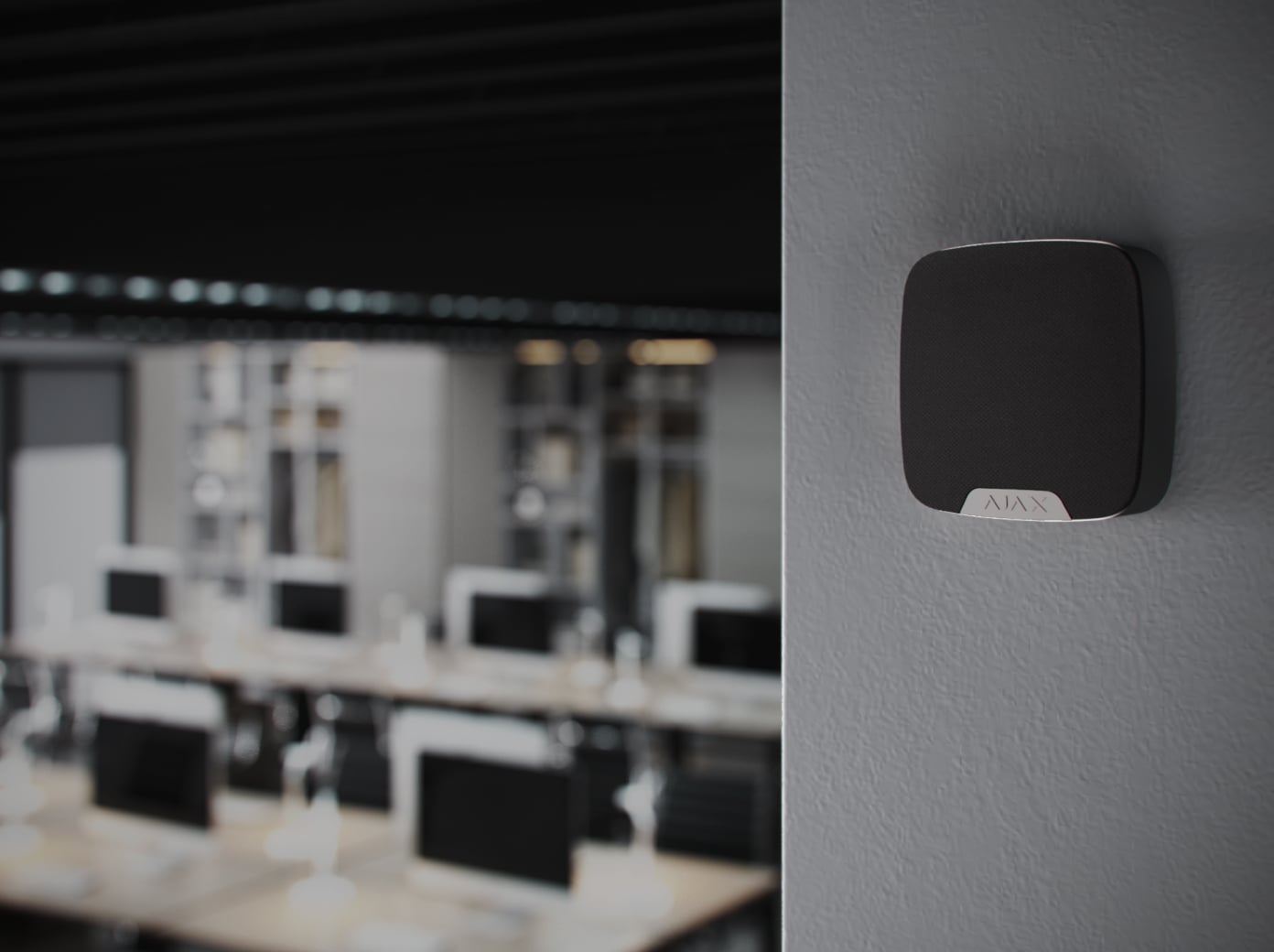

Office

Office

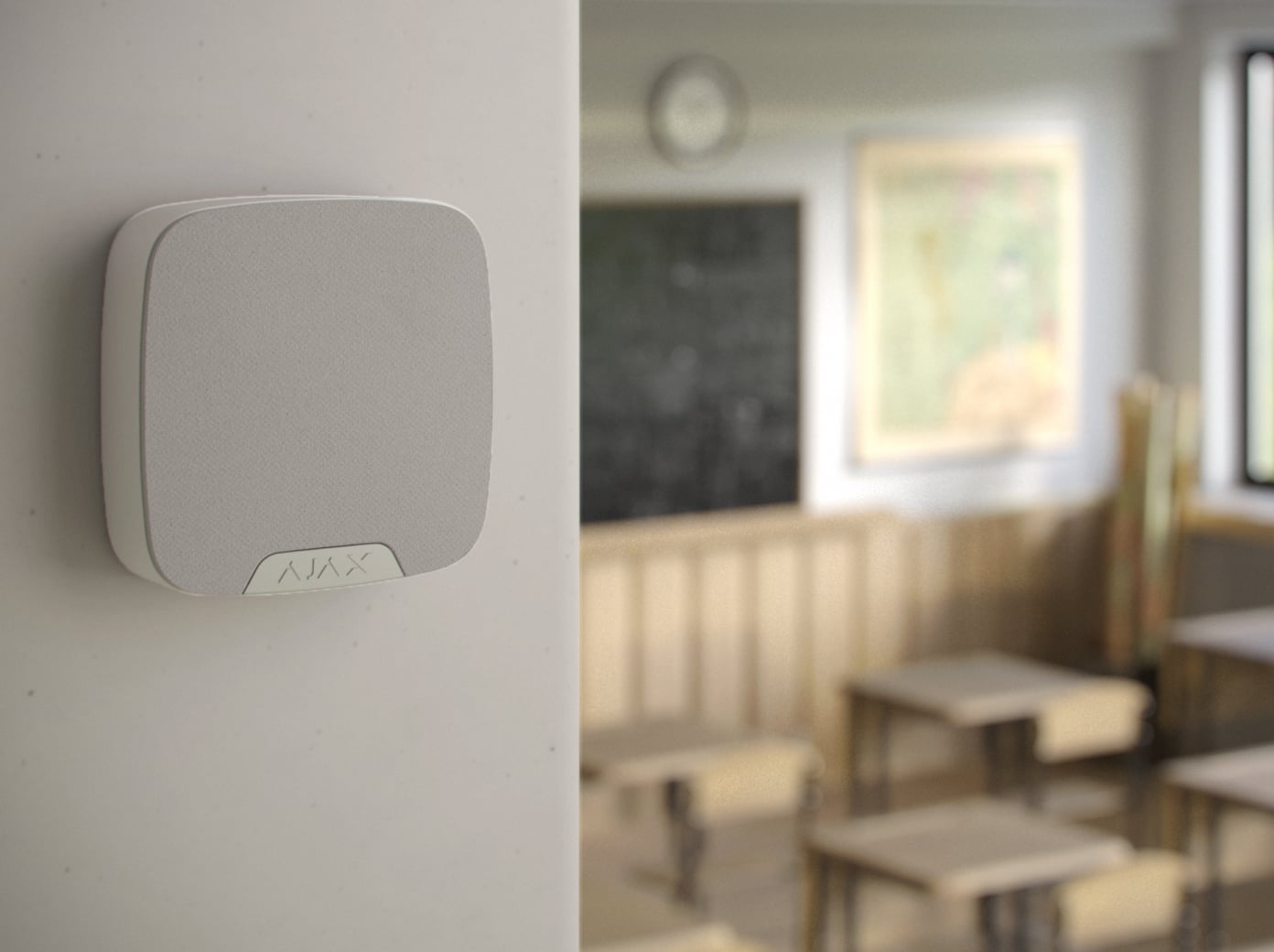

School

School

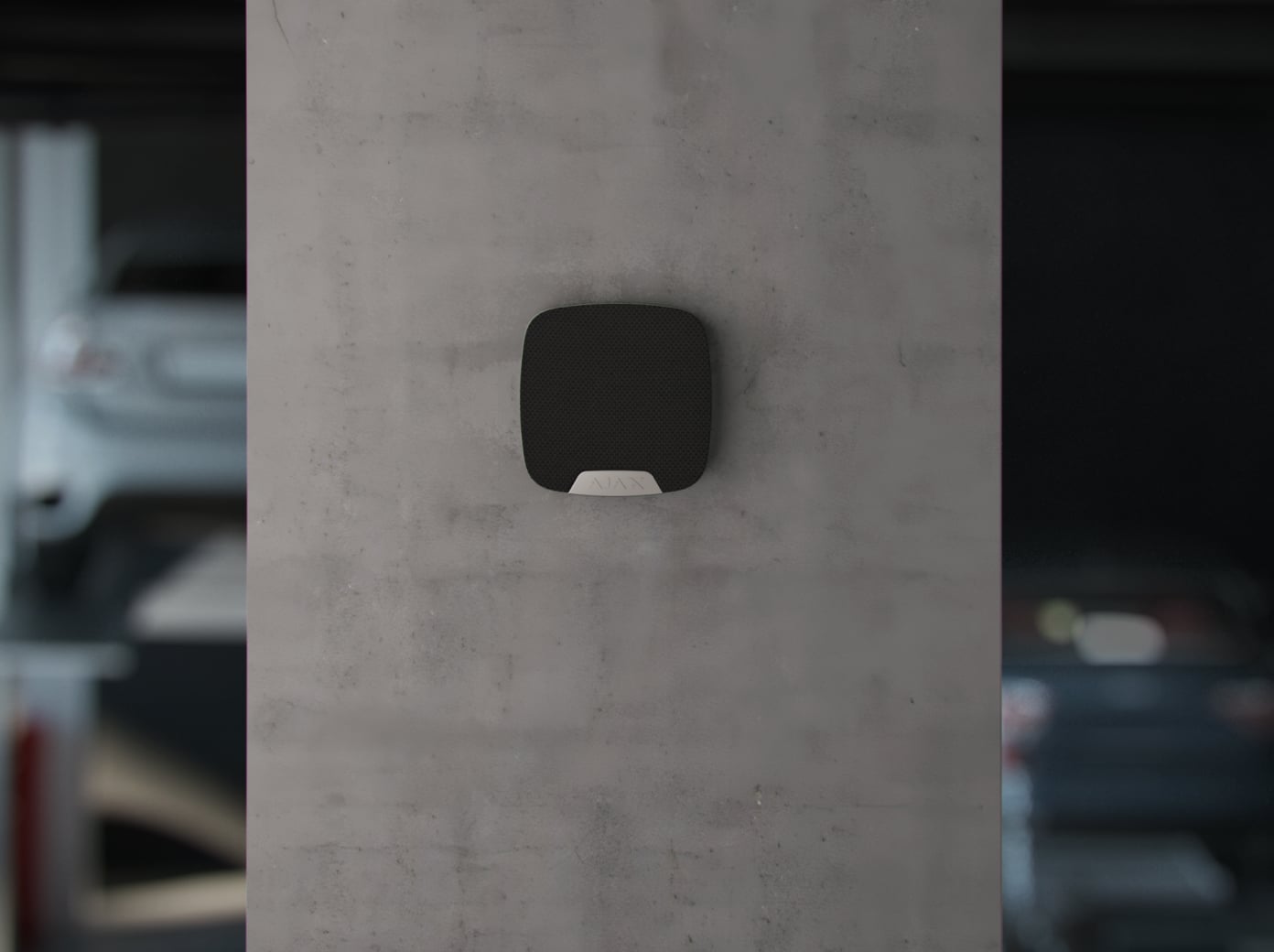

Car service

Car service

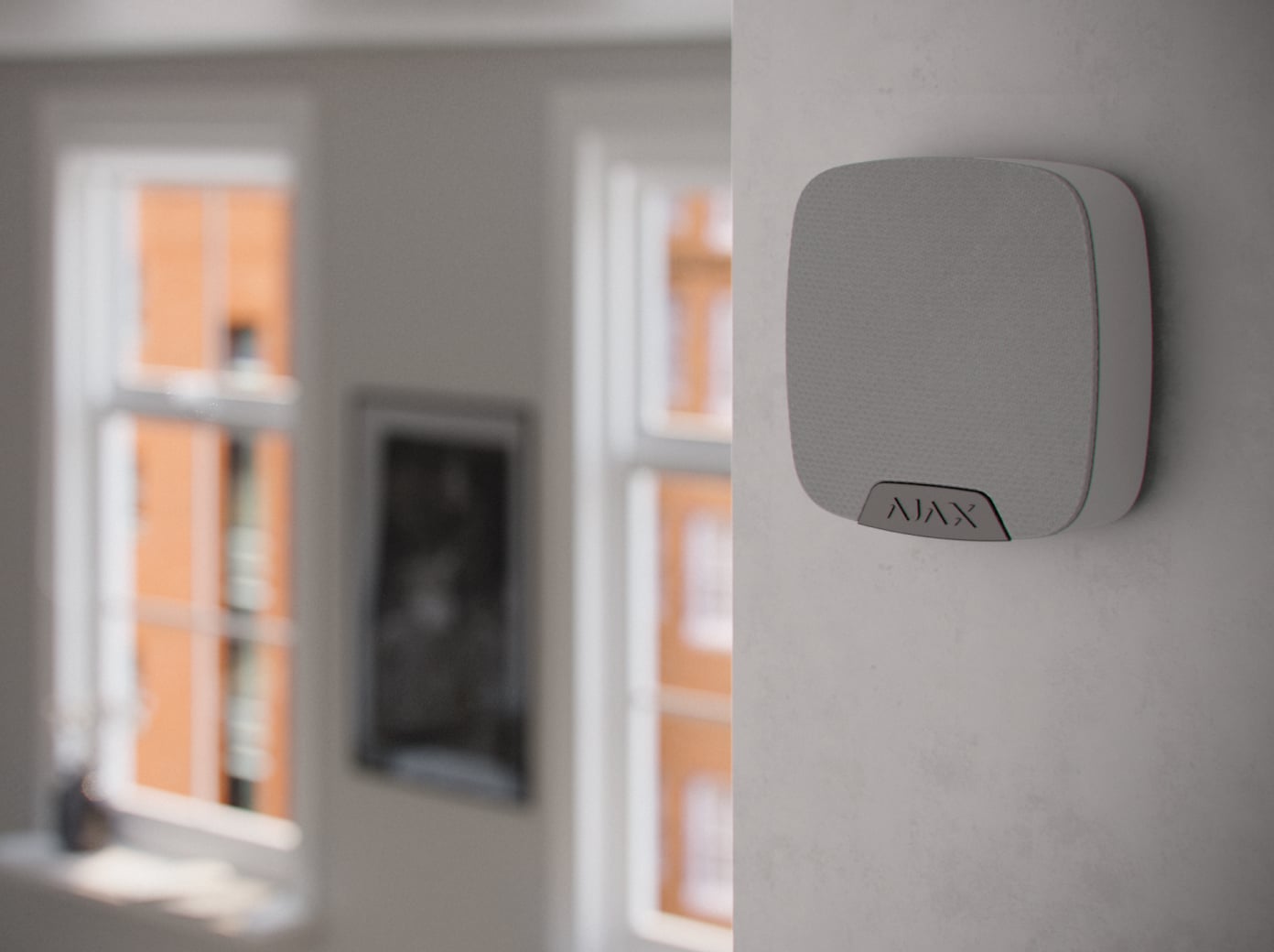

Flat

Flat

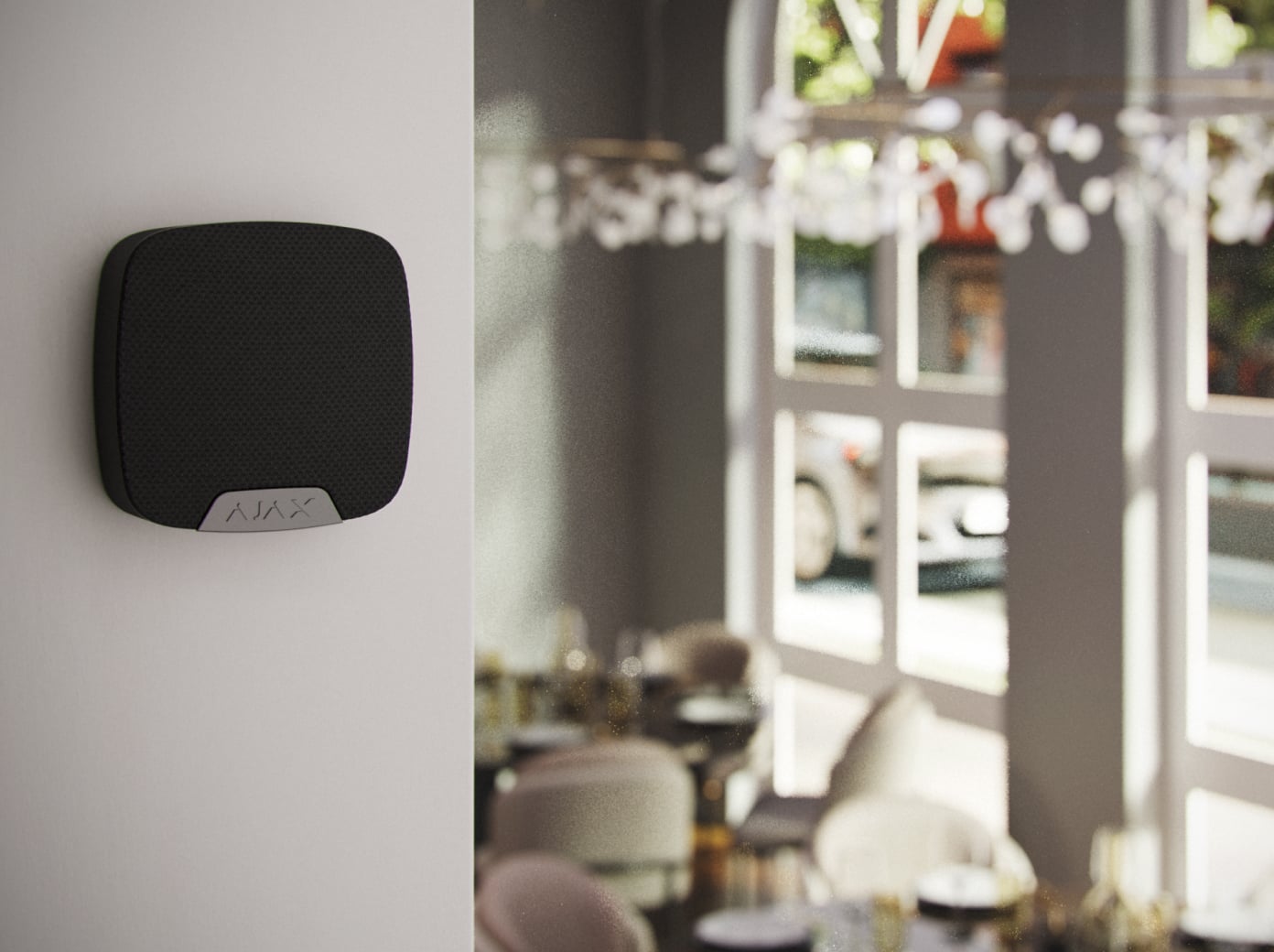

Restaurant

Restaurant

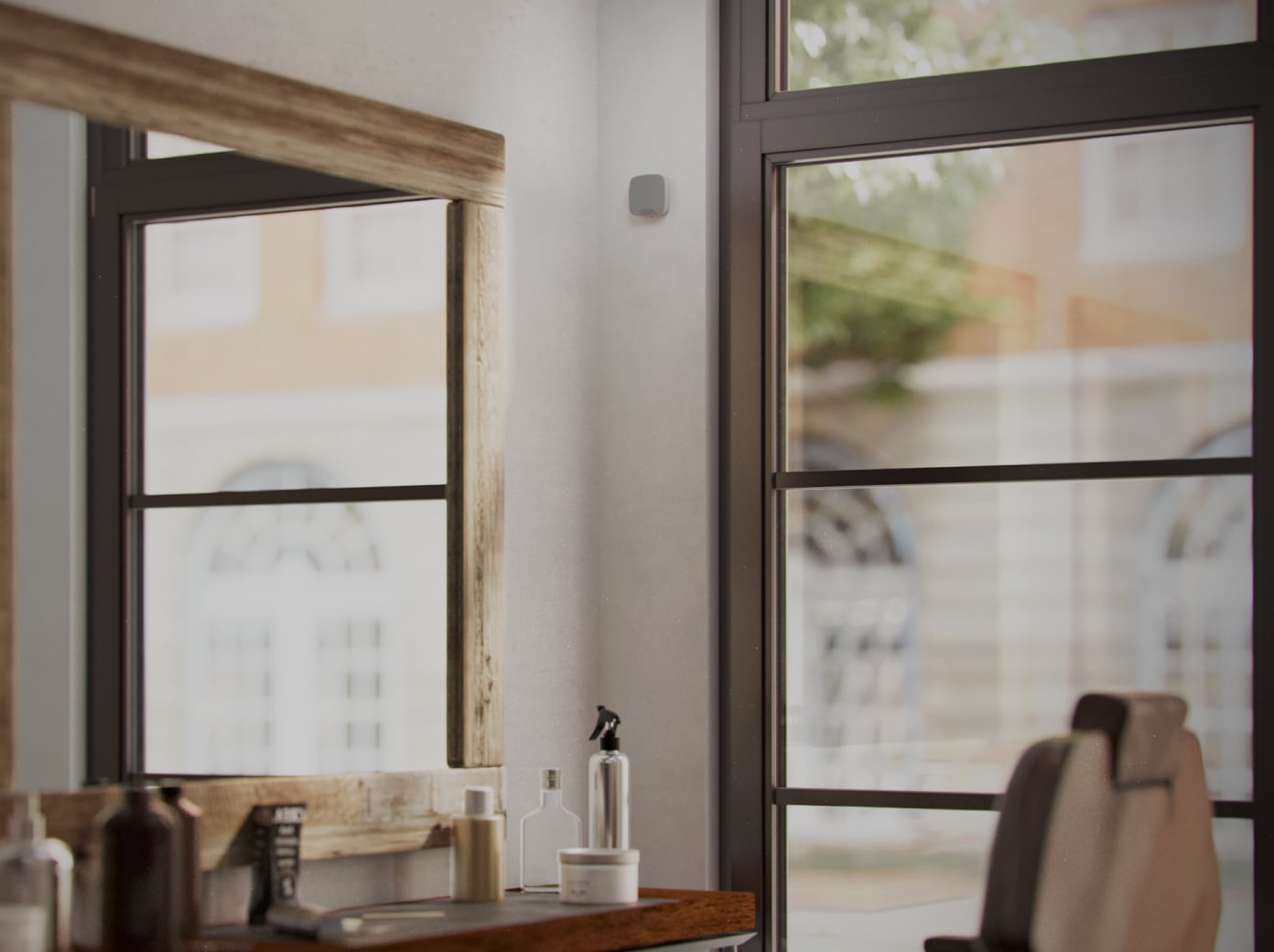

Barbershop

Barbershop

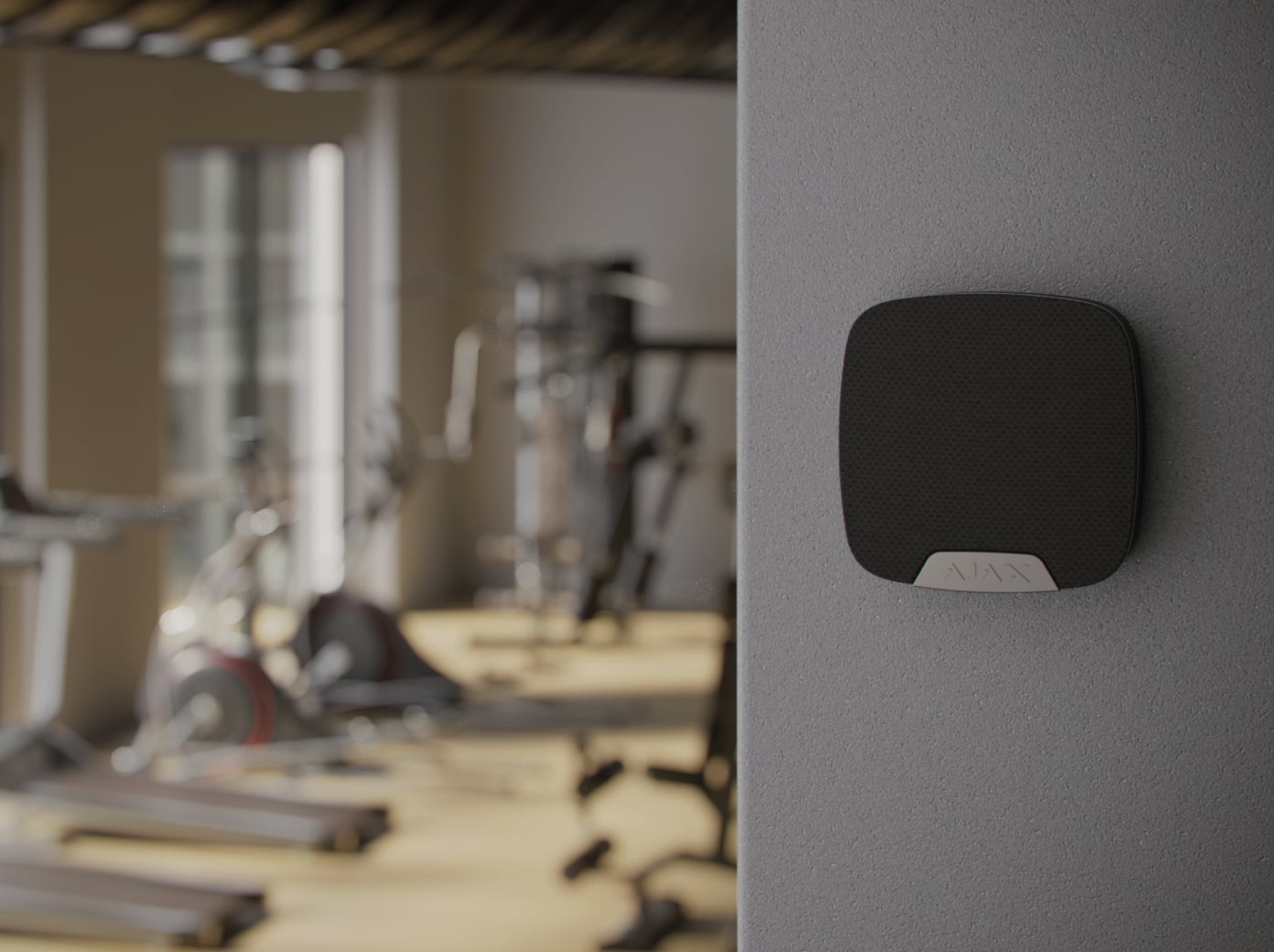

Gym

Gym

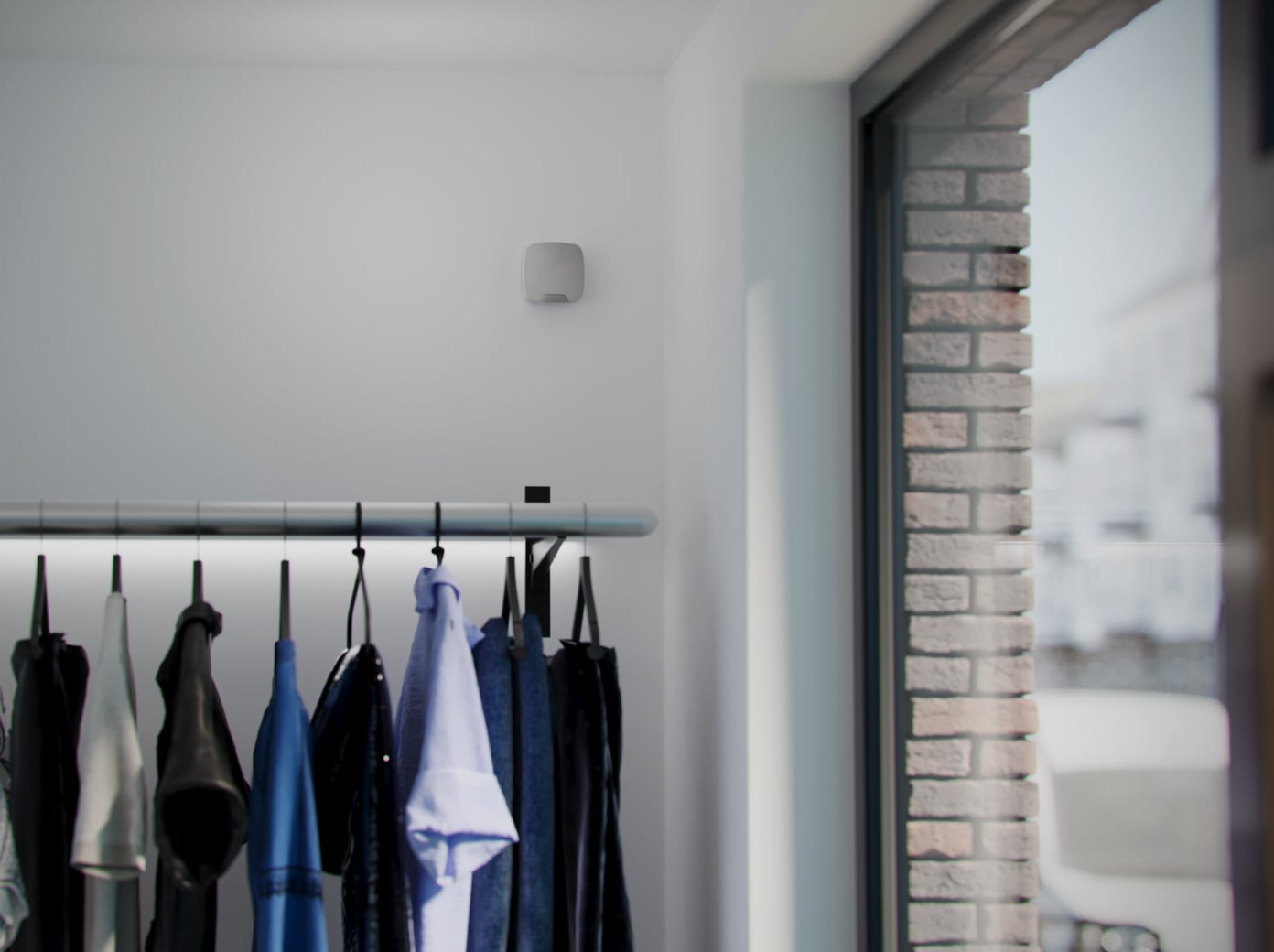

Store

Store

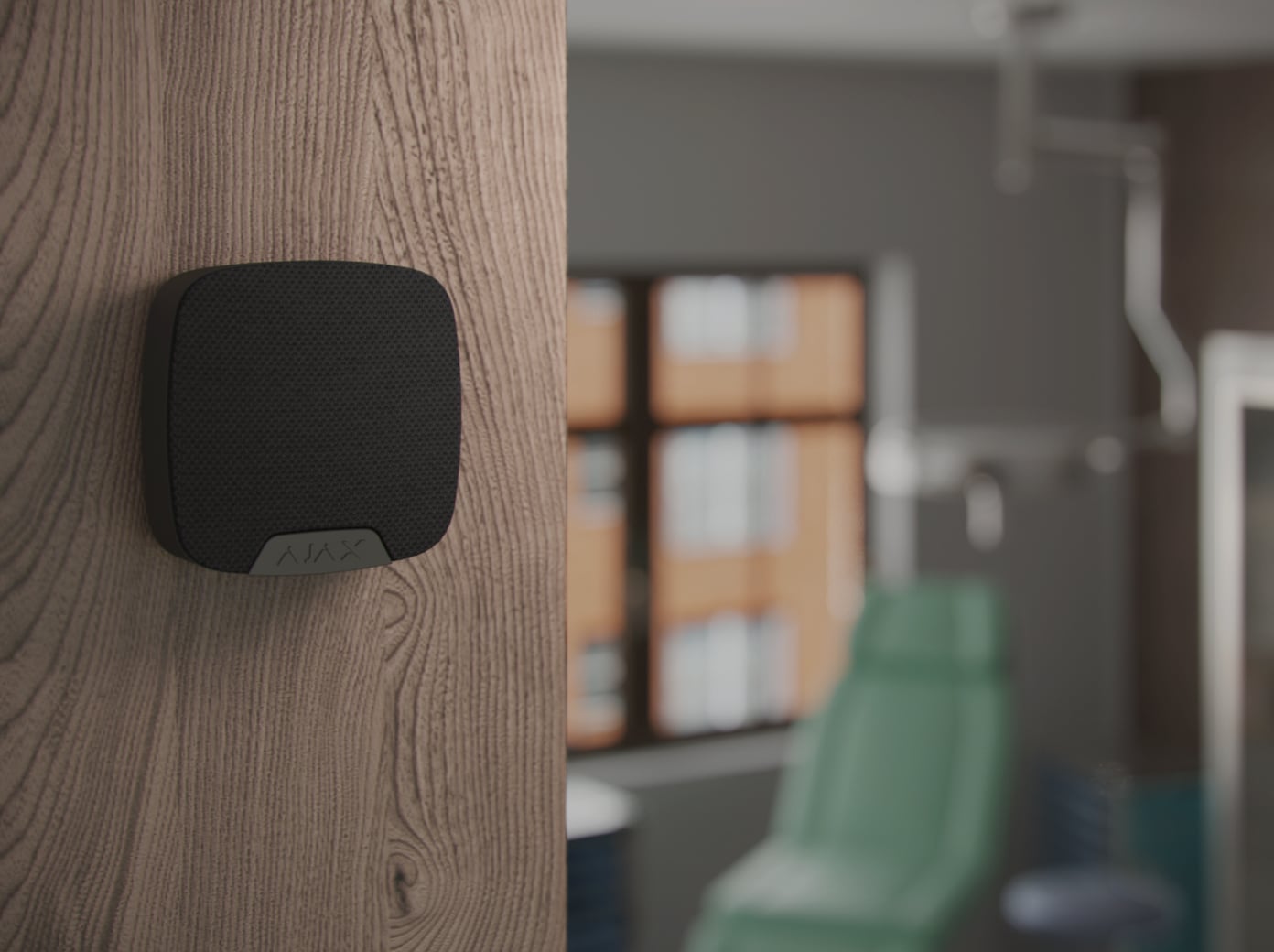

Medical centre

Medical centre

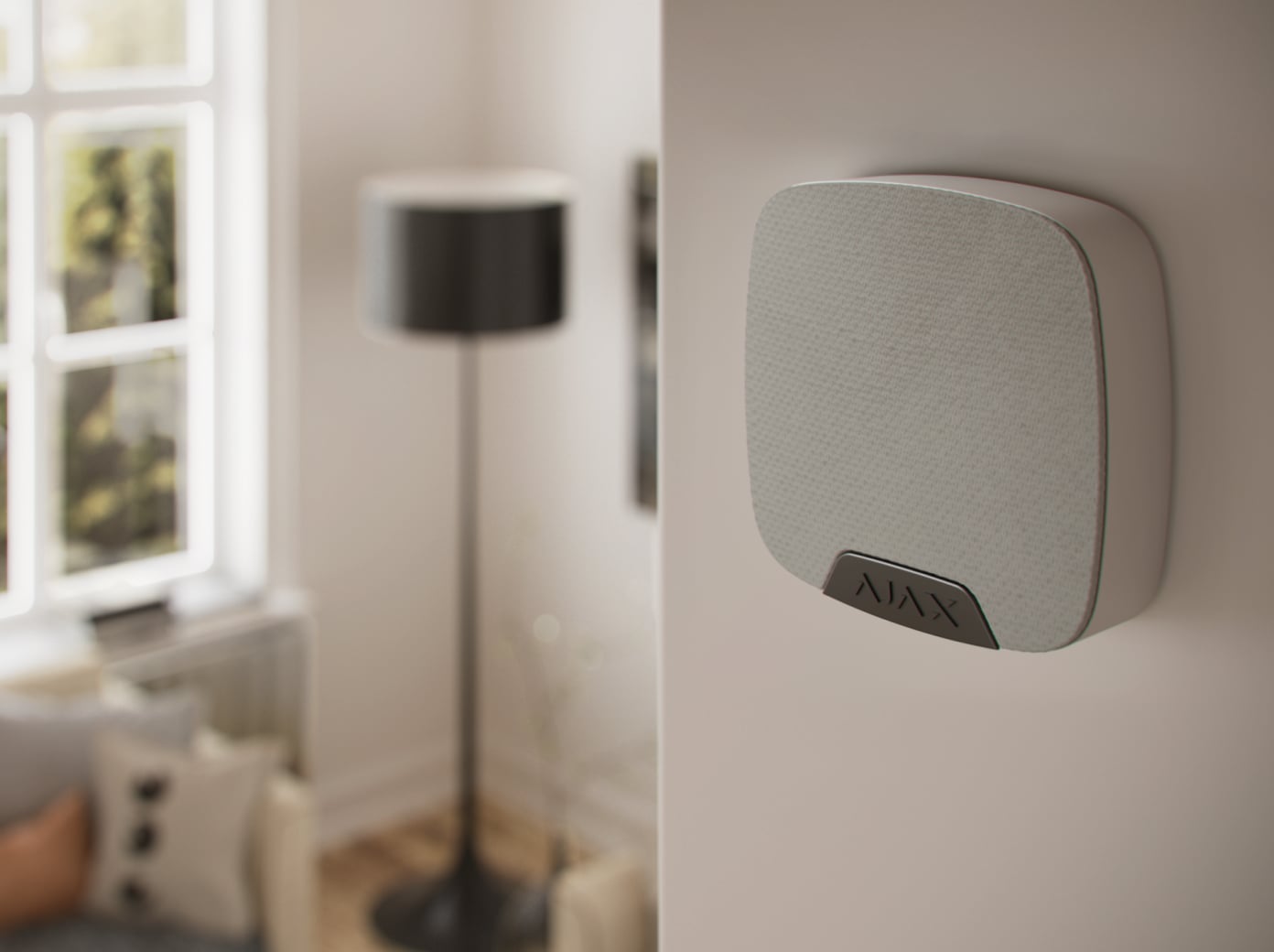

House

House

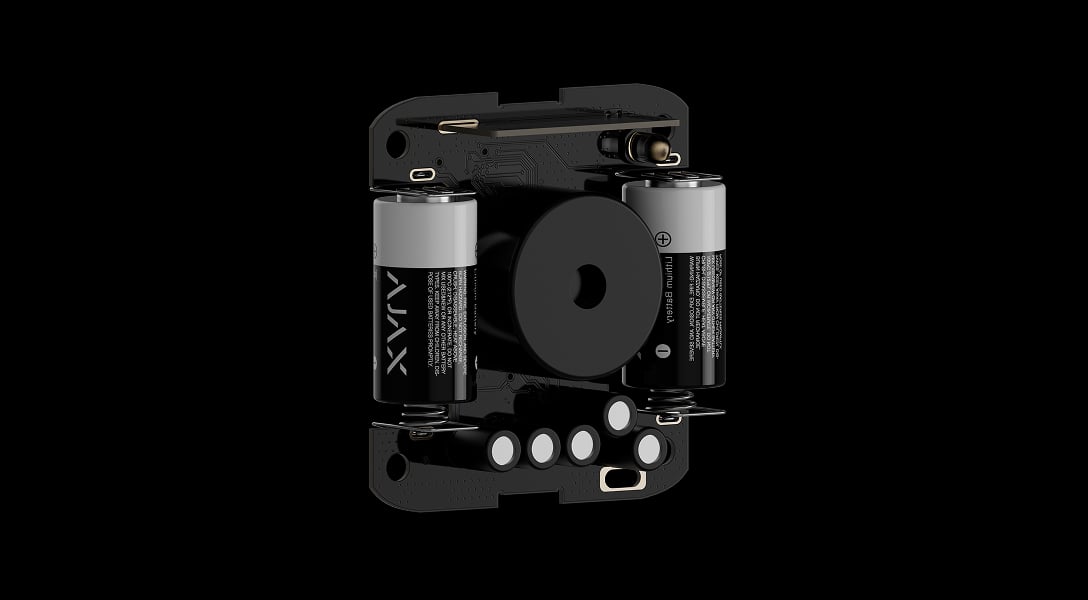

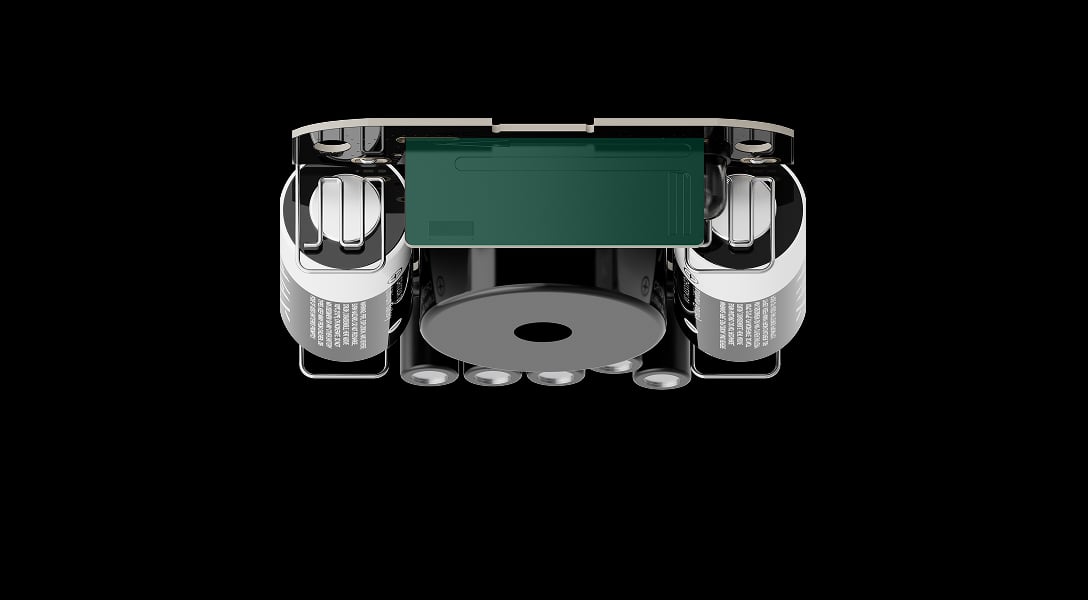

Discover future-proof hardware

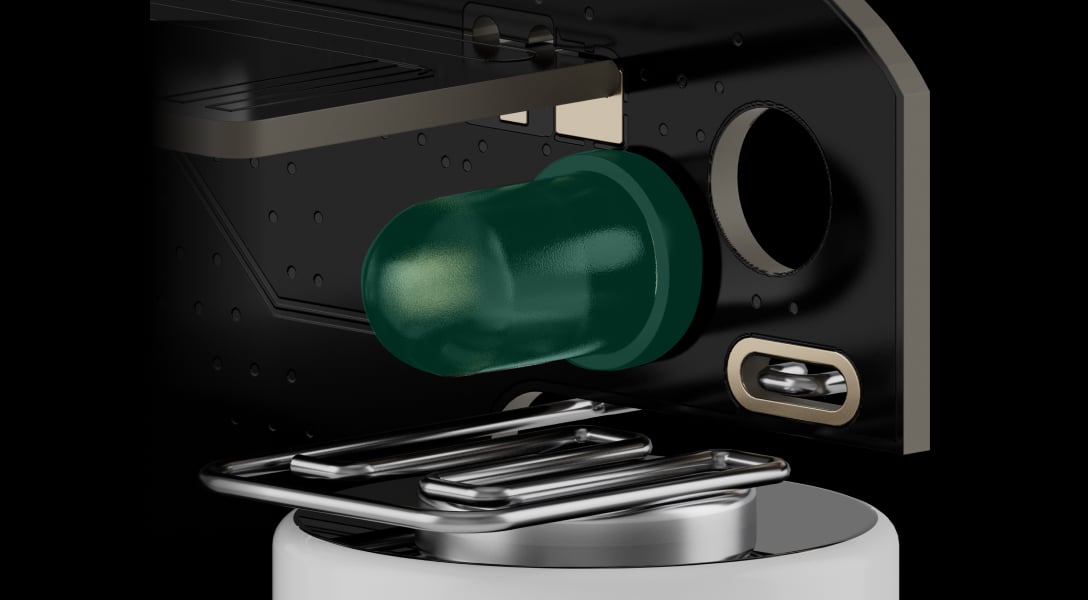

LED indicator

LED indicator

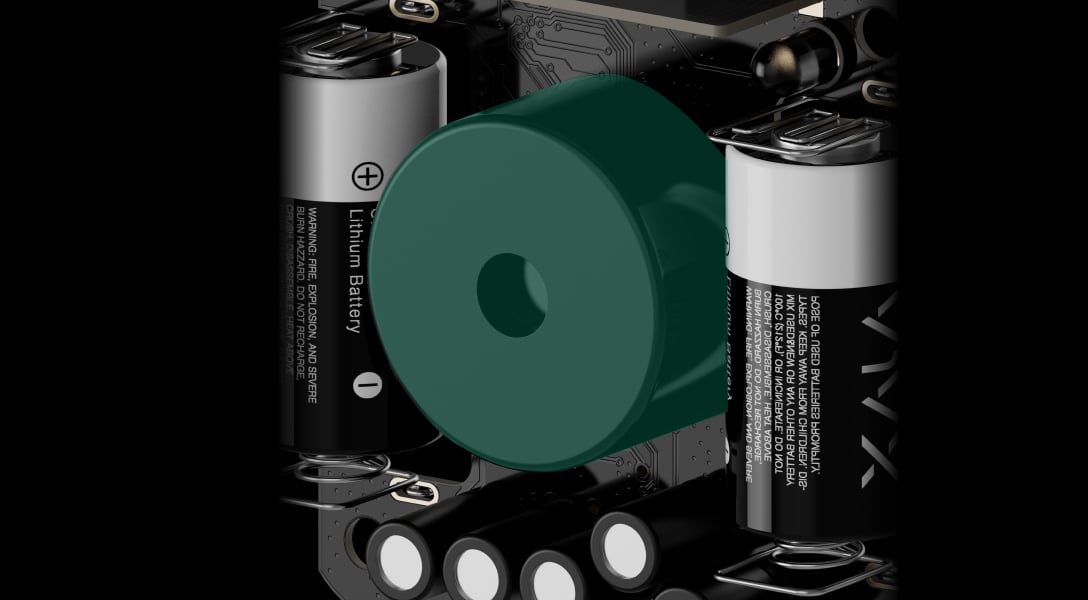

Buzzer

Buzzer

LED indicator

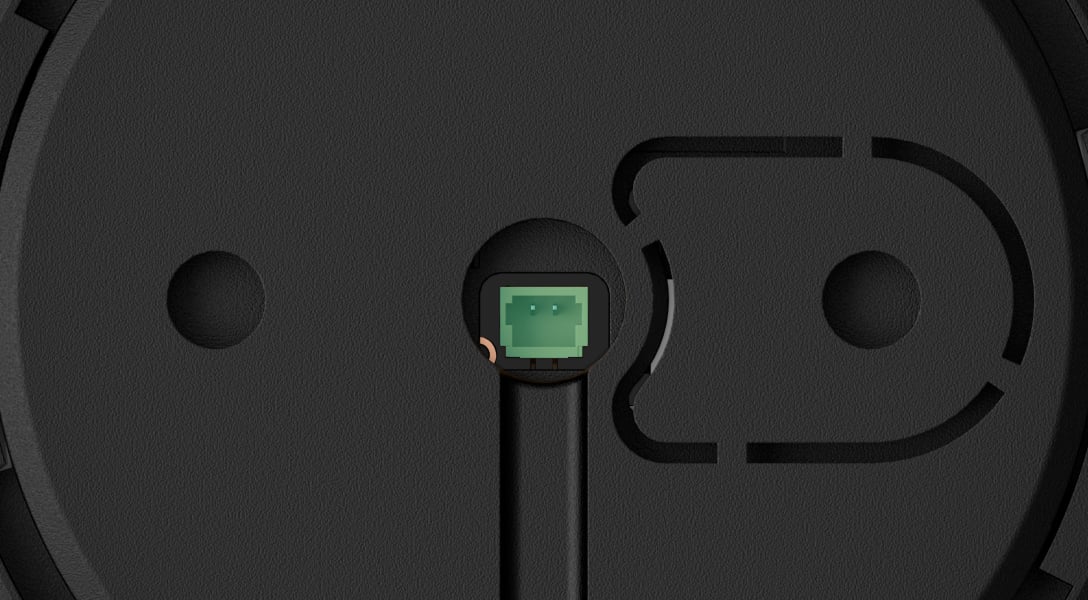

Connector for an external LED indicator

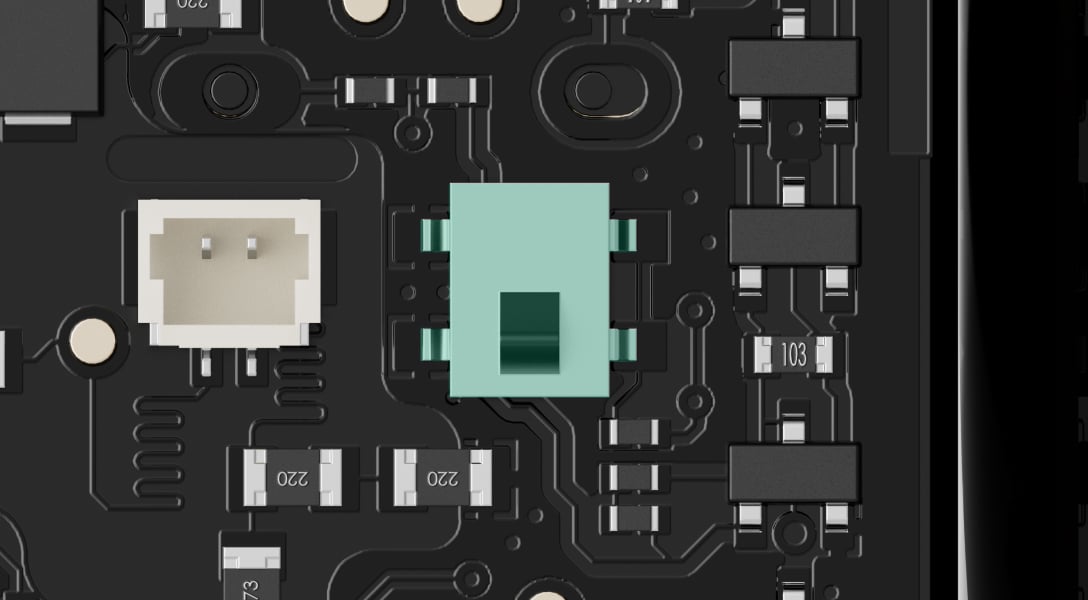

Tamper button

Tamper button

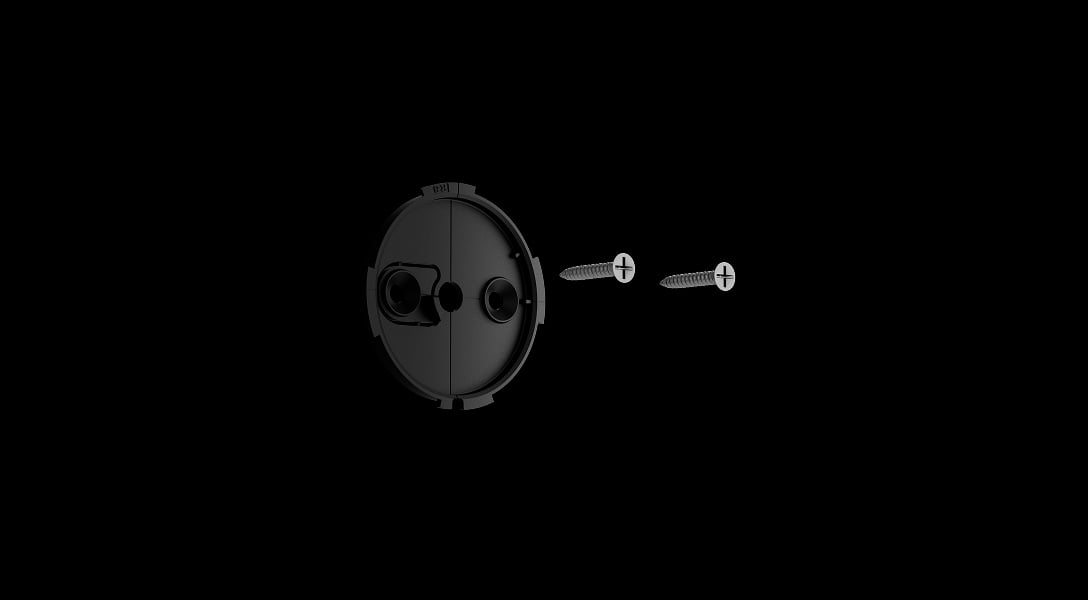

SmartBracket

SmartBracket mounting panel

batteries

Pre-installed batteries

antenna

Jeweller antenna

fixing points

Ready-to-use fixing points

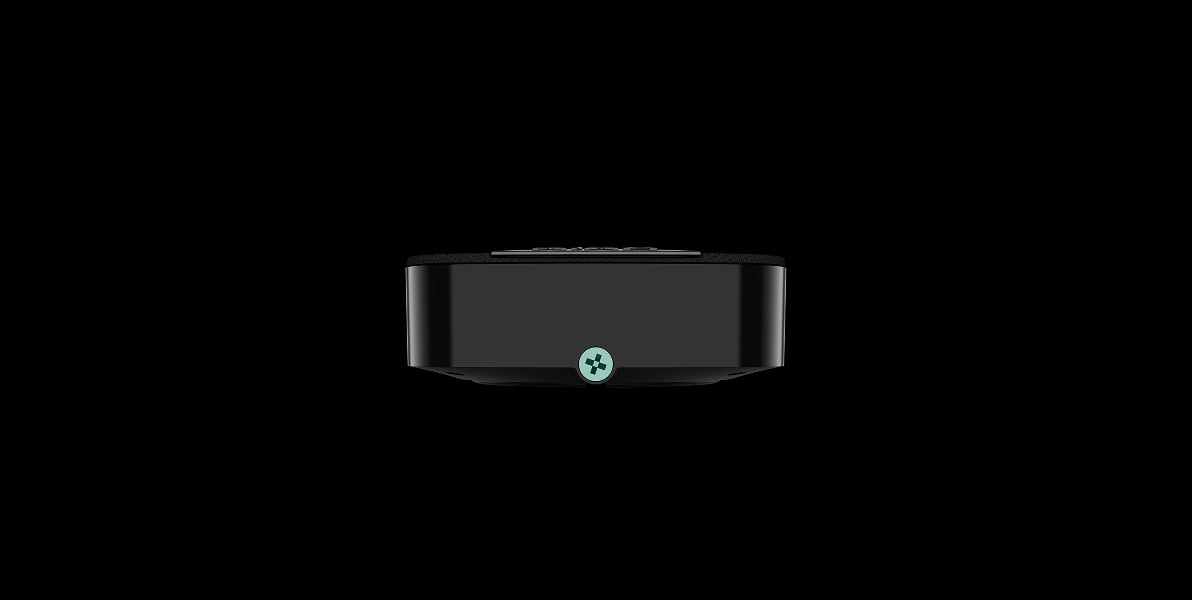

holding screw

Fixing point for a holding screw

One device, five missions

Informs of any alert

The siren serves as a deterrent to intruders and provides alerts for fire detection, water leaks, and other alarms. Installers can configure the siren to respond to alarms triggered by specific detectors or security groups, and customize its volume using an Ajax app.

alarm-notification

Indicates delays

HomeSiren U Jeweller can be configured to signal a delay when entering or leaving. When activated, the sound signal and built-in or external LED indicators serve as a reminder for users to disarm the system.

homesiren-delays

Displays the security mode

The siren can notify users of security mode changes with both sound and an LED indicator. The latter can be set to remain on continuously, indicating that the system is armed to prevent unwanted tracking. Additionally, an external LED indicator can be installed to ensure clear visibility of the security system status.

armed-mode

Notifies of doors being opened

HomeSiren U Jeweller offers a unique Chime feature that plays a special sound when an opening detector is triggered, even when the system is disarmed. This is ideal for stores, as it immediately alerts staff to incoming customers.

chime

Provides after-alarm indication

When after-alarm indication is activated, the built-in or external LED indicator displays both confirmed and unconfirmed alarms, as well as notifies of the lid being opened.

alarms-in-system

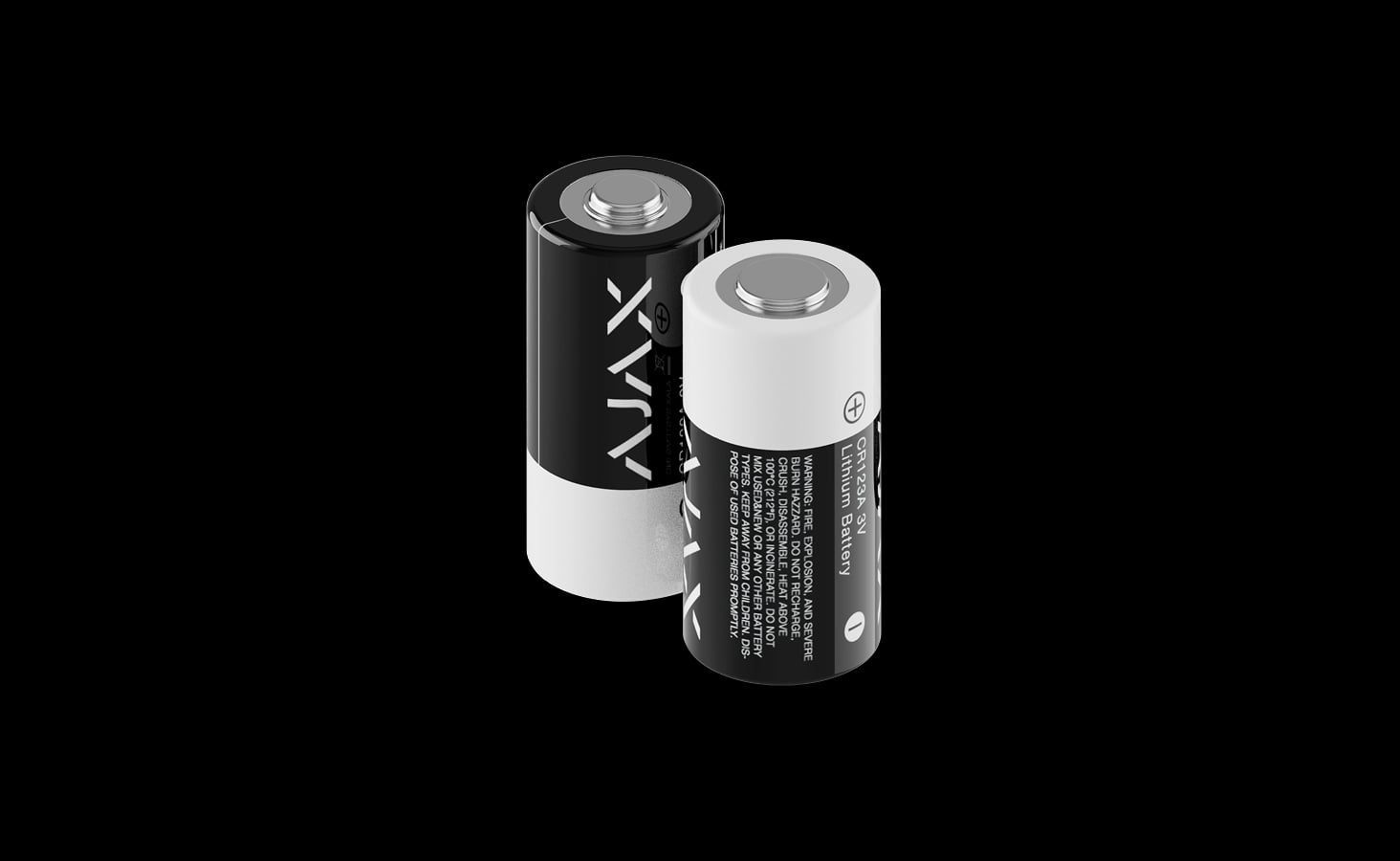

Reliable performance in extreme temperatures

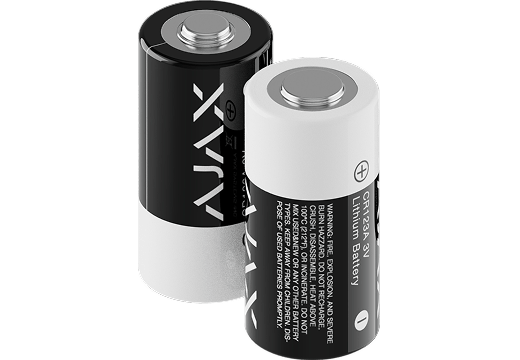

HomeSiren U Jeweller is powered by high-quality batteries that undergo real-time testing during production, with each unit meticulously inspected by Ajax Systems to verify its performance characteristics. These batteries maintain stable operation in temperatures ranging from -10 °C to +40 °C, ensuring consistent performance without any loss of capacity.

Minimal impact of temperature extremes on battery life

Proven high quality through regular testing

Up to 5 years of autonomous operation

Batteries
Unique wireless technology

Jeweller

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides a block encryption and device authentication during each communication session with Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 2,000 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Communication through steel and concrete

Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.

Up to 5 range extenders within one system

Ethernet-equipped model available

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, such as tamper, communication, and power supply statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for monitoring companies and users. In case of any malfunction or connection failure, an installation engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with status report

Regular polling to display the current device state in apps

Instant maintenance notifications

System supervision

Sabotage resistance

Tamper alarm

Tamper alarm

A tamper is designed to detect malicious dismantling of HomeSiren U Jeweller. Users and CMS will be immediately notified of this. Other sirens in the system may also activate a sound signal if they are set up accordingly.

Data encryption

Data encryption

Block encryption with a dynamic key protects all the stored and transmitted system data. It makes device reprogramming extremely difficult and protects data from replacement and theft.

Data-rich notifications

Data-rich notifications

The Ajax system instantly delivers informative notifications of alarms and events. Security companies and users receive precise details about an incident, including a triggered device, time, and location.

Device authentication against spoofing

Device authentication against spoofing

The hub authenticates the device during each communication session by checking its unique parameters. If any parameter fails the check, the hub ignores device commands.

Regular polling

Regular polling

The device regularly exchanges data with the hub. The system controls each device state and reports any malfunction and connection loss.

Connection loss detection

Connection loss detection

At minimal polling interval settings (3 data packages every 12 seconds), it takes only 36 seconds to detect connection loss and notify the security company and users of the incident.

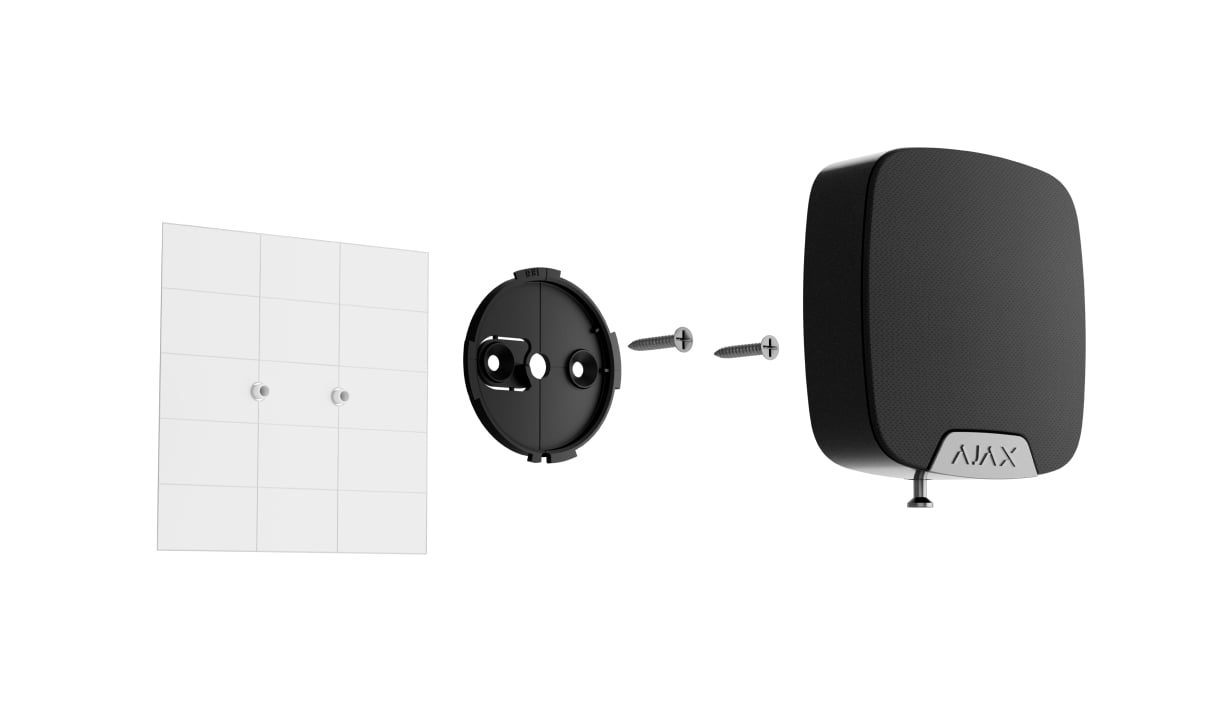

Effortless installation and setup

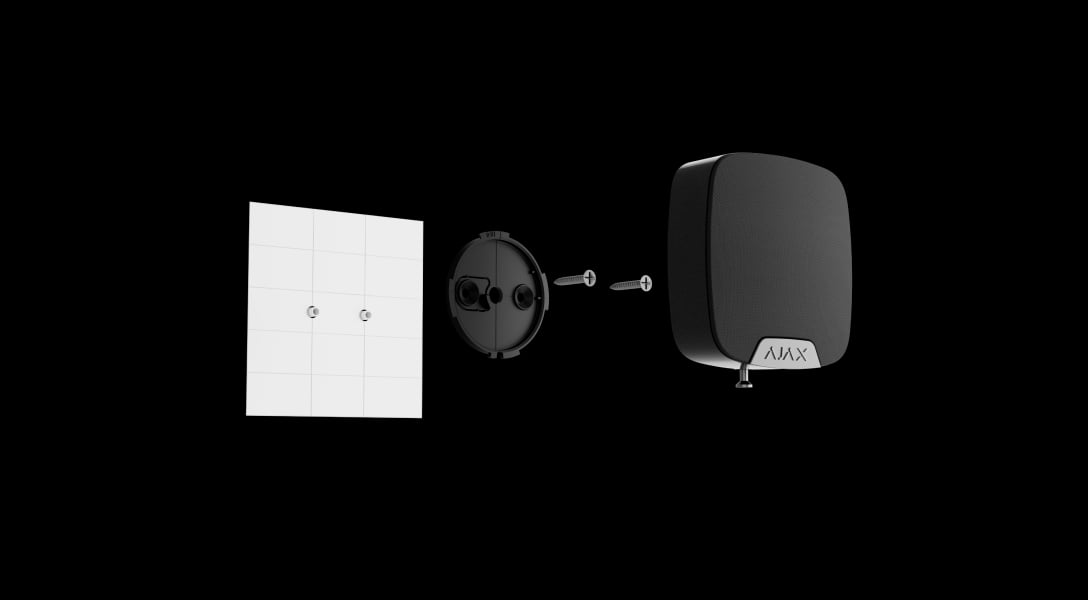

HomeSiren U Jeweller is ready to operate straight out of the box. Using the SmartBracket mounting panel, an installer can effortlessly mount the device on the wall, eliminating the need to disassemble the enclosure. Ajax apps facilitate quick integration into the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Pairing with the hub via the QR code

Connection

SmartBracket mounting panel — no need to disassemble the enclosure for installation

Installation

Configuring and testing in mobile and desktop apps

Setup

PRO Desktop app for macOS and Windows

Monitoring
1

In an open space.

2

Requires additional installation of an opening detector.

3

From 3 seconds to 3 minutes.
