Tech specs
Ajax SpaceControl Jeweller
Wireless key fob with a panic button and control for security modes
Devices compatibility
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 1,000 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Key features
Number of buttons
4
- System arming button.
- System disarming button.
- Night mode button.
- Panic button.
Group management
A user can select a security group that the key fob manages.
Assigning to a user
When a key fob is assigned to a user, its events are sent to Ajax apps under the user’s name. The key fob has the same security mode management rights as the user.
Accidental press protection
long or double press
Available on key fobs with the firmware version 5.54.1.0 or higher manufactured from March 19, 2020.
Power supply
Battery
1 × CR2032
Pre-installed.
Type
type C
Full battery capacity
225 mAh
Device’s nominal operating voltage
3 V⎓
Quiescent device’s current consumption at nominal voltage
0.7 μA
Maximum device’s current consumption at nominal voltage
26 mA
Calculated battery life
up to 5 years
Manufacturer
Renata
Panasonic
Panasonic
UL listed.
Enclosure

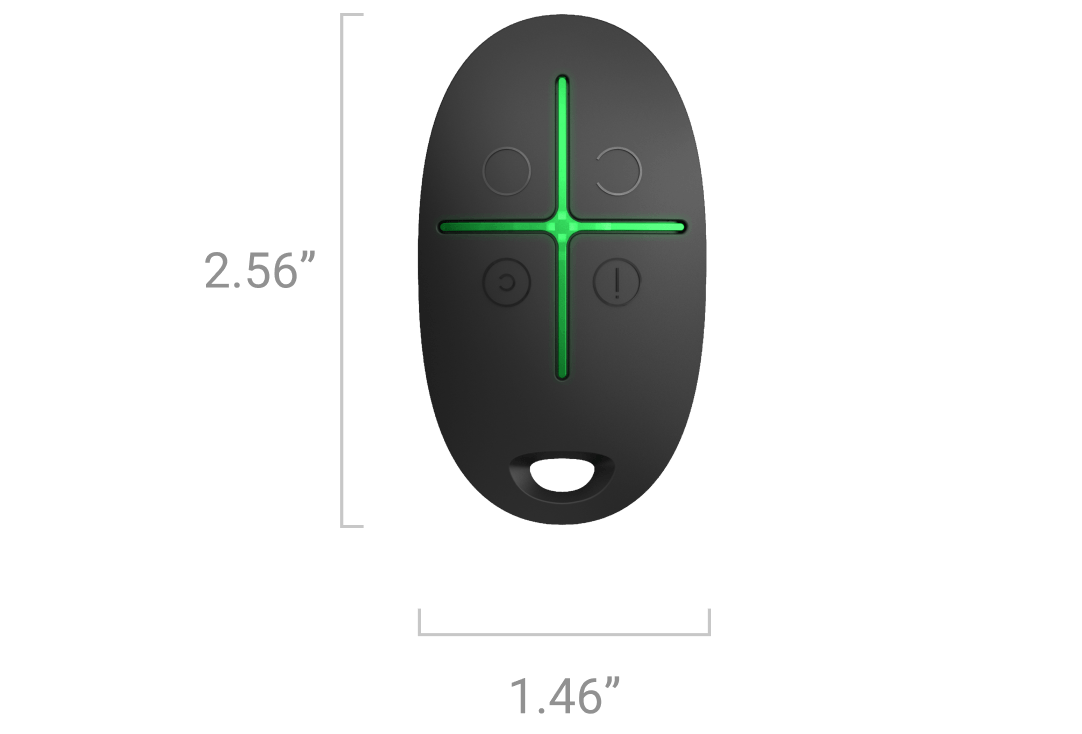

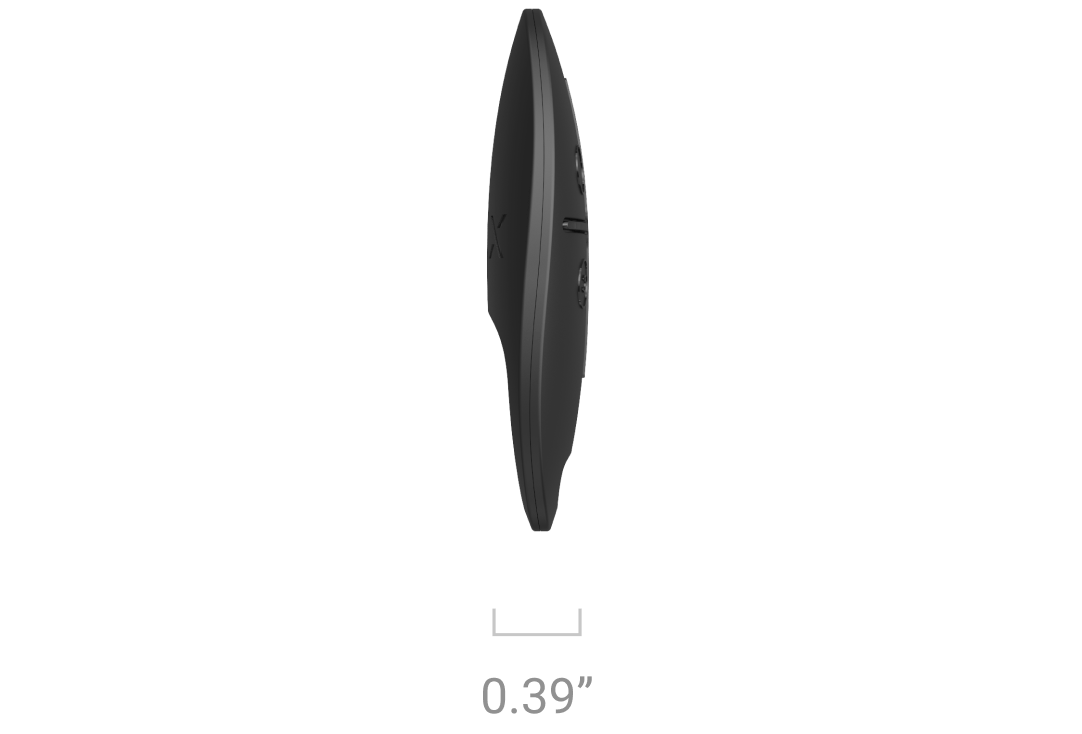

Dimensions
2.56″ × 1.46″ × 0.39″
Weight
0.46 oz
Operating temperature range
from −13 °F to 122 °F
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Operating humidity
up to 95%
Humidity of up to 93% is certified according to UL/ULC standards.
Protection class
IP50
Colors
Black
White
Complete set
Ajax SpaceControl Jeweller
CR2032 battery (pre-installed)
Quick start guide
