United StatesTech specs
Case C (260)
Casing for an Ajax module and a 7 Ah battery
Compatibility
with a battery up to 7 Ah
Devices installation
Number of slots
1
To install a different number of devices, select a model with the appropriate number of slots:
Plastic rails
to secure a module
Slide LineSupply Fibra along the rails to remove it from the casing.
Cable fasteners
to hold the cables together with ties
Plastic stoppers
to protect the installed device
During drilling, the instrument rests on the Case stoppers.
Bubble level
To check the inclination angle of the casing during installation.
Recesses for drilling
Ø20 mm or Ø32 mm
The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic.
Wider holes
To ensure that the casing is installed correctly, even if there are errors during installation.
Holders for a battery
up to 7 Ah
To prevent accidental dislodgement of the battery.
Key features
Tamper board
Included in the Case complete set. The tamper board connects to the appropriate LineSupply Fibra connector and protects the installed device from sabotage.
Holding screws
in the casing lid
Latches
to secure the lid during installation
The latches prevent the lid from falling off Case until it is secured with screws.
Recomendations
The device is designed for indoor use only. Case is produced in several versions.
Product
Dimensions

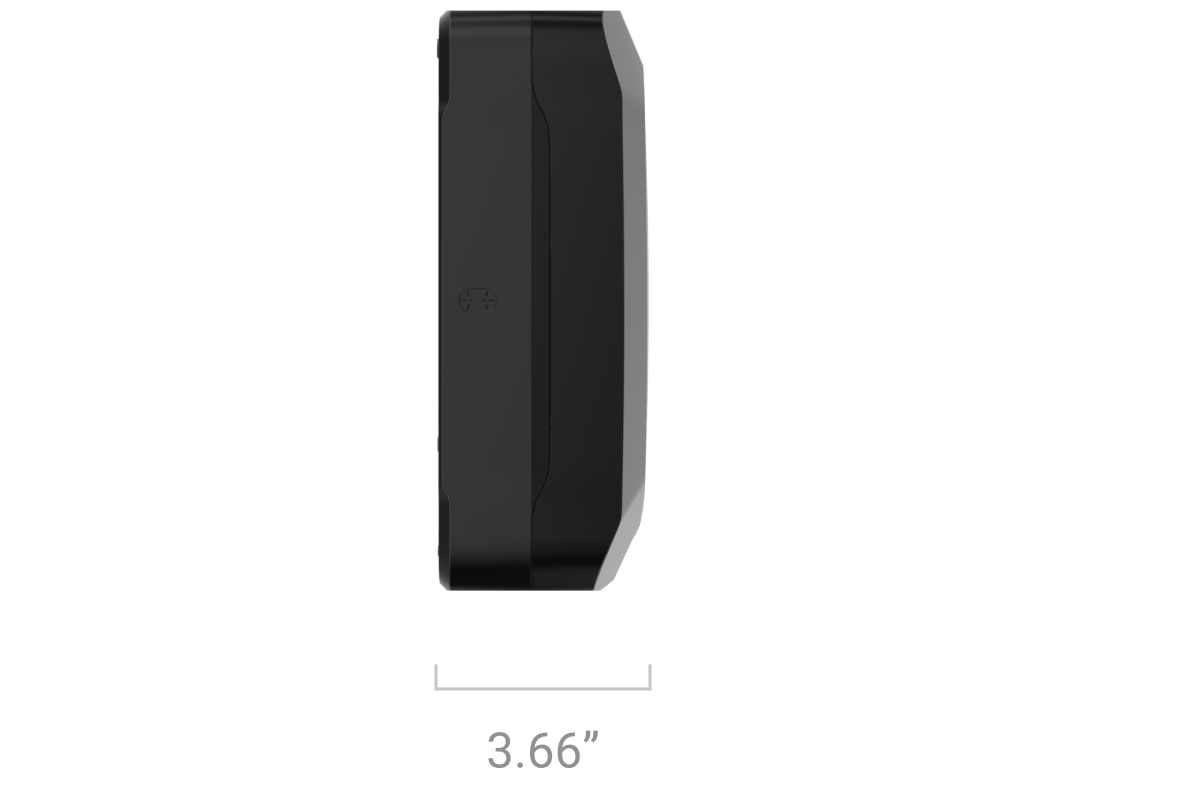

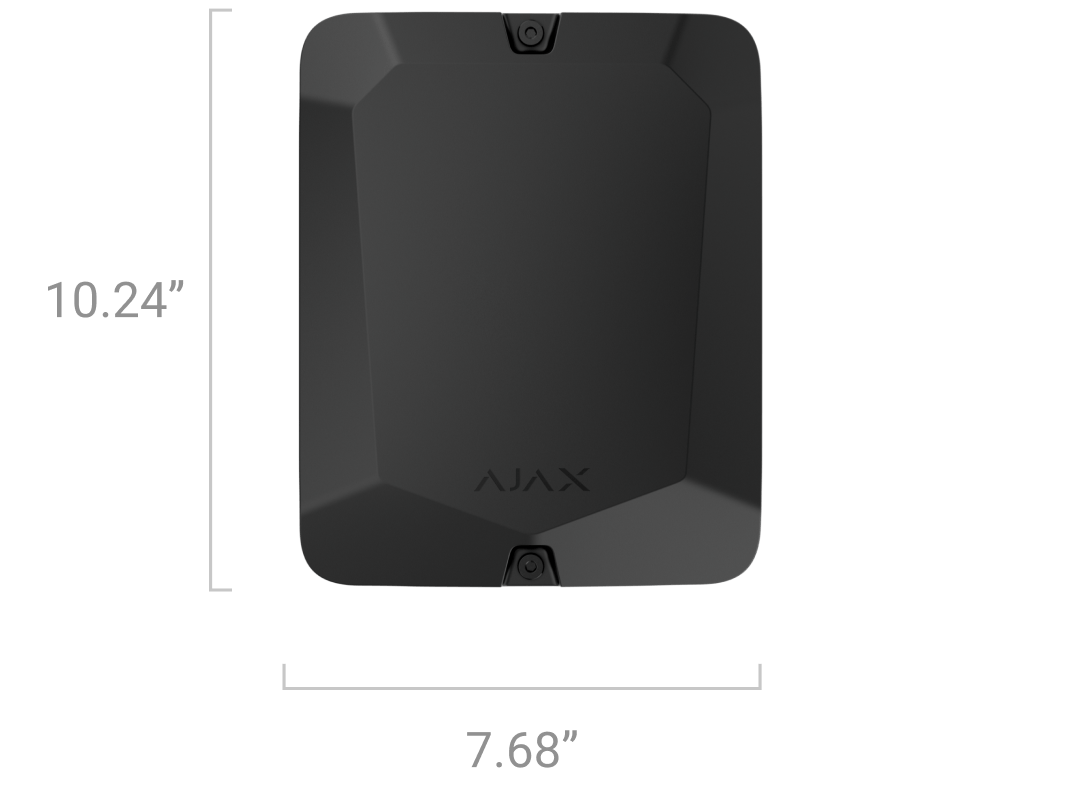

10.24″ × 7.68″ × 3.66″
Weight of the black Case
2.2 lb
Weight of the white Case
2.3 lb
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Colours
Black
White
Complete set
Case C (260)
Tamper board
Installation kit
Quick start guide
