DoorProtect Jeweller

Wireless opening detector with reed switch

DoorProtect Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

* Certified according to UL/ULC standards.

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 3,900 ft

Between detector and control panel (or range extender) in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Detection

Sensitive element

1 reed switch

Magnets

small and big one come in the set

The small magnet operates at a distance of up to 0.4″ from the detector, and the big magnet — up to 0.8″.

Protection against reed switch chattering

The detector ignores vibrations lasting up to 0.15 s.

Input to connect an additional detector

Wired detector with the normally closed (NC) contact type.

Chime

When the system is disarmed, the siren makes a special sound to notify that the opening detectors are triggered.

Recommendations

Do not install the detector using both magnets at the same time. The detector recognizes only one magnet on one side of the detector.

Attach the magnet to the moving part of the door (window) to the right of the detector. The side to which the magnet should be attached is marked with an arrow on the detector’s enclosure.

The device is designed for indoor use only.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

1 × CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 7 years

Device’s nominal operating voltage

3 V⎓

Quiescent device’s current consumption at nominal voltage

17.5 μA

Maximum device’s current consumption at nominal voltage

21.4 mA

Full battery capacity

1,600 mAh

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End-of-life battery voltage

2.1 V⎓

Device is switched off.

End-of-life battery capacity

300 mAh

Manufacturer

Huiderui

UL listed.

Enclosure

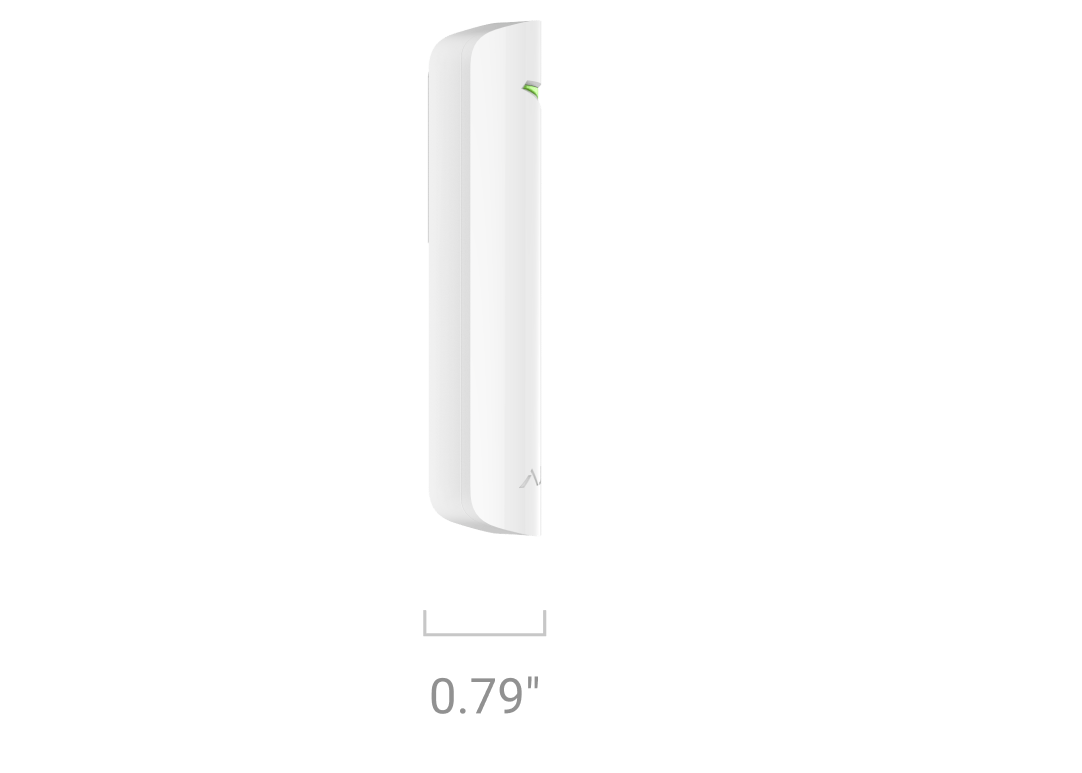

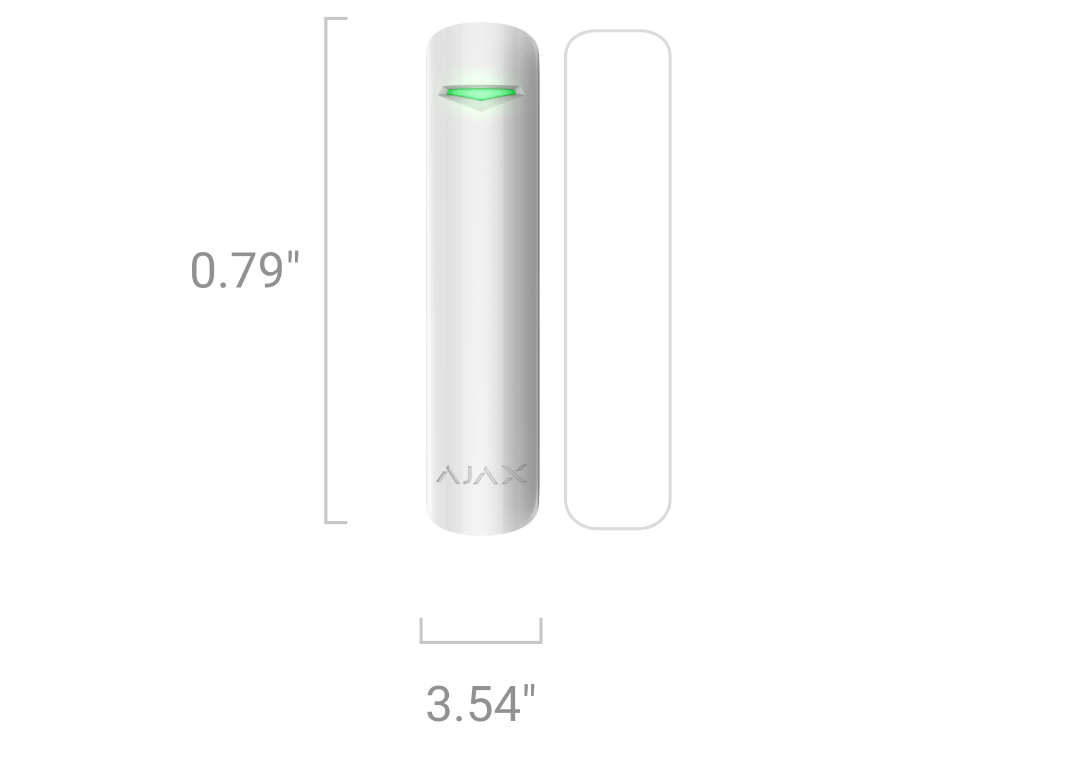

Detector dimensions

3.54″ × 0.79″ × 0.79″

Dimensions of the big magnet

3.54″ × 0.79″ × 0.79″

Dimensions of the small magnet

2.16″ × 0.43″ × 0.24″

Detector weight

1.02 oz

Operating temperature range

from 14 °F to 104 °F

Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%

Humidity of up to 85% is certified according to UL/ULC standards.

Protection class

IP50

ttx
ttx

Colors

Black

White

Complete set

DoorProtect Jeweller

SmartBracket mounting panel

CR123A battery (pre-installed)

Big magnet

Small magnet

Outside-mounted terminal clamp

Installation kit

Quick start guide

Certification and compliance with standards

DoorProtect Jeweller

DoorProtect Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-2-6:2008

EN 50131-5-3:2017

PD 6662:2017*

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

||

FCC ID

Certificate issued by MiCOM Labs

2AX5VDORPRO-NA

IC ID

Certificate issued by MiCOM Labs

26860-DORPRONA1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Standard for Intrusion-Detection Units

UL LLC

UL 639

ULC S306 (Canada)

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

PSTI UK

BSI Assurance UK Limited

Schedule 1

Additional information

Compliance with standards

Learn more

Warranty

24 months
