Tech specs
EN54 Fire Hub Jeweller
Wireless control and indicating equipment (CIE) for a fire alarm system, supporting intrusion protection devices

Device compatibility
Capacity
Devices
up to 200
Supports Ajax devices from the EN54 product line, wireless intrusion devices, and resettable buttons for manual fire alarm activation. Specifically, up to 10 intrusion sirens or keypads with a built-in buzzer and up to 5 EN54 Fire ReX Jeweller devices.
Fire zones
up to 40
Alerts about fire in separate zones. Every zone may include multiple rooms.
Ajax NVRs
up to 36
Ajax cameras
up to 224 via Ajax NVRs and up to 492 standalone
Third-party IP cameras
up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 200
- Any number of admin users within the CIE limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
up to 64
- By alarm.
- By schedule.
- By arming/disarming.
- By temperature, humidity, CO2 concentration.
- By pressing Button.
- By touching LightSwitch.
Rooms
up to 80
Event log
up to 5,000 events
Fire alarm system events. Can be viewed on the CIE display. Events are saved on the non-volatile onboard flash memory.
up to 500 events
Fire alarm, intrusion, and other system events. Can be viewed in the events feed in Ajax apps.
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 5,900 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications and update firmware.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Data packages reload in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
Radio communication range
up to 5,900 ft
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Communication channels
Ethernet
1 8P8C socket
Up to 100 Mbps.

Cellular
2 micro-SIM slots
Cellular frequencies
2G
GSM900/DCS1800 (B3/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20

Wi-Fi
802.11 b/g/n module
up to 72 Mbps.
Automatic switching between communication channels
- Instant switching between Ethernet, Wi-Fi, and SIM.
- Instant switching between 4G (LTE), 3G, and 2G networks of one SIM.
- Switching between SIMs takes up to 4 minutes.
Communication channels prioritization
1. Ethernet
2. Wi-Fi
3. Cellular connection
Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
- Push notifications
- SMS
- Calls
Event types
- Alarms
- Video alerts
- Faults (for fire alarm devices)
- Malfunctions (for other Ajax devices)
- Security state change
- System events
- Non-security alerts
- Automation devices
- Smart lock events
- Doorbell ringing
The notification types are configured individually for each user.

Monitoring
Supported protocols
- SIA (DC-09)
- SurGard (Contact ID)
Event types
- System alarms and events
- Panic button coordinates
- Photo verification
Fire alarm system management
Indication of fire alarms and faults
- display
- LED indicators
- sound
LEDs on the front panel of the CIE and the built-in buzzer notify users of fire alarms in zones, faults, and system states. In case of fire, the CIE also activates visual alarm devices and fire alarm sounders. The CIE display also shows system states and detailed alarm information.
Fire alarm control
- start evacuation
- reset
- mute buzzer
- silence / resound sounders
- override delays (coming soon)
- indication test
Users with appropriate rights can manage the fire alarm system via these options.
Fire alarm system settings
Users with appropriate rights can configure all fire alarm system settings via the CIE.
Event log
Stores a detailed log of fire alarms and system events. Capacity: up to 5,000 events.
Photo verification
Photo verification types
- Photo by alarm
- Photo by scenario
- Photo on demand
- Photo by schedule
- Photo by arming/disarming
Photo delivery time
up to 9 s
By default.
Photo resolution
up to 960 × 720 pixels
Depends on the detector.
Number of photos in a series
from 1 to 5 pictures
Additional features
User authorization
To manage the fire alarm system via the CIE touch screen, the user must log in by entering a code or presenting a personal access device.
Control
- codes
- Tag key fobs (coming soon)
- Pass cards (coming soon)
Contactless access (coming soon)
DESFire® EV1, EV2
ISO14443-А (13.56 MHz)
Access codes
up to 200 codes
One code per each user. Defines user access level to security and fire alarm system management.
Duress codes
up to 200 personal codes
One code per each user.
Built-in buzzer
volume at least 60 dB at a distance of 3.3 ft
Sound alerts of fire alarms.
volume at least 50 dB at a distance of 3.3 ft
Sound alerts of faults.
LED indication
red
For fire alarms.
yellow
For device faults, tests, and disablements.
green
For power supply status.

Special tool (key)
The special tool is used to unlock the housing and replace the internal battery or dismantle the device from the SmartBracket mounting panel. The battery is not included in the CIE complete set.

Display
Diagonal
10.1″
Matrix type
IPS
Resolution
1024 × 600 px
Sensor
capacitive
Backlight settings
Manually adjustable in the CIE on-screen settings.
Backlight lifetime
50,000 hours
Guaranteed at 80% brightness.
Interface language
Configurable via the CIE touch screen or in the CIE settings in Ajax apps.
Outputs
Output 1
Relay output for alerting the monitoring company in case of a system fault. Contact state is normally closed (NC) by default.
Output 2
Relay output for alerting the monitoring company in case of a fire alarm. Contact state is normally open (NO) by default.
Operating mode
bistable
External power supply
10–30 V⎓
The relay does not supply power to connected devices.
Energy consumption
up to 60 W
In standby mode.
Maximum resistive load
up to 2 A at 30 V⎓
Maximum inductive/capacitive load
up to 2 A at 30 V⎓
Installation recommendations
The device is designed for indoor use only.
Use GlandBox if power and signal cables are not routed inside the wall.
The device operating voltage is 110–240 V~.
Sabotage protection
Tamper button
Notifications about the fault on attempts to detach the device from the surface or remove the mounting panel.
Protection against spoofing
device authentication
Connection loss detection
after 36 s
Detection time depends on Jeweller settings.
Power supply
External
110–240 V, 50/60 Hz
Up to 0.48 A of mains power consumption.
Internal
7.4 V⎓, 5 Ah/10 Ah
On Rechargeable Li-ion battery not included in the complete set: EN54 Internal Battery (24h) or EN54 Internal Battery (72h).
Autonomous operation
On internal battery
up to 24 hours
On EN54 Internal Battery (24h) not included in the complete set. Battery life is based on display activation only when tapped, using W-Fi, Ethernet, and cellular (LTE) communication channels.
up to 72 hours
On EN54 Internal Battery (72h) not included in the complete set. Battery life is based on display activation only when tapped, using W-Fi, Ethernet, and cellular (LTE) communication channels.
Enclosure
Dimensions

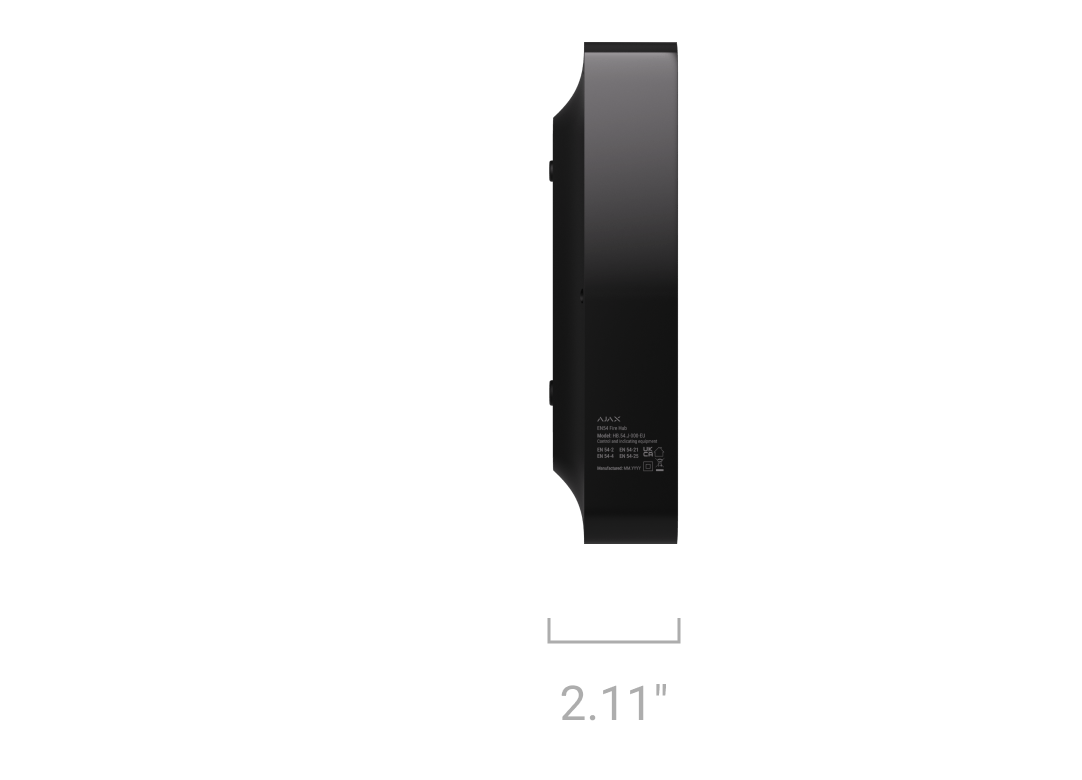

10.35" × 8.78" × 2.11"
Weight
3.36 lbs
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75% non-condensing
Protection class
IP20
Flammability rating
UL 94 V-0


Color
Black

White

Complete set
EN54 Fire Hub Jeweller
SmartBracket mounting panel
Installation kit
Ethernet cable
Special tool (key)
Quick start guide
Revision
1
Certification and compliance with standards

EN54 Fire Hub Jeweller

EN54 Fire Hub Jeweller
Compliance with the security alarm standards
Certificate issued by TREZOR TEST s.r.o.
- EN 50131-1:2006/A1:2009/A2:2017/A3:2020
- EN 50131-3:2009
- EN 50131-5-3:2017
- EN 50131-6:2017/A1:2021
- EN 50131-10:2014
- EN 50136-1:2012/A1:2018
- EN 50136-2:2013
- PD 6662:2017
Security Grade (SG)
Certificate issued by TREZOR TEST s.r.o.
2
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
- EN IEC 63000:2018
Radio Equipment Directive (RED)
Certificate issued by TIMCO Engineering, Inc.
- ETSI EN 301 908-1 V15.2.1
- ETSI EN 301 908-13 V13.2.1
- ETSI EN 300 220-1 V3.1.1
- ETSI EN 300 220-2 V3.3.1
- ETSI EN 301 511 V12.5.1
- ETSI EN 300 328 V2.2.2
- ETSI EN 300 330 v2.1.1
- EN 18031-1:2024
- EN 18031-2:2024
Electromagnetic Compatibility Directive (EMC)
Certificate issued by TIMCO Engineering, Inc.
- ETSI EN 301 489-1 V2.2.3
- ETSI EN 301 489-3 V2.3.2
- ETSI EN 301 489-17 V3.3.1
- ETSI EN 301 489-52 V1.3.1
- EN 55032:2015+A11:2020
- EN 55035:2017+A11:2020
- EN IEC 61000-3-2:2019+A1:2021+ A2:2024
- EN 61000-3-3:2013+A1:2019+A2:2021
Low Voltage Directive (LVD)
Certificate issued by TIMCO Engineering, Inc.
- EN IEC 62368-1:2024+A11:2024
- EN IEC 62311:2020
Environmental class according to EN 50131
Certificate issued by TREZOR TEST s.r.o.
- ||
PSTI UK
- Schedule 1
Construction Products Regulation (CPR)
Certificate issued by Dedal Attestation & Certification LTD
- EN 54-2:1997
- EN 54-2:1997/AC:1999
- EN 54-2:1997/A1:2006
- EN 54-4:1997/AC:1999/A1:2002/A2:2006
- EN 54-4:1997/AC:1999
- EN 54-4:1997/A1:2002
- EN 54-4:1997/A2:2006
- EN 54-21:2006
- EN 54-25:2008
- EN 54-25:2008/AC:2012
