KeyPad Plus Jeweller
Wireless touch keypad with support for encrypted contactless cards and key fobs
Devices compatibility
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 5,600 ft
Between the keypad and a hub (or range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption with a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Key features
Sensor type
capacitive
Malfunctions and security mode indication
When KeyPad Plus is active, it notifies with an LED indication of the security mode, problems with detectors, or communication loss with the hub.
Functional button
Operates in one of the modes.
alarm
The system sends an alarm to the central monitoring station and users. It also activates the sirens connected to the system.
mute fire alarm
Mutes interconnected fire detectors alarms.
off
The button is disabled.
Control
codes
Pass cards
Tag key fobs
Pass cards
Tag key fobs
The functionality of the cards/key fobs is the same, but they differ in design.
Access via DESFire®
EV1, EV2
The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection.
Access codes
up to 200 personal codes
One code per each user. The number of personal access codes depends on the hub model.
1 keypad code
One code per KeyPad Plus
Duress codes
up to 200 personal codes
One code per each user. The number of personal duress codes depends on the hub model.
1 keypad code
One code per KeyPad Plus.
Codes for unregistered people
up to 99 personal codes
For people who are not registered in the system. The number of such codes depends on the hub model.
Group security management
Enter the general keypad code and the group ID to manage group security.
Recommendations
The device is designed for indoor use only.
Sabotage protection
Protection against code guessing
KeyPad Plus locks for 3-180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute.
The lock time is adjusted by PRO or user with admin rights in the Ajax app
Tamper alarm
Notifications on attempts to detach the keypad from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Batteries
4 × AA
Pre-installed.
Type
Type C
Calculated battery life
up to 3 years
Keypad’s operating voltage range
2.25–3.3 V⎓
Keypad’s nominal operating voltage
3 V⎓
Quiescent keypad’s current consumption at nominal voltage
0.064 mA
Maximum keypad’s current consumption at nominal voltage
165 mA
Full battery capacity
12,000 mAh
Capacity of each battery is 3,000 mAh.
Low battery voltage
2.5 V⎓
Low battery recovery voltage
2.7 V⎓
End-of-life battery voltage
2.25 V⎓
Device is switched off.
End-of-life battery capacity
500 mAh
End-of-life capacity of each battery is 250 mAh.
Manufacturer
Huiderui
UL listed.
Energizer
Enclosure

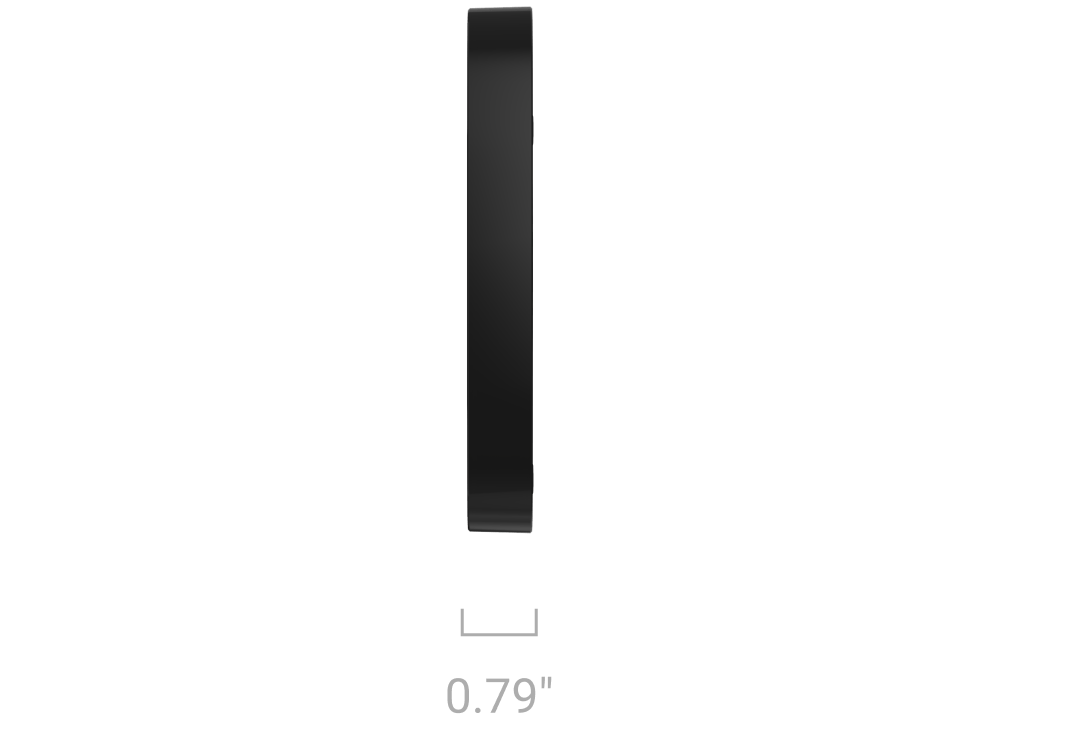

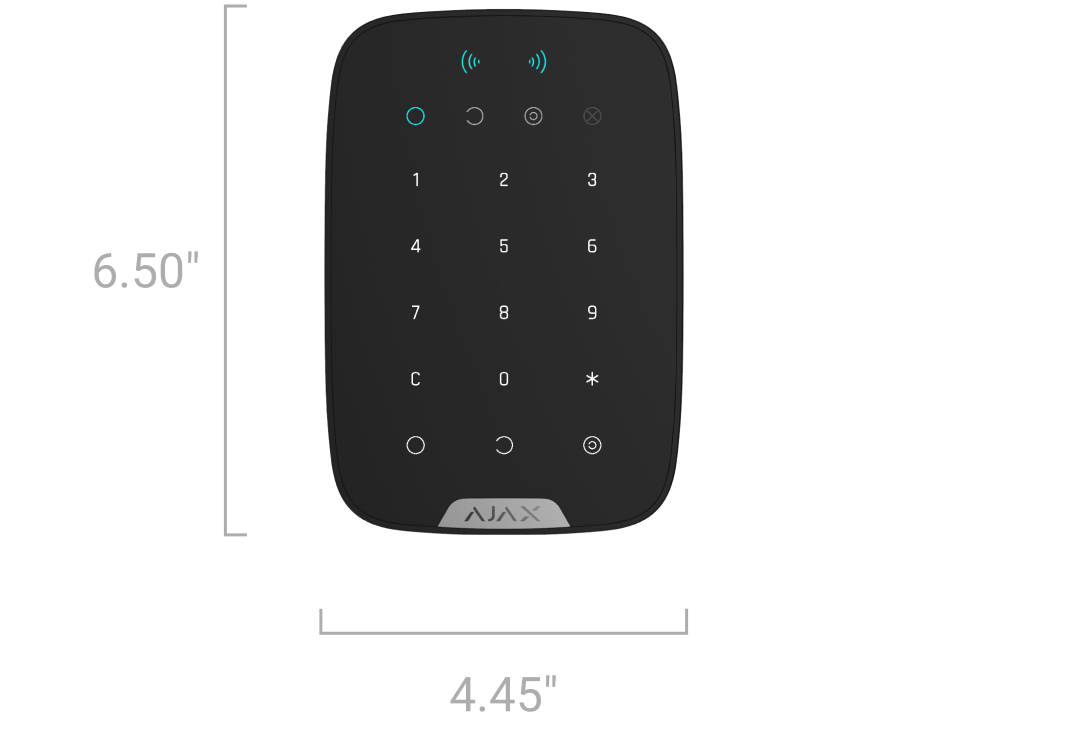

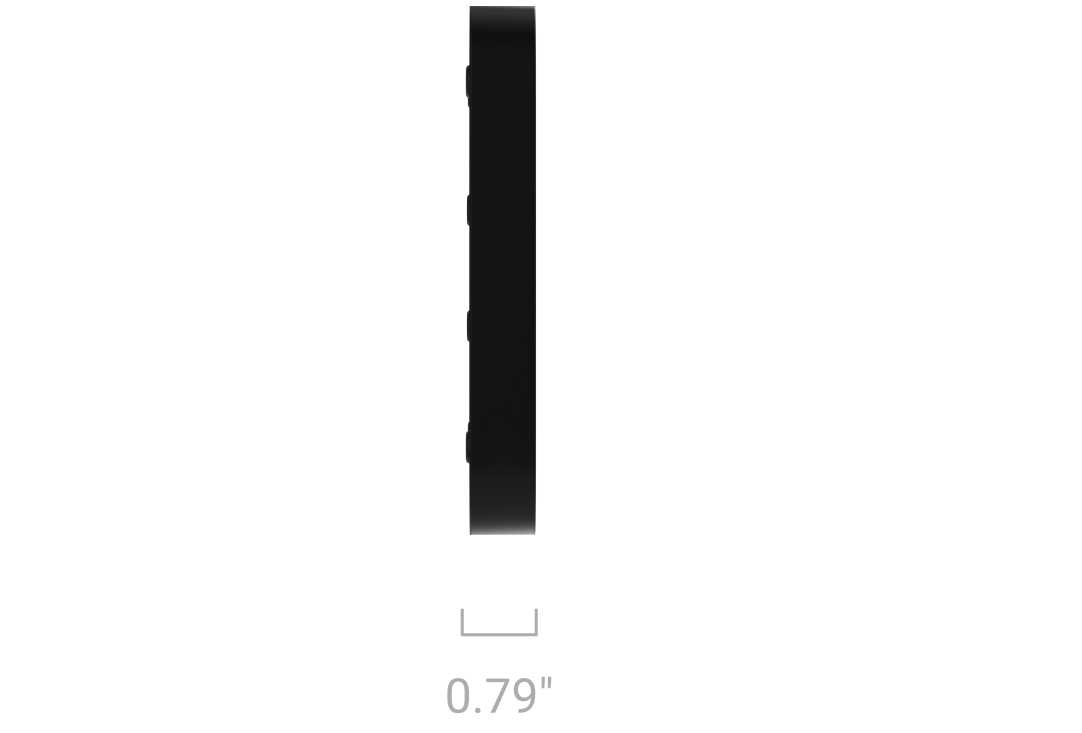

Dimensions
6.50″ × 4.45″ × 0.79″
Weight
9.42 oz
Operating temperature range
from 14 ℉ to 104 ℉
Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Operating humidity
up to 75%
Humidity of up to 93% is certified according to UL/ULC standards.
Colours
Black
White
Complete set
KeyPad Plus Jeweller
SmartBracket mounting panel
4 AA batteries (pre-installed)
Installation kit
Quick start guide
