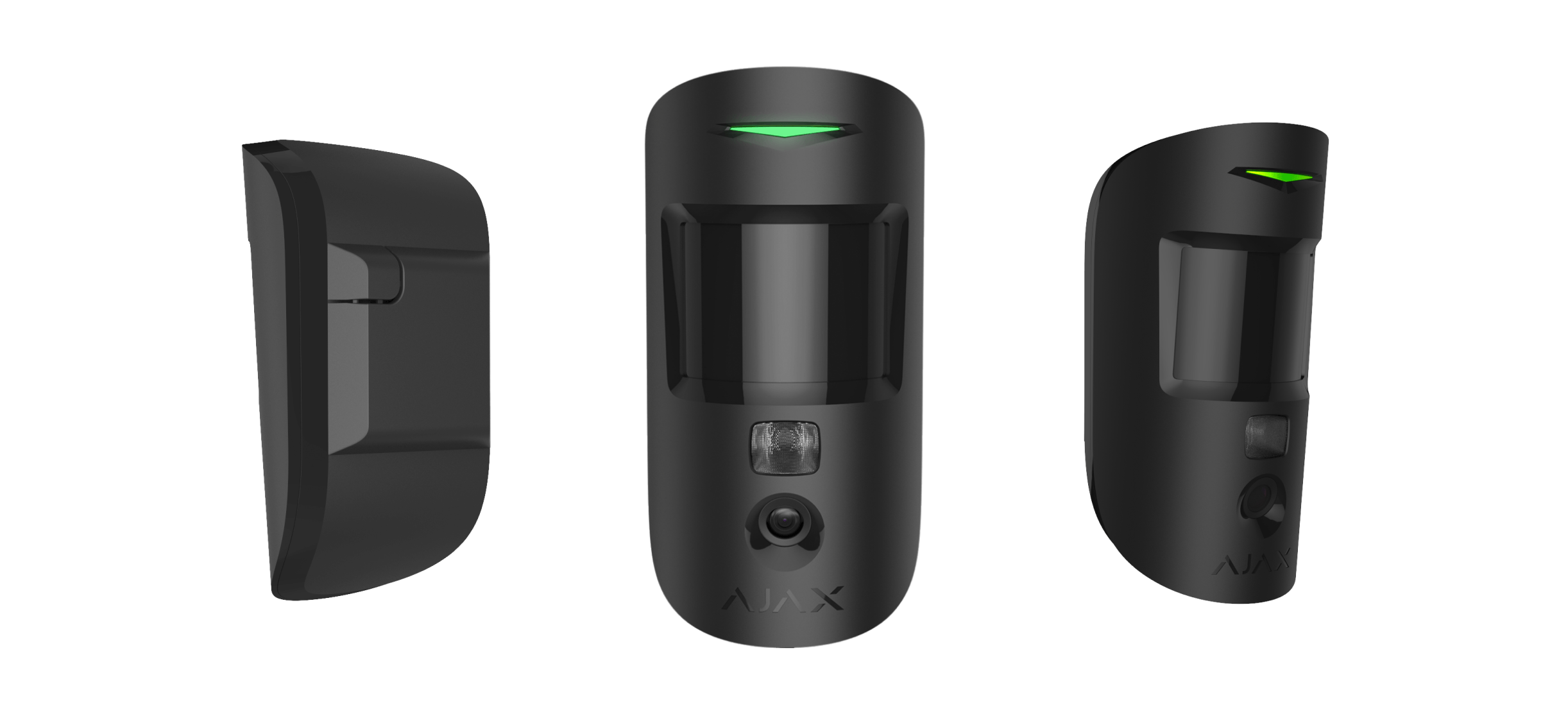

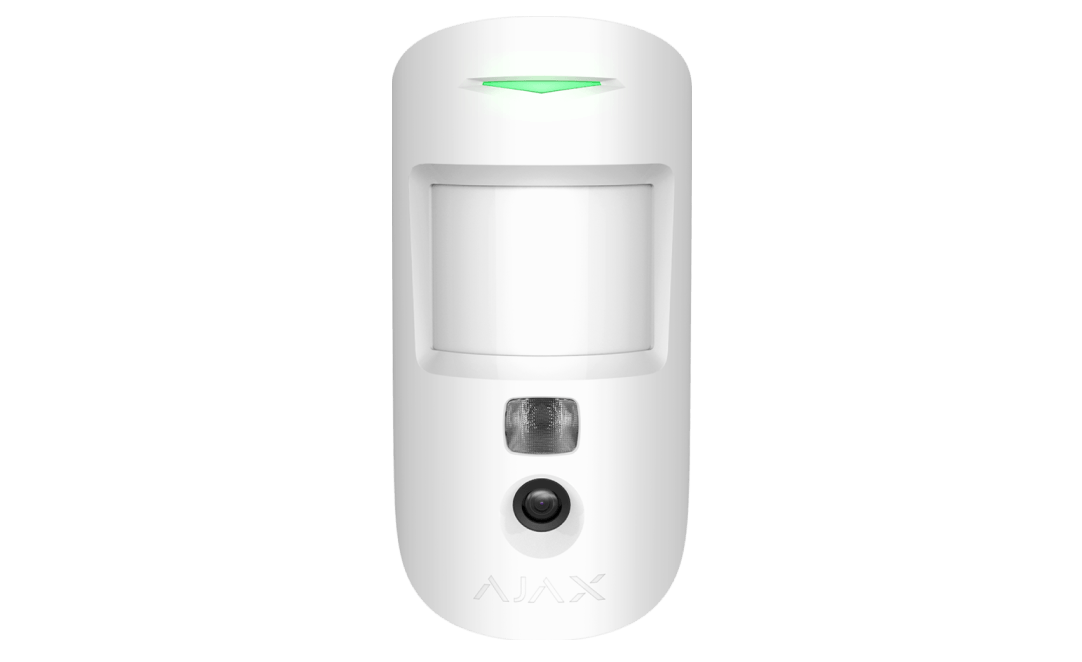

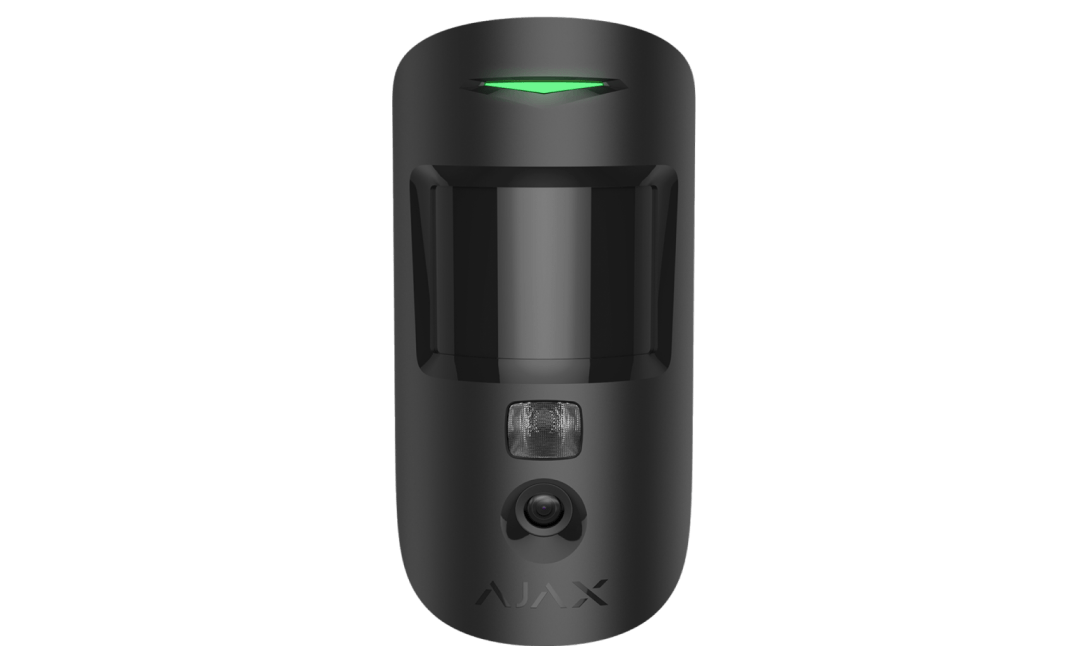

MotionCam Jeweller

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced anti-sabotage.
• Block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW

Radio signal modulation

GFSK

Radio signal range

up to 5,500 ft

Between a hub and connected devices (in an open space). The maximum range depends on the connected device.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit photos.

Key features:

• Two-way communication.
• Block encryption featuring a dynamic key.
• Advanced anti-sabotage.
• Data package reload in case of transmission errors.
• Photo delivery check.

Frequency bands

866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz

Depends on the sales region.

Radio signal range

up to 5,600 ft

Between detector and hub or range extender in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Photo by alarm

A built-in camera is activated if the detector is armed and motion is detected.

Photo resolution

640 × 480 px

320 × 240 px (by default)

160 × 120 px

Adjusted by a PRO or user with admin rights in Ajax apps.

HDR image

Improves the accuracy of detail in bright and dark scenes.

The feature is available for devices with the 15.59.35.14 firmware version or later¹.

¹ Contact your Ajax supplier or authorized partner to check the availability in your region.

IR backlight

For night photography and low light conditions.

Pictures in a series

from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px

from 1 to 3 images with a resolution of 640 × 480 px

Adjusted by a PRO or user with admin rights in Ajax apps.

Photo delivery time

up to 7 s — 160 × 120 px resolution

up to 9 s — 320 × 240 px resolution

up to 20 s — 640 × 480 px resolution

When the hub is connected via Ethernet or 4G and the Wings signal strength between a hub and device is 2–3 bars. Photo delivery time when the detector is connected via a range extender is available here.

Tamper alarm

Notifications on attempts to detach the device from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

within 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Battery

2 × CR123A

Pre-installed.

Calculated battery life

up to 4 years

MotionCam Jeweller

SmartBracket mounting panel

Installation kit

2 × CR123A battery (pre-installed)

Quick start guide
