MotionCam Outdoor Jeweller
Wireless IR motion detector supporting the photo by alarm feature. For outdoor and indoor use
Devices compatibility
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz*
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio signal range
up to 5,550 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications. It is not certified according to UL/ULC standards.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Data packages reload in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz*
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.
Radio communication range
up to 5,550 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Detection
Sensitive elements
2 × PIR sensor
Photo by Alarm
A built-in camera is activated if the detector is armed and motion is detected.

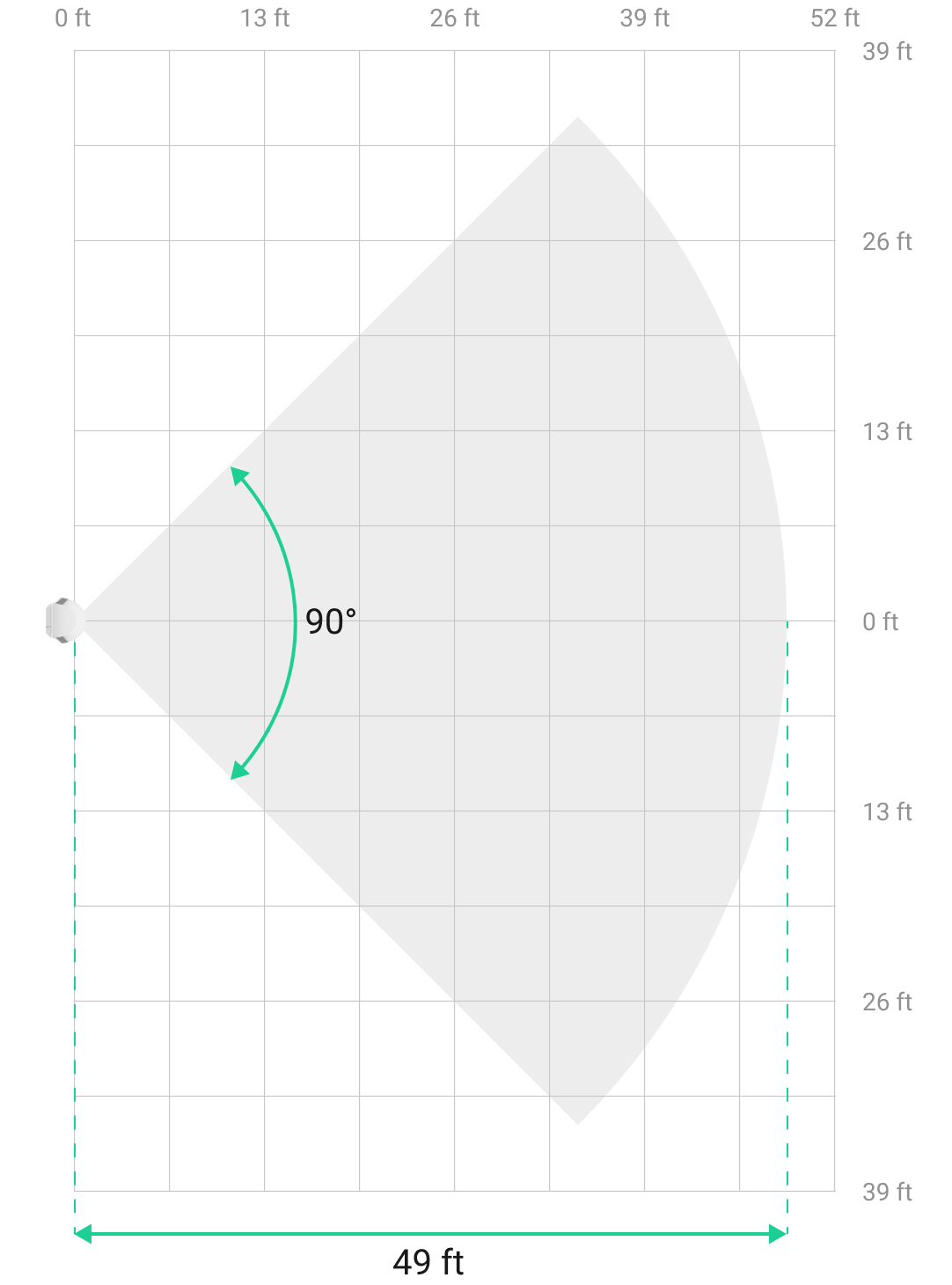

Motion detection distance
up to 10 ft–49 ft
When installed at a height of 2.6 ft–4.3 ft. Adjusted with a scrollbar on the device enclosure.
Motion detection angles
horizontal — 90°
Camera angles
horizontal — 101°
vertical — 50°
TV distortion
Barrel — 17%
EBU standard.
Motion detection speed
from 1.0 to 6.6 ft/s
The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Sensitivity
3 levels
Adjusted by PRO or user with admin rights in the Ajax app.
Pet immunity
weight: not relevant
height: up to 2.6 ft
False alarm prevention
LISA
SmartDetect
Software algorithms.
Temperature compensation
Effective motion detection at temperatures from −13°F to 140°F.
Photo verification
Photo by Alarm
A built-in camera is activated if the detector is armed and motion is detected. Camera and photo features are not evaluated by UL.
Adjustable photo resolution
640 × 352 px
320 × 176 px (by default)
Adjusted by PRO or user with admin rights in the Ajax app.
IR backlight
For night photography and low light conditions.
Series of pictures
from 1 to 5 images with a resolution 320 × 176 px
Adjusted by PRO or user with admin rights in the Ajax app.
Photo delivery time
up to 9 s — 320 × 176 px resolution
up to 20 s — 640 × 352 px resolution
Photo delivery time depends on the image resolution selected in the device settings.
Recommendations
It is recommended to install the detector at a height of 2.6–4.3 ft. The device is designed for indoor and outdoor use.
Sabotage protection
Tamper alarm
Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Anti-masking system
detects attempts to block the detector view
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Battery
4 × CR123A
Pre-installed.
Type
type C
Calculated battery life
up to 3 years
With Delay when entering feature disabled.
up to 2.5 years
With Delay when entering feature enabled.
Detector’s operating voltage range
3.8−6.2 V⎓
Detector’s nominal operating voltage
6 V⎓
Quiescent detector’s current consumption at nominal voltage
23 μA
Maximum detector’s current consumption at nominal voltage
906 mA
Full battery capacity
3,200 mAh
Capacity of each battery is 1,600 mAh.
Low battery voltage
4.65 V⎓
Low battery recovery voltage
5 V⎓
End-of-life battery voltage
3.8 V⎓
Device is switched off.
End-of-life battery capacity
500 mAh
Manufacturer
Huiderui or Panasonic
UL listed.
Enclosure

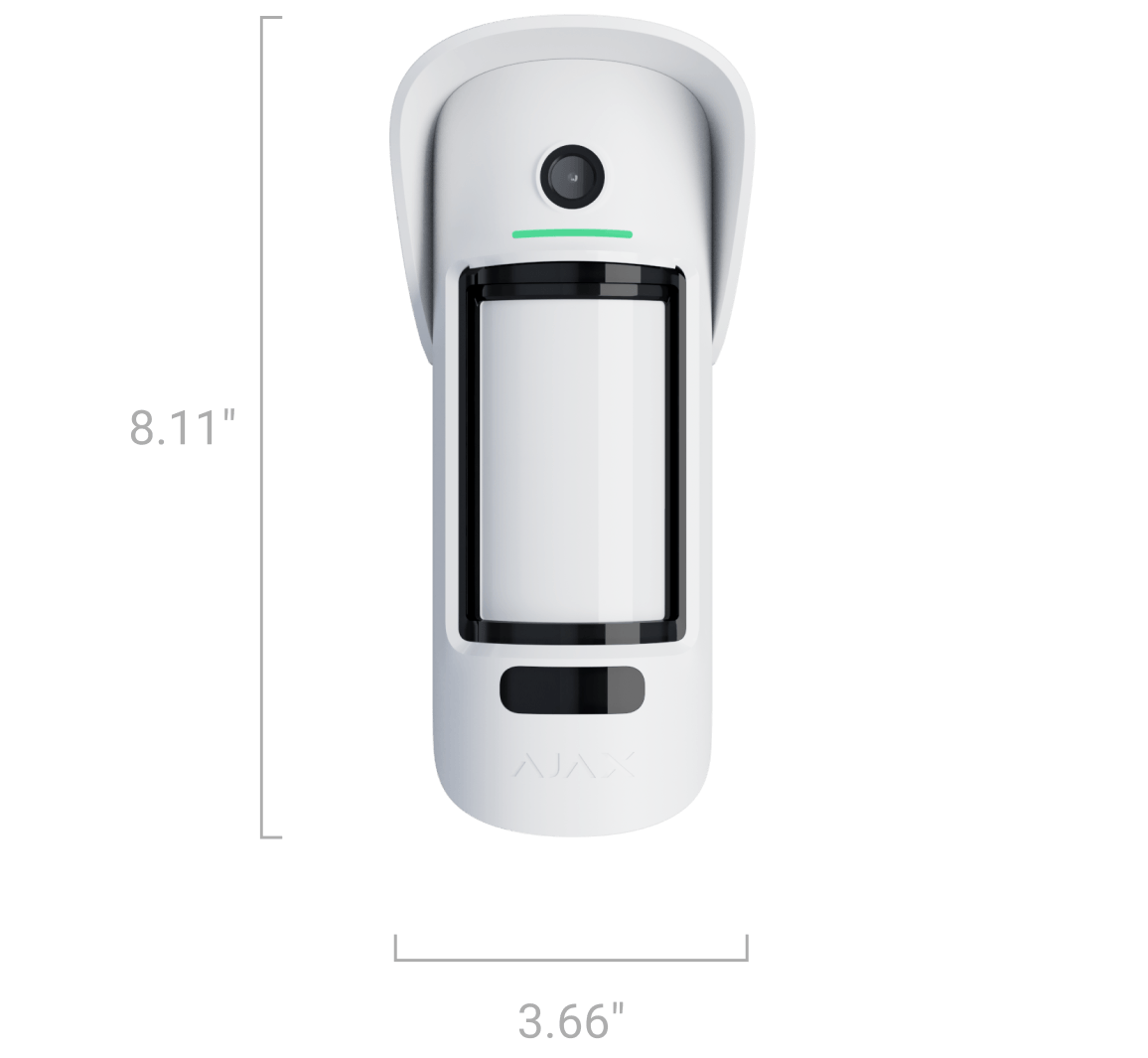

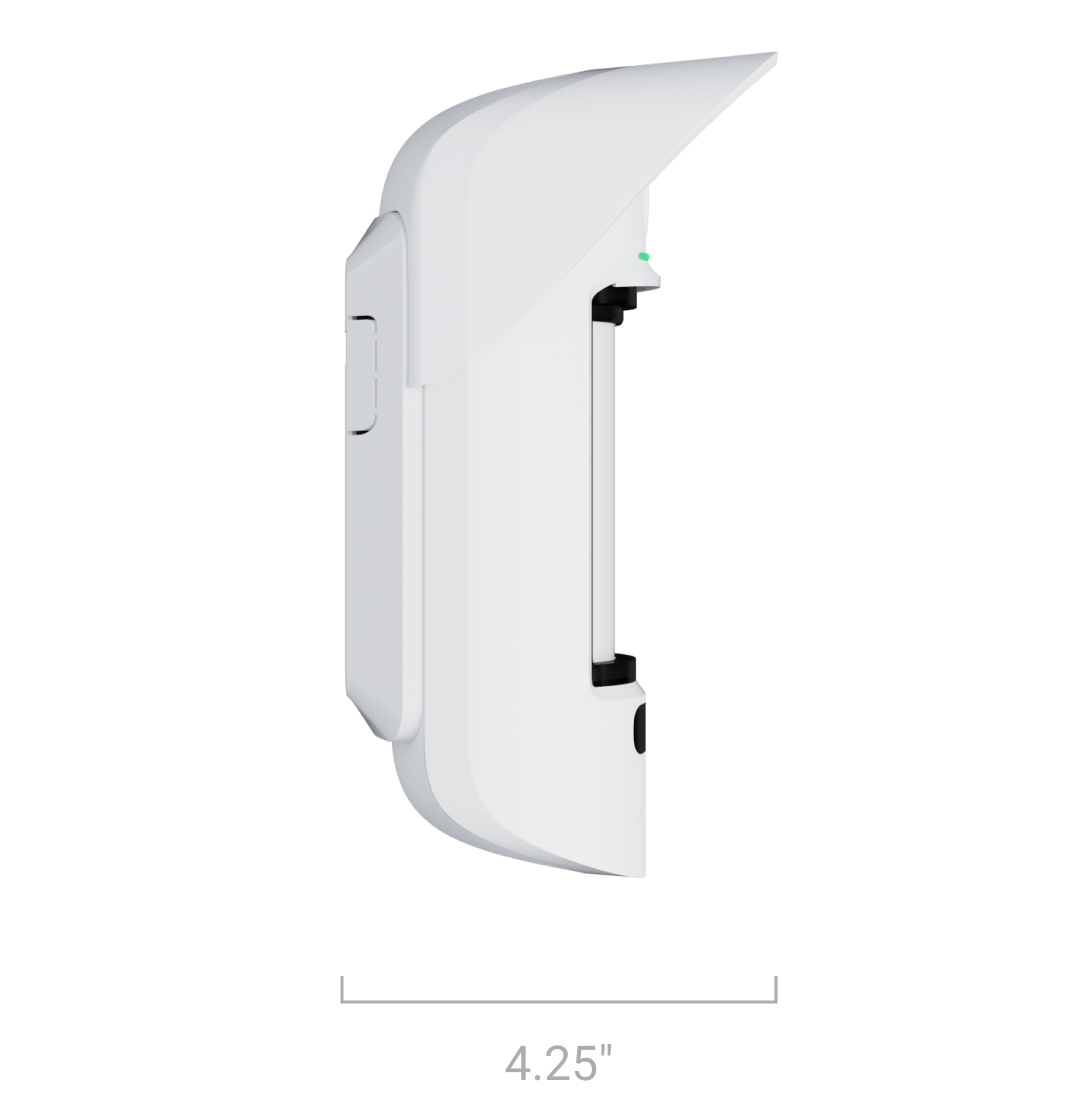

Dimensions
8.11″ × 4.25″ × 3.66″
Weight
16.58 oz
Operating temperature range
from −13°F to 140°F
Temperature range from -40 °F (-40 °C) to 150 °F (+66 °C) is certified according to UL/ULC standards.
Operating humidity
up to 95%
Humidity of up to 95% is certified according to UL/ULC standards.
Protection class
IP55
Colors
White
Complete set
MotionCam Outdoor Jeweller
SmartBracket mounting panel
Hood visor
Installation kit
4 × CR123A battery (pre-installed)
Quick start guide
