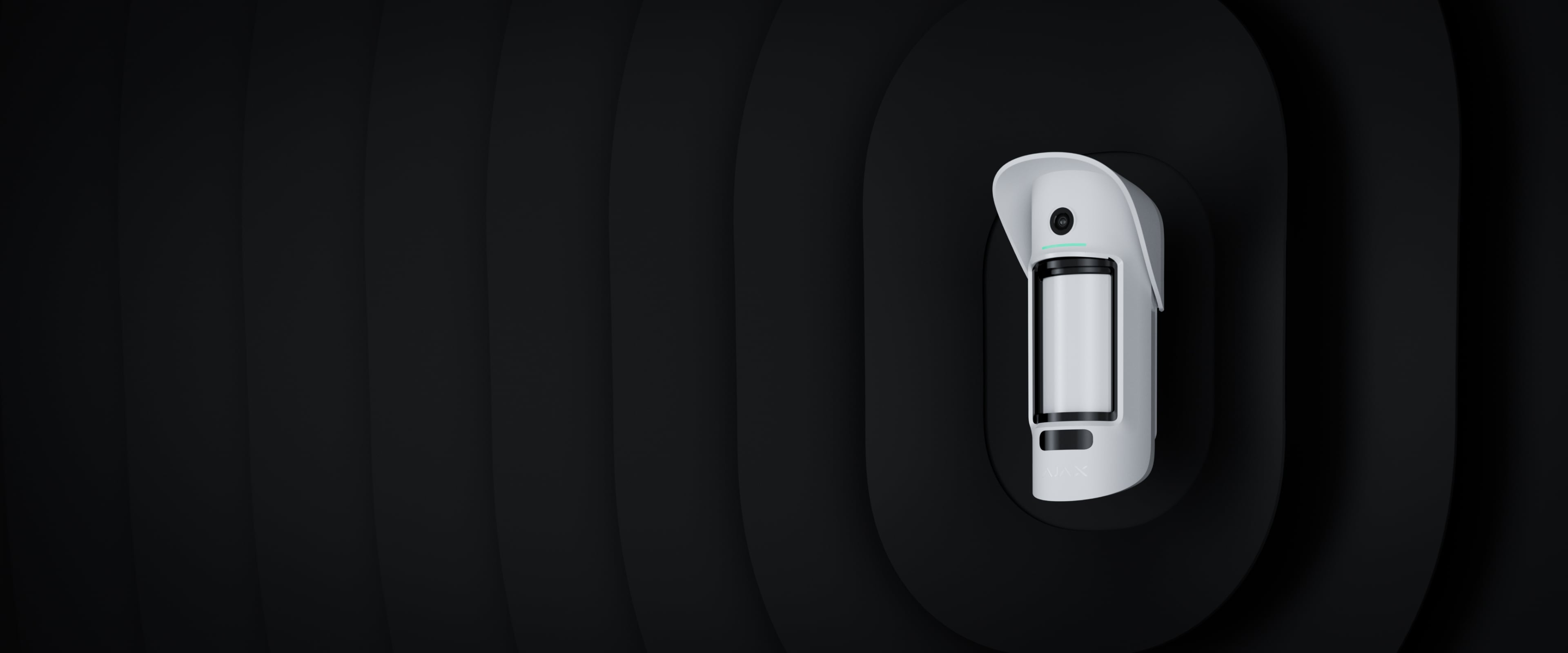

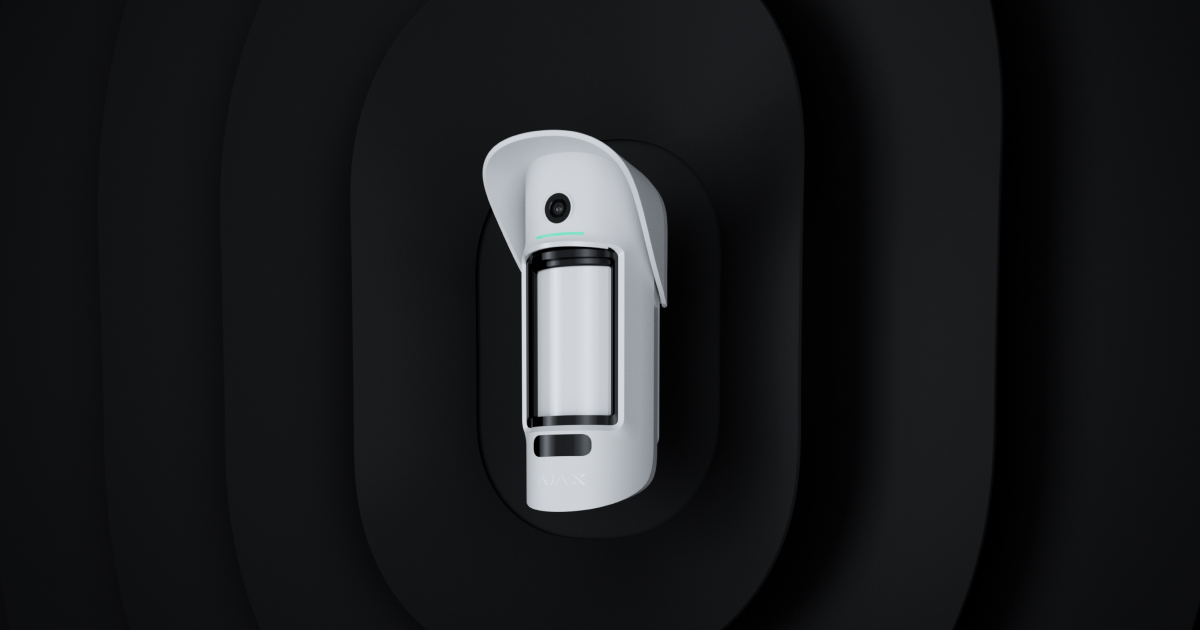

Wireless outdoor motion detector with a photo camera to verify alarms

Lightning-fast alarms. Verified.

MotionCam Outdoor recognizes intrusion from the very first steps on the territory and confirms it with an animated series of photos. Visual verification helps to instantly ascertain the situation, saving users from concerns, and security companies from unnecessary patrol dispatches.
1
Motion detected
2
Alarm raised
3
Evidence captured
Lightning-fast alarms
Hub 2
MotionCam Outdoor requires Hub 2 or Hub 2 Plus for operation
Jeweller
Outdoor surveillance and alarm confirmation
MotionCam Outdoor PhOD
MotionCam Outdoor is also available with Photo on Demand feature. Such detectors take photos when they detect an intrusion, as well as at the user’s request in the Ajax app

Don't miss a thing

Combining the best optics, fast processor and advanced software algorithms, MotionCam Outdoor takes informative pictures in any weather, day or night.
  • HDR camera
  • IR backlight
  • Series of 2–5 photos
Don't miss a thing

CMS software supporting visual alarms verification

Horus
Horus
Manitou
Manitou
SBN
SBN
Sentinel
Sentinel
WBB
WBB
LISA

Intelligent false alarm filter

MotionCam Outdoor is equipped with two independent PIR sensors, the signals of which are analyzed by a two-step LISA algorithm. When both sensors detect motion, LISA performs correlation and spectral analysis of the signals, which helps to instantly distinguish real threats from interferences.

Correlation analysis

Whenever MotionСamOutdoor detects motion, LISA analyses and compares signal forms from two sensors in real-time. If forms are similar, the alarm is activated.
Correlation analysis Correlation analysis

Spectral analysis

When both sensors detect motion, but the correlational analysis doesn’t identify enough similarities, LISA compares frequency components in the signals of both sensors.
Spectral analysis Spectral analysis
EN 50131

Multilevel anti-sabotage protection

MotionCam Outdoor can not be unnoticeably disabled even if the system is disarmed. The detector is equipped with masking sensors that react to hindering, covering and painting the lens.

It will take the hub less than a minute1 to detect the loss of communication with the detector and inform a central monitoring station and users about the problem. The fact that MotionCam Outdoor was dismantled will become known instantly.
  • Anti-masking system
  • Notifications about detachment
  • Configurable detector ping interval
Multilevel sabotage protection
Effective security in any weather

Effective security in any weather

MotionCam Outdoor resists the heat up to +60°С and withstand the cold down to −25°С. And to protect the sensors of the anti-masking system from rain and snow, we included a special hood.
  • Efficiency in heat and cold
  • IP56 enclosure protection
  • Bundled hood to protect from rain and snow
  • Efficiency in heat and cold
  • IP56 enclosure protection
  • Bundled hood to protect from rain and snow
Jeweller
Wings

Uncompromising communication reliability

MotionCam Outdoor uses two secure radio protocols simultaneously: Jeweler and Wings. Radio protocols work independently of each other and each is focused on its own function. Jeweler transmits alarms in 0.15 seconds, and thanks to Wings, the first shot from the site will be in the app in less than 9 seconds2.
The radio signal range is sufficient to install the detector where it will be most effective. And up to 3 years of battery life minimizes maintenance efforts.
  • Two-way communication at a distance of up to 1,700 meters
  • Photo delivery in less than
    9 seconds
  • Up to 3 years
    of battery life

Less manual labor. More settings in the app.

The process of connecting and configuring MotionCam Outdoor saves installation engineers time in the best possible way. To add a detector to the system, all you have to do is scan the QR code with the Ajax app, assign a name and a room to it. Configure the device in the app in real time,test detection zones and communication. If necessary, the detector can be disabled or its system parameters can be reconfigured remotely, without visiting the site.
Connecting Motioncam Outdoor
Adding to the security system via QR code
Installation Motioncam Outdoor
Mounting using SmartBracket without disassembling the body
Setting Motioncam Outdoor
Configuring in the app
Professional installation

Professional installation

Qualified engineers guarantee the quality installation of devices and disclosure of all the features of your security system. Contact a certified Ajax partner for help.

Tech specs

Classification
Electro-optical radio channel security detector
Type of detector
Wireless
Installation method
Outdoors / indoors
Recommended installation height
0.8 – 1.3 m
Compatibility
Hub 2, Hub 2 Plus

Does not work with ReX radio signal range extender
Sensing element
2 × PIR sensor
Motion detection distance
Adjustable, from 3 to 15 m
Pet immunity
Animals up to 80 cm tall
Sensitivity
Adjustable, 3 levels
Motion detector’s viewing angle
Horizontal — 90°
Vertical — 80°
Camera’s angle
Horizontal — 105°
Vertical — 50°
TV distortion (EBU standard)
Barrel, –17%
Photo in case of alarm
Photo resolution:

  • 320 × 176 pixels (by default)
  • 640 × 352 pixels

Shooting series up to 5 photos

Learn more
Infrared light for shooting in the dark
Available
Power supply
4 × CR123A batteries
Supply voltage
6 V
Battery life
Jeweller radio technology
Communication range with a hub — up to 1,700 m in an open space
Two-way communication between hub and device

Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW
Block encryption with a dynamic key
Detector polling period — 12–300 s
Frequency hopping

Learn more about Jeweller
Alarm delivery time
0.15 s
Wings radio technology
Transmission of a series of photos
Photo delivery time with a default settings: up to 9 seconds
Temperature sensor
Available
Operating temperature range
From –25°С to +60°С
Operating humidity
Up to 95%
Protection class
IP56
Anti-sabotage
Anti-masking
Protection against forgery
Jamming detection
Tamper-resistant
Remote configuration and testing
Available
CMS compatibility
CMS connectivity: Contact ID, SIA (DC-09)

CMS software supporting visual alarms verification
Dimensions
206 × 108 × 93 mm
Weight
470 g
Warranty
24 months from the date of sale

Learn more
Complete set
MotionCam Outdoor motion detector
SmartBracket mounting panel
Hood visor
4 × CR123A batteries (pre-installed)
Installation kit
User’s guide
1 With the Hub — Detector polling period of 12 seconds
2 Photo delivery time depends on image resolution, selected in device settings

Choose the most suitable Ajax set in 2 minutes

Tell us what you need to protect and we will put together a set of detectors and devices for your premises.
Start

Outdoor motion sensor with photo verification of alarms

A motion sensor is a detector that detects the movement of objects and is used to control a protected area or run automated scripts. A motion sensor is used to detect intrusion into a protected area in alarm systems.

Types of motion sensors

Presence sensors are distinguished according to the principle of operation. Their type of detection, features of installation and use, and the accuracy of the operation of the device depend. To choose a suitable motion sensor for installation, users need to familiarize themselves with the most common types of this device.

Outdoor and indoor motion sensors

According to the type of installation location of motion sensors, indoor and outdoor installation devices are distinguished. The main difference between these types of sensors is protecting the body of outdoor devices from the effects of weather factors — snow, rain and wind.

Wired and wireless motion sensors

The difference between these types of sensors lies in the way the signal is transmitted. Wired burglar alarm sensors send an alarm signal through a cable connection. The wired sensor is powered by an alarm or a 12-volt network adapter. Wireless presence sensors transmit an alarm signal over a secure radio channel. Batteries power wireless devices.

Infrared motion detectors

Infrared motion detectors react to the thermal radiation of the human body. This is the most common type of motion detector. But in this version of the device, false alarms are not excluded when the device is heated or, for example, when the animal moves. But modern motion sensors, for the most part, are protected from false positives of this kind.

Ultrasonic presence sensors

Ultrasonic emitters operate at high frequencies—- from 20 kHz to 60 kHz. Because of this, animals, such as cats, are sensitive to such frequencies. Moreover, such detectors are used for animal training. The principle of operation of the ultrasonic motion sensor is the Doppler effect. The emitted wave is reflected from an object in motion, returned and received by the receiver, and the frequency of the wave changes. This is fixed. The sensor activates the signal. The main advantage of such a sensor is that it is insensitive to the environment.

Laser or photo motion sensors

In motion sensors of this type, there is an emitter, an infrared LED, and a receiver, a photodiode of the same spectrum. This is a simple detector, the implementation of which is possible in two versions:
  1. Install the emitter and photodiode in the protected area opposite each other. When someone passes through the corridor, the radiation obscures and does not reach the receiver. Then the sensor is triggered.
  2. Installing the emitter and the photodiode side by side captures changes when someone is in the sensor's coverage area. The radiation is reflected from the person and falls on the photodiode.

Presence sensor microwave

The device consists of a receiver and a transmitter that generates a high-frequency signal. When there is movement near the sensor, the frequency changes. The receiver is configured so that the signal becomes more substantial when the frequency changes and is transmitted to the relay or security control panel, and the load is turned on. Microwave motion detectors are susceptible and can detect movement even behind small partitions.

Motion sensor connection

There are many options for connecting presence sensors, and they depend on several factors. First, the user needs to determine the need. For example the user is looking for a system that will protect the house from intrusion even outside the room or inside, installing a wireless or wired device, with or without photographic recording of alarms. In any case, the user should read the detailed instructions provided by the manufacturers and follow the installation instructions or use the services of professional installers.

Outdoor wireless motion detector with a camera for verification of alarms Ajax MotionCam Outdoor

MotionCam Outdoor is a wireless outdoor motion detector for alarms with a built-in camera. The device includes an Ajax Hood to protect the detector from rain and snow, a MotionCam Outdoor device, a SmartBracket mounting panel, a mounting kit, and instructions.

The principle of operation of the outdoor sensor with photo verification of alarms Ajax MotionCam Outdoor

MotionCam Outdoor is an outdoor motion sensor with a camera. The infrared sensors of the sensor detect intrusions by detecting moving objects with a temperature close to the temperature of the human body. Visual verification will help its user instantly assess the situation. Saving users from unnecessary anxiety and from calling patrols, the sensor in armed mode constantly reads the signals of two IR sensors. When motion is detected, MotionCam Outdoor sends a signal to the hub and signals the alarm by flashing the indicator if the indication is enabled. The alarm is fixed if both sensors detect movement. At the same time, the outdoor motion sensor for the alarm takes from 1 to 5 photos, depending on the settings, and transfers them to the control panel. The Hub activates sirens, triggers scripts and notifies users and the security company about the incident. The sensor's detection range is set manually at a distance of three to fifteen meters. This allows users to determine the detection zone accurately, to avoid false positives on bushes or trees.

Features of the wireless outdoor sensor Ajax MotionCam Outdoor

False alarm filter

The outdoor wireless sensor is equipped with a pair of independent infrared sensors that respond to movement. A two-stage LISA algorithm analyzes the signals sent by the sensors. And only if both infrared sensors detect movement the algorithm analyzes the signals and distinguishes interference from a real threat. With the correct configuration and installation of MotionCam Outdoor, the outdoor wireless motion sensor does not respond to animals up to 80 cm tall.

Alarm confirmation and immediate response

The MotionCam Outdoor Alarm Motion Detector recognizes an intrusion into a protected area and sends an animated series of photos to the owners of the premises for confirmation. With the help of photo-verification, false patrols can be prevented, and users of the security system from needless anxiety.

Adaptation to the current weather situation

MotionCam Outdoor wireless sensor operates in the temperature range from -25°C to +60°С. To protect the device's sensors from rain and snow, a special visor is provided on the case.

Temperature compensation mode

The outdoor presence sensor Ajax MotionCam Outdoor perceives a person and other objects as heat spots. The device monitors these spots and when they move, signals an alarm. MotionCam Outdoor reacts to the movement of areas whose temperature is close to the temperature of the human body. When the ambient temperature is approximately equal to the temperature of a person, the correct operation of the sensor is not guaranteed unless temperature compensation is applied. The sensor detects movement over the entire operating temperature range.

Sabotage Protection

An outdoor motion sensor with a MotionCam Outdoor camera cannot be silently disabled. All due to the presence of masking sensors in the wireless device, which react to lens shading, veiling and obstructions. The hub will detect the lack of communication with the motion sensor in less than a minute and report the incident to users.

Reliable connection

The Ajax wireless presence detector uses two secure radio protocols for data transmission: Jeweller and Wings. These are independent protocols with different functionality. Jeweller transmits alarms in 0.15 seconds, and Wings is responsible for quickly transferring pictures from the scene to the application. Communication with the control panel hub is maintained at a distance of 1700 m. And the life of the wireless motion sensor for outdoor installation is up to 3 years from pre-installed batteries.

Outdoor security camera

The camera in the outdoor sensor adapts to shooting in difficult lighting conditions: direct sunlight, surfaces that reflect light, or light from street lamps. The wide-angle lens allows to cover the entire protected area. An infrared filter ensures color reproduction in bright light, and two bright infrared LEDs ensure visibility even in the dark. The security camera in the MotionCam Outdoor presence detector works in different conditions, which allows to get a high-quality alarm verification picture. The time it takes to deliver a photo to the Ajax app depends on the selected resolution, Jeweller and Wings signal strength, and hub internet speed.

Mounting and installation

To add a wireless outdoor motion sensor with a MotionCam Outdoor camera to the system, the user needs to scan the QR code with the Ajax application to assign a name and a room to the device. The detector will be set up in a mobile application in real-time using signal strength tests and detection zones. It is possible to disable the wireless motion sensor or reconfigure it temporarily if necessary. At the height of 0.8-1.3 meters above ground level, on the house wall or the fence. User should not install the motion sensor near metal and mirrors, near trees and tall bushes, in places with a low signal level and closer than 1 m to the hub.
