StreetSiren Jeweller
Wireless siren for indoor and outdoor use
yA5lgs
9td1WlCommunication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.
* Certified according to UL/ULC standards.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 4,500 ft
Between the device and a hub (or a range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Key features
Alarm type
acoustic and LED
Buzzer and LED frame.
Type of warning device
type X
External, self-powered, and remote power source compliant with EN 50131-6.
Alarm volume
from 85 to 113 dB at a distance of 3.3 ft
Adjusted by PRO or user with admin rights in the Ajax app.
Alarm duration
from 3 s to 3 min
Alarm duration up to 15 minutes is available only for siren with firmware version NA 5.60.4.14 or higher and with Quiet or Loud alarm volume.
Adjusted by PRO or user with admin rights in the Ajax app.
Siren sound frequency
1.60−4.5 kHz
Acoustic output type
tone
Events indication
- Alarms.
- Delays when entering/leaving.
- Security mode.
- Security mode changing.
- After-alarm indication.
Chime
The siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed.
Recommendations
The siren is designed for indoor and outdoor use. Recommended installation height is 8.2 ft and higher.
Sabotage protection
Tampering alarm
Notifications on attempts to open the siren’s enclosure.
Accelerometer alarm
Notifications on attempts to move or shake the siren, or detach it from the surface.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.
Main power supply
Battery
4 × CR123A
Pre-installed.
Type
Type C.
Calculated battery life
up to 5 years
Siren’s operating voltage range
3.65−6.2 V⎓
Siren’s nominal operating voltage
6 V⎓
Quiescent siren’s current consumption at nominal voltage
71 µA
Peak siren’s current consumption at nominal voltage
1 A
When the siren sounds at the Very Loud volume level.
Average siren’s current consumption at nominal voltage
0.3 A
When the siren sounds at the default volume level. Regardless of the arming mode.
Full battery capacity
6,400 mAh
Capacity of each battery is 1,600 mAh.
Low battery voltage
4.25 V⎓
Low battery recovery voltage
5.05 V⎓
End-of-life battery voltage
3.65 V⎓
Device is switched off.
End-of-life battery capacity
460 mAh
Manufacturer
Huiderui or Panasonic
UL listed.
Optional power supply
Remote power supply’s operating voltage
6−20 V⎓
Remote power supply’s nominal voltage
12 V⎓
Quiescent siren’s current consumption at nominal voltage
25 mA
Average siren’s current consumption at nominal voltage
0.2 A
When the siren sounds at the default volume level. Regardless of the arming mode.
Peak siren’s current consumption at nominal voltage
0.7 A
When the siren sounds at the Very Loud volume level.
Enclosure

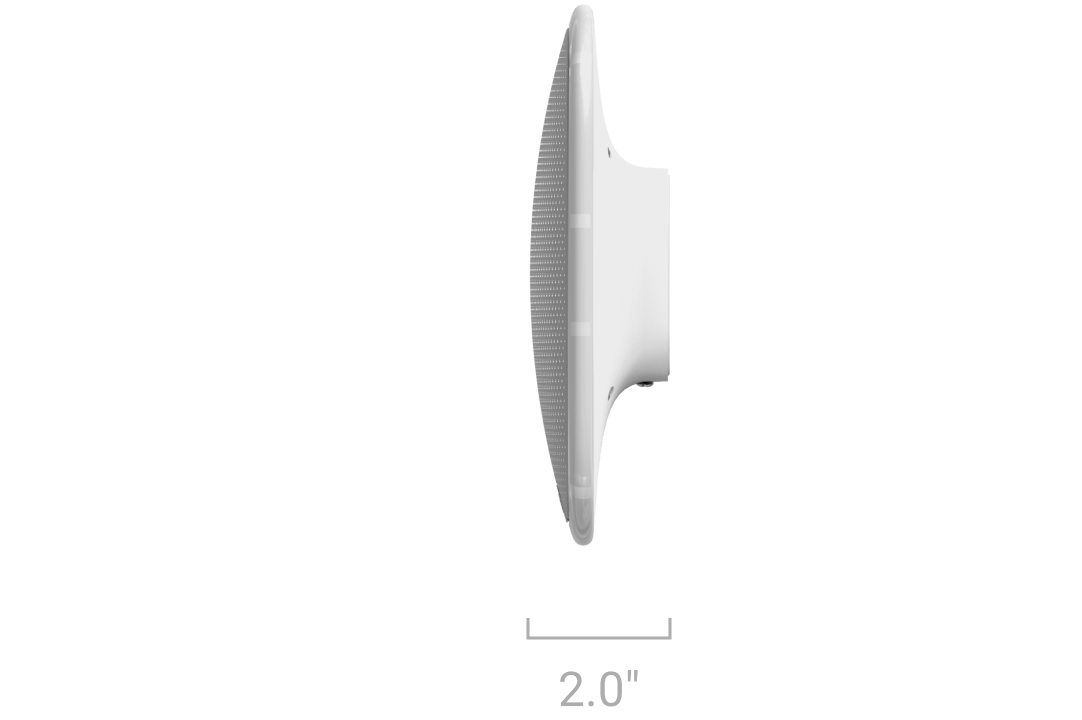

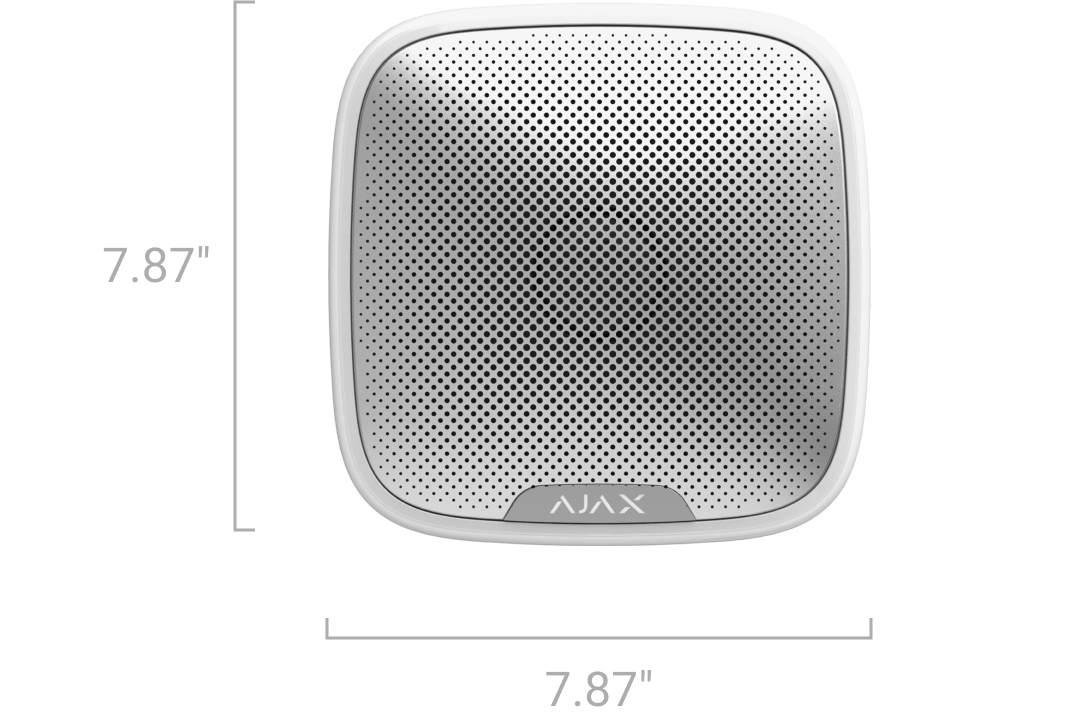

Dimensions
7.87″ × 7.87″ × 2.0″
Weight
18.63 oz
Operating temperature range
from −13°F to 140°F
Temperature range from -31 °F (-35 °C) to 150 °F (+66 °C) is certified according to UL standards, and from -40 °F (-40 °C) to 150 °F (+66 °C) — according to ULC standards.
Operating humidity
up to 95%
Humidity of up to 93% is certified according to UL/ULC standards.
Protection class
IP54
Colors
Black
White
Complete set
StreetSiren Jeweller
SmartBracket mounting panel
Installation kit
4 × CR123A battery (pre-installed)
Quick start guide
hQt5e6
StreetSiren Jeweller
StreetSiren Jeweller
Compliance with the security alarm standards
Certificate issued by TREZOR TEST s.r.o.
EN 50131-1:2006 / A1:2009 / A2:2017
EN 50131-4:2019
EN 50131-5-3:2017
PD 6662:2017*
ANSI/SIA CP-01-2019
Security Grade (SG)
Certificate issued by TREZOR TEST s.r.o.
2
Radio Equipment Directive (RED)
Certificate issued by MiCOM Labs
EN 300 220-1 V3.1.1
EN 300 220-2 V3.2.1
Restriction of Hazardous Substances Directive (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Electromagnetic Compatibility Directive (EMC)
Certificate issued by MiCOM Labs
EN 301 489-1 V2.2.3
EN 301 489-3 V2.1.1
Low Voltage Directive (LVD)
Certificate issued by MiCOM Labs
EN 62479:2010
EN 62368-1:2014+A11:2017
Environmental class according to EN 50131
Certificate issued by TREZOR TEST s.r.o.
IV
FCC ID
Certificate issued by MiCOM Labs
2AX5VSTRESI-NA
2AX5VSTRSIJ1
IC ID
Certificate issued by MiCOM Labs
26860-STRESINA1
26860-STRSIJ1
CSA
CSA Group Testing & Certification Inc.
ANSI/UL 62368-1:19
CSA C22.2 No. 62368-1:19
Household Burglar-Alarm System Units
UL LLC
UL 1023
Commercial Premises Security Alarm Units and Systems
UL LLC
UL 2610
Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems
UL LLC
ULC S304 (Canada)
Household Fire Warning System Units
UL LLC
UL 985
Residential Fire Warning Alarm Systems Control Units
UL LLC
ULC 545
PSTI UK
Schedule 1
