Superior Button Jeweller

Previously: Button S Jeweller

Wireless panic/smart button. Ajax Superior edition

Superior Button Jeweller

Device compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced sabotage protection.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

868.0–868.6 MHz

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 4,200 ft

Between detector and control panel (or range extender) in an open space.

Encrypted communication

All the data stored and transmitted are protected by block encryption with a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Number of buttons

1

LED backlight indicating command delivery

The LED brightness is adjusted in the Ajax apps.

Protection against accidental pressing

long or double press

​​Supervising feature

Superior Button Jeweller will update the status of its battery every day.

Power supply

Battery

1 × CR2032

Pre-installed.

Type

Type C.

Calculated battery life

up to 5 years

Button’s operating voltage range

1.7–3.3 V⎓

Button’s nominal operating voltage

3 V⎓

Quiescent button’s current consumption at nominal voltage

0.0005 mA

Maximum button’s current consumption at nominal voltage

1 mA

Full capacity

235 mAh

Low battery voltage

2.2 V⎓

Low battery recovery voltage

2.3 V⎓

End of life battery voltage

1.7 V⎓

End of life battery capacity

40 mAh

Manufacturer

Renata

Enclosure

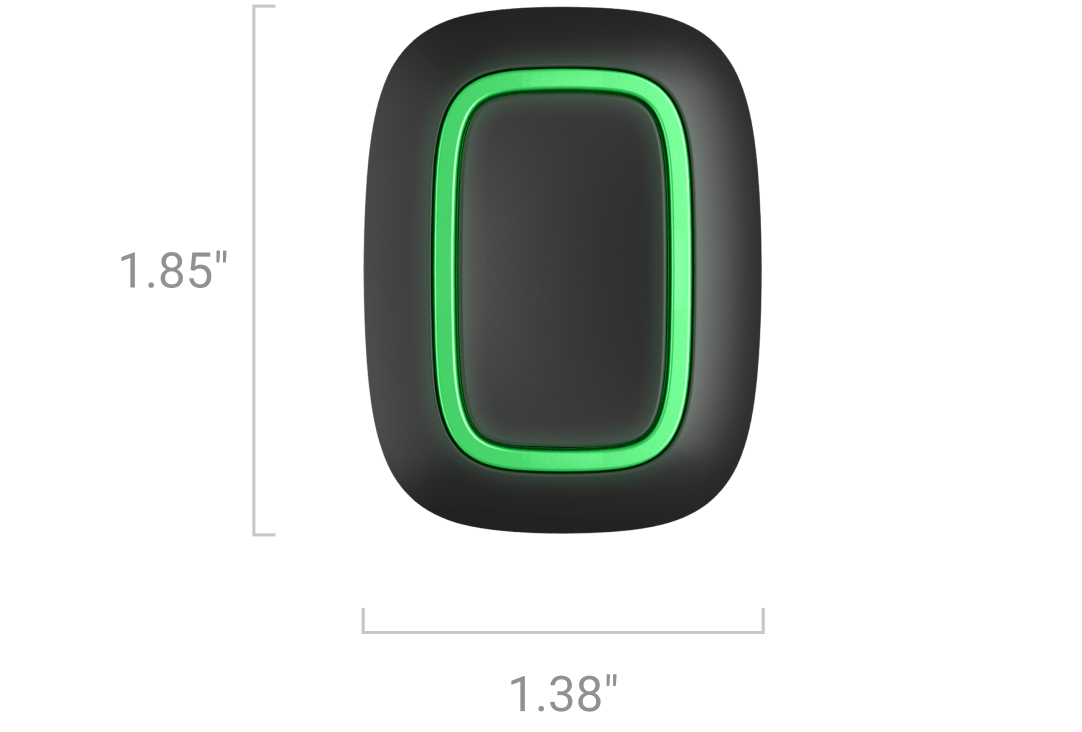

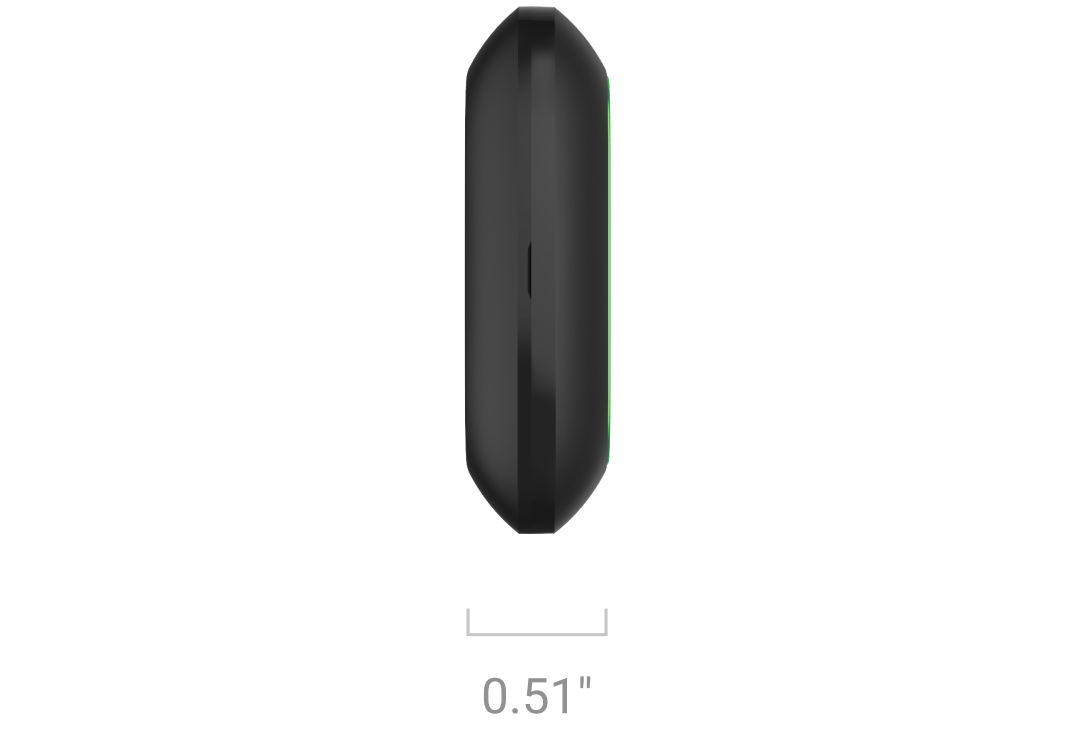

Dimensions

1.85″ × 1.38″ × 0.51″

Weight of the white device

0.56 oz

Weight of the black device

0.53 oz

Operating temperature range

from 14℉ to 104℉

Operating humidity

up to 75%

Protection class

IP55, IK04

Colours

Black

White

Complete set

Superior Button Jeweller

CR2032 battery (pre-installed)

Double-sided tape

Quick start guide

Certification and compliance with standards

Superior Button Jeweller

Superior Button Jeweller

Compliance with the security alarm standards

Certificate issued by CNPP Cert․ and AFNOR Certification

  • EN 50131-1:2006/A1:2009/А2:2017/A3:2020
  • EN 50131-3:2009
  • EN 50131-6:2017/A1:2021
  • EN 50131-5-3:2017
  • EN 50134-2:2017
  • PD 6662:2017*

Security Grade (SG)

Certificate issued by CNPP Cert․ and AFNOR Certification

2

Radio Equipment Directive (RED)

Certificate issued by IIA Lab Services, LLC

ETSI EN 300 220-2 V3.3.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by IIA Lab Services, LLC

  • ETSI EN 301 489-1 V2.2.3
  • ETSI EN 301 489-3 V2.3.2

Low Voltage Directive (LVD)

Certificate issued by IIA Lab Services, LLC

  • EN IEC 62368-1:2024+A11:2024
  • EN IEC 62311:2020

Environmental class according to EN 50131

Certificate issued by CNPP Cert․ and AFNOR Certification

II

INCERT

Certificate issued by Kiwa Nederland B.V.

T 031:2017+A1:2018+A2:2022

PSTI UK

Schedule 1

Certification

Certification NF&A2P – 2 Boucliers suivant le référentiel NF324-H58

Organismes certificateurs :

www.cnpp.com

www.marque-nf.com

Certificat №: 1224050011

  • NF EN50131-3
  • RTC 50131-3
  • NF EN50131-6
  • RTC 50131-6
  • NF EN 50131-5-3
  • NF EN 50130-4
  • NF EN 50130-5

Recognition and registration of electronic security technology products

Certificate issued by VSÖ

Approved device classes:

GS-H, GS-H, P/S


device
Holder

Additional information

Compliance with standards

Learn more

Warranty

24 months
