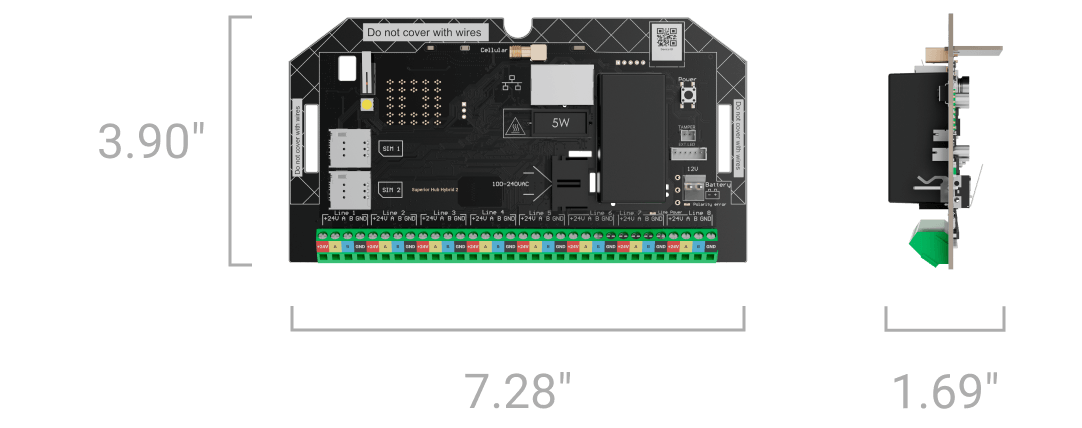

Superior Hub Hybrid 2 (without casing)

Ajax devices

up to 250

Specifically:

• up to 200 wired devices per one Fibra line;
• up to 5 range extenders.

Ajax NVRs

up to 36

Ajax cameras

up to 224 via Ajax NVRs and up to 492 standalone

Third-party IP cameras

up to 100 when using RTSP via SDK

up to 224 when using ONVIF via Ajax NVRs

Users

up to 200

• Any number of admin users within the hub limit.
• PRO accounts for installers.
• PRO accounts for installation and monitoring companies.

Automation scenarios

up to 64

• By alarm.
• By schedule.
• By arming/disarming.
• By temperature, humidity, CO₂ concentration.
• By pressing Button.
• By touching LightSwitch.

Security groups

up to 25

Rooms

up to 50

Event log

up to 1,000 events

Events are saved in the non-volatile onboard flash memory.

Fibra communication technology

Proprietary wired communication technology to transmit commands, alarms, and events.

Key features:

• Two-way communication.
• Advanced sabotage protection.

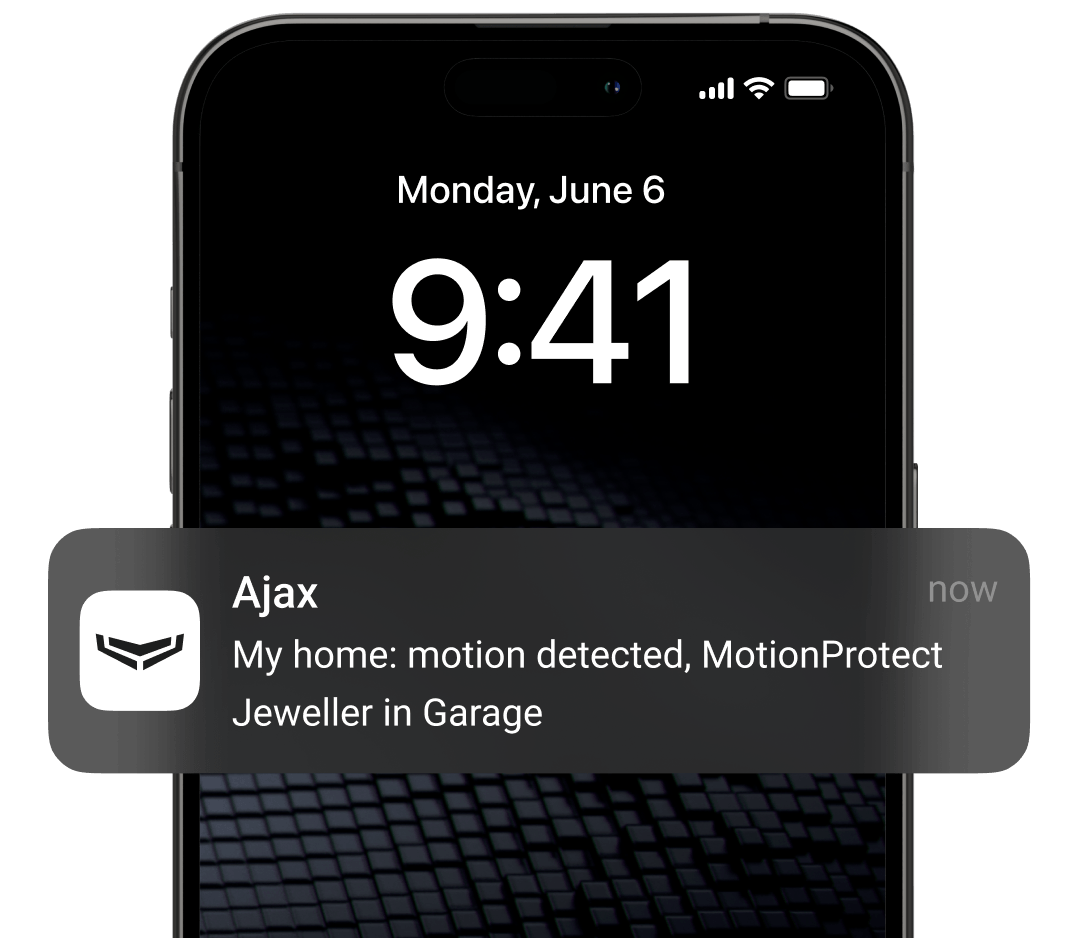

• Instant notifications.
• Remote control and configuration in Ajax apps.

Line connection

4–core cable

Input

8 Fibra lines

Compatible with Fibra devices only.

Fibra line length

up to 6,500 ft

When the U/UTP cat.5 twisted pair cable is used.

Power supply of devices

up to 14.4 W

For all connected wired devices.

Output voltage range

23–25.1 V⎓

Maximum rated output

0.53 A

Maximum output peak-to-peak ripple voltage

220 mV⎓

Topologies

• Beam (Radial wiring)
• Ring
• Tree

If the line breaks, the ring splits into two working segments, the devices continue to operate, and the system notifies a monitoring company and users of the incident.

Polling interval

from 12 s to 300 s

Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

All stored and transmitted data is protected by block encryption featuring a dynamic key.

Superior Jeweller communication technology

Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweller is an upgraded version of the Jeweller radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3).

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Enhanced block encryption featuring a dynamic key.
• Instant notifications.
• Remote control and configuration in Ajax apps.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 11,450 f

Between the hub and the devices added to it in open space. The maximum range depends on the added device.

Polling interval

from 12 s to 300 s

Adjusted by a PRO or user with admin rights in Ajax apps.

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Wings communication technology

Proprietary wireless communication technology to transmit large data packets.

Key features:

• Two-way communication.
• Advanced sabotage protection.
• Enhanced block encryption featuring a dynamic key.
• Data packet reload if a transmission error occurs.
• Photo delivery check.

Frequency bands

865.0–868.0 MHz

868.0–868.6 MHz

868.7–869.2 MHz

869.4–869.65 MHz

Maximum effective radiated power (ERP)

up to 25 mW

Automatic power control to reduce power consumption and radio interference.

Radio communication range

up to 9,800 ft

Between the hub and the devices added to it in open space. The maximum range depends on the added device.

Encrypted communication

All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity.

Frequency hopping

To prevent radio interference and jamming.

Photo verification types

• Photo by alarm
• Photo by scenario
• Photo on demand
• Photo by schedule
• Photo by arming/disarming
• Photo by anti-masking
• Photo by tamper alarm
• Photo by magnetometer

Photo delivery time

up to 9 s

By default.

Photo resolution

up to 960 × 720 pixels

Depends on the detector.

Number of photos in a series

from 1 to 5

Supported protocols

• SIA DC-09 (SIA-DCS)
• SurGard (Contact ID)
• ​​ADEMCO 685
• Other proprietary protocols

Event types

• System alarms and events
• Panic button coordinates
• Photo verification

Tamper alarm

The board has a connector for attaching a tamper board. It detects when the Case lid is opened and notifies of attempts to detach Case with the installed hub from the surface.

Protection against spoofing

device authentication

Frequency hopping

The hub sends notifications of jamming or connection loss with the devices to all users and the monitoring company.

Jamming alert

Superior Hub Hybrid 2 analyzes the noise level in the channel and the communication quality with the added devices and sends a notification in 30 seconds.

Main power supply type

type A

Device operating AC voltage range

100–240 V, 50/60 Hz

From the main power supply. Up to 10 W of mains power consumption.

Device operating DC voltage range

10.5–15 V⎓

Autonomous operation

up to 60 hours

Superior Hub Hybrid 2 with a 7 Ah backup battery can power a system of 15 wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply.

Battery power saver mode allows extending the backup battery life.

Low battery voltage

11.7 V⎓

Low battery recovery voltage

12.9 V⎓

End-of-life battery voltage

11 V⎓

Superior Hub Hybrid 2 switches off.

Minimum backup battery energy level in the charged state

100%

Maximum at nominal voltage

240 mA

Quiescent at nominal voltage*

up to 102 mA

When GSM and Ethernet are enabled.

up to 61 mA

When Ethernet is disabled.

* From the backup battery after loss of the main power supply.
