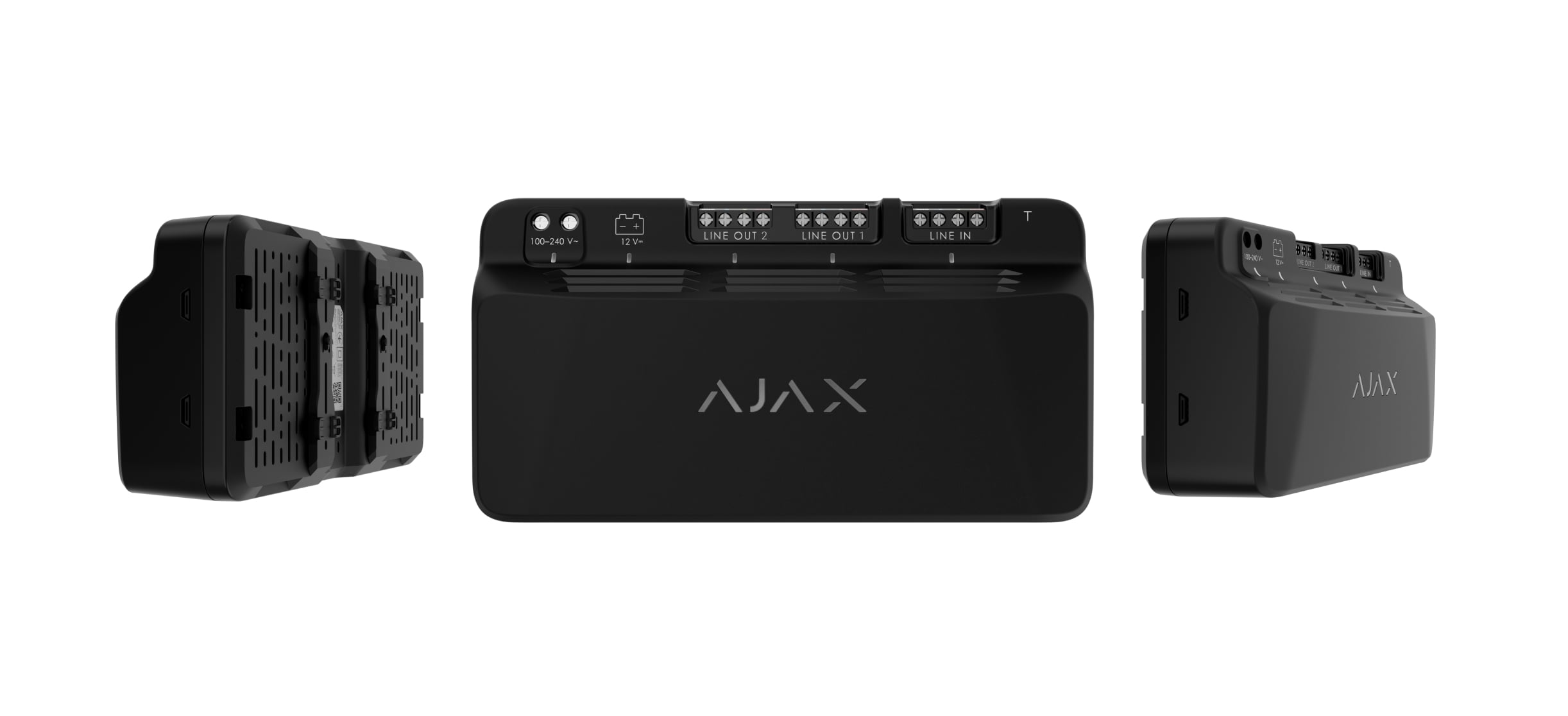

LineSupply (75 W) can be installed after a hub, detector, keypad, siren, or another LineSupply. The module provides additional power to Fibra devices installed between the LineSupply (75 W) and the end of the line.
Wired connection range
between the module and the hub — up to 6,500 ft;
between the module and the last Fibra device on each line — up to 6,500 ft.
The maximum line length is relevant when using the U/UTP cat.5 twisted pair.
All stored and transmitted data are protected by block encryption featuring a dynamic key.

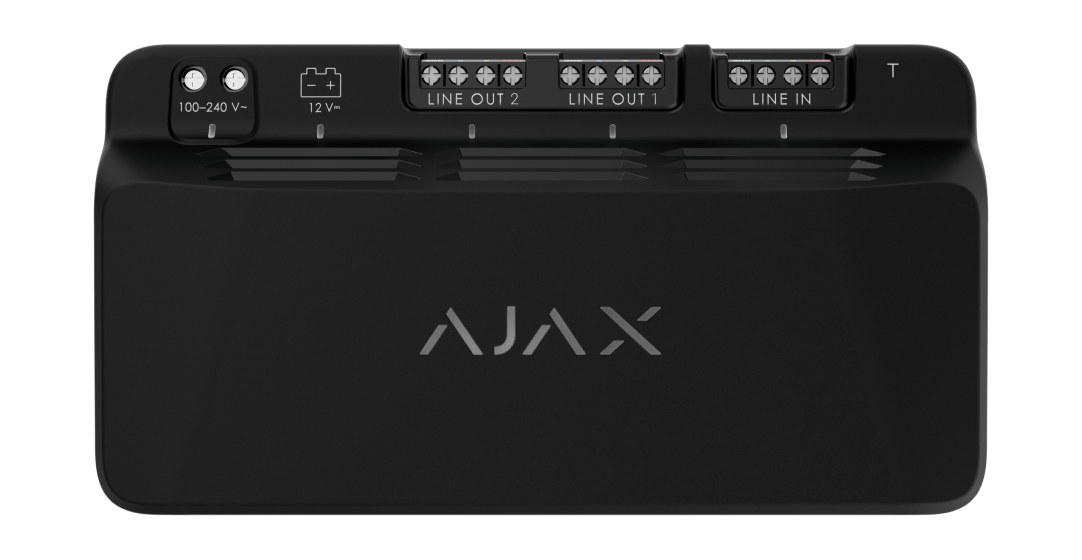

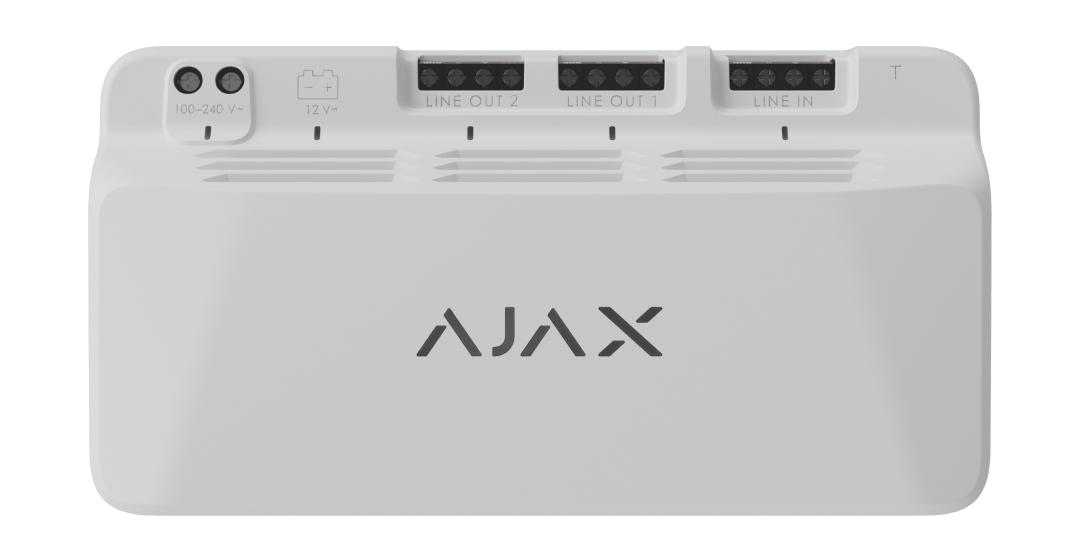

Line connection
Number of input lines
1

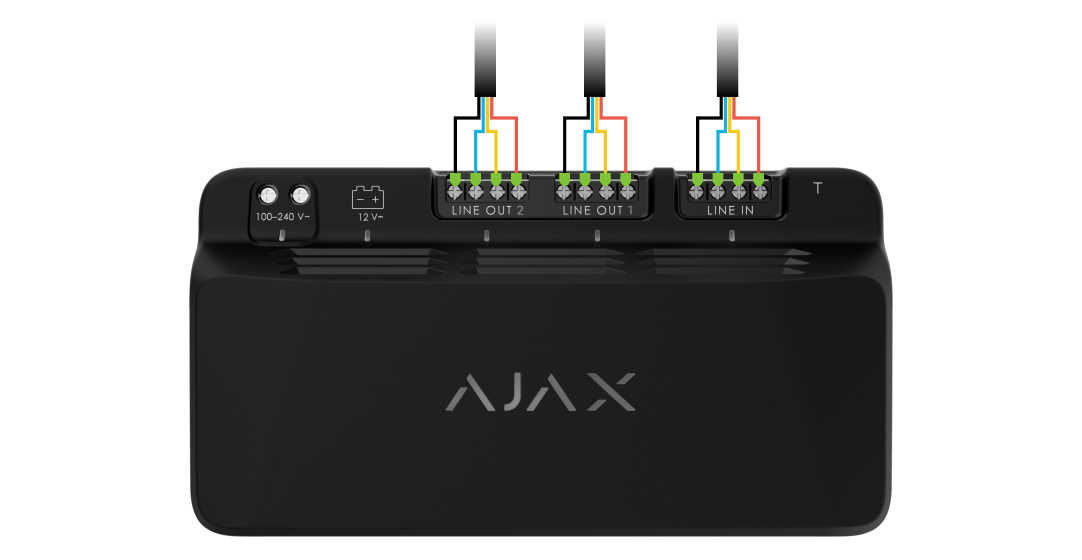

LineSupply (75 W) can be connected after any Fibra device.
Number of output lines
2
Fibra devices with a total power consumption of up to 30 W can be connected to each output line. Superior LineSupply (45 W) Fibra version is also available, featuring less output power and one output line instead of two.
Cable length
up to 6,500 ft
For each output line between the module and the last Fibra device on the line when using U/UTP cat.5 twisted pair.
Ensures that devices connected between the LineSupply (75 W) and the end of the line do not consume power from the hub.
Power supply
Type
type A
Main
100–240 V~, 50/60 Hz
Device’s nominal voltage
12 V⎓
Maximum current consumption at nominal voltage
6 A
Low battery voltage
11.3 V⎓
Low battery recovery voltage
14.3 V⎓
End-of-life battery voltage
10.5 V⎓
Maximum output peak-to-peak ripple battery voltage
maximum peak-to-peak ripple battery voltage: 5% (compliant with EN 50131-6)
maximum RMS ripple battery voltage: 180 mV (compliant with VdS 2115)
Minimum energy level for a backup battery in the charged state
100%
Backup
12 V⎓ battery with a capacity from 7 to 17 Ah
Not included. When the main power is available, the backup battery is charged from the mains. When using a 7 Ah, 9 Ah, or 17 Ah battery for autonomous work for 60 hours, the maximum load should be no more than 0.1 A, 0.14 A, and 0.27 A, respectively.
Maximum time to recharge a battery of maximum capacity to 80%
up to 24 hours
Power output
per output line — 30 W;
to charge the backup battery — 15 W.
Recommendations
Power supply 100–240 V~.

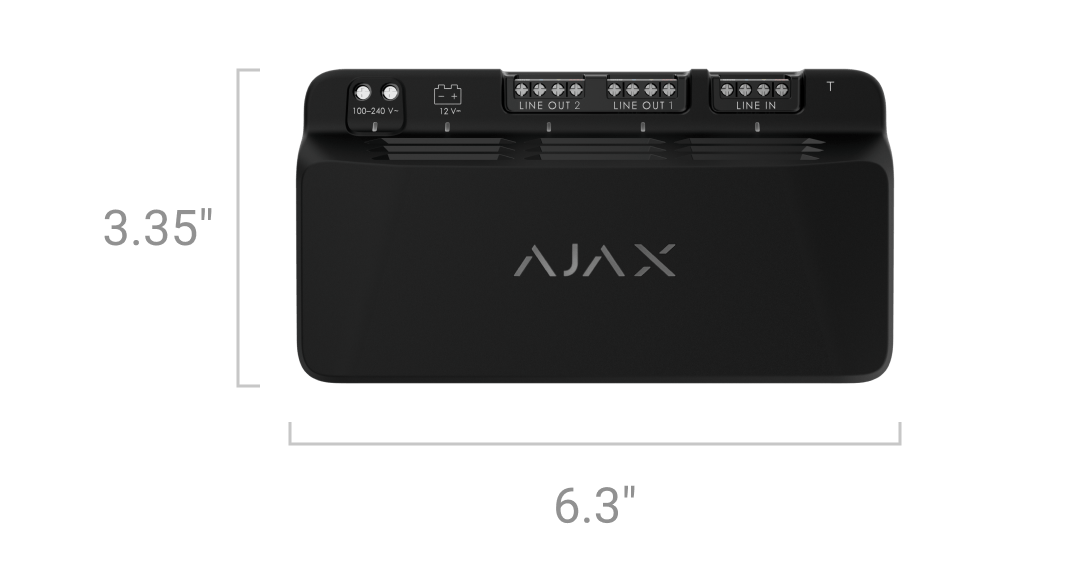

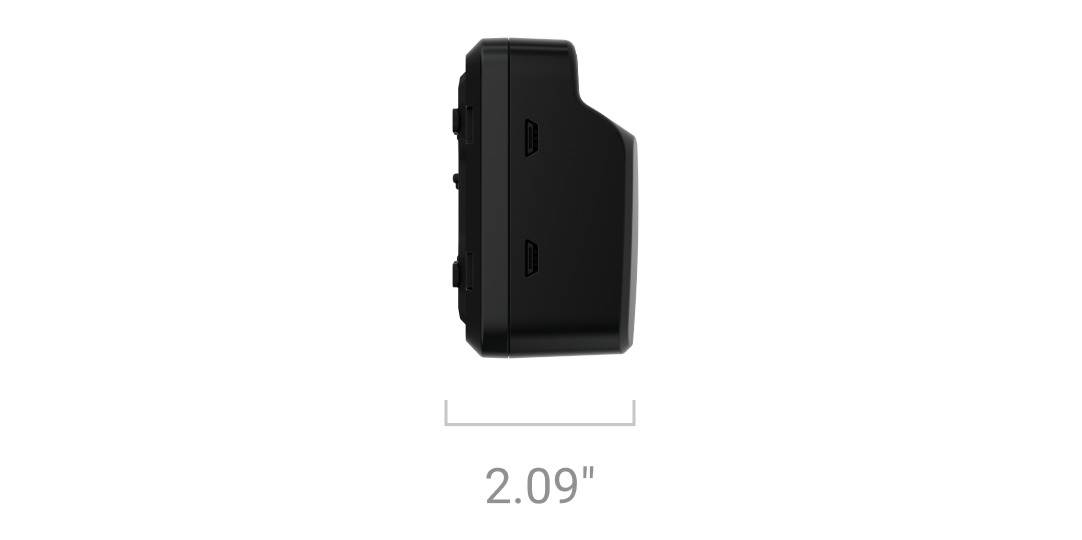

The device is designed for indoor use only. Installation in Case C (260) or Case D (430) is recommended. The casing is sold separately.
