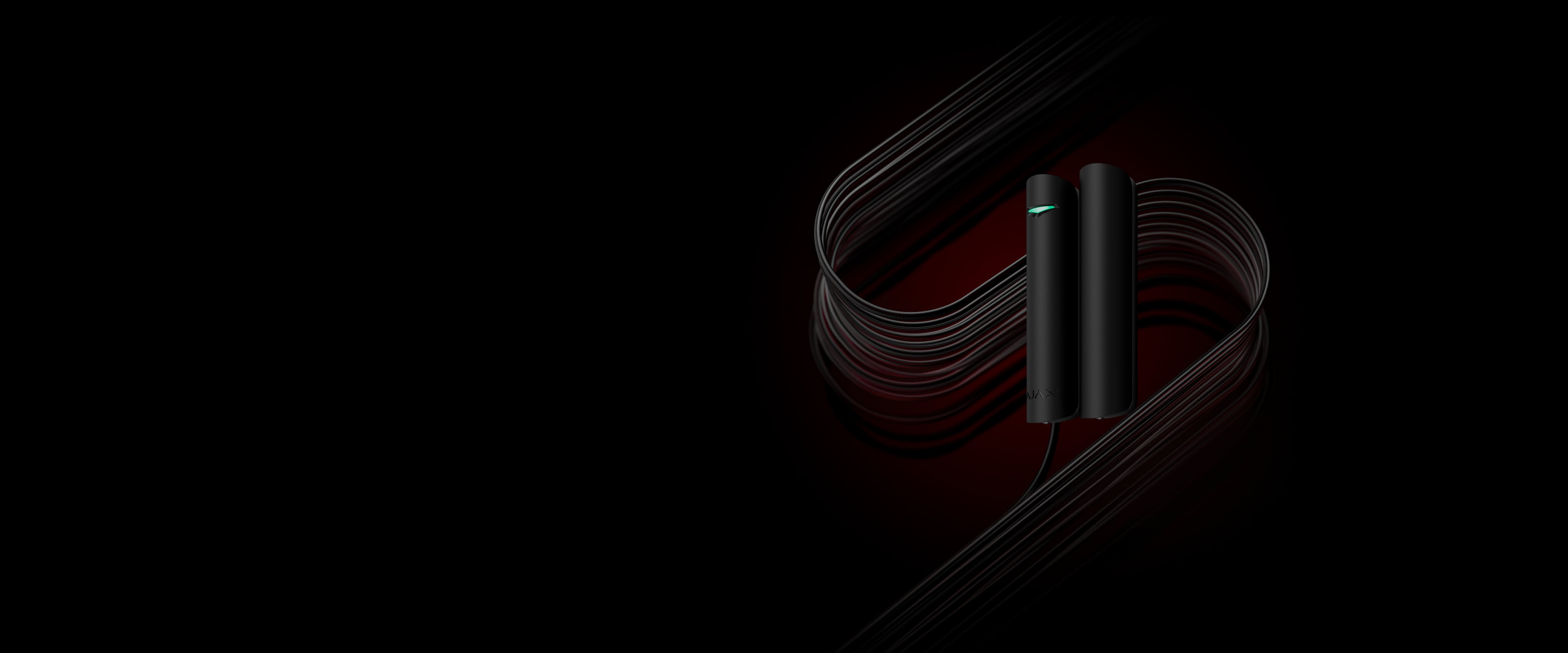

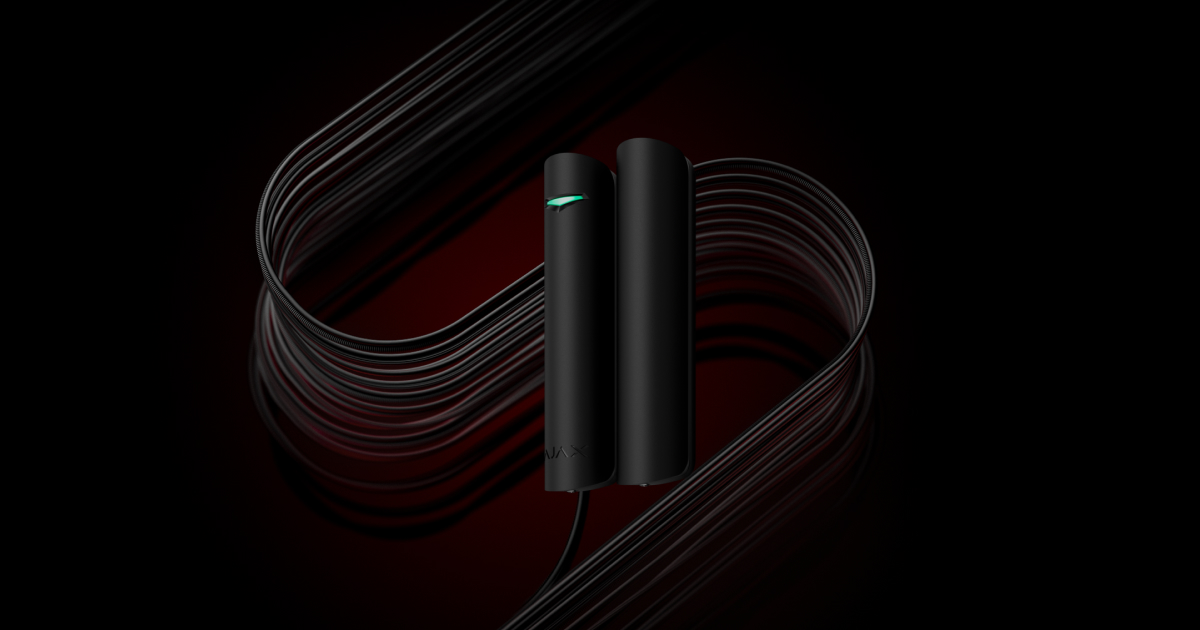

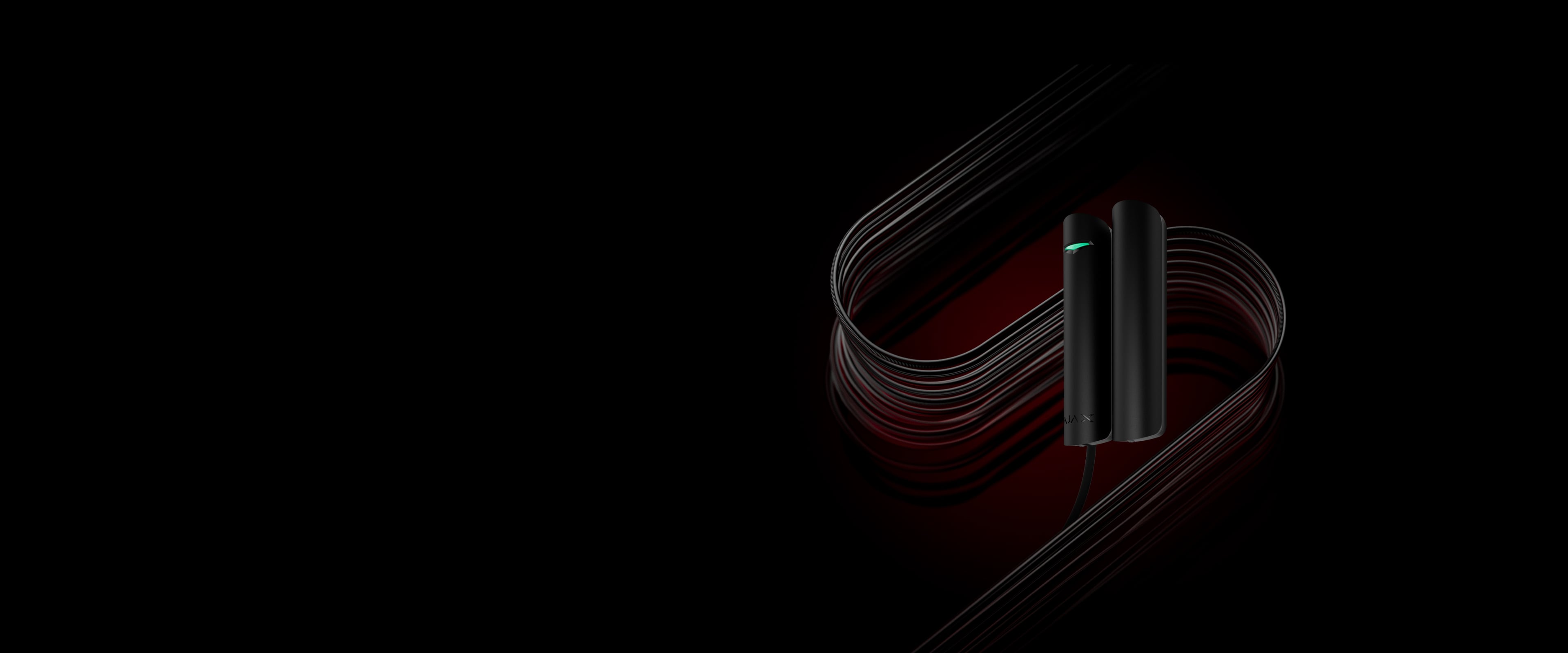

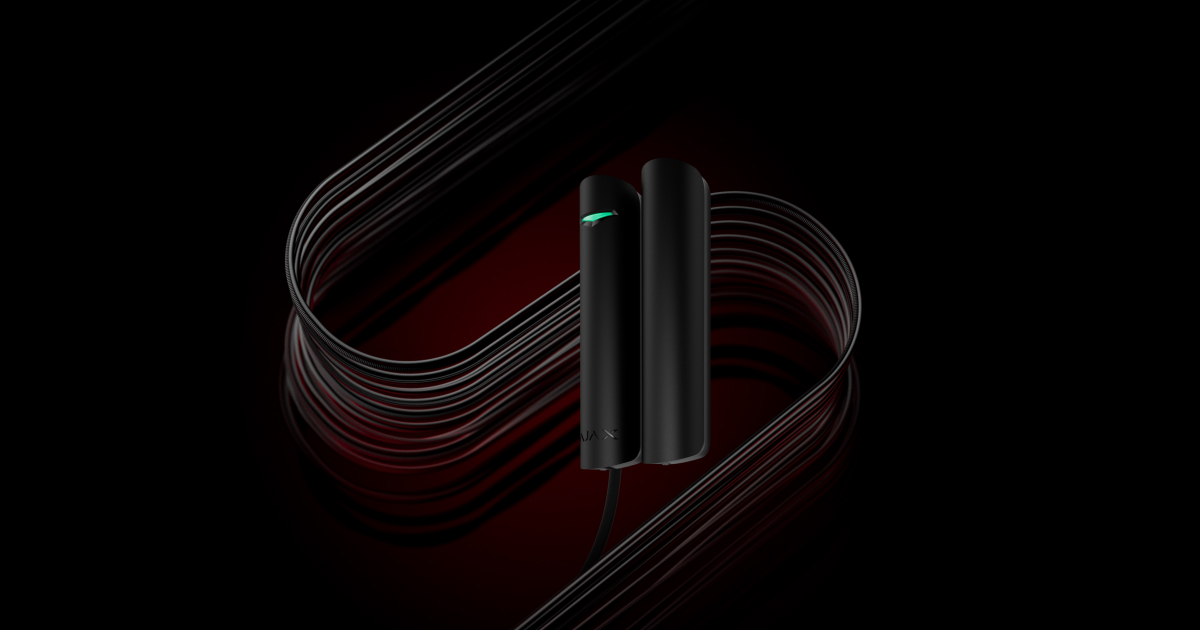

Superior DoorProtect Fibra

Superior DoorProtect Fibra

Wired reed-switch opening detector

Product is not available in your region

Guardian for doors, windows, and valuables

Superior DoorProtect Fibra is designed to detect intrusion and burglary attempts, offering comprehensive coverage for doors, windows, skylights, and vaults. Equipped with two reed switches as opening sensors, the detector features protection against chattering in its operation. Two magnets of different sizes provide more mounting options. All in line with the Ajax user experience, ensuring quick and easy device installation.

Discover Fibra

Introducing expanded features of the Fibra product line

Watch on Youtube

Key features

Reed switches

2 reed switches

Protection against chattering

to prevent false alarms

Chime

Chime1 feature

Radio-range

Up to 2,000 m

communication range with an Ajax hub or a module2 that extends the Fibra line

Up to 0.036 W

low power consumption

More installation options

with two magnets included

Installation options
NC detector

Terminals to connect a third-party NC detector

Easy wiring

Easy wiring

with removable device board

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Office: Opening detected, Superior DoorProtect Fibra in Office

Ajax logo
10:00

Ajax

Manufacturing: The device detached from the surface, Superior DoorProtect Fibra in Warehouse

Fibra wired communication

Fibra wired connection

Power adjustment

Remote control

Remote control and configuration

2 colors

of matte enclosure

2 colors

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

This is the device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and administer Superior products.

Wherever there is a risk of intrusion

Store

Store

Museum

Museum

Office

Office or coworking

Warehouse

Warehouse

Medical lab

Medical center

Home

Home

School

School

Discover future-proof hardware

Two reed switches

Two reed switches

Magnets

Two magnets of different sizes

Tamper

Tamper against detaching the detector from the surface

Holding screw

Holding screw to secure the detector’s casing

Removable device board

Removable device board

Fixing points

Fixing points for convenient detector installation

Fixing points

Perforated parts for wire routing

High-end reed switches for reliable opening detection

Superior DoorProtect Fibra features two durable reed switches, allowing the magnet to be positioned on either side of the detector (right or left). This flexibility provides installers with more options for wire routing, as the detector functions effectively irrespective of magnet placement. Housed in resilient plastic capsules, reed switches remain intact during transportation, even in case of drops.

Effective detection wherever the magnet is placed — left or right

Plastic capsules protect reed switches during transportation

Reed switches

Easy integration with third-party detectors

Superior DoorProtect Fibra has terminals for connecting a third-party wired NC detector. This allows an installer to enhance system reliability with any NC detector, whether newly installed or already in place, such as motion, opening, or vibration detectors. For example, Superior DoorProtect Fibra enables you to integrate an existing third-party3 opening detector into the system.

Opening detector

Vibration detector

Motion detector

Use a detector as a doorbell

The Chime feature transforms the combination of an Ajax opening detector and siren into a shopkeeper's bell. When the system is disarmed, the siren notifies about door openings with one of four available short sound signals. PRO users can adjust the volume and assign different signals for separate entrances, making it easy to recognize whether someone entered through the main or a back door.

Detector as a doorbell

Sound signals for door openings

Signal setup for different security groups

Customizable signals for separate entrances

The system requires an Ajax siren for the Chime feature to work.

Chime feature

Fibra

Unique wired technology

An Ajax system uses secure two-way communication based on Fibra proprietary protocol. It features encryption and device authentication to prevent sabotage, spoofing, and data theft. Fibra lines are versatile and support connecting different types of devices to one line: sirens, keypads, and detectors with photo verification.

Unique wired technologies

Up to 2,000 m of wired communication with a hub or a module2 that extends the Fibra line

One line for different types of devices

Photo delivery via Fibra line without interference

Protection against sabotage and spoofing

Energy efficiency as a priority

Fibra communication requires minimum power consumption, with the detector consuming only up to 0.036 W at its peak. Fibra operates on the TDMA principle. Each device has a short time frame to exchange data with a hub, and its communication module remains inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.

Power consumption of up to 0.036 W

TDMA and power-saving modes

Energy efficiency

System supervision

All Ajax devices perform automatic self-diagnosis and report their states to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with status report

Regular polling to display the current device state on apps

Instant maintenance notifications

System supervision

Sabotage resistance

Tamper alarm

Tamper alarm

The compact detector contains two tampers that trigger an alarm if the device is detached from the surface or if its enclosure is opened. The system instantly notifies the security company and users of any intrusion attempts.

Data-rich notifications

Data-rich notifications

Both the monitoring station and security system users instantly receive notifications about events. The information provided includes time, device name, event type, and room location4.

Authentication against detector spoofing

Authentication against detector spoofing

During each communication session, the hub authenticates the device using its unique parameters. If any parameter fails the authentication check, the hub ignores device commands.

Protection against short circuits

Protection against short circuits

Fibra protocol, combined with a special digital algorithm, provides robust protection against unnoticed short circuits of the device. If someone attempts to short-circuit it, the device promptly notifies of a malfunction. The hub informs the Central Monitoring Station (CMS) and users about the incident.

Encryption of transmitted data

Encryption of transmitted data

All data the system stores and transmits is protected by block encryption featuring a dynamic key. This encryption deters intentional sabotage attempts on the detector.

Regular polling

Regular polling

The device regularly exchanges data with the hub. At minimal polling settings (3 data packages in 12 seconds), it takes 36 seconds to detect communication loss and notify the security company and users about the incident.

Next-level protection of Fibra line

Introducing LineProtect, the module designed to protect an Ajax hub and connected wired devices from sabotage when intruders cause overvoltage, short circuits, apply 110/230 V~, or use stun guns.

PRO is king

The myth about wired systems being difficult to install is busted. Ajax minimized an expensive, long, and dusty experience for PROs by developing an ultimate set of tools to make the process easy and flexible, from project design to client support and system maintenance. Everything for smooth and quick installation is included. Intuitive Ajax apps help make the device a part of the system, and each device can be reconfigured remotely at any moment. No programming required — everything is available out of the box.

Fibra power supply calculator

The online tool provides security engineers with detailed data on devices' power consumption, enabling easy pre-installation assessment of the wired system project. It helps design the project in real time, highlights problem spots, and offers solutions. Upon completion, results can be downloaded as a PDF file.

The installation kit includes all the necessary fasteners. The device board is removable, which makes the connection process more comfortable. For cable management, there are several perforated parts for cable routing. The magnet can be installed on either the right or left side: two reed switches detect opening equally fast regardless of the magnet placement.

Removable device board

All the necessary fasteners included in the installation kit

Holding screw to secure the device

Setup

The device is paired with the hub automatically via Fibra line scanning. This tool is available in the desktop or mobile PRO apps. An installer only needs to name the device and assign it to the room and security group. The device can also be added by scanning the QR code or entering its ID manually.

Pairing with a hub via automatic line scanning or QR code

Device identification via triggering or LED indication

Optimal default settings to cover major requests

Installation

Intuitive Ajax apps provide remote set-up and testing with all device information from anywhere the Internet is available, on a smartphone or PC. An installer can remotely change the settings and provide services promptly without visiting the object.

iOS, Android, macOS, and Windows apps

Configuration and testing remotely or on site

Accounts for companies and installers

Connection

An Ajax system transmits alarms to the PRO Desktop monitoring app or any third-party CMS. The security company receives an alarm notification in less than a second. Notifications include all the necessary information: name of the device, time of the event, and the exact room where the device is located. The security company also receives photo or video verification, capturing the reason for the alarm.

Full addressability of connected devices

Instant in-app notifications

Alarm and event monitoring through Ajax PRO Desktop or third-party CMS

Monitoring

Fibra technology

How to install a wired security system in 6 hours

Watch on Youtube
1

The Chime feature requires an Ajax siren to operate. Learn more about Chime.

2

With U/UTP cat.5, 4 × 2 × 0.51 cable. Other cable types may have different values. Please use the Fibra power supply calculator to check the wired system project before installation.

3

Superior DoorProtect Fibra can not power the third-party detector. The power supply for this detector should be connected separately.

4

The list of transmitted parameters may vary depending on the CMS type and selected communication protocol.

Ajax product categories

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

Enhancing security with wired opening detectors

Securing your premises is more important than ever. Wired opening detectors have emerged as essential components of modern security systems, ensuring reliable protection for residential and commercial properties against unauthorized access. These devices are designed to monitor entry points, providing a robust defense against potential intrusions.

Wired opening detectors utilize specialized technologies to detect openings, vibrations, and various indicators of unauthorized access. With an emphasis on reliability and stability, these devices communicate through low-voltage wiring, allowing them to function effectively without the concerns associated with wireless systems, such as signal loss. As a result, property owners can rest assured knowing that their security measures remain intact in various conditions.

The role of wired detectors in property security

Wired detectors are designed to be highly dependable, often featuring tamper alarms that alert users to any attempts to disable or remove them. These systems excel in performance, providing consistent security and peace of mind. Many wired models are built to withstand environmental challenges, enhancing their effectiveness no matter the conditions.

Regular maintenance allows these systems to function efficiently for years, making them a wise investment in property protection. The Superior DoorProtect Fibra is an advanced choice among the wired technology options available.

Superior DoorProtect Fibra

The Superior DoorProtect Fibra is not just another wired opening detector but a top-tier device designed to deliver exceptional performance. This model distinguishes itself with its capability to detect openings, shocks, and tilts, providing a multifaceted approach to security. Its Grade 3 certification ensures that it adheres to stringent standards for reliability and safety, allowing for installation in high-security environments like banks, museums, and medical facilities.

Key features:
  • Multi-functionality: Beyond essential opening detection, the Superior DoorProtect Fibra incorporates advanced shock and tilt sensors, allowing it to identify forced entry through various means, even when windows are cracked for ventilation.
  • High-end reed switch technology. Featuring two durable reed switches for reliable detection mitigates the risk of failure; if one switch does not work, the other maintains functionality.
  • Flexible installation options. It comes with small and large magnets, enabling easy configuration based on your specific entry points.
  • Protection against false alarms. Built-in features help minimize false alarms caused by environmental factors, ensuring users receive alerts only for genuine threats.
  • Integration with third-party detectors. The device supports connections to third-party wired NC detectors, enhancing overall reliability without additional power sources, thus allowing a more comprehensive security solution.
  • Low power consumption. Designed for energy efficiency, the Superior DoorProtect Fibra operates on a low power consumption level, contributing to long-term reliability.
  • User-friendly setup. Equipped with a SmartBracket mounting panel, installation is straightforward. However, professional installation is encouraged to ensure optimal placement and functionality of the detector.
  • Real-time alerts. Immediate notifications of detected openings or tampering through the Ajax app enhance response times and reinforce security.
  • Robust wired communication. The Fibra proprietary protocol ensures encrypted communication with a range of up to 2,000 meters, making it ideal for various high-security locations.

A wise investment for enhanced security

Choosing the Superior DoorProtect Fibra means investing in a reliable wired detector that significantly enhances your property's security. Its sophisticated technology and comprehensive features make it a valuable addition to any security system.

Whether fortifying residential spaces or ensuring safety in commercial environments, the Superior DoorProtect Fibra offers peace of mind and substantial protection against unauthorized access. With its impressive functionality and ease of integration with other security devices, it represents a prudent choice for anyone serious about securing their premises. Invest in the Superior DoorProtect Fibra today and confidently safeguard your assets.
