Superior MegaHub
Hybrid control panel for the biggest projects. Works with up to 999 Fibra and Jeweller devices. Connectable via Ethernet, Wi-Fi, and two SIM cards (2G/LTE).
Product versions

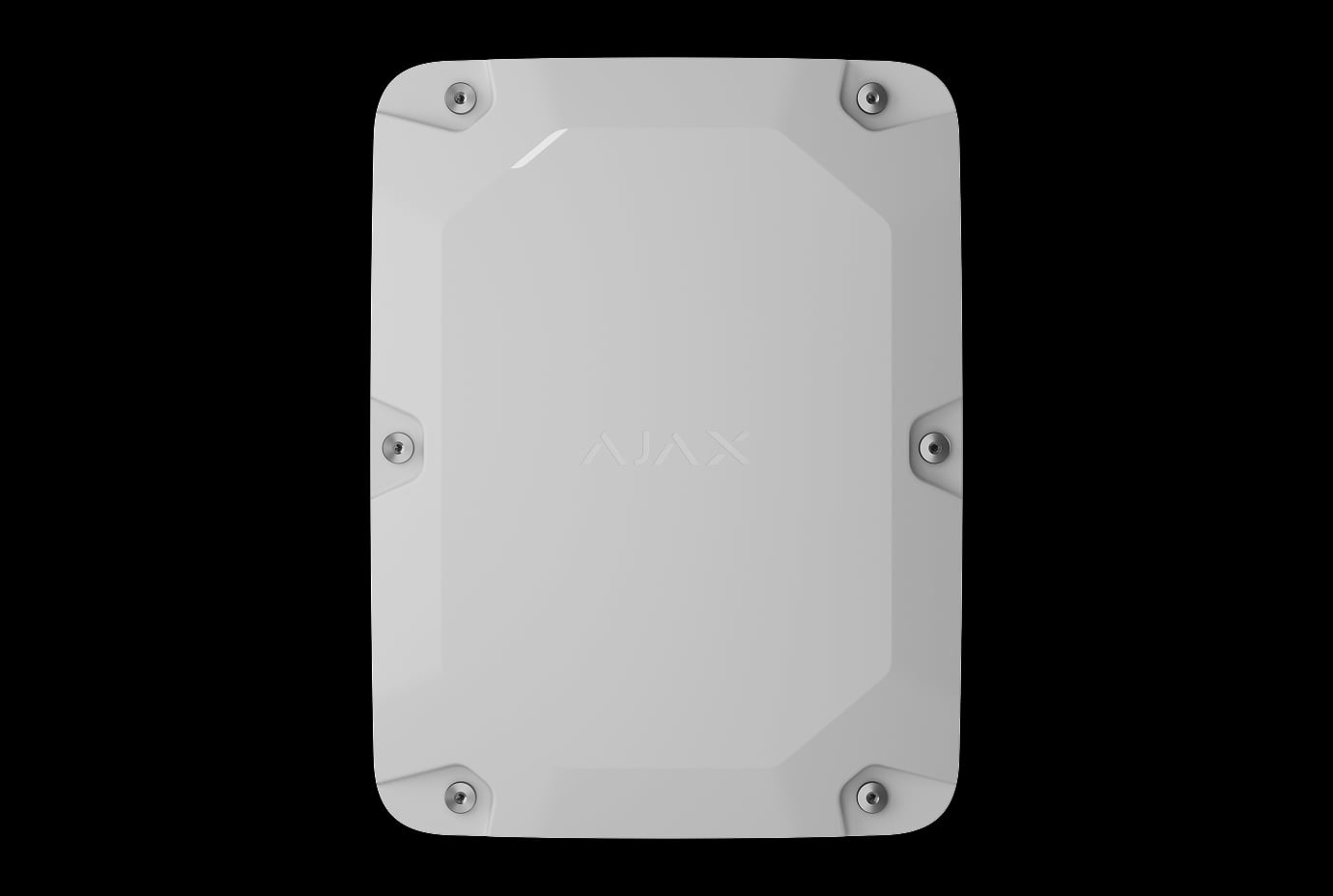

Superior MegaHub
Shipped with a standard casing
Features a built-in tamper button
Built-in LED indicators

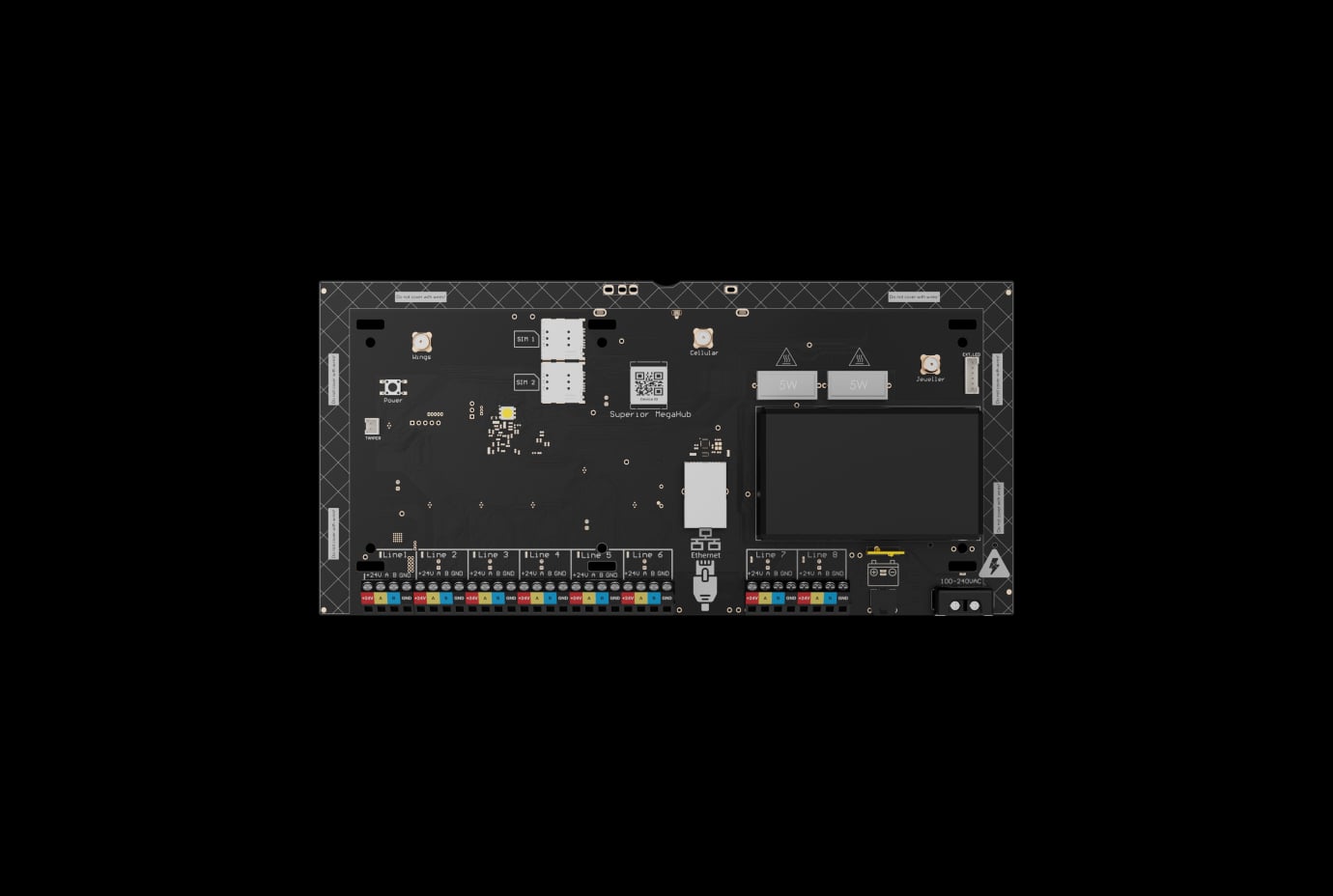

Superior MegaHub (without casing)
Shipped as a board designed for installation into a compatible Ajax Case
Support for external tamper board connection
Comes with an external LED board
The core of enterprise-level security
Superior MegaHub is the flagship of the Ajax ecosystem, designed for projects where conventional systems reach their limits. It combines wired and wireless technologies into one hybrid powerhouse, supporting up to 999 devices and 100 security groups. Designed for the most demanding projects, the hub overcomes the limitations of traditional hybrid systems and gives professionals the freedom to build security setups of any size and configuration. The device also comes fully equipped out of the box, with a built-in power supply, Ethernet, Wi-Fi, cellular, and radio modules. Certified to Grade 3, it forms a solid foundation for complex security setups, integrating intrusion protection, automation, and video surveillance into a single reliable solution.
Performance that scales
Unmatched capacity with support for up to 999 wired and wireless devices
Hybrid connectivity to merge wired and wireless Ajax devices into a single system
Quick configuration and setup with no programming
Compliance with Grade 3 to meet strict requirements for high-security installations
Key features
Up to 999 devices
wired or wireless — freely combined in a single system
Up to 100 security groups
for flexible access management
Up to 100 automation scenarios
to control lighting, gates, and other systems
Up to 1000 users
with individually configurable permissions
Up to 500 rooms
to organize devices by zone or function
Up to 10 range extenders per hub
to expand wireless coverage across large sites
8 lines
to connect wired Superior devices
Up to 6,550 ft of communication range2
between the hub and devices in open space
Fibra line topologies
Beam
Ring
Tree1
Communication with devices
Fibra
Superior Jeweller
TurboWings
VoRF
Up to 60 hours of autonomous operation
on a 12 V⎓, 18 Ah backup battery
Protected casing
for the device shipped with a standard casing
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
All communicators built in
Superior MegaHub comes fully equipped with all necessary communicators — no additional modules are needed. Built-in radio modules provide seamless connectivity between the hub and system devices. Alarms and events are sent to the monitoring station via Ethernet, Wi-Fi, or cellular communication.
Communication between the hub and system devices
WIRED
Fibra communication technology allows installers to wire lines2 up to 6,550 ft long. A single Superior MegaHub can run up to 8 lines. Ajax modules that split, protect, and power the line can extend the connection distance by dozens of times.
Fibra lines are multifunctional and allow for connecting different types of devices at once. All alarms, events, and visual verification data are delivered over the same line without interference. Fibra also features robust encryption and device authentication to prevent sabotage, spoofing, and data theft.
WIRELESS
Superior Jeweller delivers Grade 3 level reliability with strong encryption and advanced frequency hopping. It provides a radio communication range of up to 6,550 ft in open space. The protocol transmits alarms, events, and readings to Ajax apps in just 0.15 seconds.
The protocol uses polling to display current device states, enabling real-time remote system control. Automatic power adjustment makes it energy efficient by avoiding the constant use of maximum transmitter power. This ensures long-lasting operation of wireless devices on pre-installed batteries.
WIRELESS
TurboWings is a wireless technology designed for delivering photo verification data over distances of up to 5,600 ft in open space. It also functions as a fallback communication channel that transmits large data packets if the main connection is lost. Once it is restored, TurboWings automatically sends data backups from cameras and detectors to the hub.
WIRELESS
VoRF is a proprietary audio communication protocol that ensures seamless and secure data exchange between the hub and devices (e.g., voice modules). It enables reliable voice communication between the secured site and the monitoring station. Based on time division duplex technology, the protocol provides simultaneous two-way communication over distances of up to 5,600 ft without requiring on-site activation.
Communication with Ajax server and apps
The hub can be connected to three internet providers simultaneously: one via Ethernet and two via cellular networks. Ethernet serves as the primary channel, while two SIM cards with 2G/3G/4G (LTE) support act as backups. If the primary connection is lost, the hub automatically switches to the SIM with the strongest signal — all within seconds.
Ethernet
Wi-Fi
Cellular: 2 × SIM 2G/3G/4G (LTE)
Add value and grow revenue with Ajax Services
Ajax SIM: stable connection with no effort
Ajax SIM provides instant and reliable cellular communication right out of the box. No complicated setup, no tricky activation — the SIM card does almost everything on its own. Unlimited traffic and reliable connection are available from the very first minute of operation.
Ajax Ultra DP: dual-path reliability with ready-to-use presets
Ajax Ultra DP offers a simple way to configure compliant dual-path alarm transmission (DP2, DP3, or DP4). It complements Ajax SIM to deliver reliable and uninterrupted system operation from the very start. All is up and running within minutes thanks to quick and intuitive in-app setup.
Reliable cellular communication through any barrier
When the hub is installed in a basement or metal-enclosed space, ExternalAntenna helps overcome cellular signal interference. The 9-foot cable allows for optimal antenna placement for the strongest possible signal. If the cable is cut or damaged, both the security company and users receive an instant alert.
Cellular communication boost
External antenna breakage detection
Cable length of 9 ft
For reliable radio communication, an external antenna must be connected to both TurboWings and Superior Jeweller channel connectors. Using a single antenna does not ensure proper channel operation.
ExternalAntenna
ExternalAntenna helps to get a more reliable and stable connection when the hub is installed in challenging environments. It enhances the signal strength of radio and cellular communication.
PRO is king
The myth of wired systems being difficult to install is finally busted. Ajax has turned what used to be an expensive, time-consuming, and dusty process into a fast and flexible experience for PROs. A complete set of Ajax tools is meant to make every stage easy and convenient — from project design to client support and system maintenance.
The Superior MegaHub board can be installed into Ajax Case with a flick of the wrist. Intuitive Ajax apps guide installers through setup and help instantly integrate the device into the system. Once added, the device can be configured, tested, and maintained remotely at any time. No programming required — everything is ready to work out of the box.
Fibra power supply calculator
This online tool provides security professionals with detailed data on device power consumption, enabling quick and accurate pre-installation assessment of a wired system project. The tool helps design the project in real time, highlights potential issues, and offers solutions. Upon completion, results can be downloaded as a PDF file.
The hub is available for order either in its original casing or as a board installed into Ajax Case. The installation kit includes all necessary fasteners, allowing installers to mount the device on a wall effortlessly. The hub board is removable, which makes wiring quick and easy.
Removable terminal board
All the necessary fasteners included in the installation kit
Thought-out cable management
The hub can be added to the system by scanning its QR code or entering the ID manually. Once added, the device is assigned a default name and settings optimized for common use cases.
Adding via QR code
Optimal default settings for most installations
Intuitive Ajax apps enable remote device setup and testing from anywhere with an internet connection, using a smartphone or computer. Installers can adjust settings and provide service promptly without visiting the site.
Remote or on-site configuration and testing
Apps for iOS, Android, macOS, and Windows
Accounts for companies and installers
Ajax systems transmit events and alarms to the Ajax PRO Desktop app or any third-party monitoring software. Both users and security companies receive notifications in less than a second. Each alert includes detailed information: the device name, event time, and exact location of the triggered device. Photo or video alarm verification is also available, allowing CMS operators to see exactly what happened.
Full addressability of connected devices
Instant fault and maintenance notifications
Alarm monitoring via Ajax PRO Desktop or third-party software
The hub supports a varying number of devices depending on the firmware version. For more details, see the article below.
More freedom in project design
Superior MegaHub supports both Superior Jeweller and Fibra communication protocols, allowing for any combination of wired and wireless devices within a single system. Installers can create the most efficient setups using three wired topologies alongside wireless connectivity. This hybrid flexibility simplifies installation, reduces costs, and ensures reliable performance across sites of any size or complexity.
Wireless connection
Ajax wireless technologies provide up to 6,550 ft of communication range in open space. Ajax range extenders can effectively double the wireless coverage and deliver a stable connection across large or complex facilities.
Beam topology
Beam (radial wiring) uses one Fibra line and provides up to 6,550 ft of wired communication1 without line extenders. A single hub can support up to eight beams or a combination of beams and other topologies.
Ring topology
Ring2 uses two Fibra lines to form a hub–device–hub loop. If a line is broken, all devices remain operational — the system automatically splits into two beams. Ring offers up to 1,640 ft of wired communication and can also be combined with other topologies on the same hub.
Tree topology
Tree connection helps create more complex system layouts by branching the line with Fibra accessories. Superior LineSplit Fibra divides one line into four branches and extends each by 6,550 ft. Superior LineSupply Fibra provides additional power and extends the line as well.
Use the Fibra power supply calculator to check the system project and estimate the power consumption of wired devices.
Stable performance even in a blackout
Main power supply
Superior MegaHub features a built-in 110–240 V~ power supply that connects to the mains. Wired Superior devices are highly energy-efficient, consuming significantly less energy than comparable products from other manufacturers. This allows the entire system to operate without additional modules.
Backup battery
The hub can power the system for up to 60 hours while running on a 12 V⎓, 18 Ah backup battery. And when Battery Power Saver is enabled, the system can operate much longer. Meanwhile, wireless Superior devices require no external power supply, as they are battery-operated.
Sabotage resistance
More Ajax superpowers
Visual verification of alarms
The hub supports photo and video alarm verification via Ajax MotionCam detectors and security cameras. Integrated in one powerful system, this device combination does the trick. It helps quickly assess the situation, saving users from concerns and monitoring companies from unnecessary patrol dispatches.
Automation for greater safety
Superior MegaHub supports up to 100 automation scenarios, allowing flexible configuration to meet the specific safety requirements of each site. The hub can arm or disarm the system by schedule, and the system can automatically react to events — for example, activate a smoke machine when someone enters the premises, shut off water in case of a leak, or start ventilation if the CO₂ level rises. Lights, electric locks, roller shutters, and garage doors can be controlled by schedule, arming/disarming, button press, or detector alarm.
Operating system with immunity to lags and viruses
The hub runs on a real-time proprietary operating system OS Malevich. It's immune to viruses, resistant to cyberattacks, and extremely reliable. Loading and executing actions takes less than a second from tapping on a smartphone. Each automation scenario is executed within the same rapid timeframe.
The operating system can be automatically updated via the internet. The hub also transmits updates to other connected devices. Each update enhances the overall system performance and adds new features, so Ajax devices evolve and remain relevant for years.
Complete set of business tools
Ajax PRO: Tool for Engineers
Connect and configure devices remotely and on-site
Ajax PRO Desktop
Maintain Ajax systems, monitor alarms, and confirm them using a visual verification feature
The Tree topology is built using additional Fibra accessories: Superior LineSplit Fibra and Superior LineSupply (75 W) Fibra.
For wired communication, the value applies when a U/UTP cat.5 4×2×0.51 mm (24 AWG) cable is used. For wireless communication, the value applies in open space.
Technical information
Superior MegaHub (without casing)
Superior MegaHub
