Superior DoorProtect G3 Fibra
Wired reed-switch opening detector with shock, tilt, and masking sensors
FAQ
What is the difference between the Fibra line opening detectors
Criteria | Superior DoorProtect Fibra | Superior DoorProtect Plus Fibra | Superior DoorProtect G3 Fibra |
Sensitive elements | 2 reed switches | 2 reed switches | 2 reed switches |
Sabotage protection | 2 tampers | 2 tampers | 2 tampers |
Magnets and spacers | 1 big magnet | 1 big magnet | 1 big magnet |
Installation features | The magnet can be installed both on the left or right of the detector. | The magnet can be installed both on the left or right of the detector. | The magnet can be installed both on the left or right of the detector. The front lid of Superior DoorProtect G3 Fibra can be rotated 180° during installation. |
Support for the roller shutter detector | No | Yes | Yes |
Security grade | 2 | 2 | 3 |
Dimensions | 90.5 × 21 × 18.5 mm | 90.5 × 21 × 18.5 mm | 102 × 21 × 19.2 mm |
Installation features of Superior DoorProtect G3 Fibra
Superior DoorProtect G3 Fibra complies with the Grade 3 security class and is designed to protect high-risk facilities. The device can be installed on:
doors (including armored, safe doors);
windows with ventilation mode;
panoramic windows;
skylights;
showcases;
sliding systems;
roller shutters.

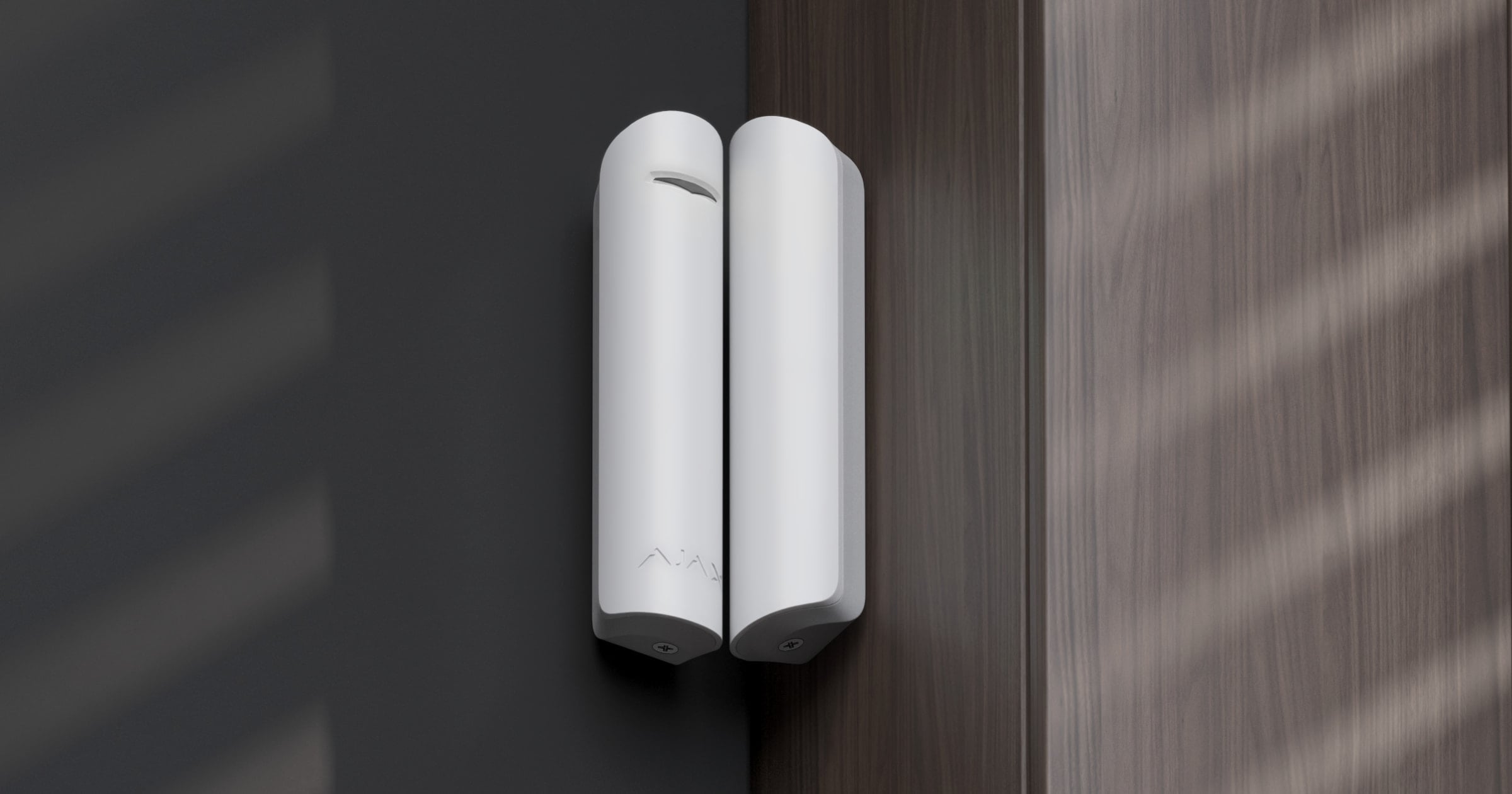

DoorProtect G3 Fibra has two reed switches so that the magnet can be installed both on the left or right of the detector. The device works correctly with one magnet on one side only.
The front lid of Superior DoorProtect G3 Fibra can be rotated 180° during installation. If wires are routed from the bottom of the detector, the magnet must be mounted in such a way that the screw is also positioned from the bottom.
Use spacers to install the detector or the magnet on a metal surface or to reduce the distance between the detector and the magnet.
You can rotate the detector 90° relative to the magnet to reduce the distance between the detector and the magnet.
You do not need to install the magnet near the detector if you want to use only the shock and/or tilt sensor. Disable the primary detector and the magnetic masking sensor in the Superior DoorProtect G3 Fibra settings.
What are the Superior DoorProtect G3 Fibra spacers for
Superior DoorProtect G3 Fibra has two spacers in the set. What are they for:
To install the detector or the magnet on a metal surface.
To reduce the distance between the detector and the magnet. For example, when you need to align the magnet with the detector on a door or window.
