MotionProtect U Jeweller

MotionProtect U Jeweller

Wireless PIR motion detector

Product is not available in your region

Where simplicity meets Superior protection

MotionProtect U Jeweller is a version of Ajax’s well-known motion detector, refined to meet strict UK standards. It was developed to deliver exceptional detection reliability, crucial for any security system. Advanced hardware and software algorithms ensure false alarms are nearly eliminated. The sleek and modern design fits perfectly into any interior style. Thanks to the wireless connection and the convenient SmartBracket mounting panel, installation is quick and hassle-free. With the remote configuration feature, installers do not need to visit the site to change the device settings.

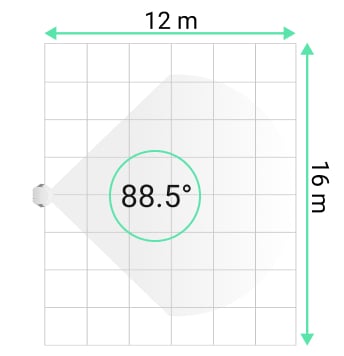

Up to 12 m

motion detection distance

Pet immunity

pet-immunity

Horizontal viewing angle

Horizontal

Vertical viewing angle

Vertical

Three sensitivity levels

High

Normal

Low

Tamper alarm

tamper
smartdetect

software algorithm to prevent false alarms

Temperature compensation

Temperature compensation

for effective detection in heat and cold

Up to 5 years of autonomous operation

on the pre-installed battery

battery-plate

Informative push notifications

Ajax logo
10:00

Critical

Ajax

Warehouse: Motion detected, MotionProtect U Jeweller in Storage

Ajax logo
10:00

Ajax

Office: Lid is closed, MotionProtect U Jeweller in Hall

Up to 1,700 m

of radio communication with an Ajax hub or range extender1

Jeweller radio communication

Jeweller radio communication

Power adjustment

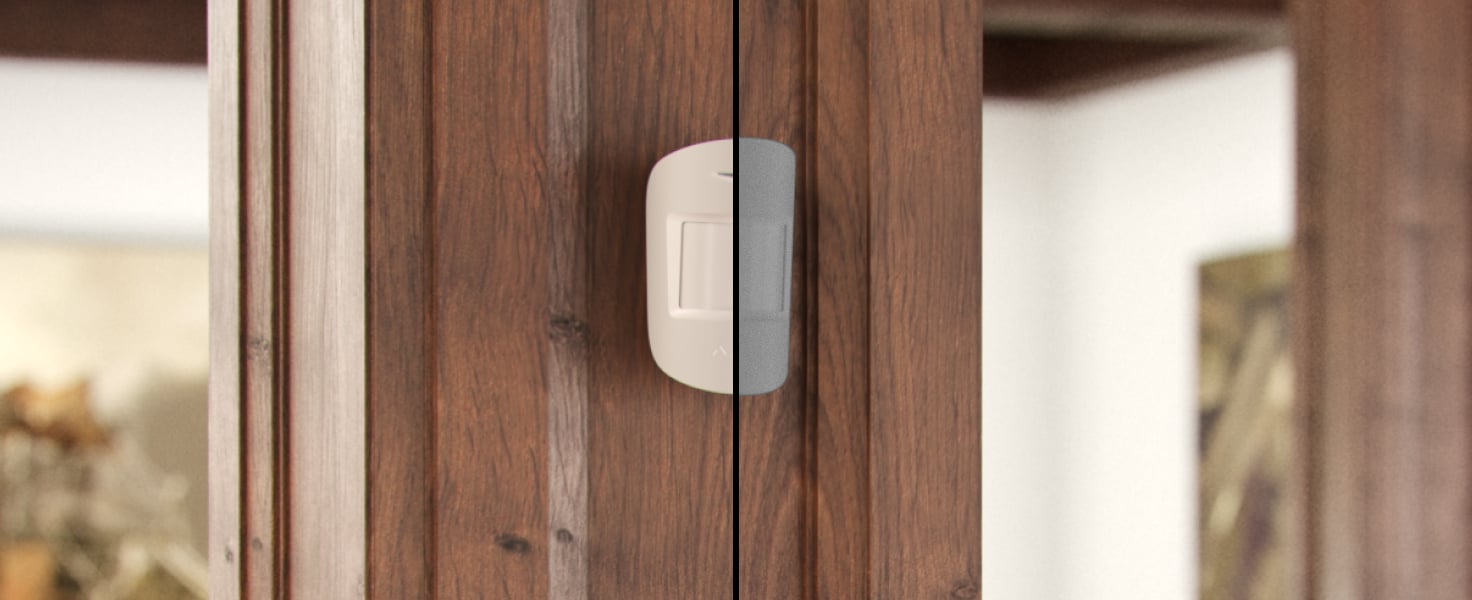

2 colours

of matte enclosure

two-colors

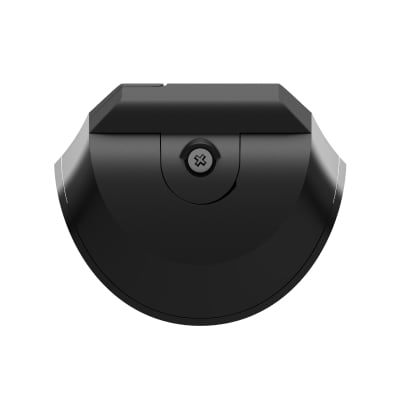

holding-screw

Holding screw

to secure the detector on a mounting panel

Remote control and configuration

remote-control

Hassle-free installation

1

QR code

2

SmartBracket

3

App

Device compatibility

In an Ajax system, you can combine devices of all product categories: Intrusion protection (both Superior and Baseline), Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.

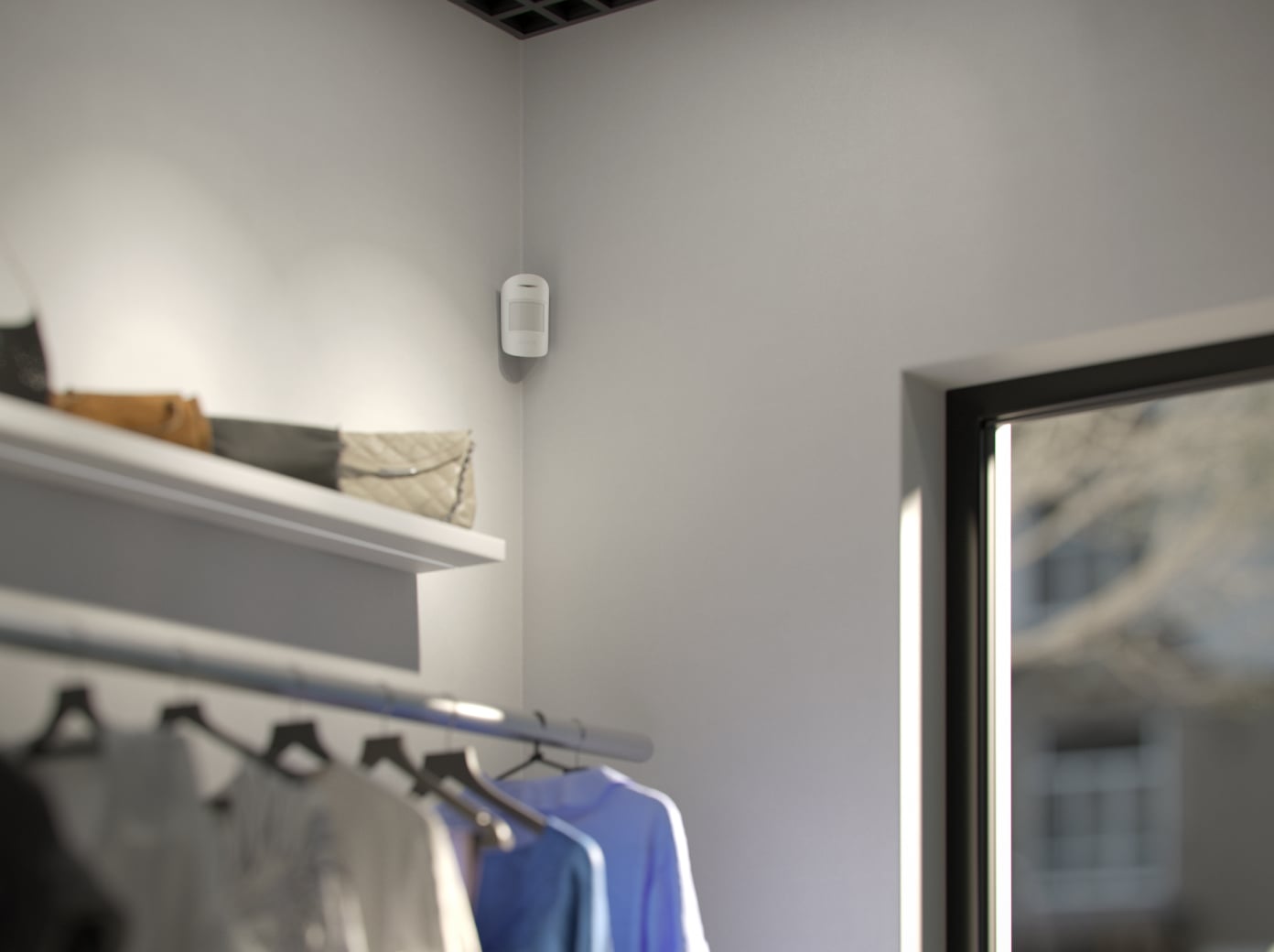

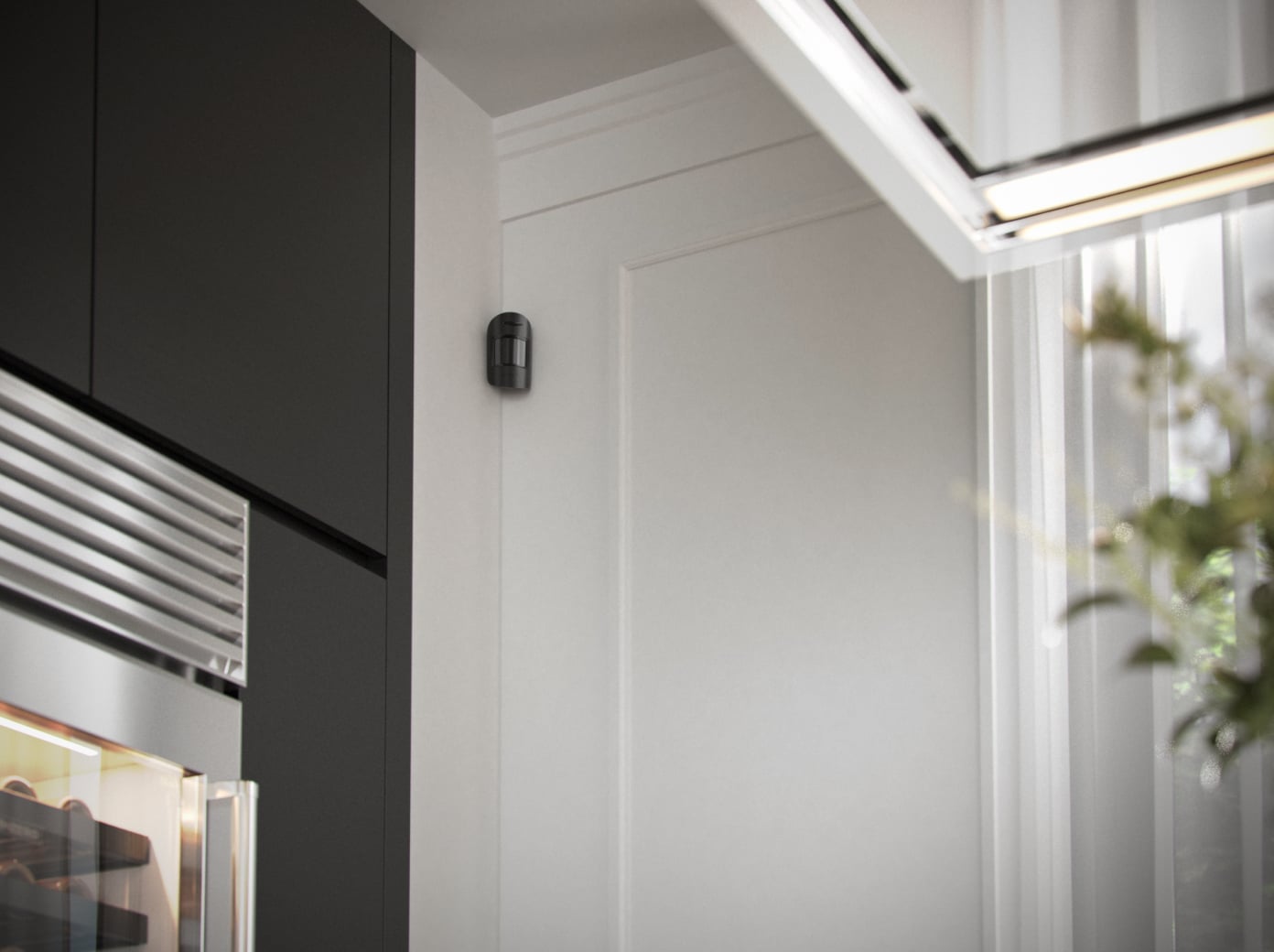

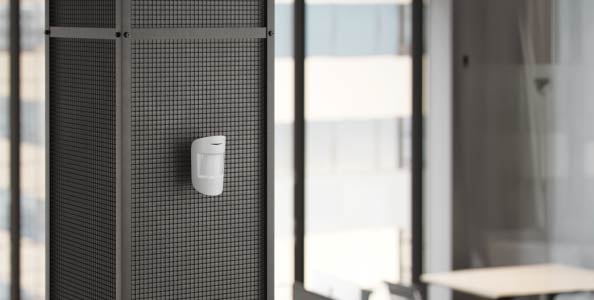

Wherever there is a risk of intrusion

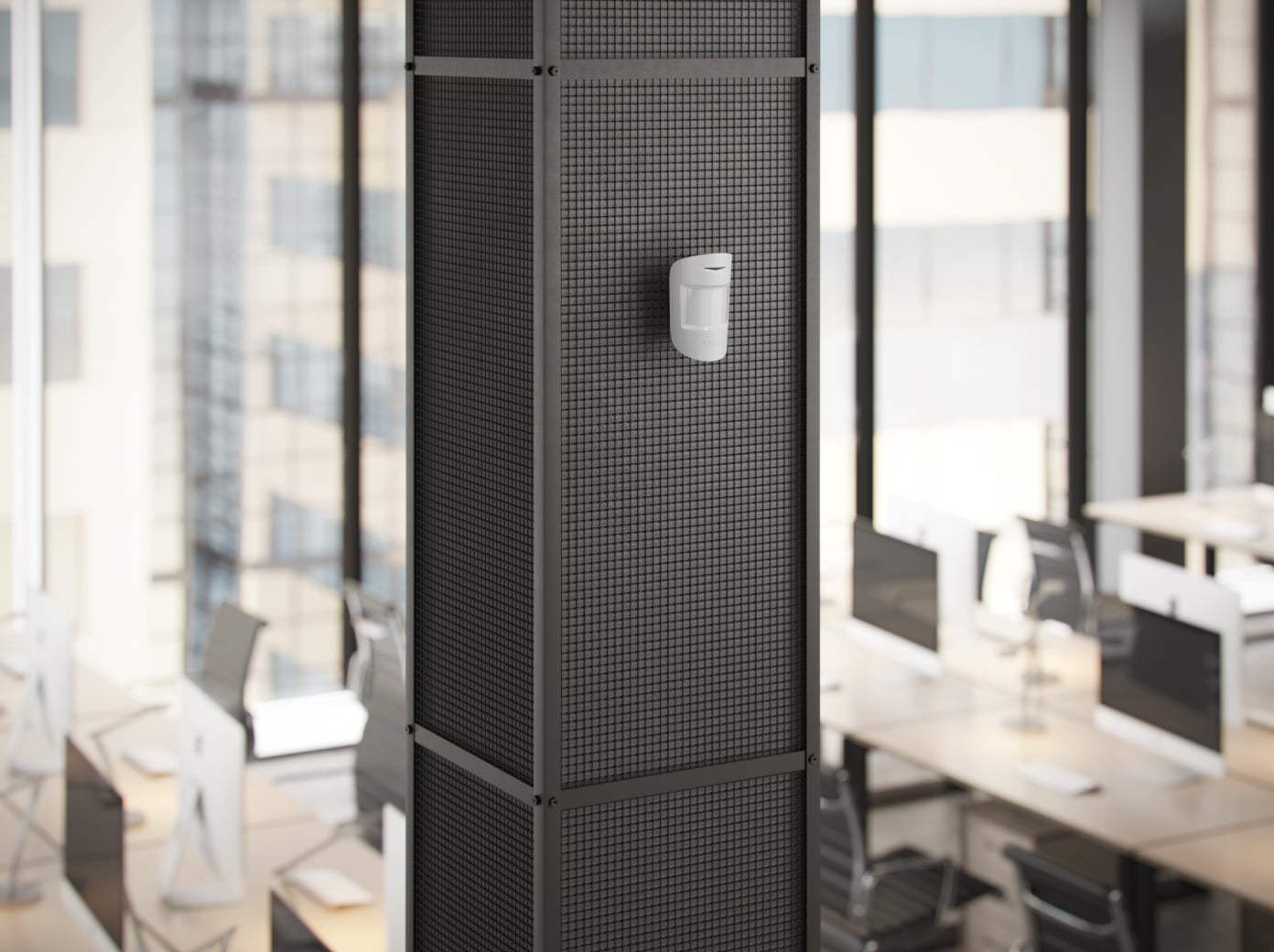

Office

Office or coworking

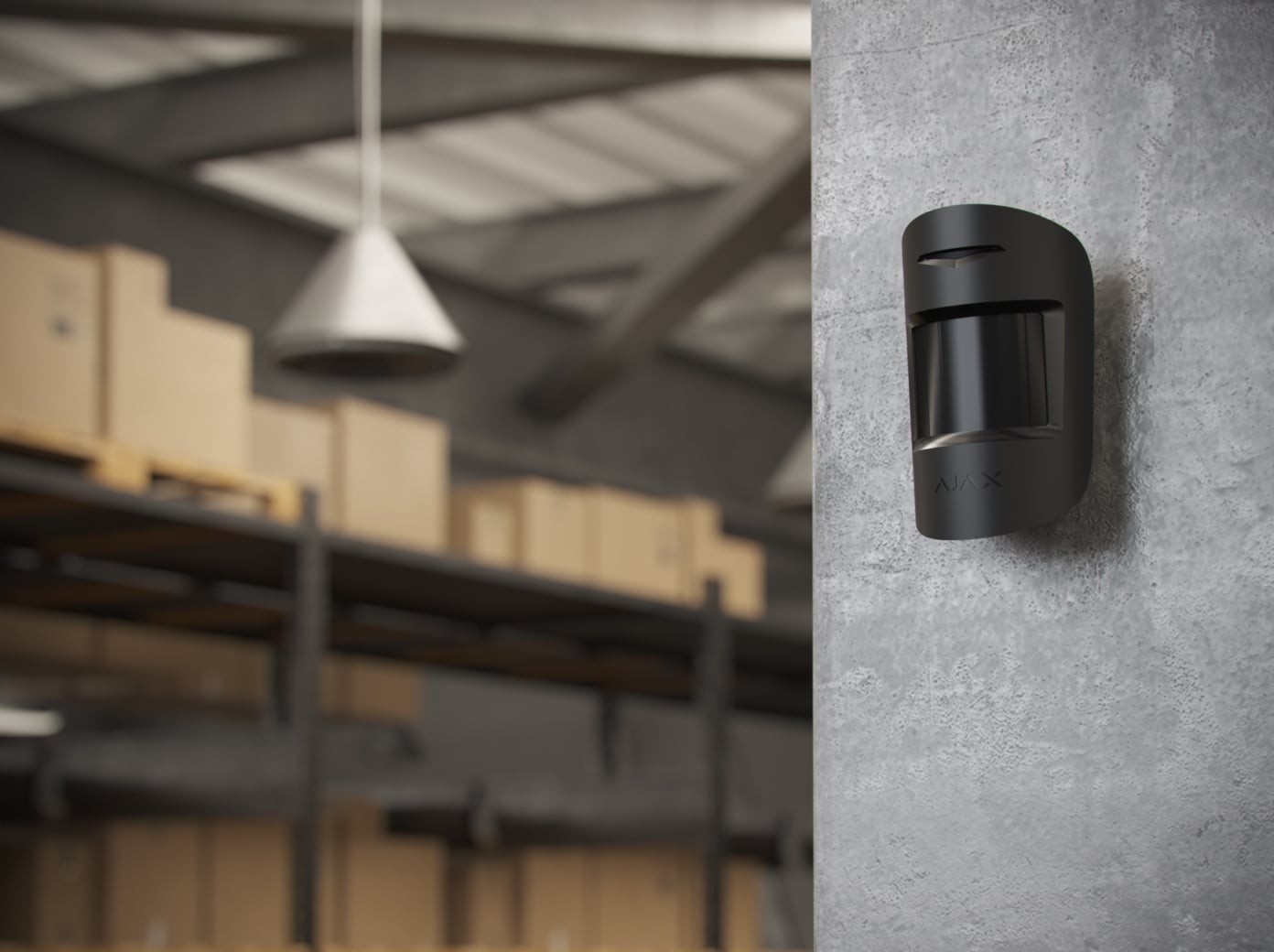

Warehouse

Warehouse or manufacturing

Store

Store

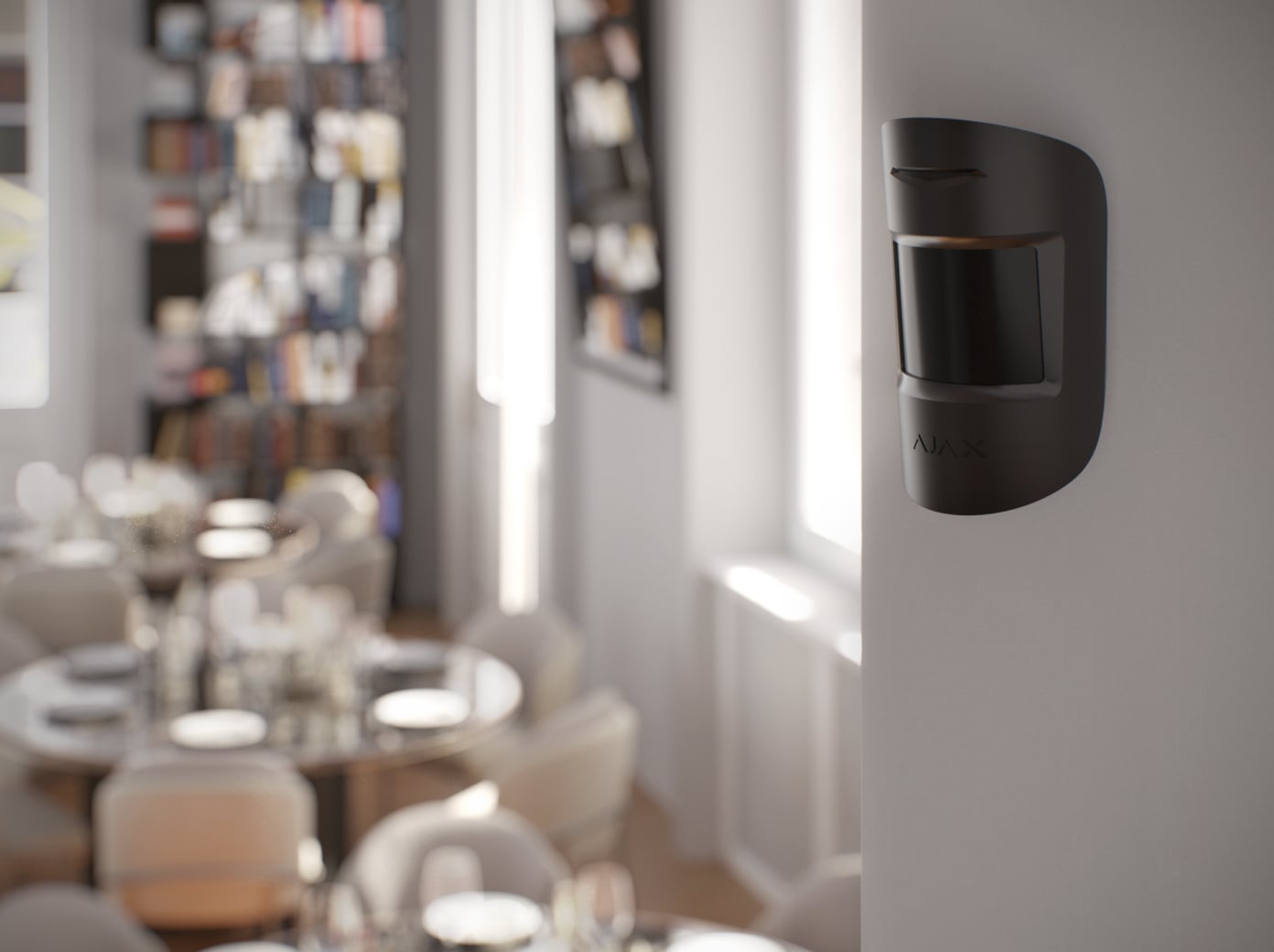

Restaurant

Restaurant or cafe

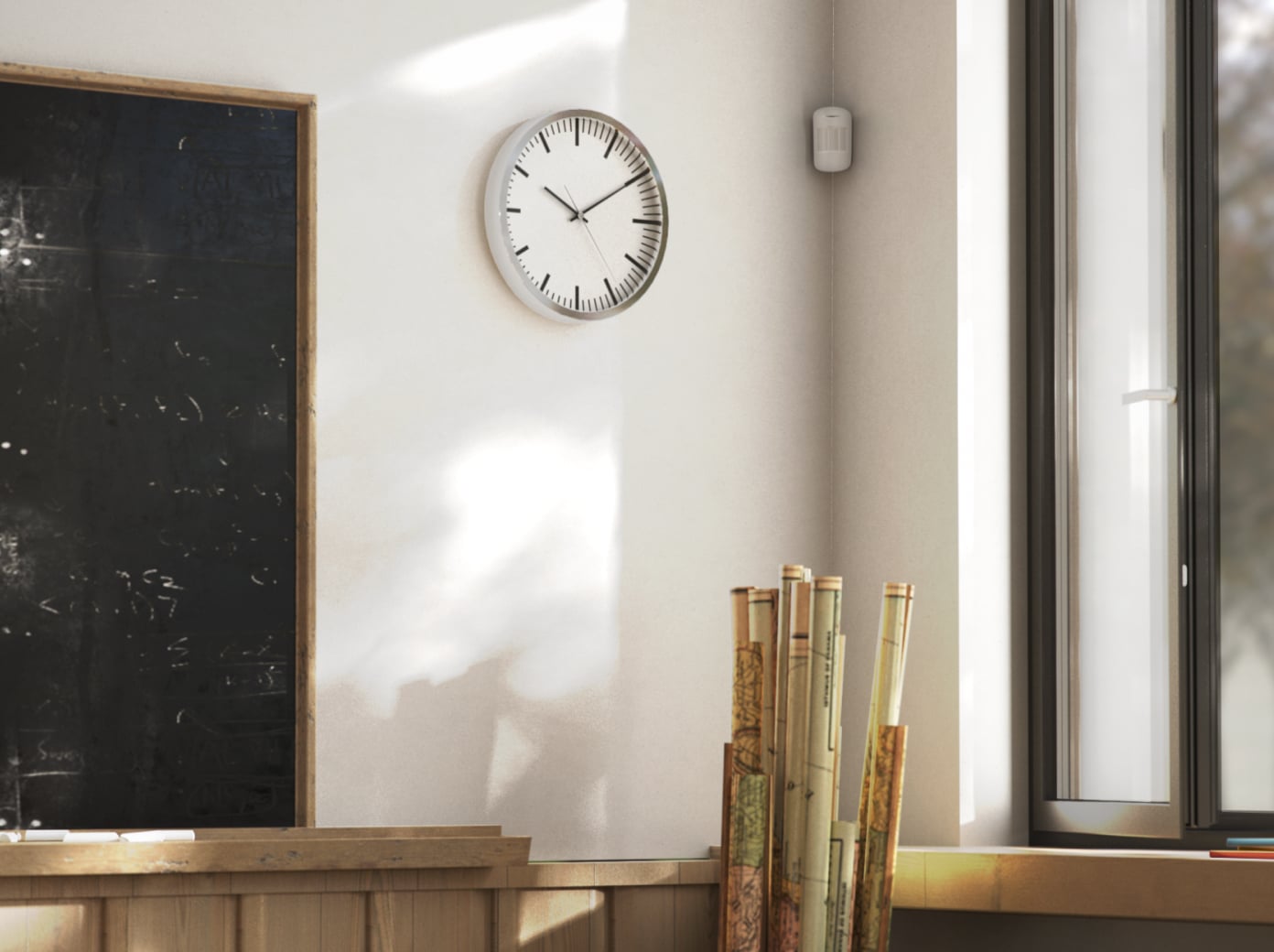

Educational institution

Educational institution

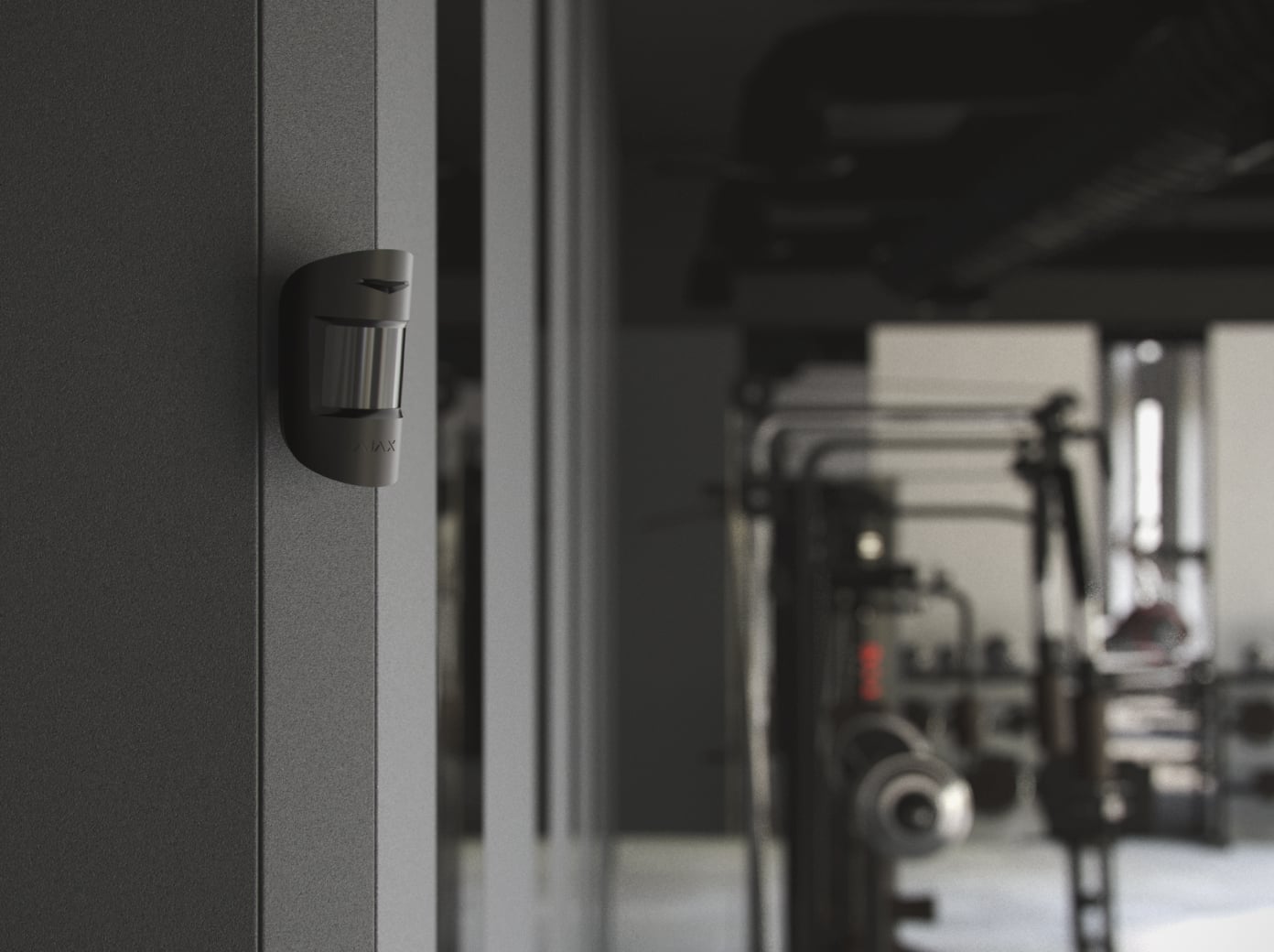

Gym

Gym

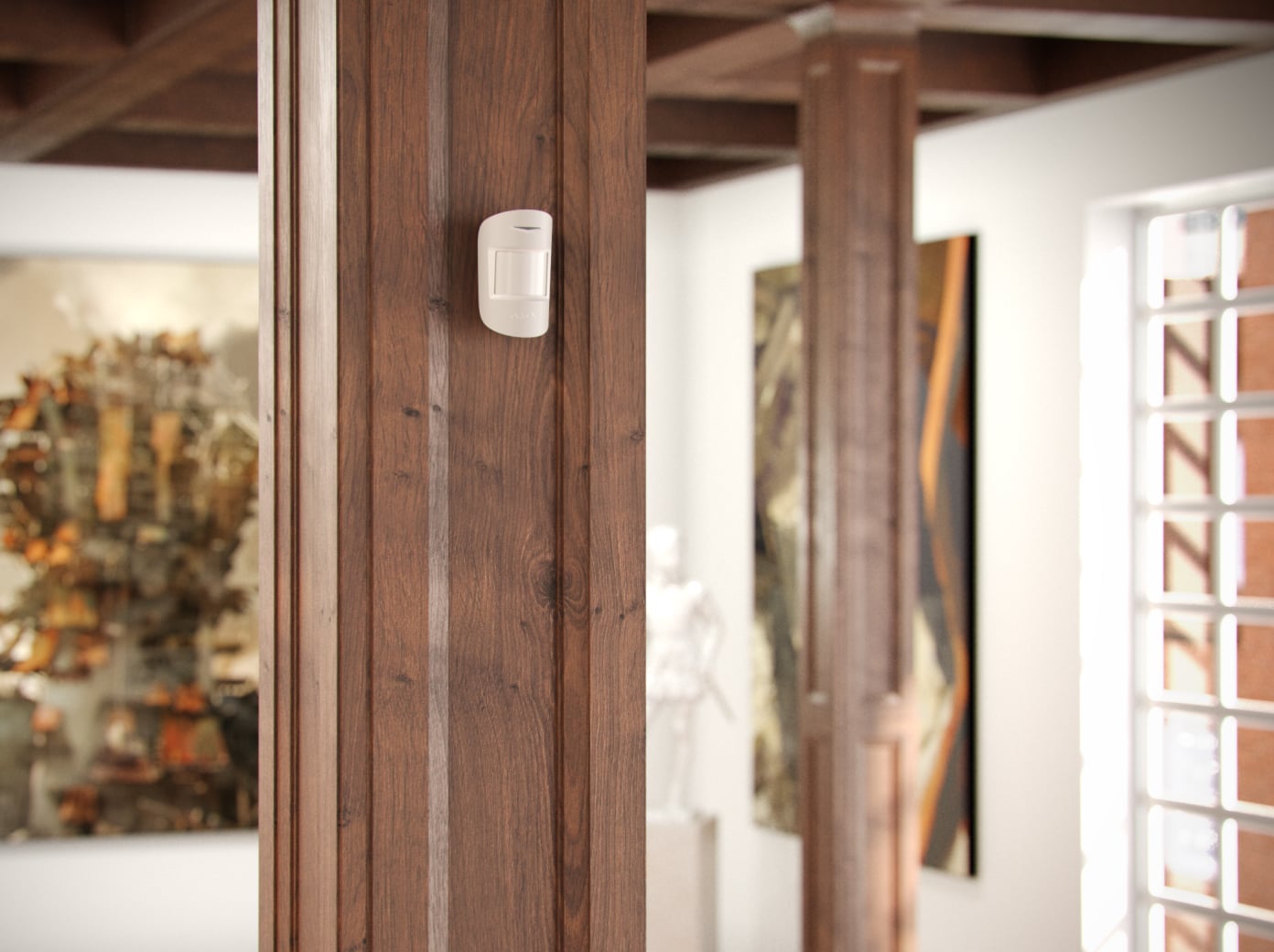

Museum

Museum or exhibition centre

Apartment

Private residence or apartment

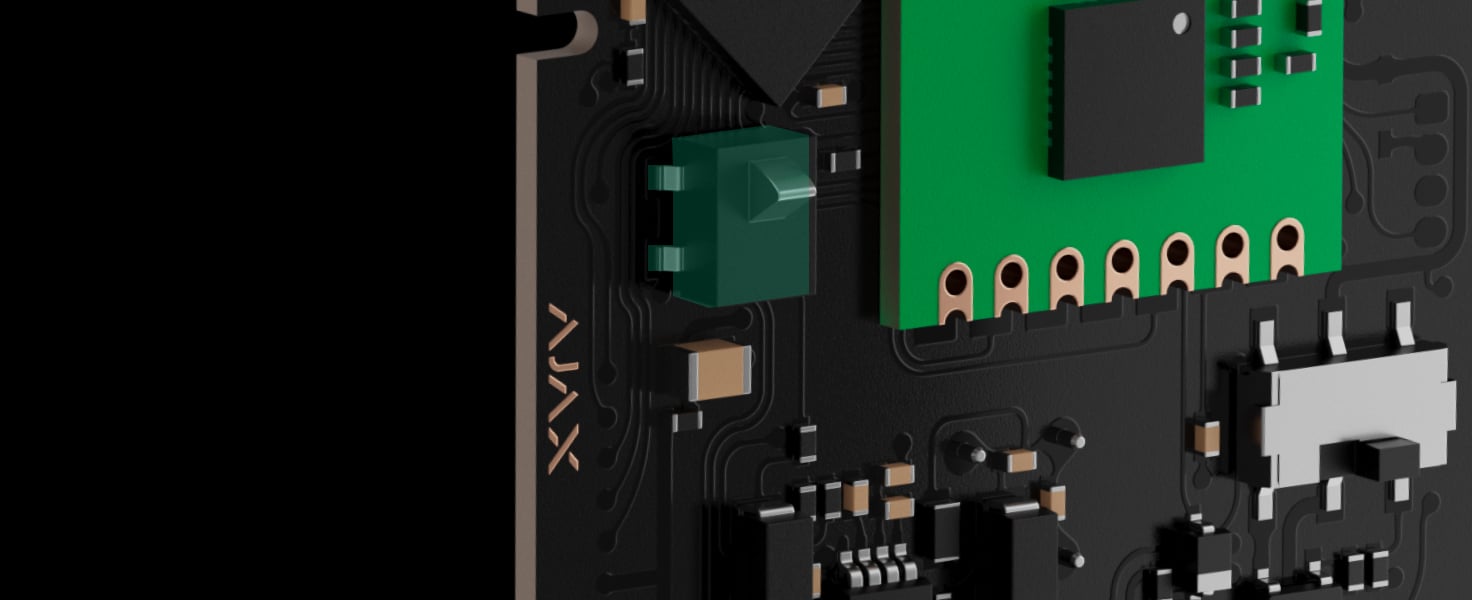

Discover future-proof hardware

Fresnel lens

Fresnel lens

PIR sensor

PIR sensor

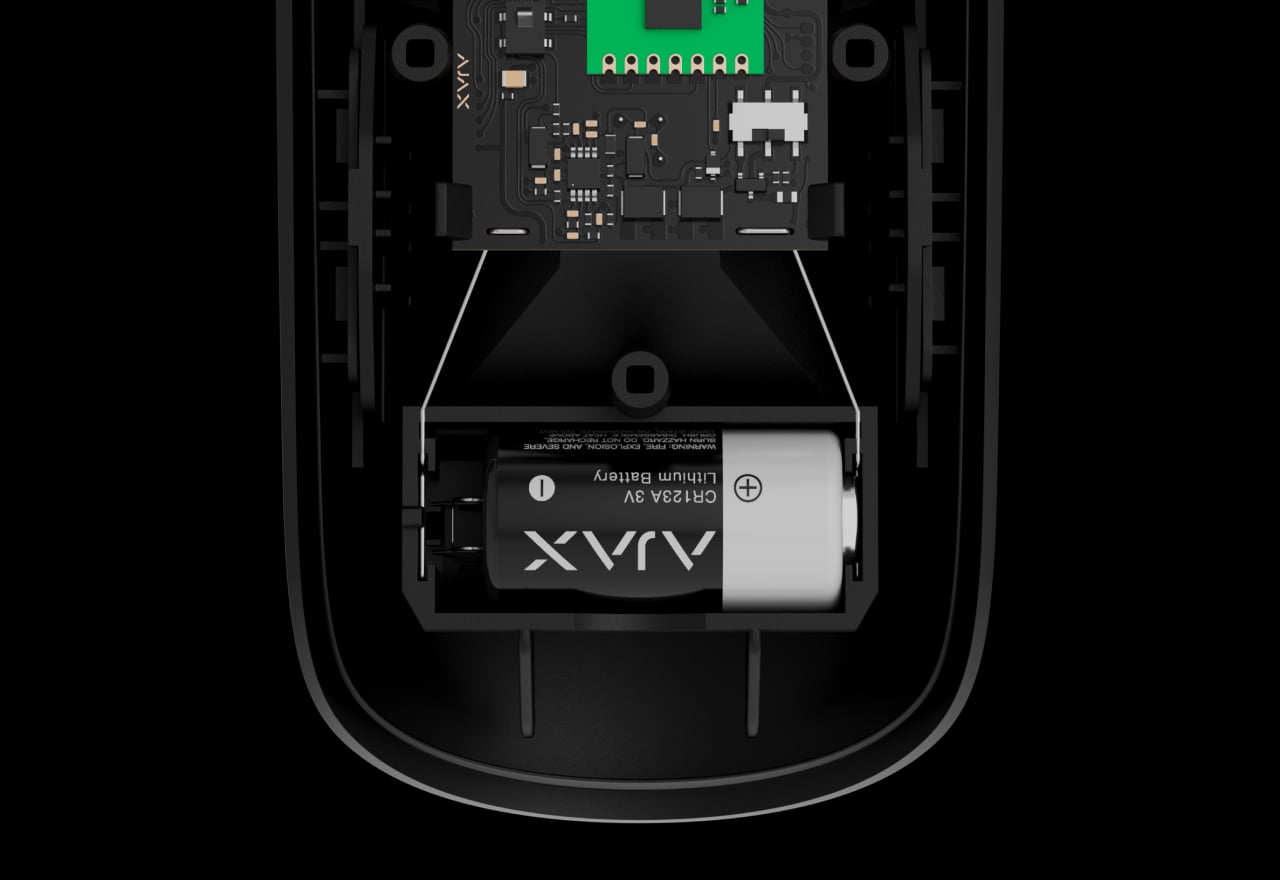

Pre-installed battery

Pre-installed battery

Tamper button

Tamper button

Jeweller antennas

Jeweller antennas

SmartBracket

SmartBracket mounting panel

Holding screw

Holding screw to secure the detector on SmartBracket

No intruder goes unnoticed

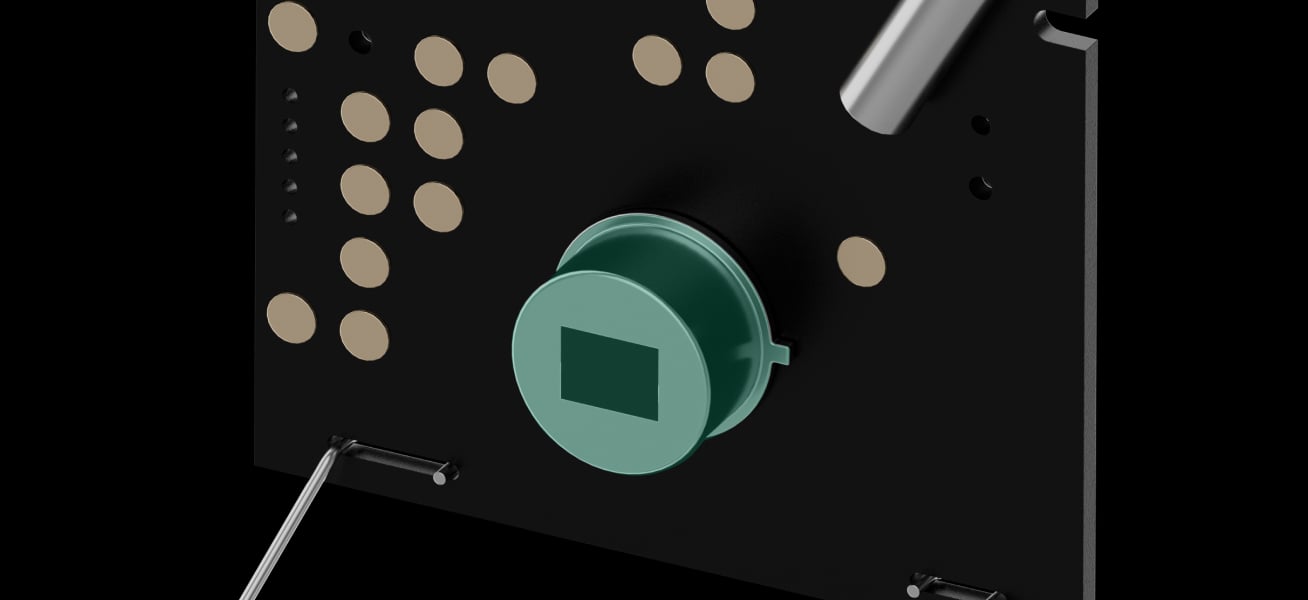

PIR sensor

All Ajax motion detectors use PIR sensors by Excelitas Technologies, a field-leading American manufacturer specialising in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor’s Superior quality at the production stage: we test 100% of manufactured devices. Wrapped in Ajax technologies, it brings the utmost accuracy of intrusion detection.

PIR sensor

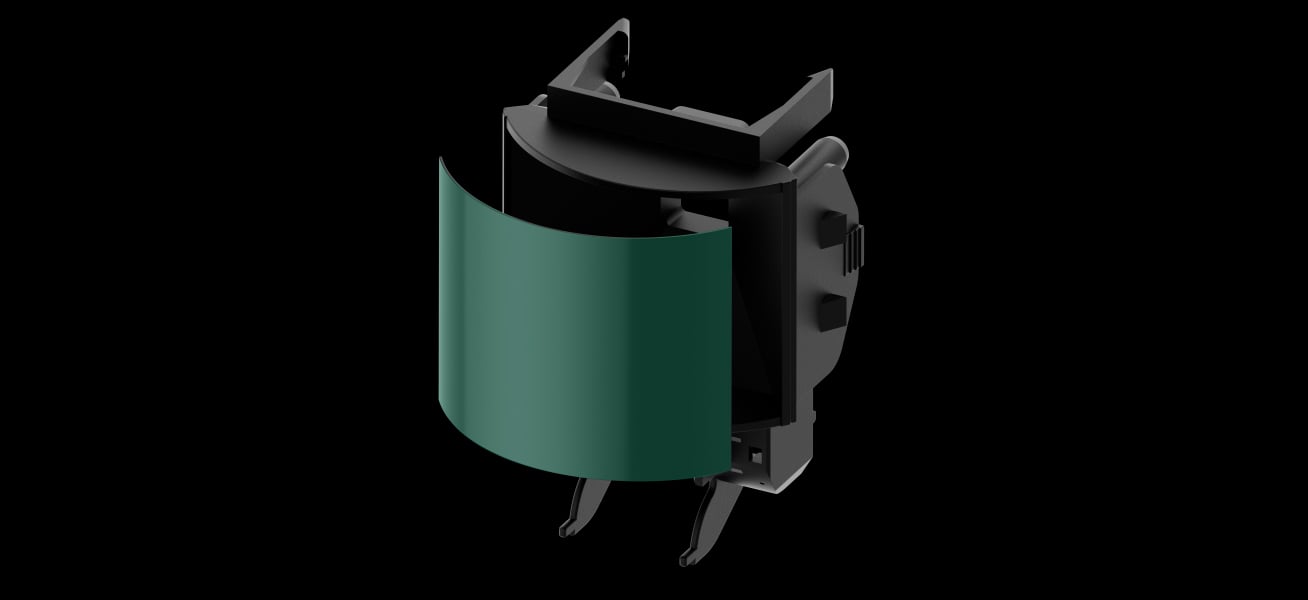

Special lens

The pattern of the Fresnel lens sections is designed to differentiate between the IR diagrams of a human, pet, and thermal noise. Large lens sections capture radiation at an adult’s head and torso level. Smaller sections make the diagram more detailed. The lens provides the detector with accurate information about the thermal object in the detection zone and the nature of its movement.

Special lens

Thermal interferences filter

SmartDetect

We processed thousands of thermal patterns caused by humans, pets, and the environment to develop the SmartDetect software algorithm. In armed mode, the detector constantly analyses the thermal diagram from the PIR sensor, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The algorithm identifies false alarm markers instantly and with high accuracy. As a result, the detector accurately responds to human movement without false alarms.

Size
Detection size

False alarm

Real alarm

Speed
Detection speed

False alarm

Real alarm

Intensity
IR radiation intensity

False alarm

Real alarm

Temperature compensation

Temperature compensation is a software mechanism that maintains the thermal diagram’s contrast even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensor data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.

Temperature compensation

Sensitivity level

The detector can adapt to the conditions of a particular facility, considering possible thermal interference or pets. The sensitivity setting changes the set of markers by which false alarms are filtered. Low sensitivity makes the detector less likely to respond to an active pet. With high sensitivity, an alarm is raised whenever there is any movement in the detection area.

Sensitivity level

Professional installation

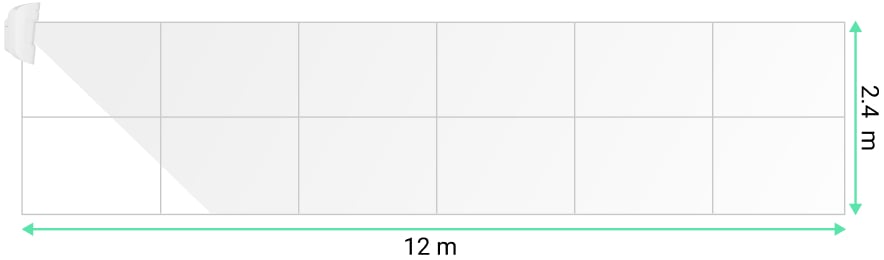

With the correct installation at the height of 2.4 m and lens direction perpendicular to an alleged intrusion path, the detector provides an accurate thermal diagram and pet immunity. It instantly responds to a real threat, minimising false alarms caused by pets weighing up to 20 kg and below 50 cm in height.

Professional installation

Stable and reliable performance

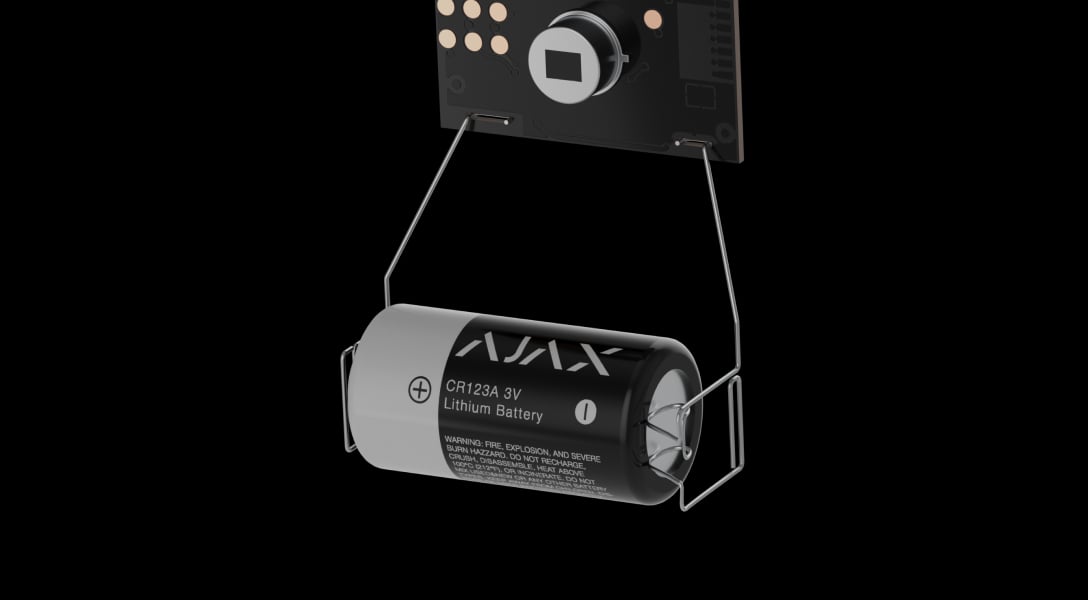

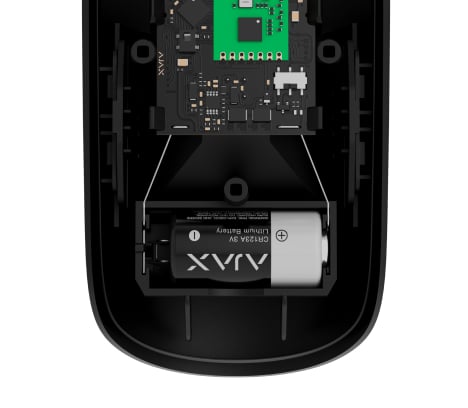

MotionProtect U Jeweller is equipped with a high-quality battery from proven manufacturers only. In addition to real-time testing during battery production, Ajax Systems inspects every unit to ensure the accuracy of the batteries’ characteristics. The battery provides stable performance at temperatures from –10 °C to +40 °С.

Low battery notification in advance

High quality proven by regular tests

Up to 5 years of autonomous operation

Batteries
Unique wireless technology

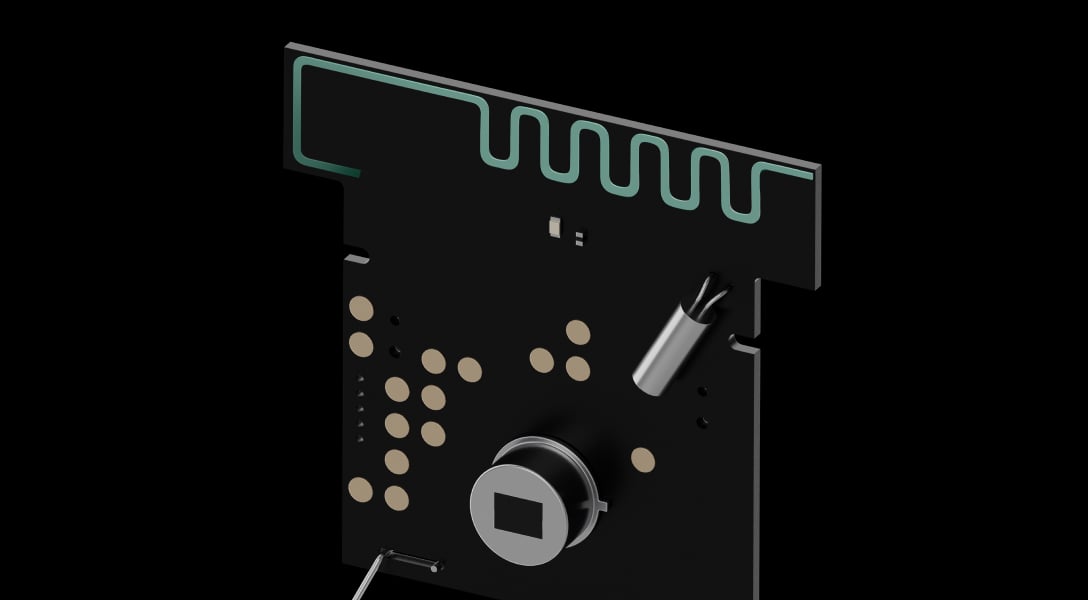

Jeweller

Unique wireless technology

Jeweller is Ajax’s proprietary radio protocol for secure two-way communication. It provides block encryption and device authentication during each communication session with an Ajax hub or radio signal range extender. Jeweller prevents sabotage, spoofing, and data theft.

Up to 1,700 m of communication range in an open space

Data encryption

Notification of jamming and connection loss

Automatic power adjustment

Scaled and comprehensive

ReX 2 Jeweller range extender boosts the radio range of all Ajax devices via Jeweller and ensures stable communication through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering multistorey buildings with underground parking and basements.

Up to 5 range extenders within one system

Ethernet as an alternative communication channel

System supervision

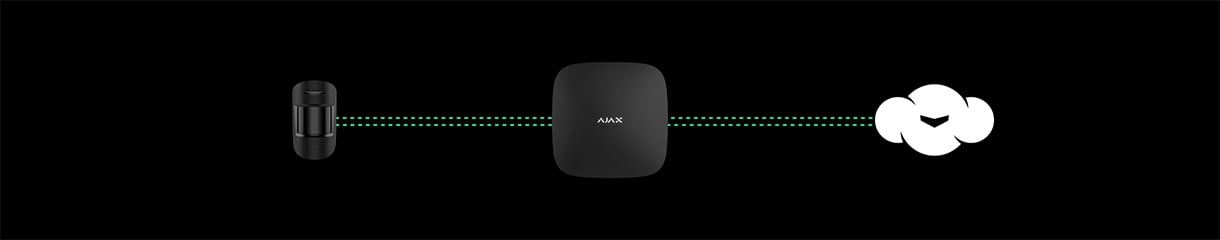

The device performs automatic self-diagnosis and reports its status to the hub. Essential parameters, including tamper, communication, power supply, and sensor statuses, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.

Automatic device self-diagnosis with status report

Regular polling to display the current devices’ state on apps

Instant maintenance notifications

System supervision

Sabotage resistance

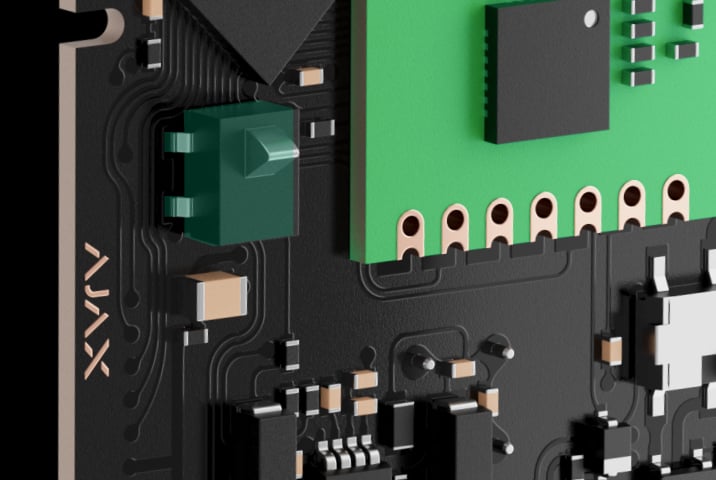

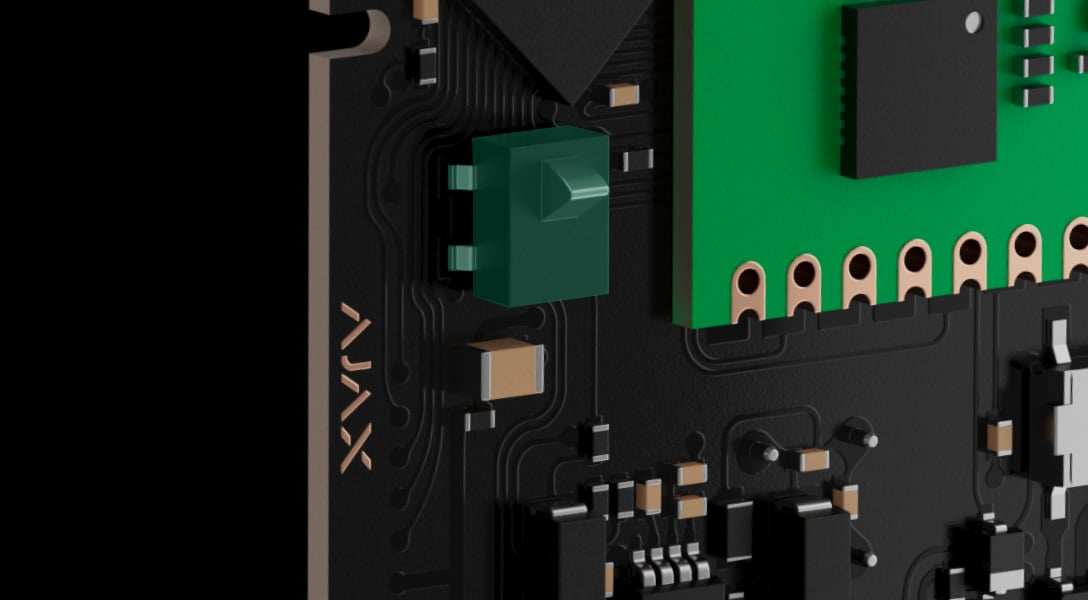

Tamper alarm

Tamper alarm

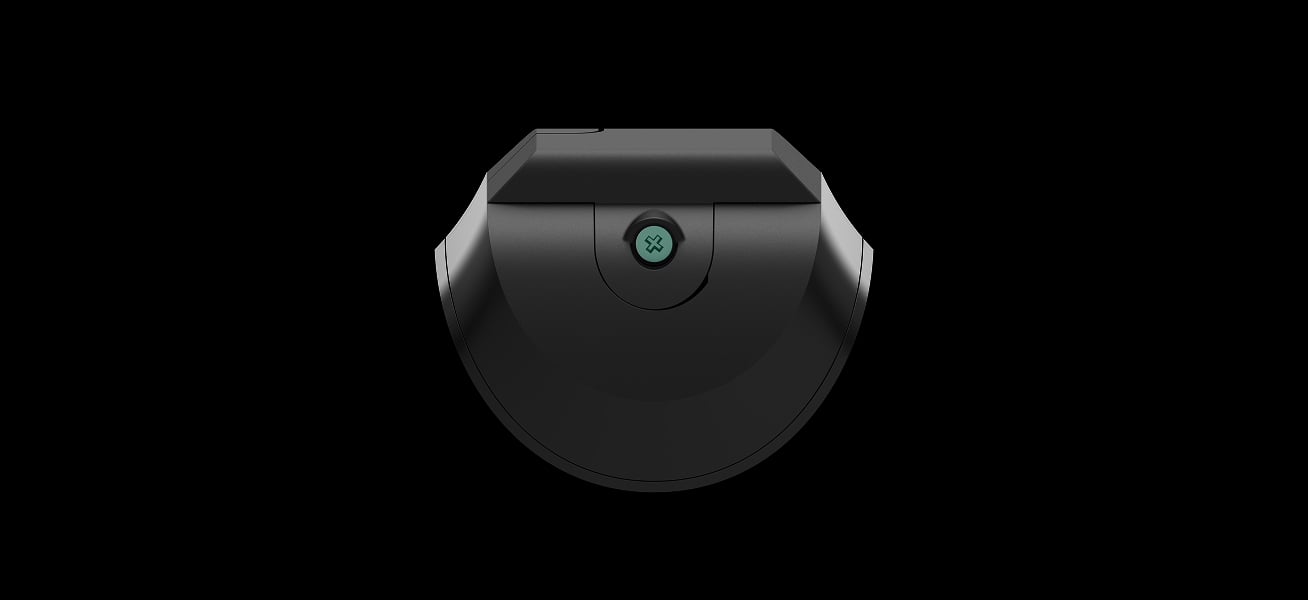

The detector enclosure features a tamper that activates an alarm if the device is detached from the surface or if its enclosure is opened. The system instantly notifies the security company and users. A holding screw helps to secure the device on the mounting panel.

Data encryption

Data encryption

All data the system stores and transmits is protected by block encryption featuring a dynamic key. This encryption provides protection against data theft, spoofing, and software tampering.

Data-rich notifications

Data-rich notifications

An Ajax system instantly notifies security companies and users of alarms and events. These notifications include precise details, such as which device activated an alarm, along with the location and time.

Device authentication against spoofing

Device authentication against spoofing

The hub checks the device’s unique parameters for authentication during each communication session. If any parameter fails the check, the hub ignores device commands.

Regular polling

Regular polling

The device regularly exchanges data with the hub. The system controls each device’s state and reports any malfunction or communication loss.

Communication loss detection

Communication loss detection

With minimal polling interval settings (3 data packages every 12 seconds), it takes only 36 seconds to detect communication loss and notify the security company and users of the incident.

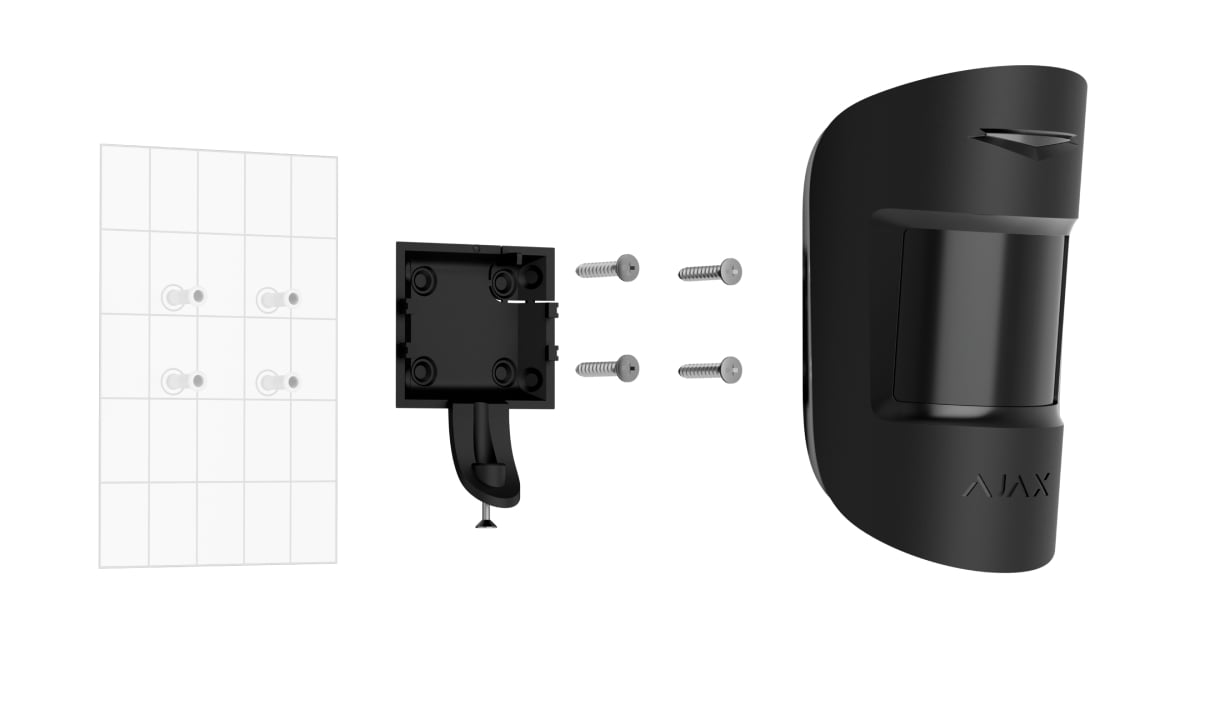

Effortless installation and setup

MotionProtect U Jeweller is ready to operate straight out of the box. Using the SmartBracket panel, an installer can effortlessly mount the device on the wall or in the corner, eliminating the need to disassemble the enclosure. Ajax apps help quickly make the device a part of the ecosystem: simply pair the device with the hub by scanning the QR code. It can always be reconfigured remotely without the need for on-site visits.

Pairing with the hub via QR code

Connection

SmartBracket panel — no need to disassemble the enclosure

Installation

Configuring and testing in mobile and desktop apps

Setup

The PRO Desktop app for macOS and Windows

Monitoring
1

In an open space.
