Outlet [type F] Jeweller

Outlet [type F] Jeweller

Smart built-in outlet with power consumption monitoring function

Product is not available in your region

Outlet [type F] Jeweller won the Red Dot Design Award

Reddot

Beyond the ordinary power grid

Outlet [type F] Jeweller is a smart built-in outlet featuring electricity consumption monitoring. The device is controlled via Ajax apps. Outlet's capabilities are best revealed in automation scenarios. For example, the system can automatically turn on outlets according to the schedule or turn off all outlets when arming the premises or in case of a fire alarm. Outlets can be used with LightSwitch smart switches.

LED indication for current load

LED indication

Automation scenarios

to turn devices on and off

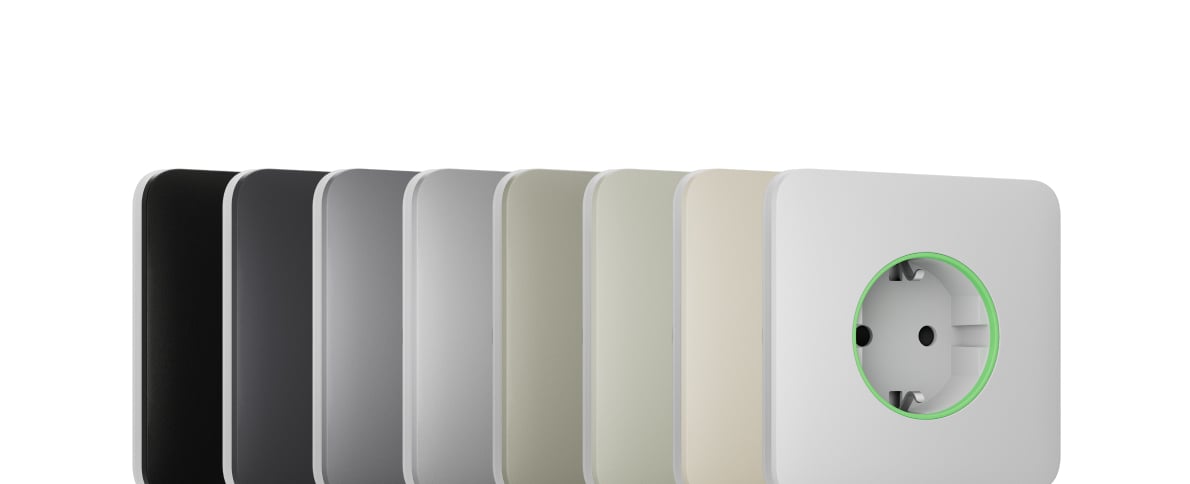

8 colours

8 colours

Easy control

Control via smartphone

Power consumption monitoring

Power consumption monitoring

Children protection

Safety shutters

to protect your children

Auto switch off timer

from 10 seconds to 2 hours

Remote configuration

Remote configuration

Frames

to install several outlets and light switches side by side

Frames

Informative in-app notifications and event log

Ajax logo
10:00

Ajax

Home: switched on Electric boiler in Kitchen, scenario Heating on schedule

Protection against voltage surges and overheating

Easy manual control

Touch-sensitive button

for easy manual control of the mains supply

Up to 1,100 m

range of communication with an Ajax hub

Jeweller radio communication

Jeweller radio communication

Devices compatibility

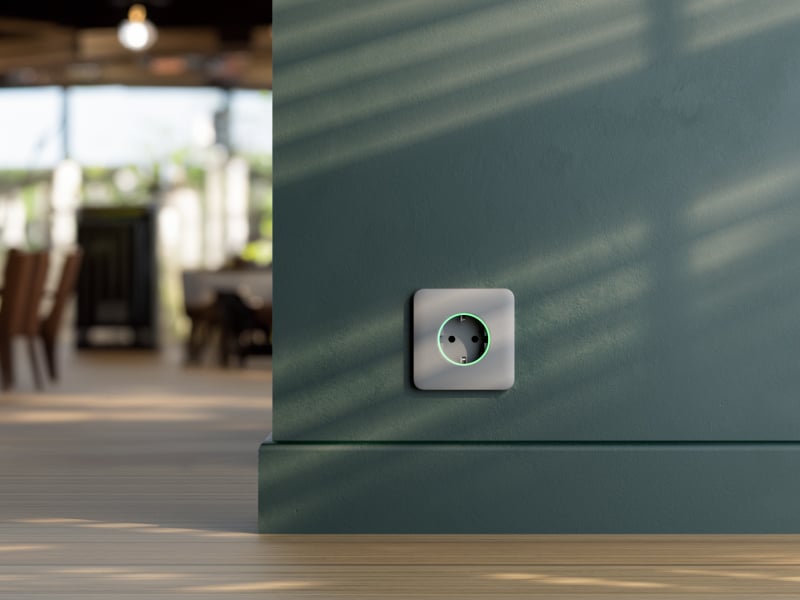

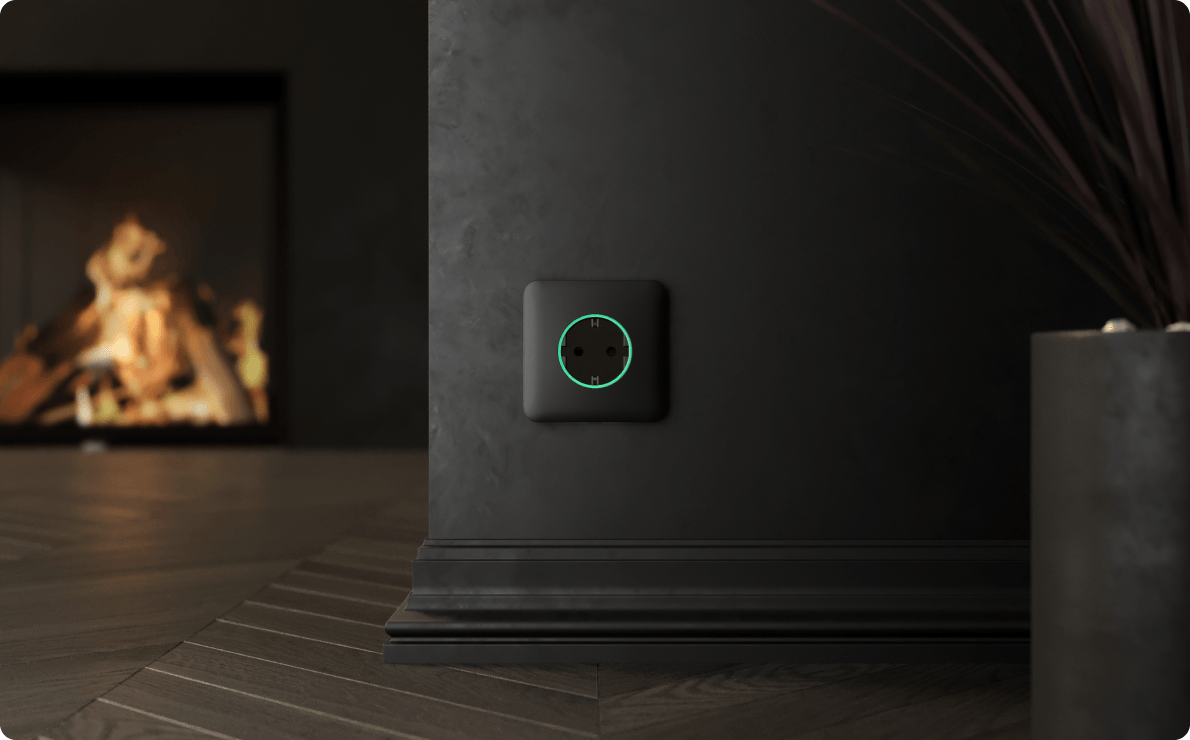

Fits in any interior

Outlet is enchanting with its laconic design and high-end quality hardware. The device will become an appropriate part of a cozy home environment or a high-tech space. Highlight the outlet on the wall or make it invisible. The appearance is versatile and suitable for installation everywhere — at home, in the office, or a workshop. Easily replace the front cover with another of a different colour — for example, after repair.

House

House

Restaurant

Apartment

Office

Office

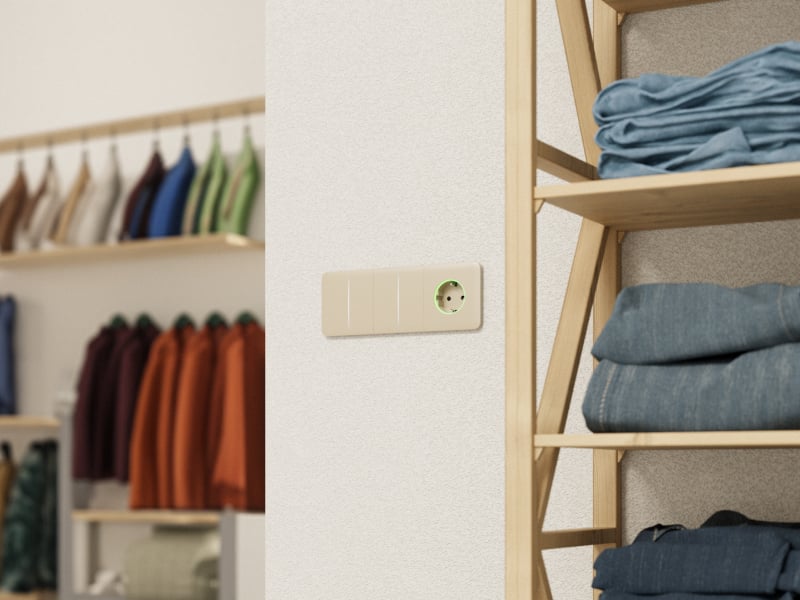

Shop

Shop

Apartment

Restaurant

Smart features with real value

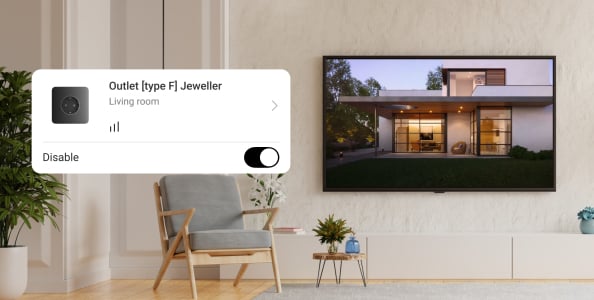

Power control via smartphone

Power control via smartphone

Turn plugged devices on and off in the Ajax app — the control screen is always at hand. Make sure all the outlets are off, even a thousand kilometers from home. And if you forgot, correct the situation with one tap.

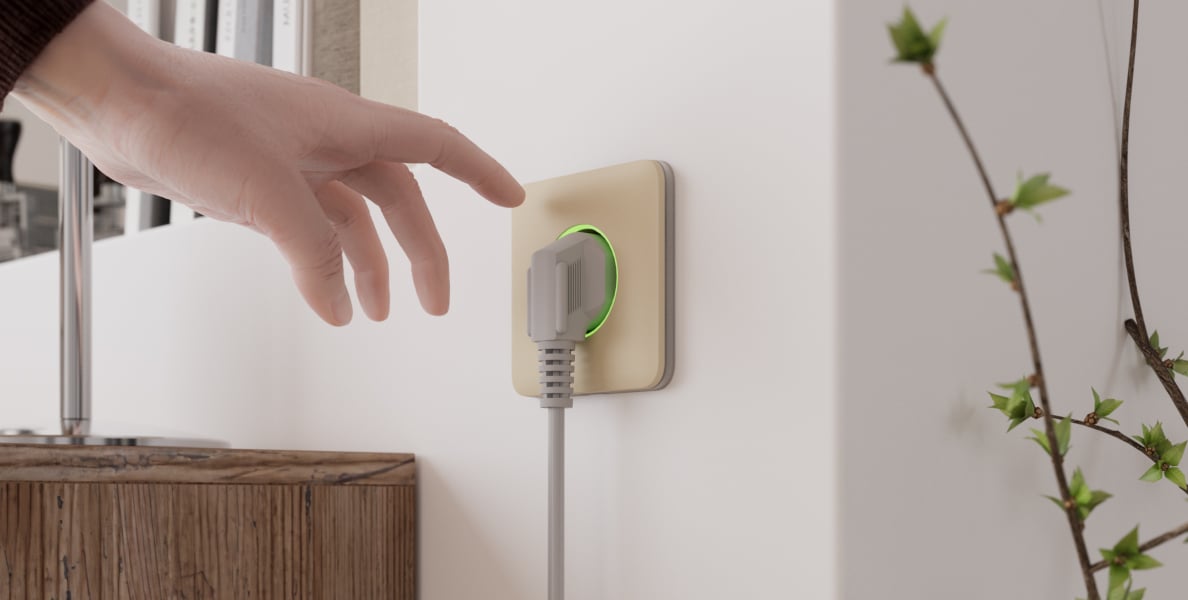

Touch button control

Touch button control

A discreet touch button in the corner of the cover offers the convenience of instant powering the plugged device on or off. There is no need to use the app every time to turn off the appliance.

Auto power off timer

Auto power off timer

Don’t worry about overconsumption of electricity. Set the power to turn off automatically after the selected period, from 10 seconds to 2 hours.

Overcurrent, overvoltage, and overheating protection

Overcurrent, overvoltage, and overheating protection

Outlet protects your appliances from sudden power surges that can heat components and wires in electronic appliances and cause them to burn out. Outlet interrupts power supply to appliances and electronics in case of under- and overvoltage.

The device features a grounding contact to prevent electric shock and overheating protection to reduce the risk of fires.

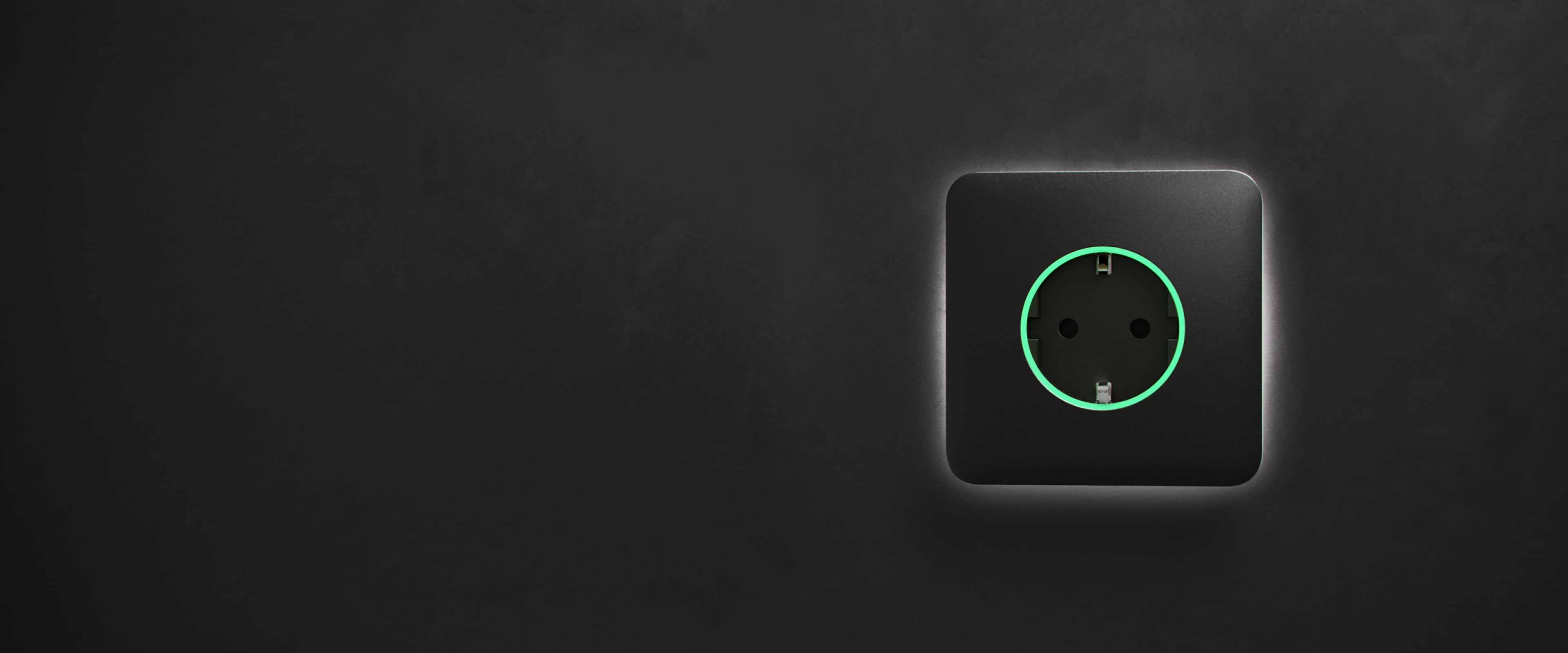

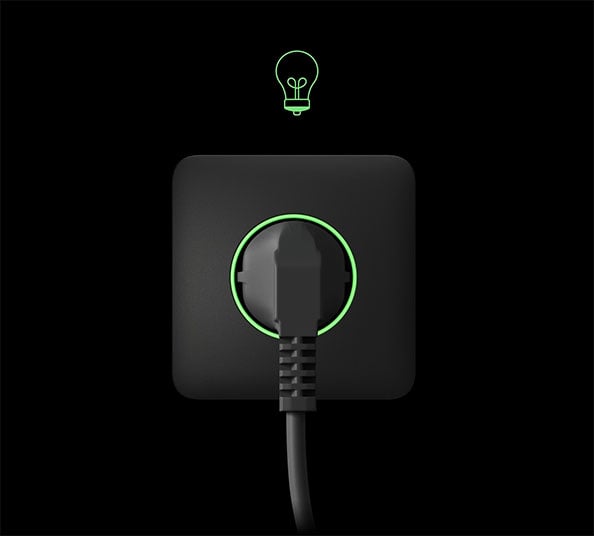

Current load visualization

Current load visualization

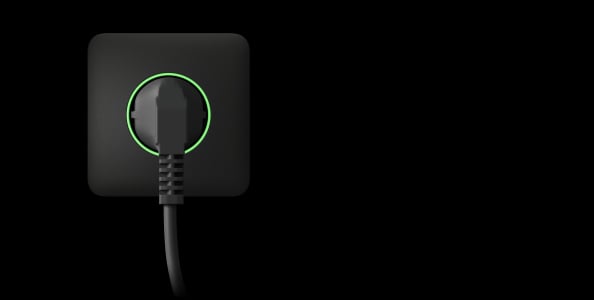

As soon as the connected appliance starts consuming electricity, the Outlet LEDs change color depending on the load level in real time. It helps to define the most power-consuming devices.

It’s possible to configure the LED indication mode in the app: you can turn it off completely or display it only when Outlet is turned on.

Childproofing

Childproofing

Safety shutters prevent children from accessing the outlet and sticking fingers or objects inside. They also protect the device from dust and splashes.

It is also possible to turn off the touch button or to remotely turn off Outlet. This will prevent the child from accidentally turning something on or off.

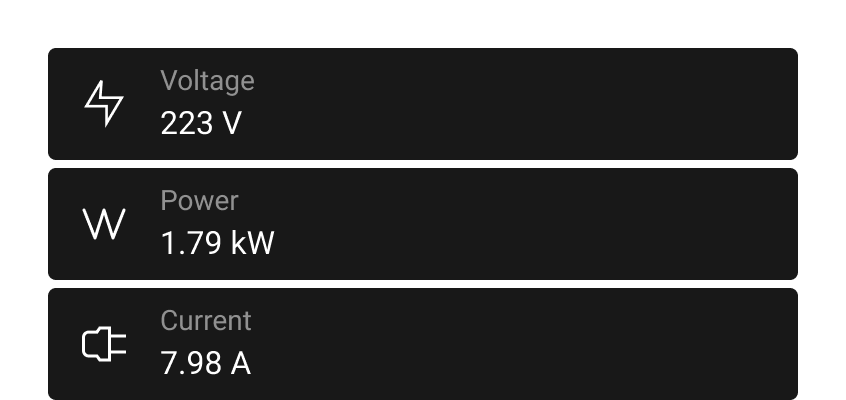

Power consumption monitoring via the app

Power consumption monitoring via the app

Outlet monitors the power consumption of the connected appliance: current, voltage, and energy consumption. This data is displayed in the app in real time and helps to identify energy vampires affecting electricity bills.

The history of electricity consumption is also available in the app. The user can see how much a particular appliance has consumed over a certain period.

Automation for comfort and security

Use scenarios to make life safer and more comfortable. Set the power to turn off automatically when arming the system or in case of an emergency. Turn on specific appliances according to a schedule or when LightSwitch Jeweller is on.

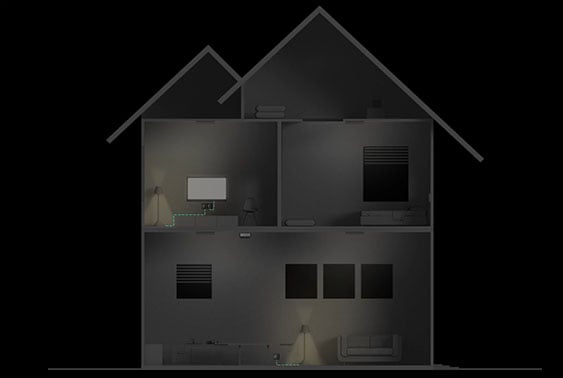

Power off the appliances when arming the system

When you leave your house, arm the system. All energy consuming appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.

1

Armed

2

Outlet [type F] Jeweller

3

Appliances are off

Power off the appliances

Control via LightSwitch Jeweller

Automation scenarios allow turning on outlets by touching LightSwitch Jeweller. There's no need to turn on all desk lamps in the office manually. Just set up all outlets with plugged lamps to turn on when LightSwitch is on.

1

LightSwitch Jeweller

2

Outlet [type F] Jeweller

3

Lamps are on

Control via LightSwitch Jeweller

Cutting off the power after a fire alarm

Fire detectors immediately respond to smoke or temperature rise. Create the automation scenario to turn off the potential cause of ignition.

1

Smoke

2

FireProtect 2

3

Outlet [type F] Jeweller

Cutting off the power after a fire alarm

Configuration variability

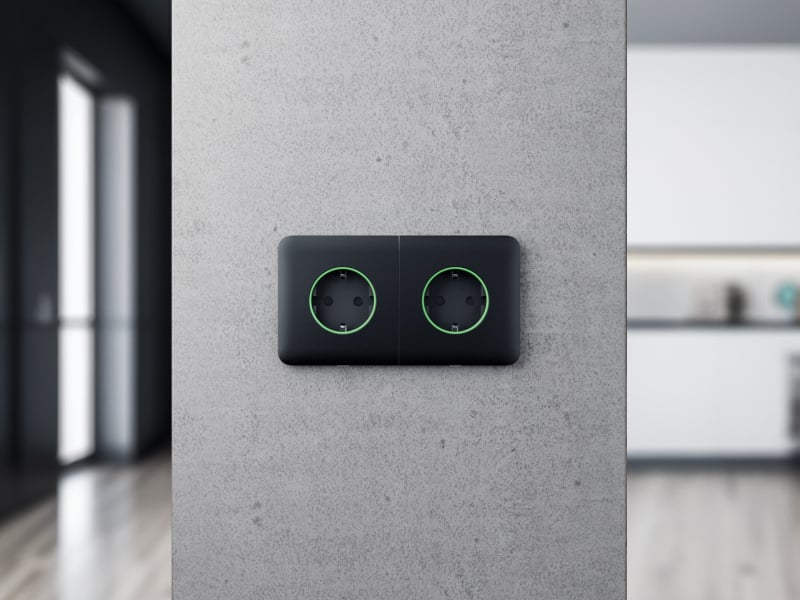

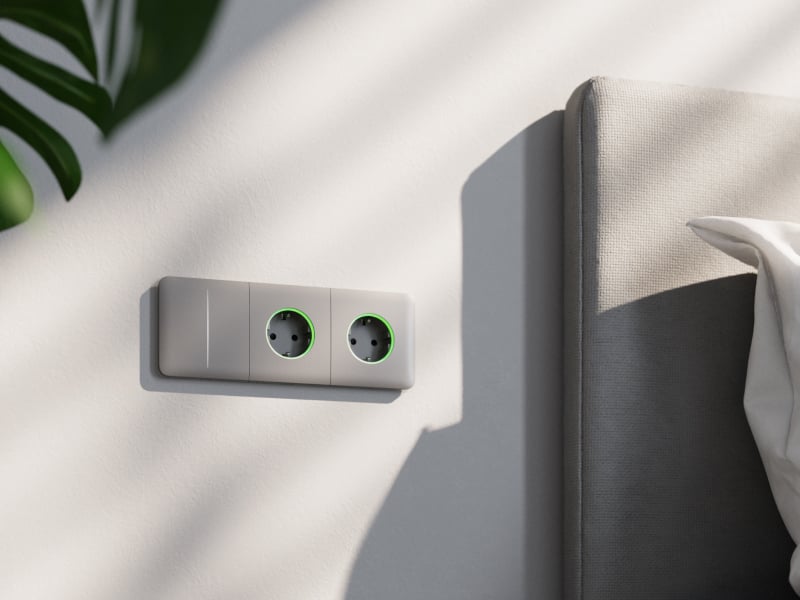

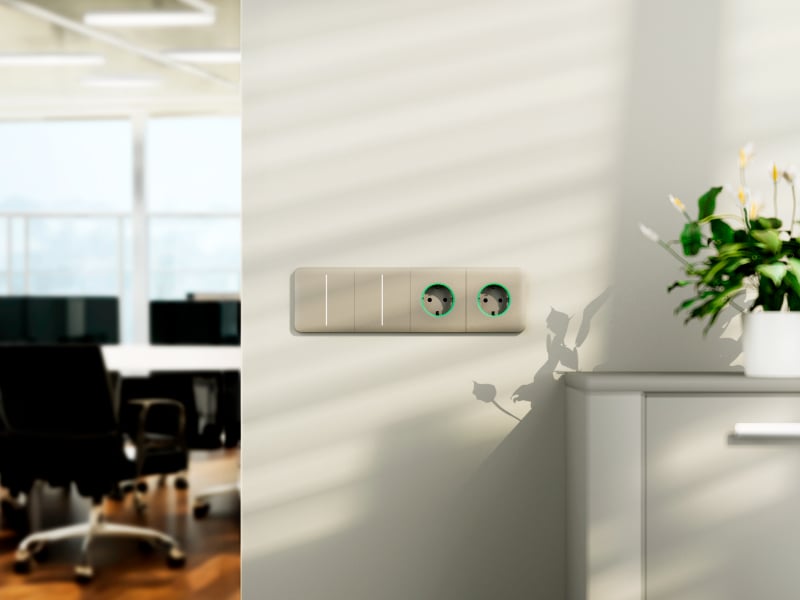

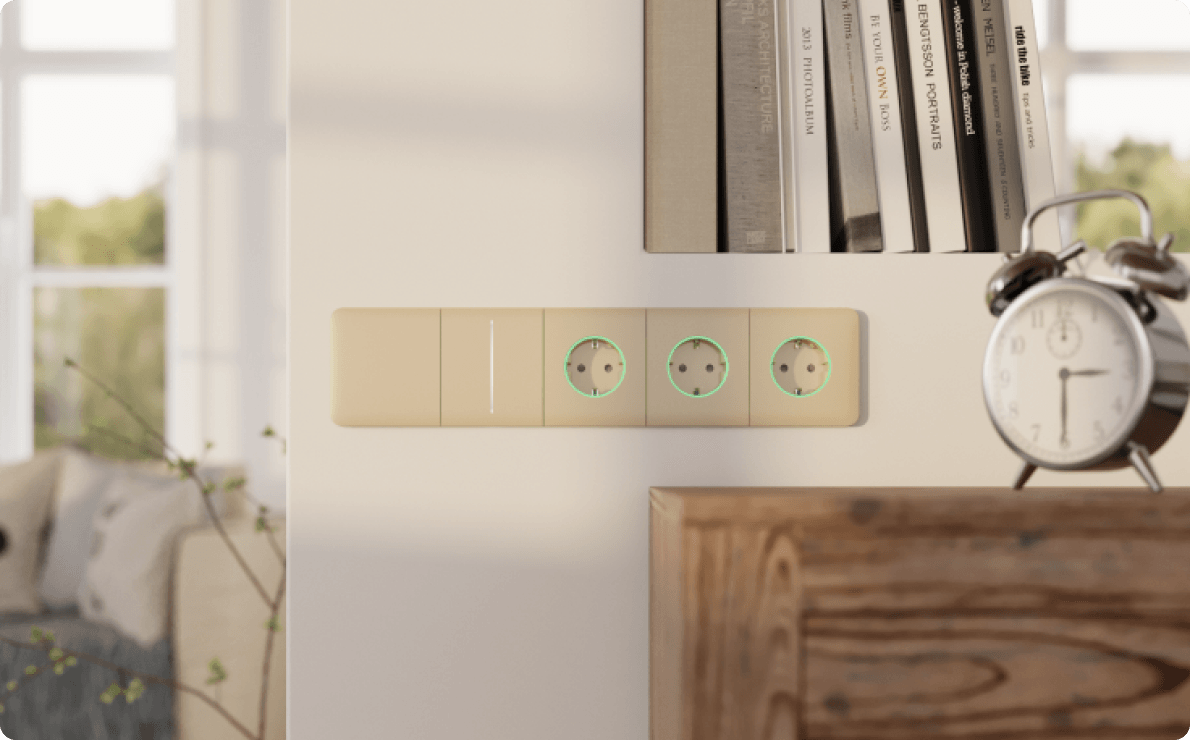

Outlet can be used separately or combined with the LightSwitch smart switches and installed into Frame. Devices have the same frame design and colour shades.

Light switch and outlet configurator

Assemble the set that meets your demands

Discover future-proof hardware

Touch-sensitive power off button on the outlet’s cover

Soft LED lighting

At least 150,000 relay switching operations (50 years of lifetime)

Up to 3 kW load capability

Overcurrent, overvoltage, and overheating protection

Up to 1.5 W power consumption

Discover future-proof hardware

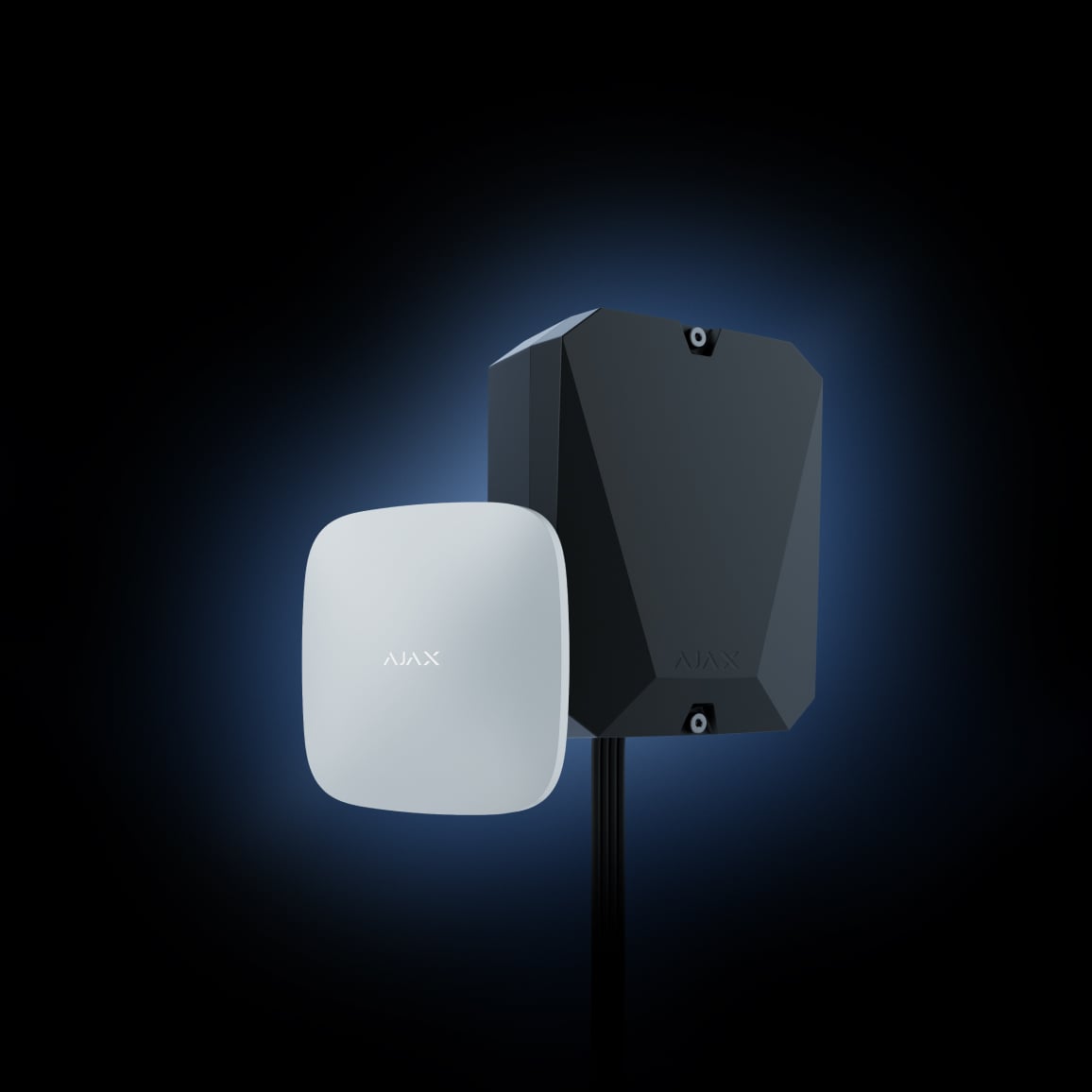

Reliable connection with the hub

Outlet capabilities are provided by the hub — the brain of the Ajax system. The hub can be connected to 4 internet providers simultaneously via Ethernet, Wi-Fi, or two 2G/3G/LTE cellular networks ready for backup. Automatic switching between channels takes seconds.

Hub runs on OS Malevich, a real-time operating system developed by Ajax Systems. OS Malevich is highly stable, immune to viruses, and protected from cyberattacks. The automation scenarios are executed on the hub level, so they will keep running even without connection with the server.

Running automation scenarios on the hub level without using a server

Always online due to redundant communication channels: Ethernet, Wi-Fi, 2×SIM (2G/3G/LTE)(1)

Regular OS Malevich updates to make the system more reliable and convenient

Connection with the hub

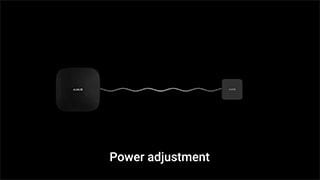

Unique wireless technology

Jeweller

Unique wireless technology

All the device functions can be fully revealed only when Outlet is paired with a hub. Reliance is not placed on popular technologies such as Wi-Fi, Z-Wave, ZigBee, or Bluetooth.

Instead, the Ajax system uses reliable two-way secure radio communication based on the Jeweller proprietary protocol. It provides block cipher encryption and device authentication at each communication session with the hub to prevent sabotage, spoofing, or data theft.

Up to 1,100 m of radio communication with a hub

Encrypted two-way radio communication

Notifications about jamming and connection loss

Scaled and comprehensive

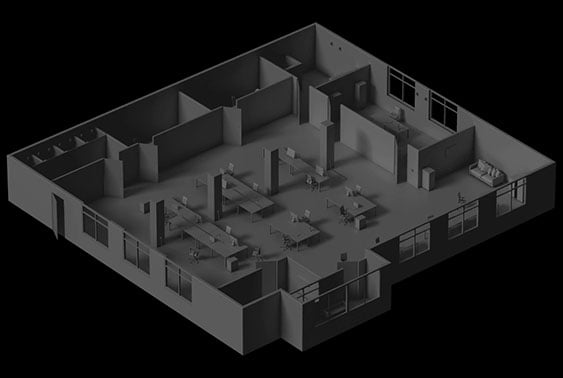

For complex radio signal conditions, the ReX Jeweller range extender boosts the range of all Ajax devices and manages their communication with the hub via Jeweller. And ReX 2 Jeweller assures stable communication even through steel and concrete via Ethernet using the wire as the additional communication channel. Up to 5 range extenders can operate within one Ajax system to expand the network twice as big, covering multistorey buildings with underground parking and basements.

Up to 5 range extenders within one system

Ethernet as an alternative communication channel

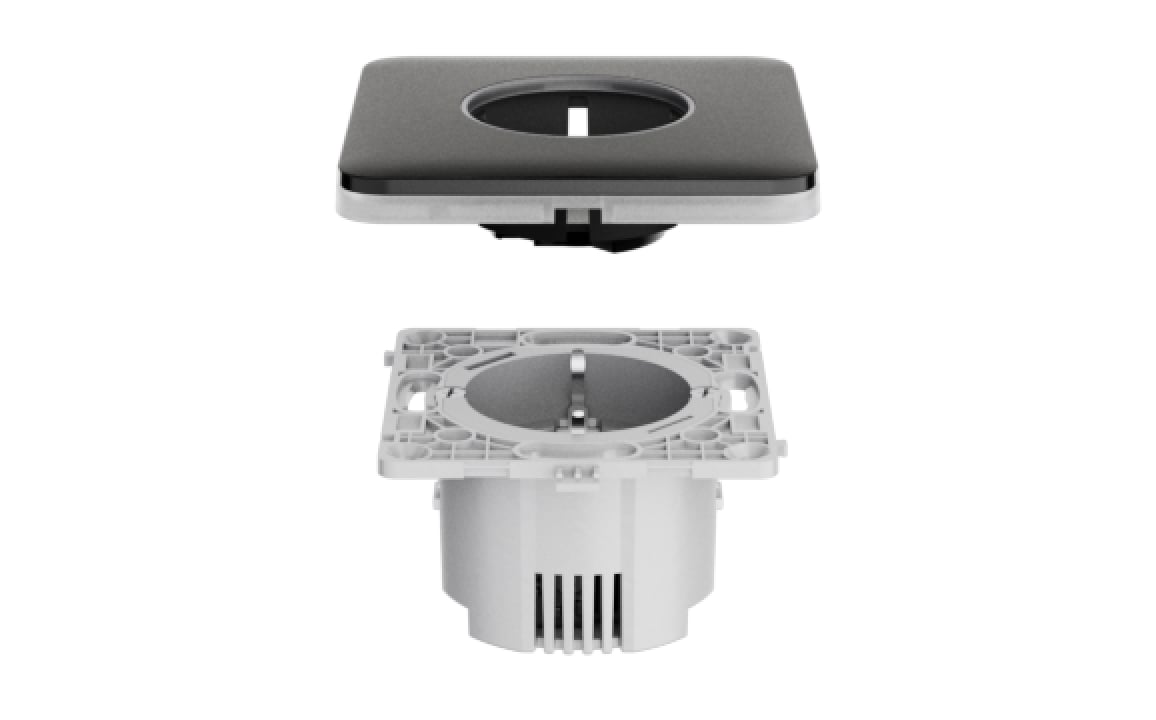

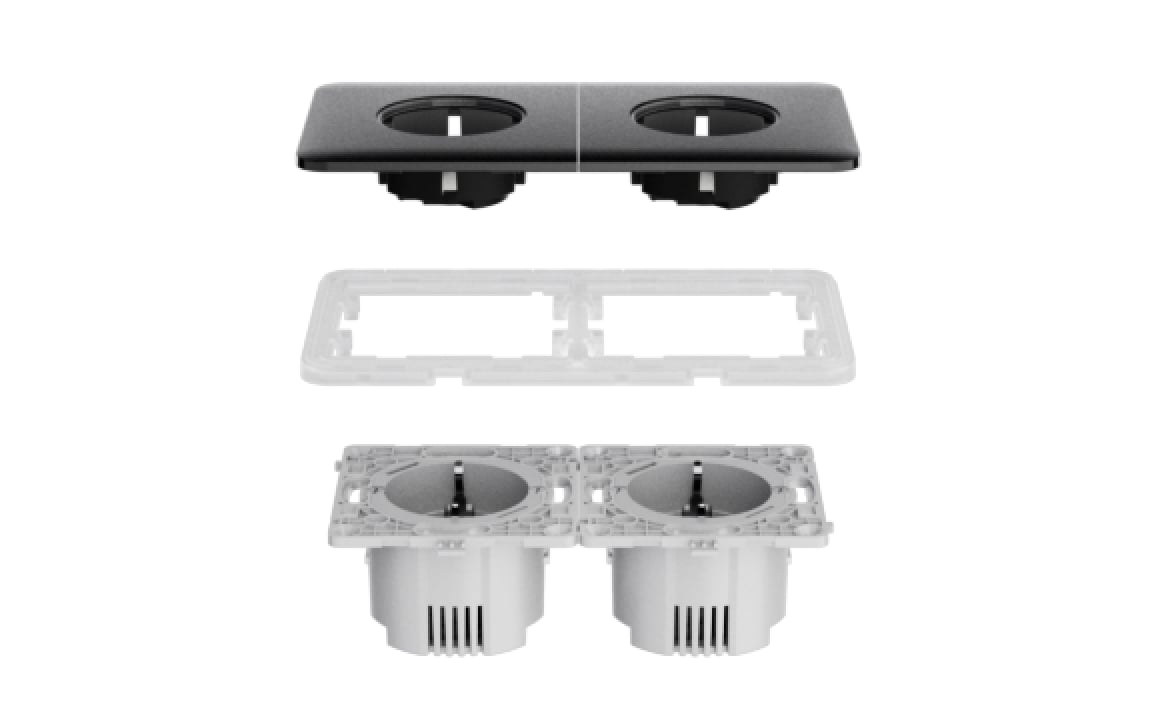

Outlet components

Combination of device components depends on the objectives. It ensures the device variability.

Cover consists of two elements of the same colour: front panel and receptacle cap. It has a touch button and is available in 8 colours.

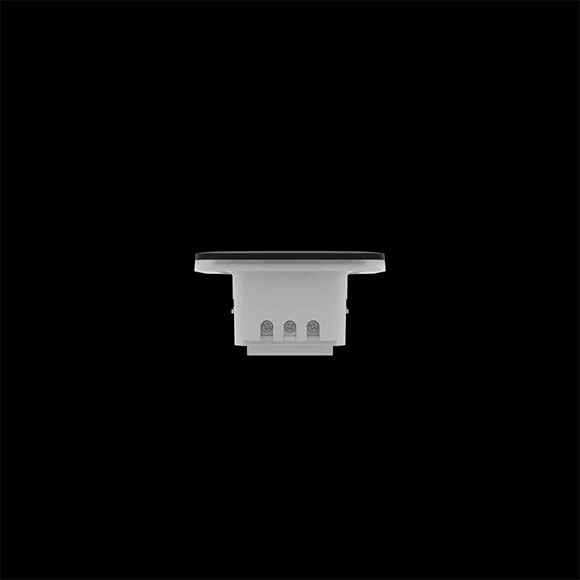

OutletCore contains electronics, antennas, and relays to control the power supply. OutletCore is connected to the electrical wiring.

Single Outlet

Cover consists of two elements of the same colour: front panel and receptacle cap. It has a touch button and is available in 8 colours.

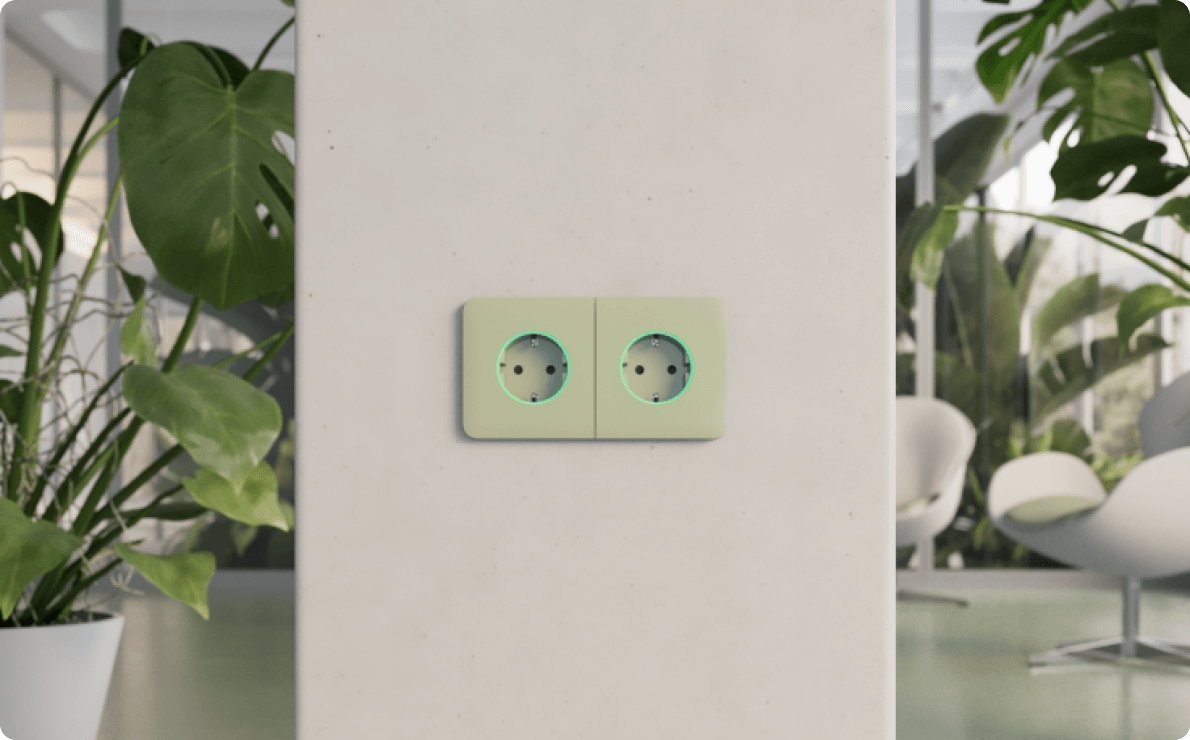

Frames for two, three, four, or five Ajax outlets and light switches in any combination.

OutletCore contains electronics, antennas, and relays to control the power supply. OutletCore is connected to the electrical wiring.

Row of Outlets

Intuitive installation and connection

Outlet can be added to the system via QR code. Device is configured in the app in a few clicks. The depth of OutletCore is 38 mm, so a smart outlet can be installed instead of the old one — no need to replace the mounting box and wiring. The front panels are available in different colours and can be quickly replaced without rewiring the outlet.

It takes about 7 minutes — no more difficult than installing a standard outlet

Installation

The device is paired with the system by scanning the QR code in the Ajax app

Connection

Outlet and automation scenarios are configured in the Ajax mobile or desktop app

Setup

1 — The number of available communication channels depends on the hub model.

Ajax product lines

Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous possibilities for building systems of any configuration.

Revolutionizing Living Spaces With The Outlet [type F] Jeweller

Ajax Outlet [type F] is a built-in outlet that redefines how you interact with power in your living spaces. This device has a power consumption monitoring function, automation capabilities for the premises, and a few more features explained further. Replace your outdated outlets with the Ajax Outlet [type F] Jeweller to bring home technology to the next level. This smart built-in outlet offers substantial benefits like automation potential and power consumption monitoring along with the appealing design. Upgrading your living area with Ajax Outlet [type F], you can enhance your power management system.

Electrical Outlet with Power Consumption Monitoring

At the core of Ajax Outlet [type F] lies a sophisticated blend of intelligence and functionality. It goes beyond the usual power outlet, boasting a built-in outlet with a power consumption monitoring feature that propels your understanding and control of electricity usage. The Ajax app allows users to seamlessly manage this device and all those connected.

Features of the Ajax Outlet [type F]

Automation Scenarios
Ajax Outlet [type F] Jeweller goes beyond the basics by making your daily routines simpler. Imagine your outlets following schedules, turning off during emergencies like fire alarms, or working seamlessly with Ajax LightSwitch smart switches. These features make your premises more comfortable and secure, effortlessly blending technology with everyday life.
LED Indication for Current Load
Stay informed about the power consumption through the intuitive LED indication feature. The color-changing LEDs provide real-time feedback on your current load, offering insights into the energy consumption patterns. The changing colors of Outlet [type F]'s LED indicator look good and make understanding сonnected devises energy usage easy. It's a feature that helps you understand how you use electricity in your home; and here's what each color of Ajax Outlet [type F]'s LED built-in outlet means:
Load level Indication
No power supply No indication
Outlet [type F] is off Lights up blue
Outlet [type F] is on, load from 0 to 549 W is connected Lights up green
From 550 to 1,249 W Lights up yellow
From 1,250 to 1,999 W Lights up orange
From 2,000 to 2,839 W Lights up red
From 2,840 to 3,679 W Lights up dark red
3,680 W and above Lights up purple
Activates one or more types of protection (e.g., current and/or voltage) Slowly lights up red and goes out

Safety First: Features for Peace of Mind

Outlet [type F] electrical outlet with power consumption monitoring function stands out by putting your peace of mind first. With safety shutters to prevent accidents and an auto switch-off timer (10 seconds to 2 hours), it promotes energy efficiency and ensures your loved ones' well-being. Ajax Outlet [type F] electrical outlet is not only a practical device; it's a device that can be integrated into any interior. Compatibility with Ajax LightSwitch smart switches further enhances its versatility, offering flexibility and customization tailored to your aesthetic preferences. The following 8 colors are available: black, white, fog, gray, oyster, olive, graphite and ivory.

App Control

You can take charge of the connected devices even remotely through the Ajax app. Whether turning devices on or off or checking their status, the intuitive control screen ensures peace of mind, even when you're away from home. With timely alerts, you know when your electricity is cut off as well.

Appliance Protection

The electrical built-in outlet Ajax Outlet [type F] Jeweller prevents electronic equipment from overheating and component burnout caused by sudden power outages. It has safety features like overheating protection, which lowers the risk of fires, and grounds to prevent electric shock. For further safety, the outlet also turns off the electricity when there is an undervoltage or overvoltage.

Childproofing and Touch-sensitive Controls

In a household with children, safety is paramount. Ajax Outlet [type F] addresses this concern with safety shutters, preventing accidental access and protecting against potential accidents. The touch-sensitive button offers manual control of the mains supply, providing convenience without compromising safety.

Reliable Connection with Ajax Hub Central Panel

Electrical outlet Ajax Outlet [type F] seamlessly integrates with the Ajax hub. Boasting a communication range of up to 1,100 meters and operating Jeweller radio protocol, this device establishes a reliable and secure link with the hub. This robust security framework effectively mitigates the risks of sabotage, spoofing, or data theft, providing you with a connected experience that you can trust. The hub, powered by OS Malevich, adds stability, virus immunity, and protection against the cyber threats. Electric socket Ajax Outlet [type F] goes beyond being a standalone device; it acts as a connected entity, ensuring the smooth operation of your entire smart home ecosystem.
Expandable Coverage with Range Extenders
In scenarios where larger spaces or challenging environments pose connectivity challenges, Ajax range extenders are a reliable solution. These devices extend the radio signal range, guaranteeing a stable connection between Ajax Outlet [type F] Jeweller and the Ajax hub. With the capability for up to 5 range extenders to operate within one Ajax system, you can achieve comprehensive coverage for your security network. Ajax Outlet [type F] Jeweller isn't just about offering control; it ensures that control extends to every corner of your living space, providing a strong and reliable security network.

Installation and Maintenance

Installing the electrical outlet Ajax Outlet [type F] Jeweller is straightforward. A professional installer will scan the QR code, configure the device through the app, and unlock the benefits of smart power management. Before starting the installation, the installer has to ensure you've selected an optimal location following the guidelines provided in the manual. The device is designed for indoor use only. During the installation and operation of the device, it is crucial to adhere to general electrical safety rules for using electrical appliances and comply with electrical safety regulations. To guarantee a safe and proper setup, only a qualified installer should handle the installation of the wall plug Ajax Outlet [type F]. Additionally, the power is only energized to the outlet once the cover has been securely installed. This precautionary measure adds an extra layer of safety to the installation process. Single electrical Ajax Outlet [type F] Jeweller can be installed as a separate device or combined as a set with Ajax smart outlets and/or LightSwitch switches and installed into Frame side by side.

Conclusion

The electrical Ajax Outlet [type F] goes beyond being a simple wall outlet; it represents the future of secure, efficient, and intelligent living. By using the wall Outlet [type F] for your power management needs, you're not just developing a device but embracing a lifestyle with convenience, security, and intelligence combined. With a touch-sensitive power-off button, soft LED lighting, and a lifespan of at least 150,000 relay switching operations (equivalent to 50 years), this device is built to withstand the test of time. Handling loads of up to 3 kW, electrical Outlet [type F] provides the power you need with a reliability that transcends fleeting trends.
