Socket Type-F

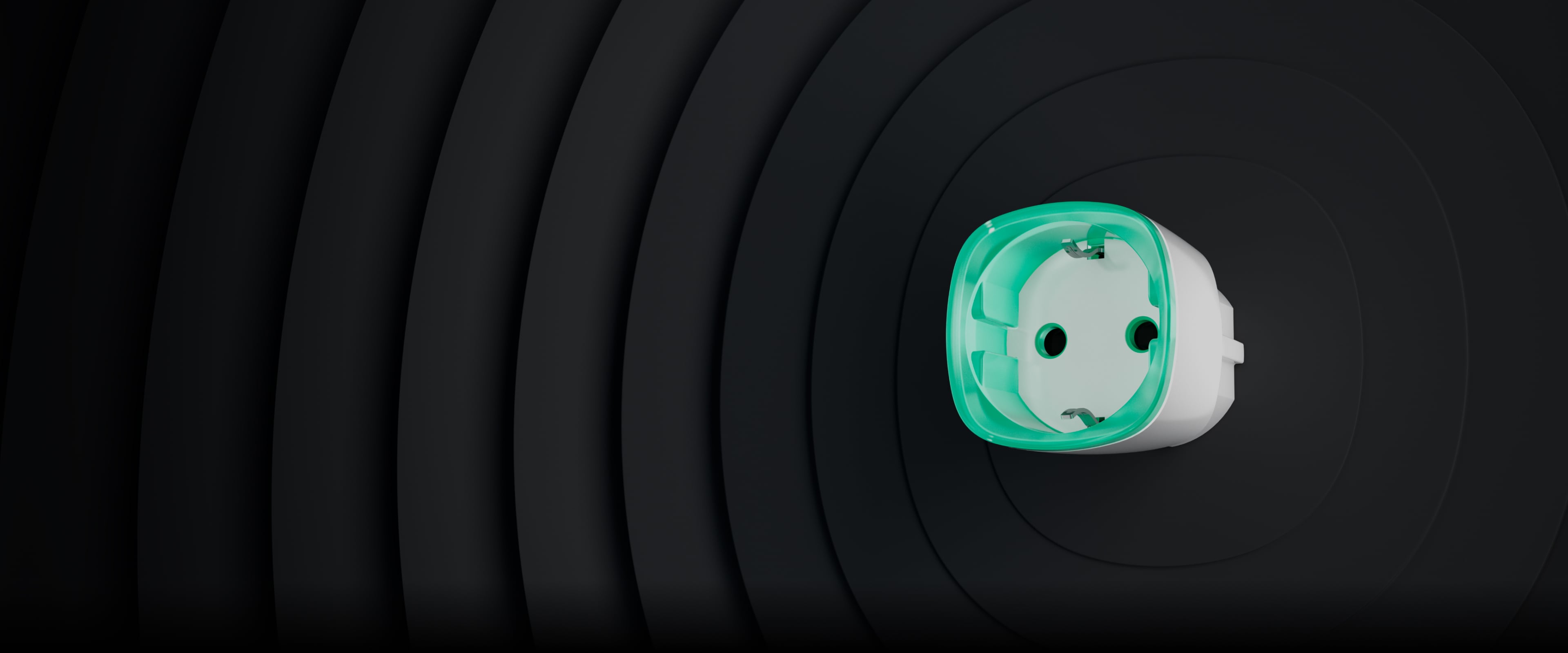

Socket (type F) Jeweller

Smart plug
Socket Type G
Аlso available with a type G plug

Control appliances remotely

00000
W

Monitor power consumption

Automate your security

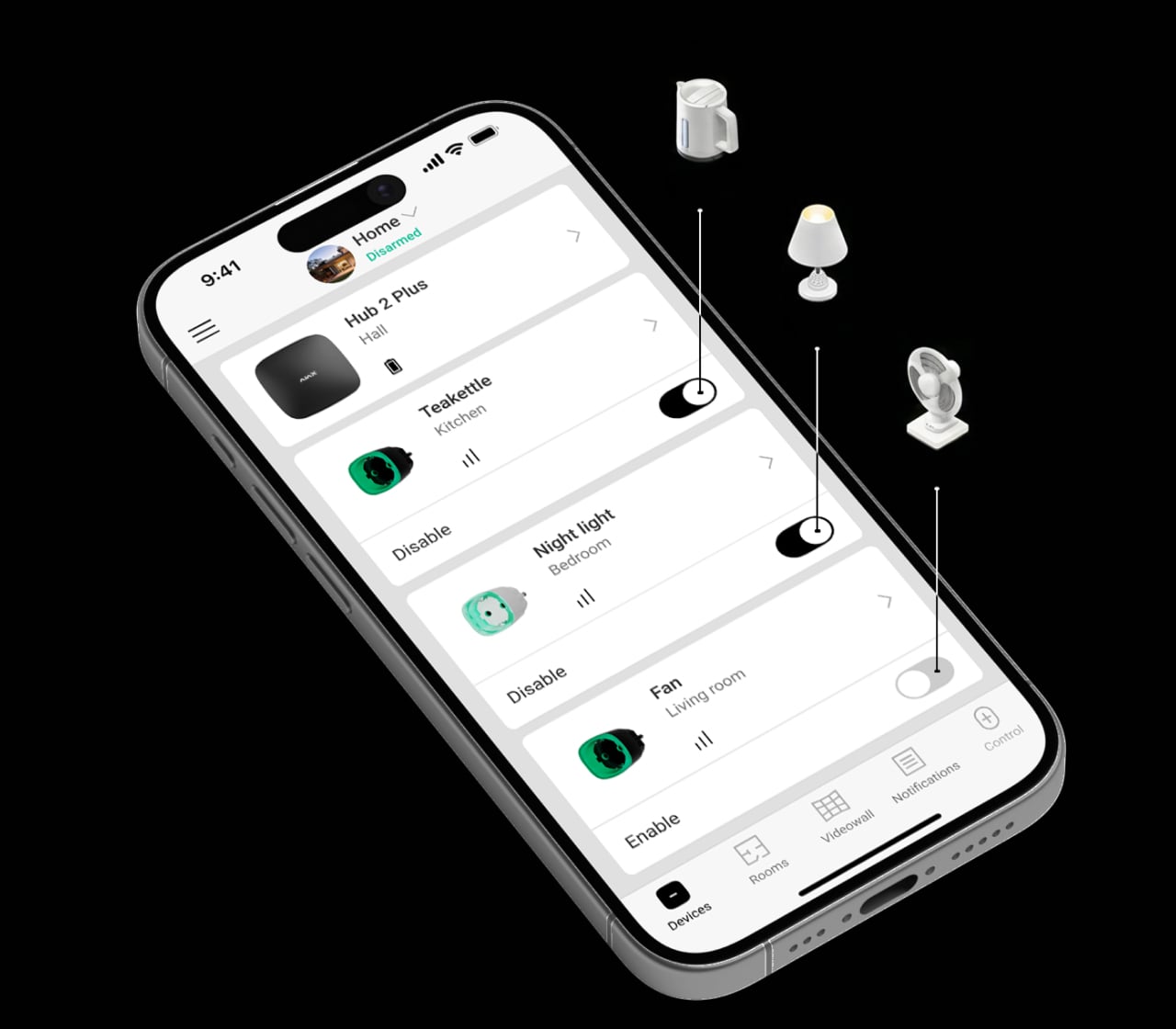

Everything is ready by the time you get home

Everything is ready by the time you get home

You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home.

Everything is ready by the time you get home

You will come back home to enjoy comfortable climate and cozy atmosphere all year round. Turn on your heating devices during winter and air conditioner during summer. Start your humidifier and heat water for your bath: do it all with only a few taps in the app on your way home.
Everything is ready by the time you get home

No more worries about forgetting an iron on

When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.
No more worries about forgetting an iron on

No more worries about forgetting an iron on

When you leave your house, close the door and arm the system. All top energy consuming and dangerous appliances will be automatically switched off. Iron, heater, and toaster will no longer create a risk of fire.
No more worries about forgetting an iron on

Identifies power vampires

Socket informs you about the most power consuming devices. As soon as an appliance starts consuming electricity, Socket's LED changes colour in real time.
Socket consumes less than 1 W in the standby mode
00000
W
RED RoHS

Complies with electrical safety standards

Socket complies with the standards for electrical appliances ensuring your safety. Each smart plug is fully tested: quality of materials, effect of high temperatures, ability to work for a long time under load.
Protects your curious little ones

Protects your curious little ones

Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes.

Protects your curious little ones

Special shutters inside the Socket protect your children and prevent them from inserting screwdrivers, scissors, or hairpins. They also protect from dust and splashes.
Protects your curious little ones

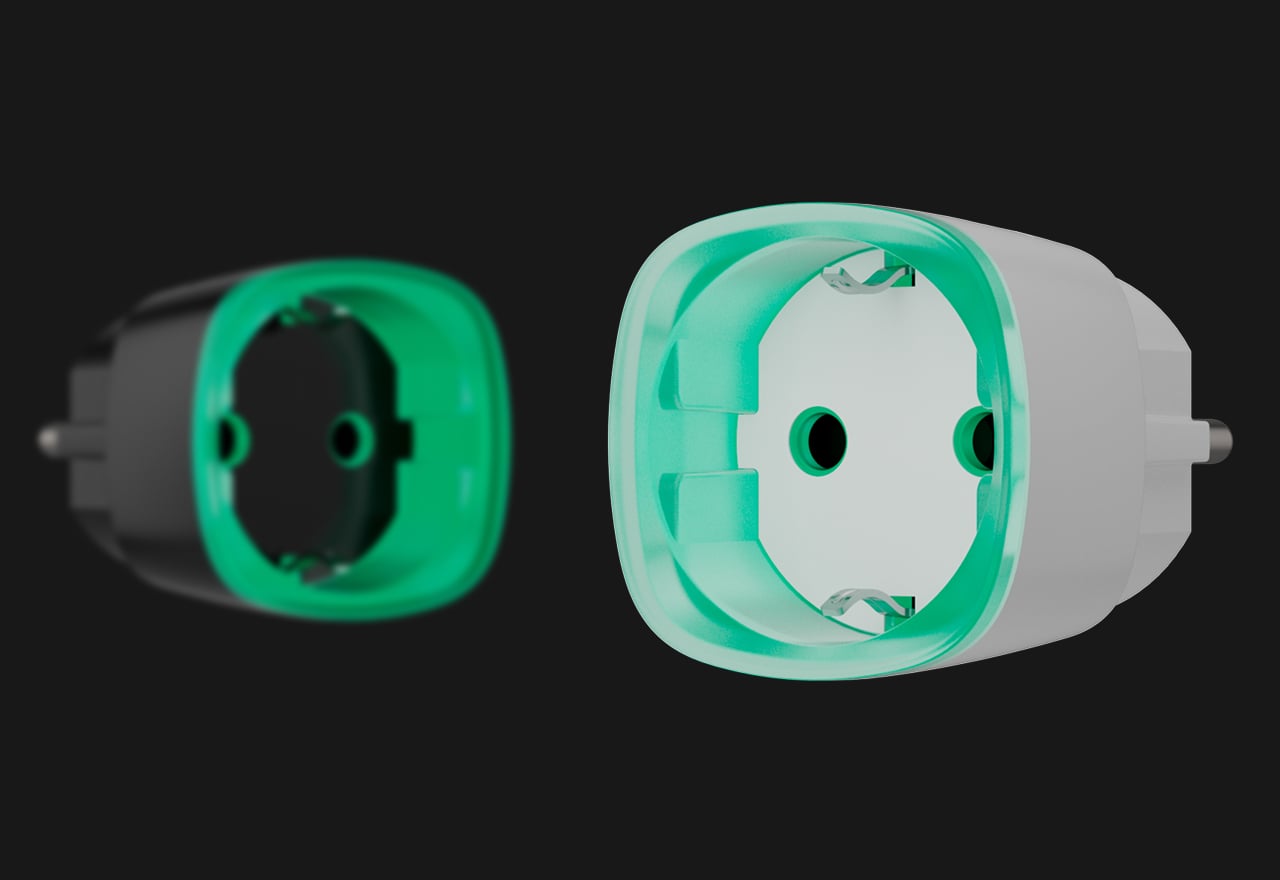

Safeguard in the power grid

The device connects to the 230 V AC source and closes/opens the circuit on command. The smart plug can handle loads of up to 2.5 kW, which is enough to connect a very power-hungry devices.
  • Operates in bistable or pulse modes
  • Protects devices against overcurrent and voltage surges
Safeguard in the power grid
Jeweller

Always in touch

We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.
  • Two-way communication at a distance of 1000 meters
  • 5 radio signal range extenders in the system
  • Command delivery in
    0,15 s
  • Adjustable pollingп from
    12 s

Home and office automation

Use scenarios to make life safer and more comfortable. Set your office lights to turn off automatically on arming, program your projectors to turn on when outdoor motion detectors identify intruders, or turn on your toaster at a certain time in the morning.

Simple connection

Socket can be connected and set up in a matter of minutes. To add a Socket to the system, scan a QR code with the Ajax app, name it and assign a room. The device and automation scenarios are also configured in the app in real time.
Pairs with the system using QR code
Socket Connection
Configured through the Ajax app
Socket Setting

Tech specs

Classification
Smart socket
Device type
Remote-controlled
Installation method
In outlet
Compatibility with hubs
Compatibility with range extenders
Actuating element
Electromagnetic relay
Service life
At least 200,000 switches
Power supply voltage range
110–230 V~ ± 10%; 50/60 Hz
Output power (resistive load at 230 V)
Up to 2.5 kW
Device energy consumption
≤ 1 W
Maximum current protection
Yes,

11 A if the protection is turned on
13 A if the protection is turned off
Maximum temperature protection
Yes, +85°С

The socket turns off automatically if the temperature is exceed
Overvoltage protection
Yes,

min — 184 V~
max — 253 V~
Electric shock protection class
Class I (with grounding terminal)
Energy consumption parameter check
Yes (current, voltage, power consumption)
Load indicator
Yes
Maximum load current
11 A (continuous)
13 A (up to 5 sec)
Alarm signal delivery time
0.15 sec
Load indicator
Yes

The option of adjusting the brightness of the LED frame of the device (high or low)
Operation modes
Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020)
Bistable
Contact state (firmware version 5.54.1.0 or higher)
Normally open
Normally closed
LED indication
Adjustable (LED frame, 7 colours)
Adjustable pulse duration (firmware version 5.54.1.0 or higher)
1–255 sec
Jeweller radio technology
Communication range with the central unit — up to 1,100 m in an open space
Two-way communication between devices

Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)

Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector ping interval: 12–300 s

Learn more about Jeweller
Anti-sabotage
Protection against forgery
Jamming detection
Remote setting and testing
+
Operating temperature range
From 0°С to +40°С
Operating humidity
Up to 75%
Ingress protection
IP20
Overall dimensions
65.5 × 45 × 45 mm (with plug)
Weight
58 g
Warranty
24 months

Learn more

Choose the most suitable Ajax set in 2 minutes

Tell us what you need to protect and we will put together a set of detectors and devices for your premises.
Start

Recommended products

Intelligent security control panel

Wireless pet immune motion detector

Wireless magnetic opening detector

Smart outlets in security systems

Intelligent outlets are increasingly being used as additional devices to security systems. Smart outlets increase the comfort of using electrical appliances and reduce energy consumption.

The principle of operation of a smart outlet

An effective way to save on electricity consumption is to install a smart outlet. The devices are inexpensive, equipped with unique electronic systems, which conventional sockets with a voltage of about 220 V can become more functional. With an intelligent socket for the safety system, the user can coordinate and control the flow of electricity, often with a mobile application from the manufacturer. After installing such a device, the user becomes able to control electronics and appliances remotely. Smart electrical outlets often monitor energy consumption and measure its amount. One of the advantages of devices of this type is the ease of installation and further use. An overlay must be installed on the contact located on the surface. In this way, intelligent electrical outlets control the power consumption and the leading devices in the room.

How to choose an intelligent outlet

There are a few things to keep in mind when choosing a smart security outlet:
  • In electrical outlets, it is essential to be able to set the device to turn on and off automatically at a selected time, such as a TV or lighting fixture after dark.
  • It is worth paying attention to not the cheapest models because the possibilities of such species are much less, and hence variations in energy savings.
  • The form of socket connection is another important criterion for choosing a smart socket. In more modern models, this connection is via the home Internet or Wi-Fi. A device that can be operated outside the home is the most convenient. Smartphone-controlled smart socket models on a smartphone, for example, allow you to track the current power consumption of specific devices, remotely turn them on and off.
  The use of intelligent sockets in the alarm system can increase the safety of electronics and household appliances on the premises. Most models of sockets are equipped with a temperature sensor that warns of overheating, which means — possible damage to the device connected to the mains. You should also buy a model that has the option to control each type of lighting fixture. This is a convenient option for using an intelligent outlet, especially in the absence of owners in a protected room. An intelligent outlet should show power consumption statistics. In the advanced versions, you can determine the frequency of reporting and data collection, for example, once a day, once a week, month or quarter.

Smart Ajax Socket (type F) in the security system

Ajax Socket is a radio-controlled smart socket with a built-in energy meter. Structurally, it is an adapter socket-plug of the European type (Schuko type F), which allows you to control the power supply of devices with a total load of up to 2.5 kW. It is provided with protection against the counter of power consumption, an overload and an indication of the level of loading. Ajax is connected to the security system using a secure Jeweler radio protocol, with a communication range of up to 1000 meters in the absence of interference to the control panel. The operation of an intelligent outlet does not depend on the Wi-Fi signal in the room. Ajax Socket continues to work without a stable Internet. According to automation scenarios or at the user's command, the smart Ajax Socket switches on and off the power supply via the Ajax mobile application. With the help of Socket, you can control the equipment remotely: turn on and off the lights, start air conditioning and appliances. Socket protects the equipment from damage that causes power problems. The smart socket automatically switches on the power supply if the voltage drops or rises to a critical level if the device exceeds the proper current parameters or overheats. Notifications of all events are sent to security users via SMS or push messages to the owner's mobile phone. The intelligent socket for the Ajax Socket security system is easy to use: the colour LED indicates the load level, while the device consumes less than 1 W⋅h in standby mode. The Socket case is compact and does not cover adjacent slots in sockets, which allows the use of all connectors of the splitter or line filter. The so-called protection against children is provided — notable curtains close the sockets with contacts, blocking the access of foreign objects, and protecting the device from splashes and dust. Socket only works with the Ajax Hub and connects to the security system in a few steps in the Ajax application. Joining uartBridge or ocBridge is not supported. The Ajax Socket (type F) smart socket is protected against forgery and sabotage.
