Tech specs

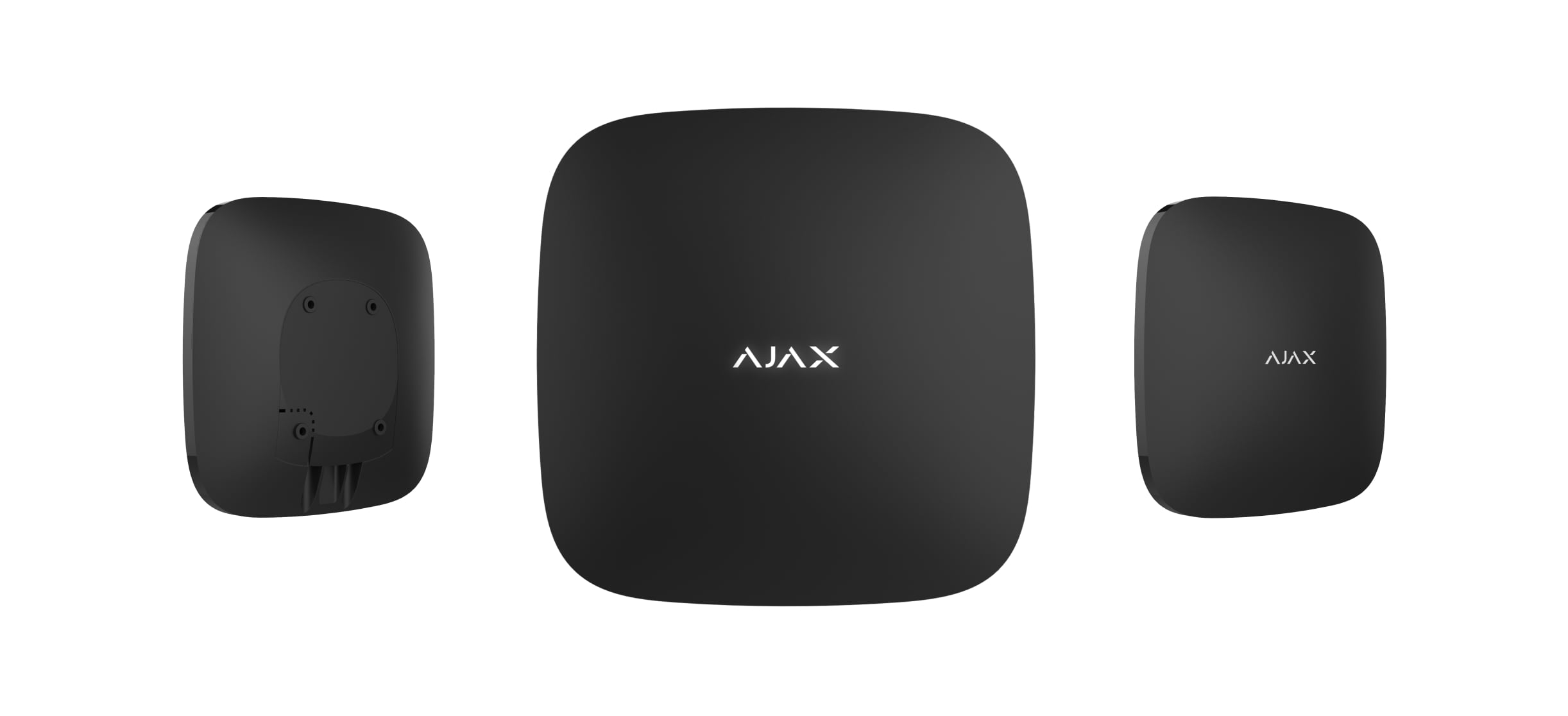

Hub Plus Jeweller
Wireless control panel. Connectable via Wi-Fi, Ethernet, and two SIM cards (2G/3G).
![Hub Plus Jeweller](/api/cdn-img/?img=%2Fupload%2Fhub_plus_md_6a400d5d1b%402.jpg&1722408538)
Hub Plus Jeweller end-of-life statement
As of March 1st, 2024, the production of Hub Plus Jeweller has been discontinued.
All Hub Plus Jeweller devices in use will continue to receive OS Malevich updates during their product lifecycle, while there are no plans to restrict its support for any new device that may be released in the future.
Ajax Systems remains dedicated to providing support and maintenance services for Hub Plus Jeweller in accordance with our standard warranty conditions, RMA, and support policies.
All the technical documentation and manuals will remain available on our website, while our support team will continue to assist you with any questions or issues you may encounter during the product lifecycle.
Devices compatibility
Capacity
Ajax devices
up to 150
Specifically, up to 10 sirens or keypads with a built-in siren and 5 range extenders.
Ajax NVRs
up to 14
Ajax cameras
up to 224 via Ajax NVRs and up to 200 standalone
Third-party IP cameras
up to 10 when using RTSP via SDK
up to 224 when using ONVIF via Ajax NVRs
Users
up to 99
- Any number of admin users within the hub limit.
- PRO accounts for installers.
- PRO accounts for installation and monitoring companies.
- Access management for users.
Automation scenarios
up to 64
- By alarm.
- By schedule.
- By arming/disarming.
- By temperature, humidity, CO2 concentration.
- By pressing Button.
Security groups
up to 25
Rooms
up to 50
Event log
up to 1,000 events
Events are saved on the non-volatile onboard flash memory.
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
- 866.0–866.5 MHz
- 868.0–868.6 MHz
- 868.7–869.2 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 6,500 ft
Between a hub and connected devices (in an open space). Maximum range depends on the connected device.
Polling interval
from 12 to 300 s
Adjusted by a PRO or user with admin rights in Ajax apps.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Recommendations
The device operating voltage is 110–240 V~.
The hub is designed for indoor use only.
Communication channels
Ethernet
1 × 8P8C socket
Up to 100 Mbps
Cellular
2 × micro SIM slot
Cellular bands
2G
GSM900/DCS1800 (B3/B8)
3G
WCDMA 900/2100 (B8/B1)
Wi-Fi
802.11 b/g/n module
Up to 600 Mbps
Automatic switching between communication channels
Instant switching between Ethernet, Wi-Fi, and SIM.
Instant switching between 3G and 2G networks of one SIM.
Switching between SIMs takes up to 4 minutes.
Communication channels prioritization
- Ethernet
- Wi-Fi
- Cellular connection
Communication channels work in parallel to increase the system’s reliability.
Most of the data is transmitted via Ethernet.
Alarm transmission system categories
SP2, SP5, DP3
Control panel operation method
Pass-through
Signaling security
S2
Substitution security
Information security
I2
Notifications
Notification types
- Push notifications
- SMS
- Calls
Event types
- Alarms
- Malfunctions
- Security state change
- System events
- Non-security alerts
- Automation devices
Notification types are configured individually for each user.
Notifications can be customized for A–D schemes according to EN 50131 requirements.
Monitoring
Supported protocols
- SIA DC-09 (SIA-DCS)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
Event types
- System alarms and events
- Panic button coordinates
Power supply
Main power supply type
type A
Device operating AC voltage range
110–240 V~, 50/60 Hz
Up to 10 W of mains power consumption.
Backup power supply
built-in Li-ion rechargeable battery: 3.7 V⎓, 2 Аh
The hub has a 2-pin battery. To replace the hub battery, use the same one.
Autonomous operation
up to 16 hours
When Ethernet and Wi-Fi are disabled. The Battery Saver feature extends the battery life of the backup rechargeable battery up to 60 hours.
Alternative power supply
12 V⎓
Connected via a 12V PSU for Hub/Hub Plus/ReX alternative power supply unit, which is sold separately.
Sabotage protection
Tamper alarm
Notifications on attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Frequency hopping
The hub sends notifications about jamming or losing connection with the devices to all users and the security company.
Enclosure

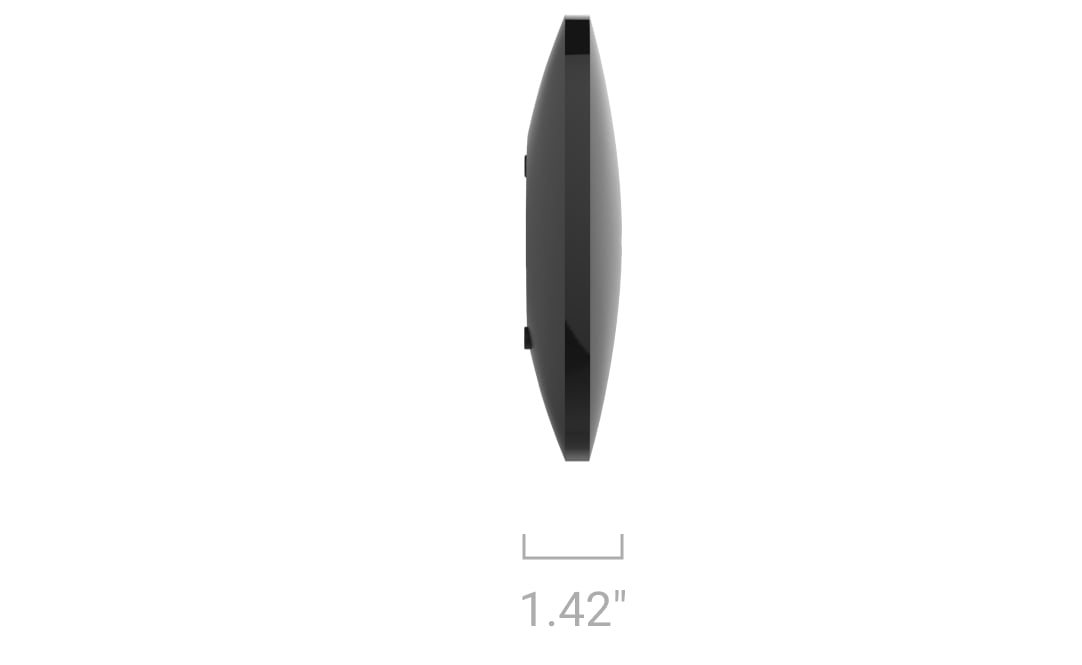

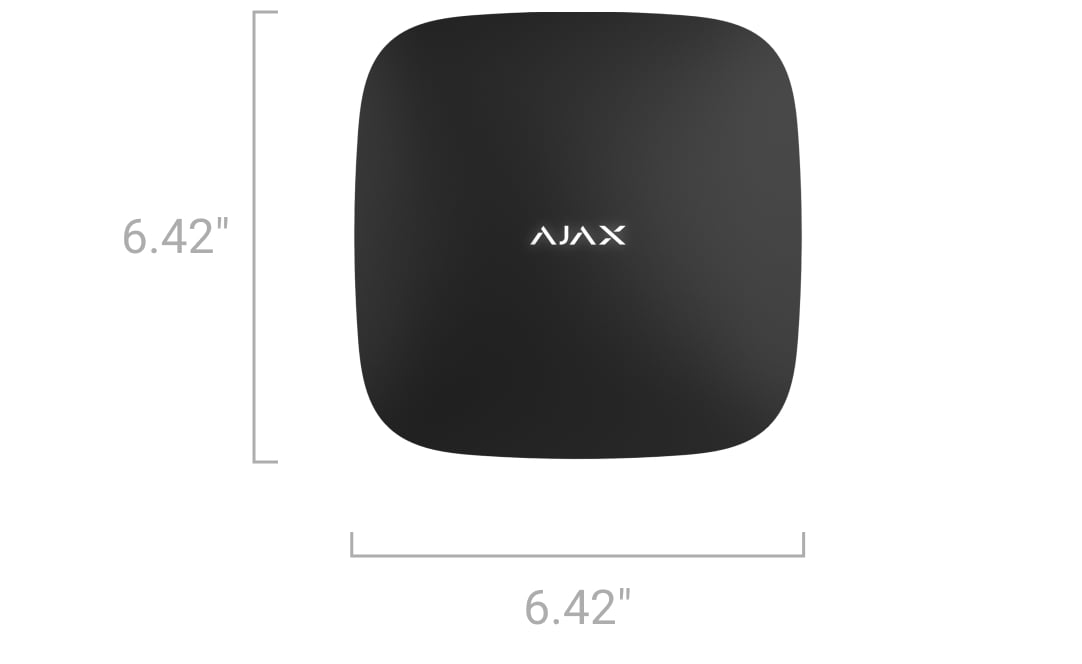

Dimensions
6.42″ × 6.42″ × 1.42″
Weight
12.35 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP20
![front](/api/cdn-img/?img=%2Fupload%2Fhub_plus_front_US_40e16178f7%402.jpg&1722408596)
![side](/api/cdn-img/?img=%2Fupload%2Fhub_plus_side_US_6bda6775ff%402.jpg&1722408570)
Colors

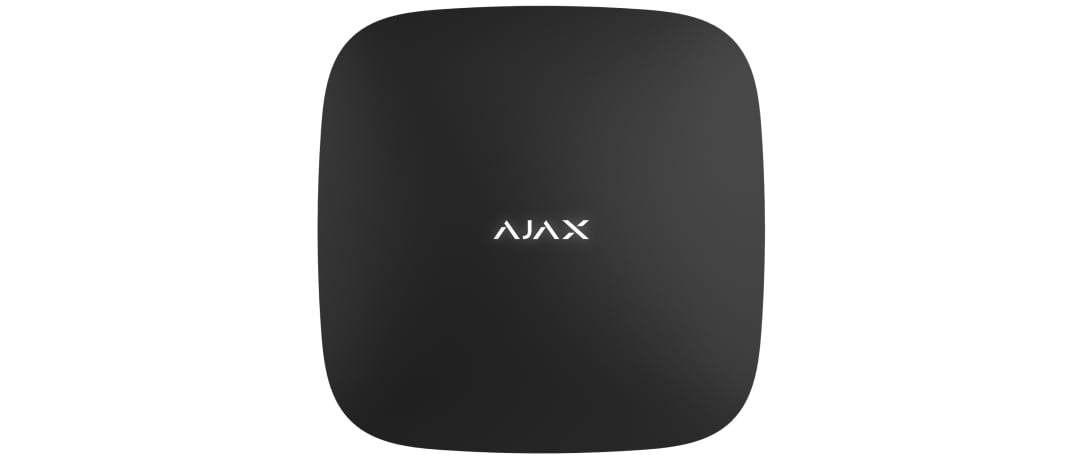

Black
![black](/api/cdn-img/?img=%2Fupload%2Fhub_plus_black_3b631c85ca%402.jpg&1722408553)

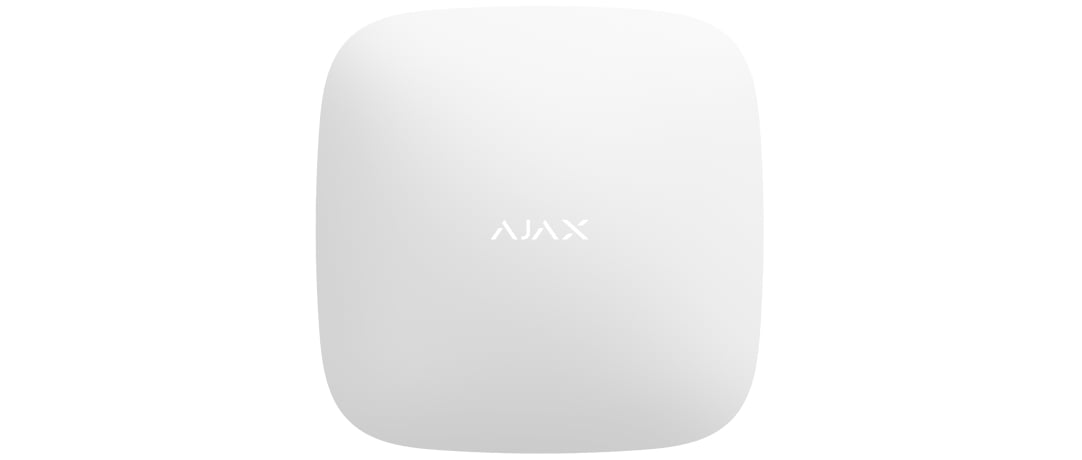

White
![White](/api/cdn-img/?img=%2Fupload%2Fhub_plus_white_f67667e91a%402.jpg&1722408553)
Complete set
Hub Plus Jeweller
SmartBracket mounting panel
Power supply cable
Ethernet cable
Installation kit
SIM card (depends on the sales region)
Quick start guide
