LightSwitch (1-gang) Jeweller

Wireless smart touch 1-gang light switch

LightSwitch (1-gang) Jeweller

Components

LightSwitch (1-gang) Jeweller is a prefabricated smart switch. All parts are purchased separately.

Relay

LightCore (1-gang) Jeweller
Relay for a 1-gang switch.
LightCore (1-gang) vertical Jeweller
Relay for a vertical 1-gang switch.

Touch-sensitive panels

SoloButton (1-gang)
It is used when the 1-gang switch is installed as a separate device. SoloButton consists of the front panel and the frame, coming as one component.
CenterButton (1-gang)
It is used when the 1-gang switch is installed between the device set.
CenterButton (1-gang) vertical
It is used when the vertical 1-gang switch is installed between the device set.
SideButton (1-gang)
It is used when the 1-gang switch is installed on the right or left of the device set.
SideButton (1-gang) vertical
It is used when the vertical 1-gang switch is installed on the top or bottom of the device set.

Frames

Frames for two, three, four, and five Ajax switches and outlets in any combination¹.
Frame (2 seats)
Frame (3 seats)
Frame (4 seats)
Frame (5 seats)
Frame (2 seats) vertical
Frame (3 seats) vertical
Frame (4 seats) vertical
Frame (5 seats) vertical
1 — Combinations with outlets are available only in horizontal orientation.

Configuration

Single switch

LightSwitch (1-gang) Jeweller is installed as a separate device.

Combined switch

LightSwitch (1-gang) Jeweller is combined as a set with Ajax smart switches and/or Outlet Jeweller devices and installed into Frame side by side.

Touch-sensitive panel colors

Black
RAL 9005
Graphite
RAL 7024
White
RAL 9003
Ivory
RAL 1013
Fog
RAL 7047
Oyster
RAL 9002
Grey
RAL 7004
Olive
RAL 7044
The RAL colors are as close as an approximation of the actual color. However, they may slightly differ, so please only use them as a guide to the color choice.

Devices compatibility

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via Ajax apps.

Radio frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the sales region.

Maximum effective radiated power (ERP)

up to 20 mW
Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 3,600 ft
Between the device and a hub (or range extender) in an open space.

Encrypted radio communication

All the data stored and transmitted are protected by block encryption featuring a dynamic key.

Radio frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Automation scenarios

  • security mode change reactions
  • scheduled actions
  • alarm reactions
  • temperature scenarios
  • humidity scenarios²
  • CO₂ concentration scenarios²
  • by pressing another LightSwitch/Button
2 — Scenarios by humidity and CO₂ concentrations are available when LifeQuality Jeweller is added to the system.

Operation without a neutral wire

LightSwitch only needs a live wire to operate.

Power of switched device

from 5 to 600 W

Contactless touch-sensitive panel

LightSwitch is activated when a hand gets as close as 15 mm from the panel.

Night backlight

Optional, can be turned off in the Ajax app device settings.

Protection against incompatible devices

Triggers if lighting devices have insufficient power (up to 5 W). If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor.

Recommendations

The device is designed for indoor use only. A professional electrician should install the device.

Sabotage protection

Protection against spoofing

device authentication

Communication loss detection

after 36 s
Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Power supply voltage

230 V~, 50/60 Hz
The device does not need a neutral wire to operate.

Average consumption

up to 200 mW

Maximum power

600 W
For LightCore (1-gang) Jeweller and LightCore (1-gang) vertical Jeweller.

Current protection

more than 2.6 A
If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.

Temperature protection

more than 140 °F
If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.

Operating parameters

Operating temperature range

from 14 °F to 104 °F

Operating humidity

Up to 75% with no condensation

Protection class

IP20

Form factor of the switch

European type (55)

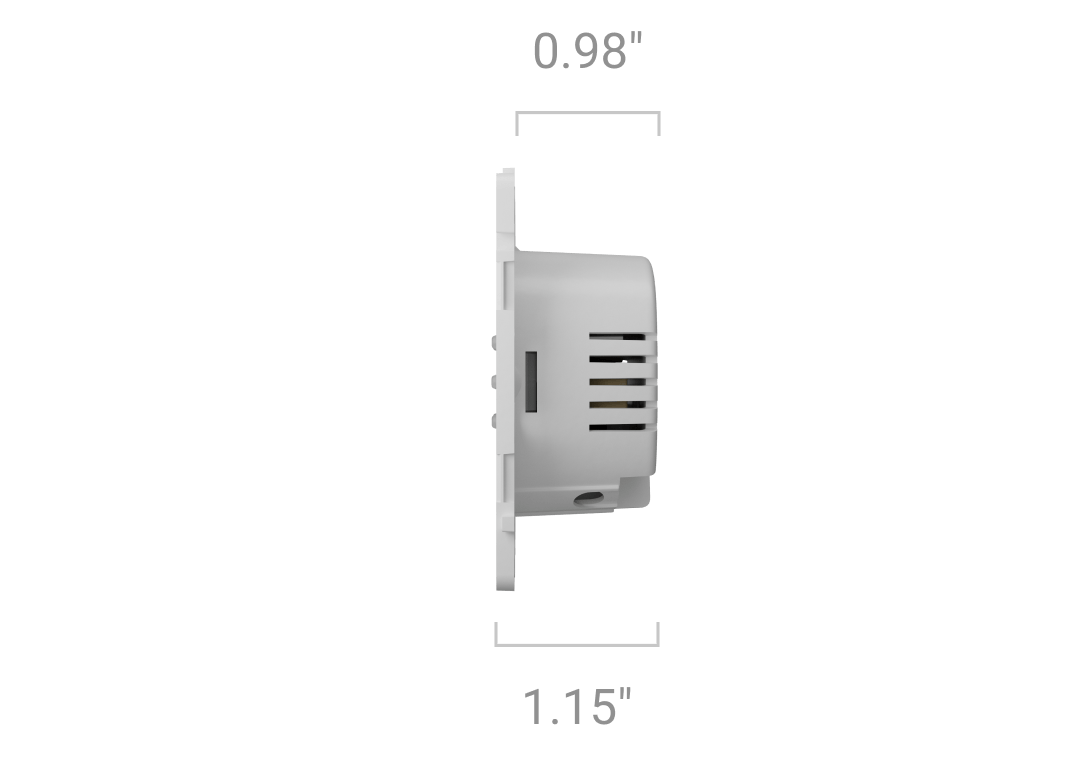

Dimensions

Relay

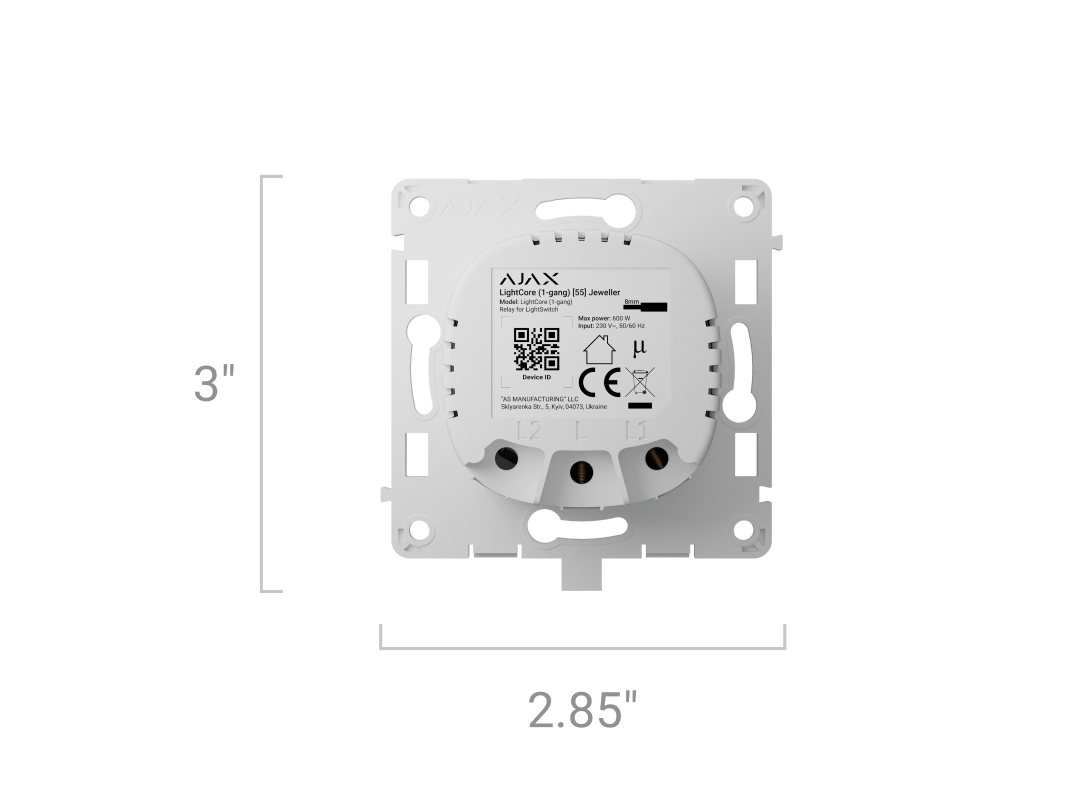

LightCore (1-gang) Jeweller — 3" × 2.85" × 1.15"

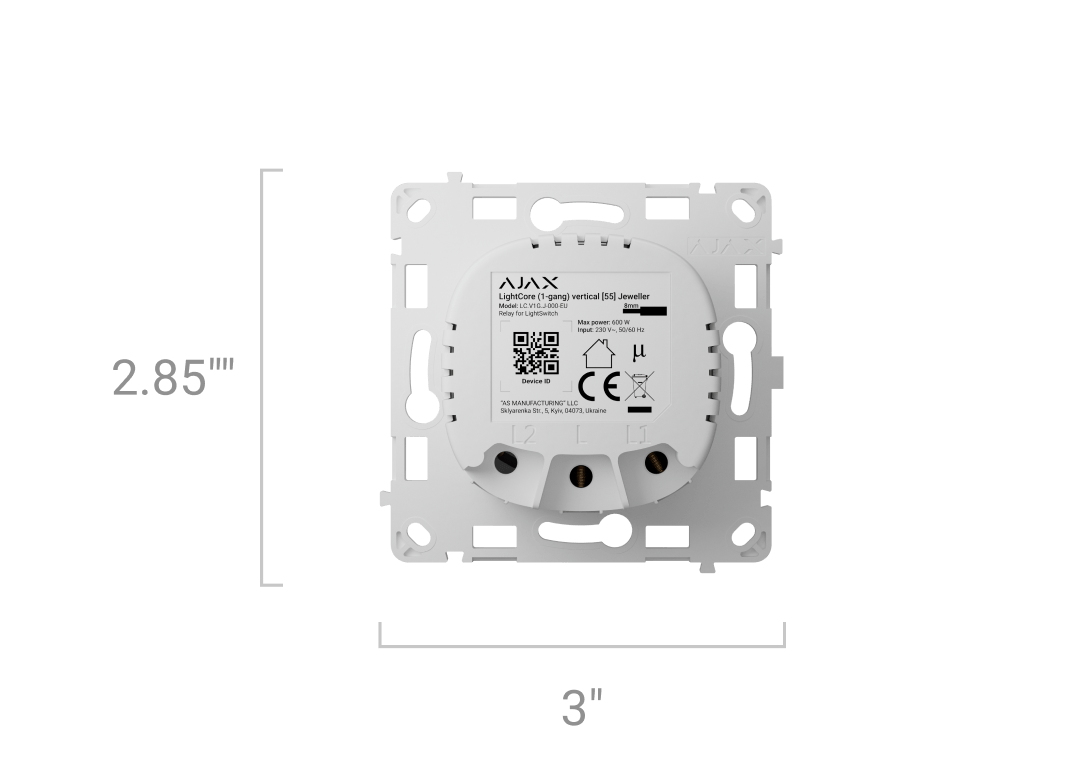

LightCore (1-gang) vertical Jeweller — 2.85" × 3" × 1.15"

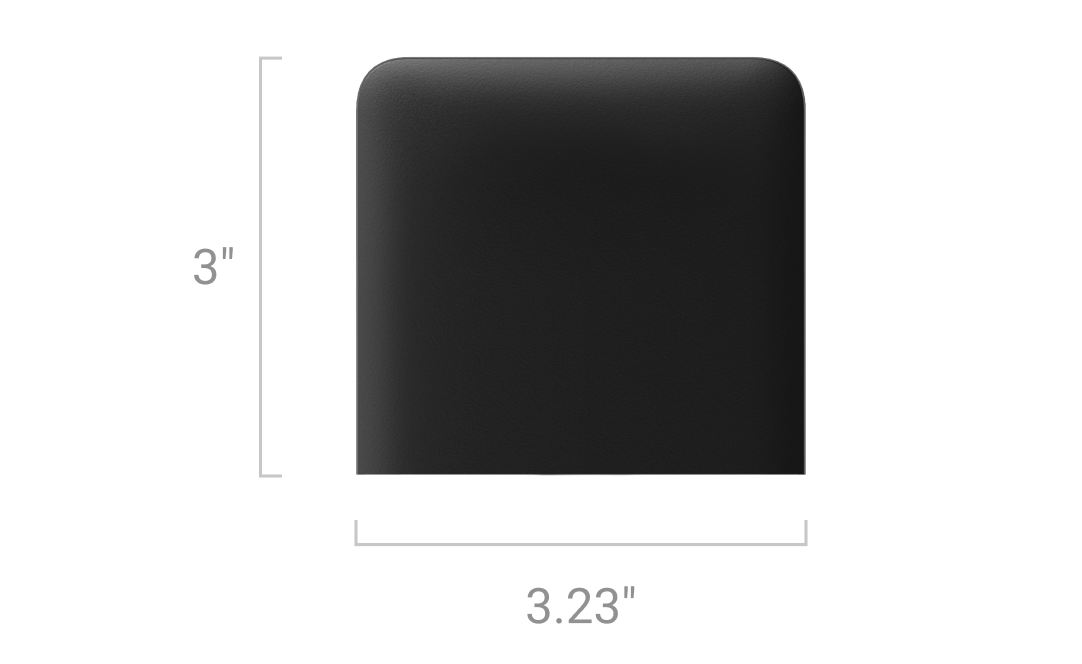

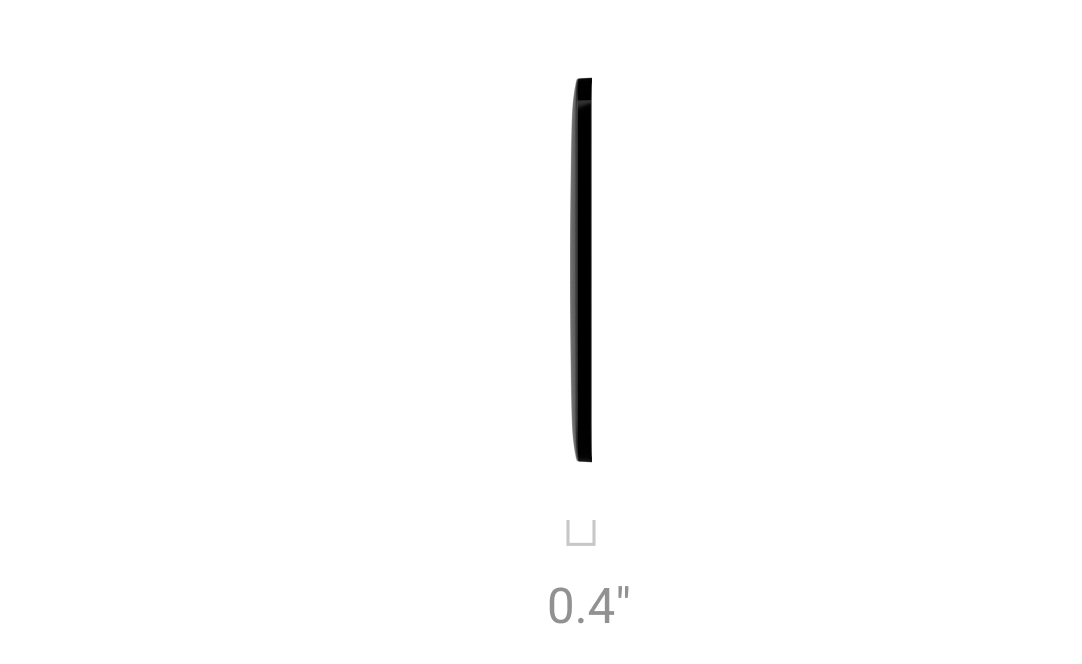

Touch-sensitive panels

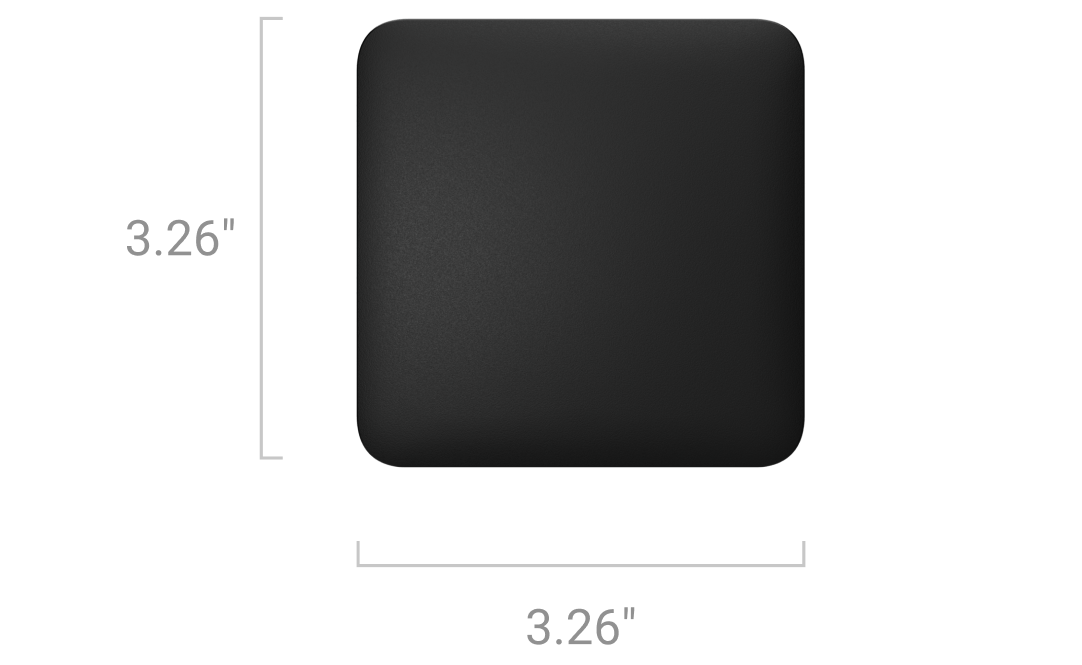

SoloButton (1-gang) — 3.26" × 3.26" × 0.4"

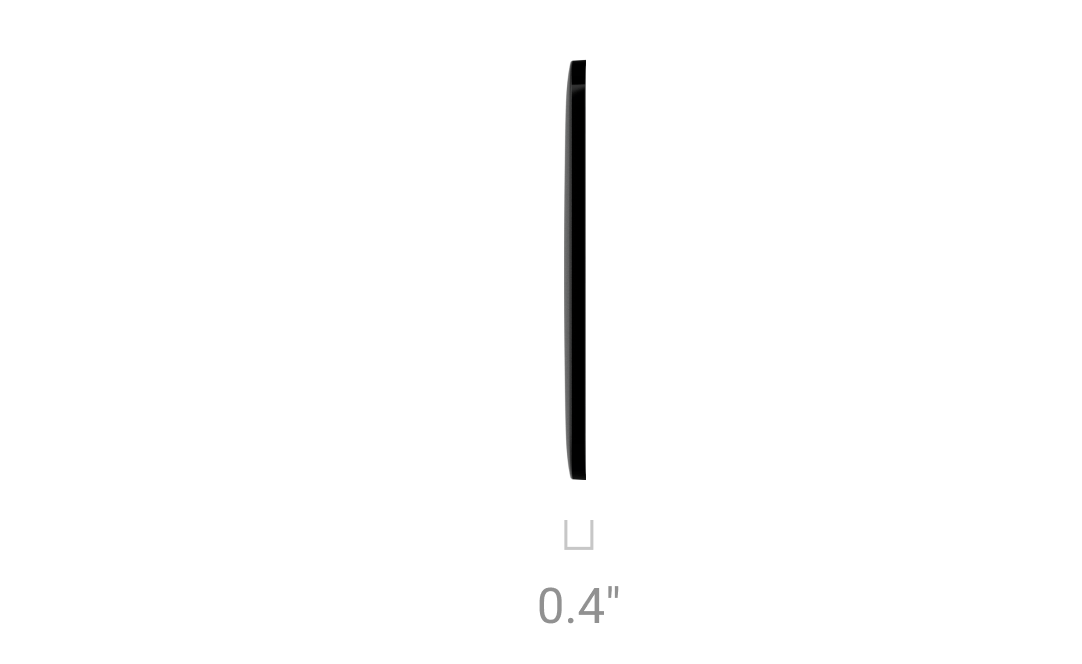

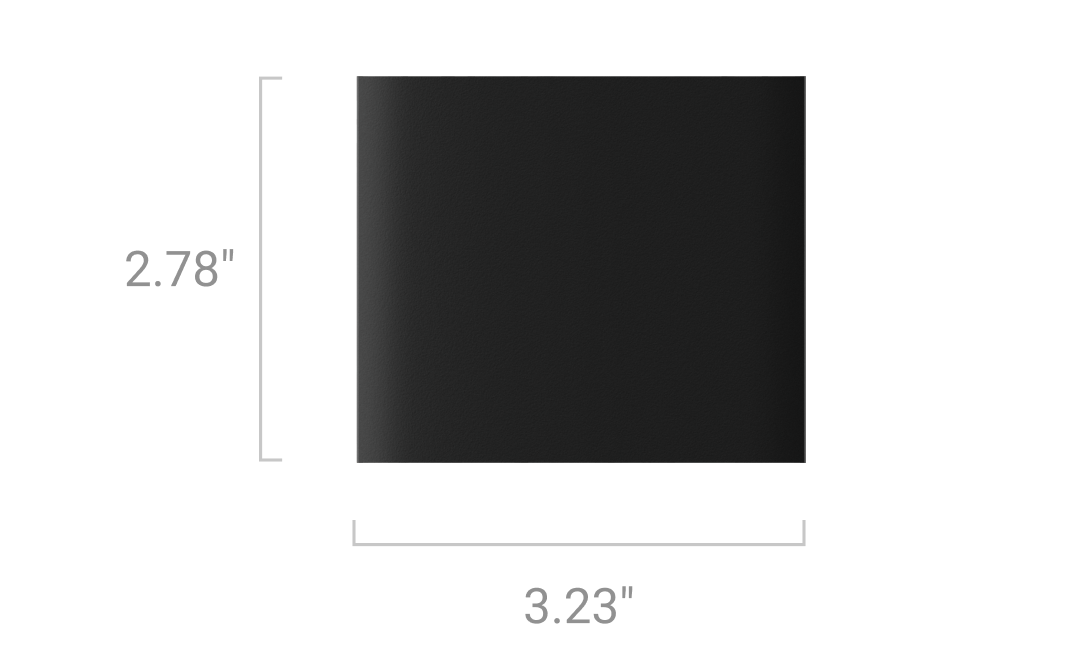

CenterButton (1-gang) — 3.23" × 2.78" × 0.4"

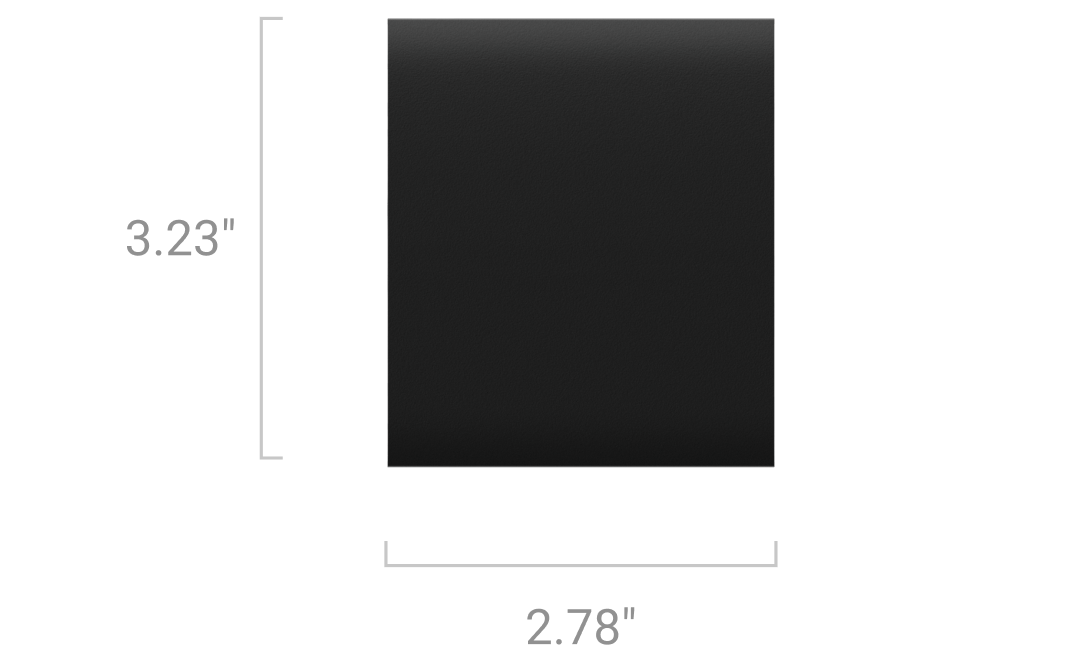

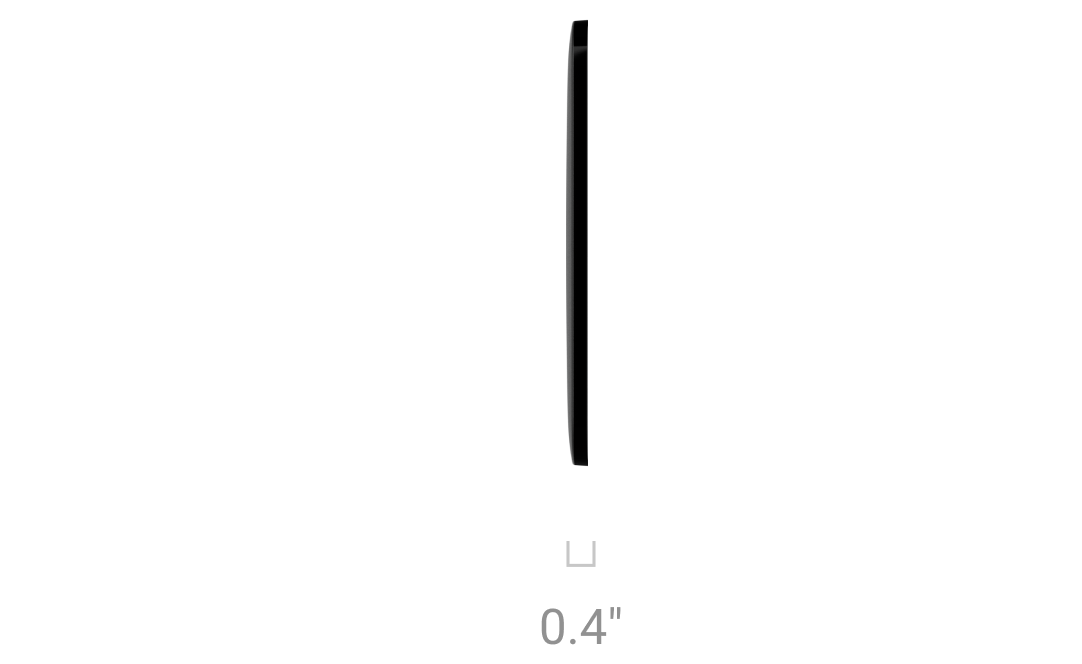

CenterButton (1-gang) vertical — 2.78" × 3.23" × 0.4"

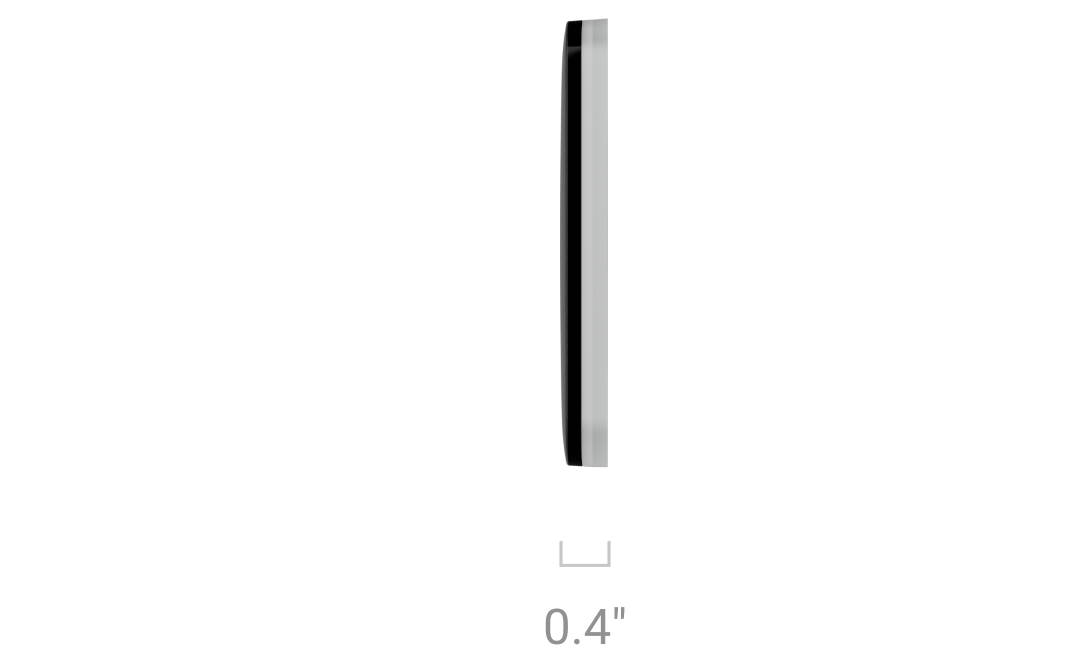

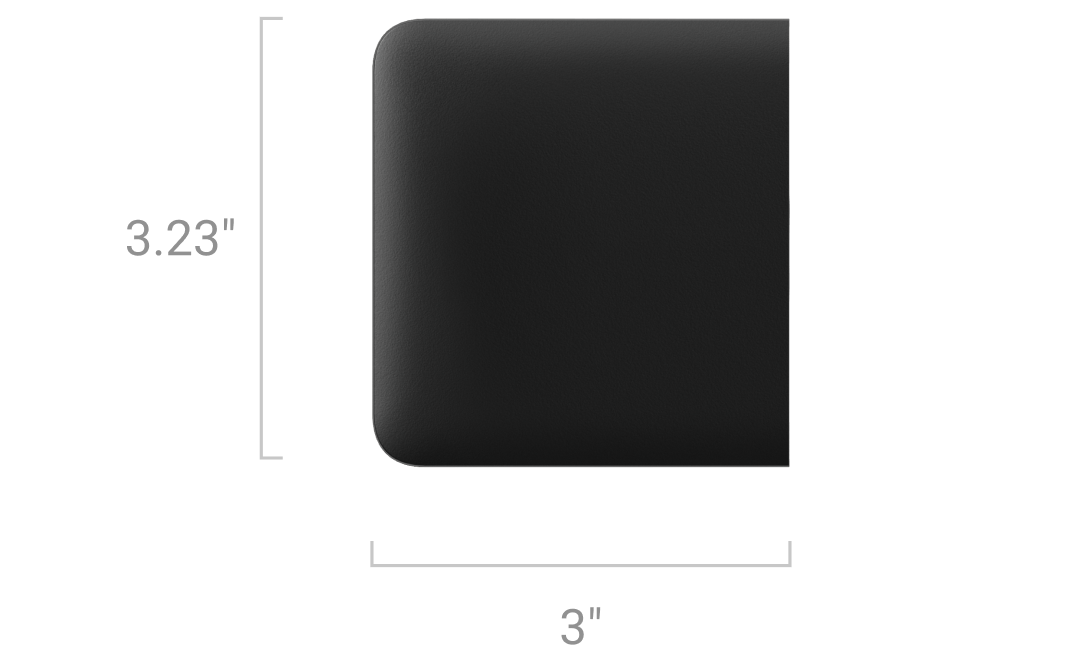

SideButton (1-gang) — 3.23" × 3" × 0.4"

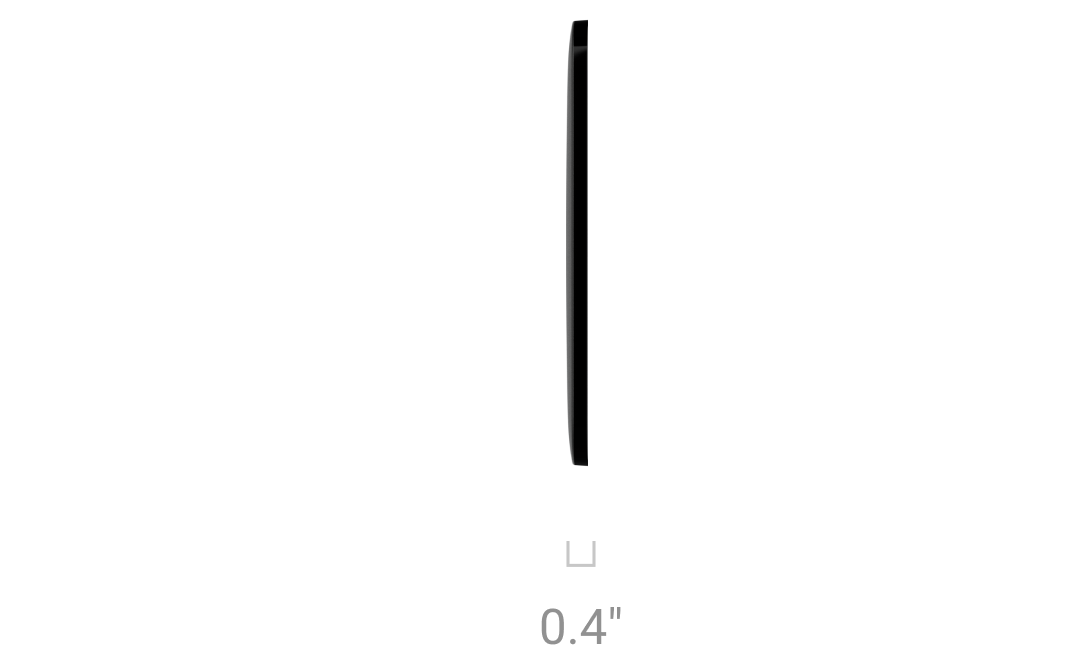

SideButton (1-gang) vertical — 3" × 3.23" × 0.4"

Frames

Frame (2 seats) — 3.26" × 6.04" × 0.25"
Frame (3 seats) — 3.26" × 8.84" × 0.25"
Frame (4 seats) — 3.26" × 11.63" × 0.25"
Frame (5 seats) — 3.26" × 14.43" × 0.25"
Frame (2 seats) vertical — 6.04" × 3.26" × 0.25"
Frame (3 seats) vertical — 8.84" × 3.26" × 0.25"
Frame (4 seats) vertical — 11.63" × 3.26" × 0.25"
Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"

Weight

Relay

LightCore (1-gang) Jeweller — 1.62 oz
LightCore (1-gang) vertical Jeweller — 1.62 oz

Touch-sensitive panels

SoloButton (1-gang) — 1.59 oz
CenterButton (1-gang) — 1.09 oz
CenterButton (1-gang) vertical — 1.09 oz
SideButton (1-gang) — 1.13 oz
SideButton (1-gang) vertical — 1.13 oz

Frames

Frame (2 seats) — 0.57 oz
Frame (2 seats) vertical — 0.57 oz
Frame (3 seats) — 0.78 oz
Frame (3 seats) vertical — 0.78 oz
Frame (4 seats) — 1 oz
Frame (4 seats) vertical — 1 oz
Frame (5 seats) — 1.2 oz
Frame (5 seats) vertical — 1.2 oz

Complete set

Depends on the kit

Additional information

Compliance with standards

Warranty

24 months
