ManualCallPoint (Blue) Jeweller

Blue-coloured wireless wall-mounted button for manual fire alarm activation. Designed for educational institutions.

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration in the Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the region of sale.

Maximum effective radiated power (ERP)

up to 25 mW
Automatic power control to reduce power consumption and noise interference.

Radio signal modulation

GFSK

Radio signal range

up to 5,500 ft
Between button and hub (or range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

Radio communication uses frequency hopping to prevent interception and jamming.

Key features

Resettable frangible element

activates the button
When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.

Operating modes

fire alarm
scenario trigger
With appropriate settings, it activates an alarm or controls Ajax automation devices.

LED status indication

fire alarm
malfunctions
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.

Interconnected fire detectors alarms

by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens.

Critical alerts

The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.

Protection against accidental presses

Lift the transparent lid to access the frangible element. The lid protects against false button presses.

CMS alarm transferring

can be disabled for the Blue version only

Recommendations

ManualCallPoint (Red) Jeweller and ManualCallPoint (Blue) Jeweller have the same functionality.

However, unlike the Red model, the Blue model allows disabling the CMS alarm transferring.

Special tool (key)

Button reset

after pressing
To reset the button, insert the special tool into the corresponding hole.

Hole in the enclosure

to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain.

Convenient dismantling

The special tool opens the lock to dismantle the device from SmartBracket mounting panel.

Recommendations

It is recommended to install the button in easily accessible places at a height of 1.4 m.

The device is designed for indoor installation only.

Sabotage protection

Tamper alarm

Notifies on attempts to detach the button from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s
The detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Batteries

2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.

Enclosure

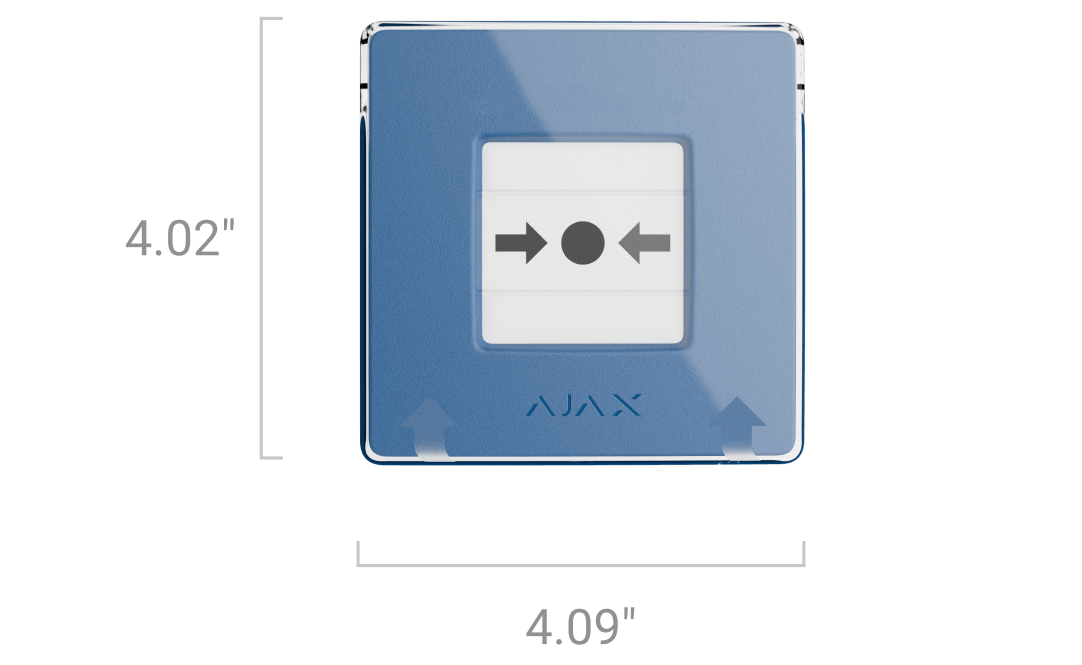

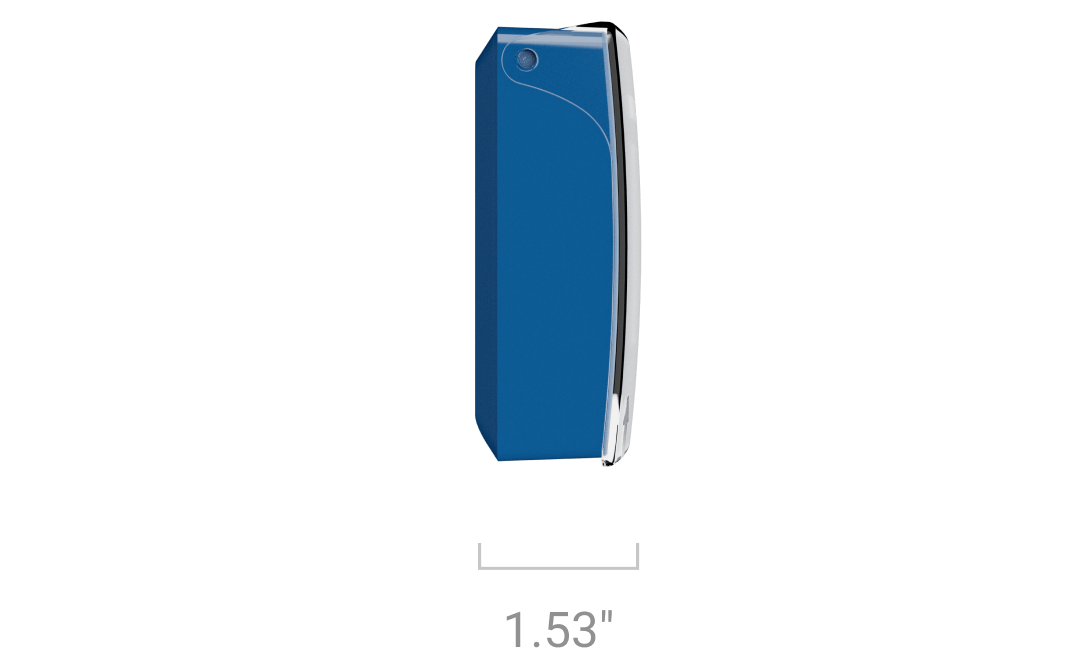

Dimensions

4.02″ × 4.09″ × 1.53″

Weight

7.55 oz

Operating temperature range

from 32 °F to 122 °F

Operating humidity

up to 80%

Models

ManualCallPoint (Red) Jeweller
ManualCallPoint (Blue) Jeweller

Complete set

ManualCallPoint Jeweller
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide

Additional information

Compliance with standards

Warranty

24 months
