Tech specs

MotionProtect Curtain Jeweller

Wireless IR curtain motion detector

MotionProtect Curtain Jeweller

Devices compatibility

Check

Communication

Jeweller communication technology

Proprietary wireless communication technology to transmit commands, alarms, and events.

Key features:

  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote control and configuration in Ajax apps.

Frequency bands

866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz*
915.85–926.5 MHz
921.0–922.0 MHz

Depends on the sales region.

* Certified according to UL/ULC standards.

Maximum effective radiated power (ERP)

up to 20 mW

Automatic power control to reduce power consumption and radio interference.

Radio signal modulation

GFSK

Radio communication range

up to 5,550 ft

Between the device and a hub (or a range extender) in an open space.

Encrypted communication

All stored and transmitted data are protected by block encryption featuring a dynamic key.

Frequency hopping

To prevent radio interference and jamming.

Detection

Sensitive element

2 × PIR sensor

Motion detection distance

up to 19.7–49 ft

When installed at a height of 7.9 ft, and the Correlation Signal Processing feature is disabled. It also depends on the sensitivity level adjusted in the device settings.

up to 19.7–26 ft

When installed at a height of 7.9 ft, and the Correlation Signal Processing feature is enabled. It also depends on the sensitivity level adjusted in the device settings.

Motion detection angles

horizontal — 6°

vertical — 90°

Motion detection speed

from 1.0 to 6.6 ft/s

The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.

Sensitivity

3 levels

Adjusted by PRO or user with admin rights in the Ajax app.

Pet immunity

Install the detector upside down to prevent it reacting to domestic animals.

Temperature compensation

Effective motion detection at temperatures from 14 °F to 104° F.

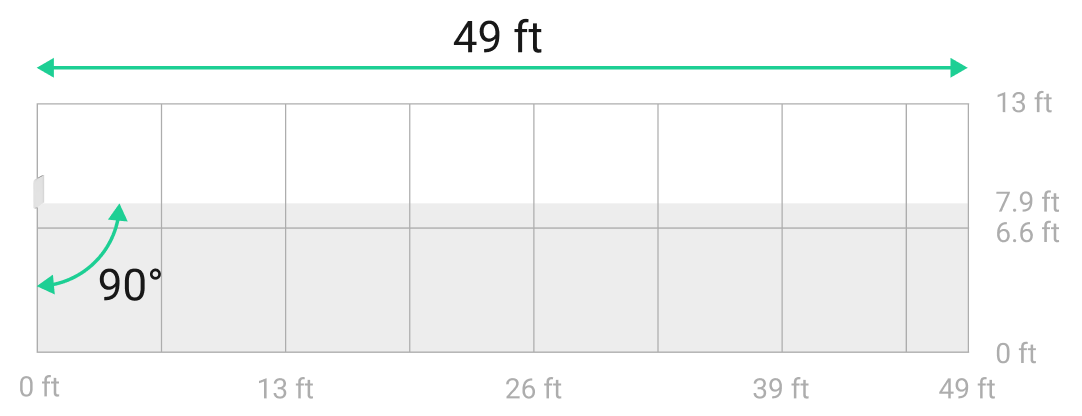

vertical angle

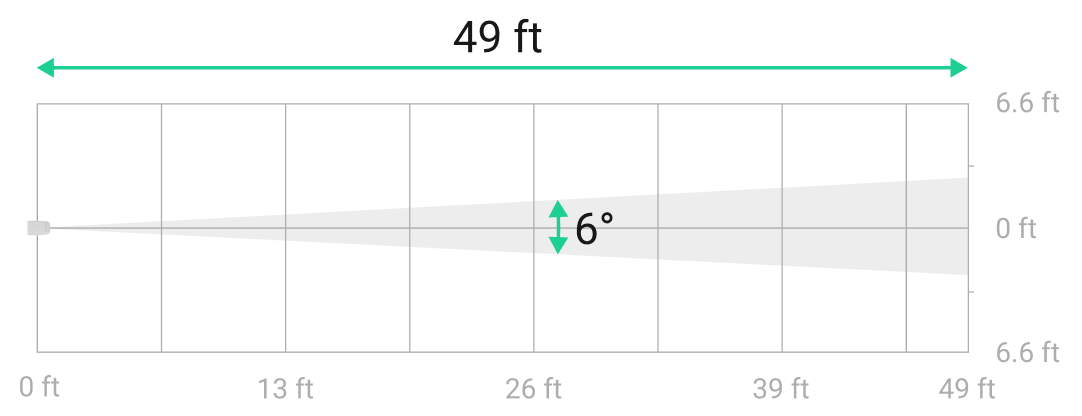

horizontal angle

Recommendations

It is recommended to install the detector at a height of 7.9 ft. The device is designed for indoor use only.

Sabotage protection

Tamper alarm

Notifications on attempts to detach the detector from the surface or remove it from the mounting panel.

Protection against spoofing

device authentication

Communication loss detection

after 36 s

Detection time depends on the Jeweller or Jeweller/Fibra settings.

Power supply

Battery

CR123A

Pre-installed.

Type

type C

Calculated battery life

up to 5 years

Detector’s operating voltage range

2.1−3.3 V⎓

Detector’s nominal operating voltage

3 V⎓

Quiescent detector’s current consumption at nominal voltage

41 μA

Maximum detector’s current consumption at nominal voltage

60.4 mA

Full battery capacity

1,600 mAh

Low battery voltage

2.5 V⎓

Low battery recovery voltage

2.7 V⎓

End-of-life battery voltage

2.1 V⎓

Device is switched off.

End-of-life battery capacity

300 mAh

Manufacturer

Huiderui

UL listed.

Enclosure

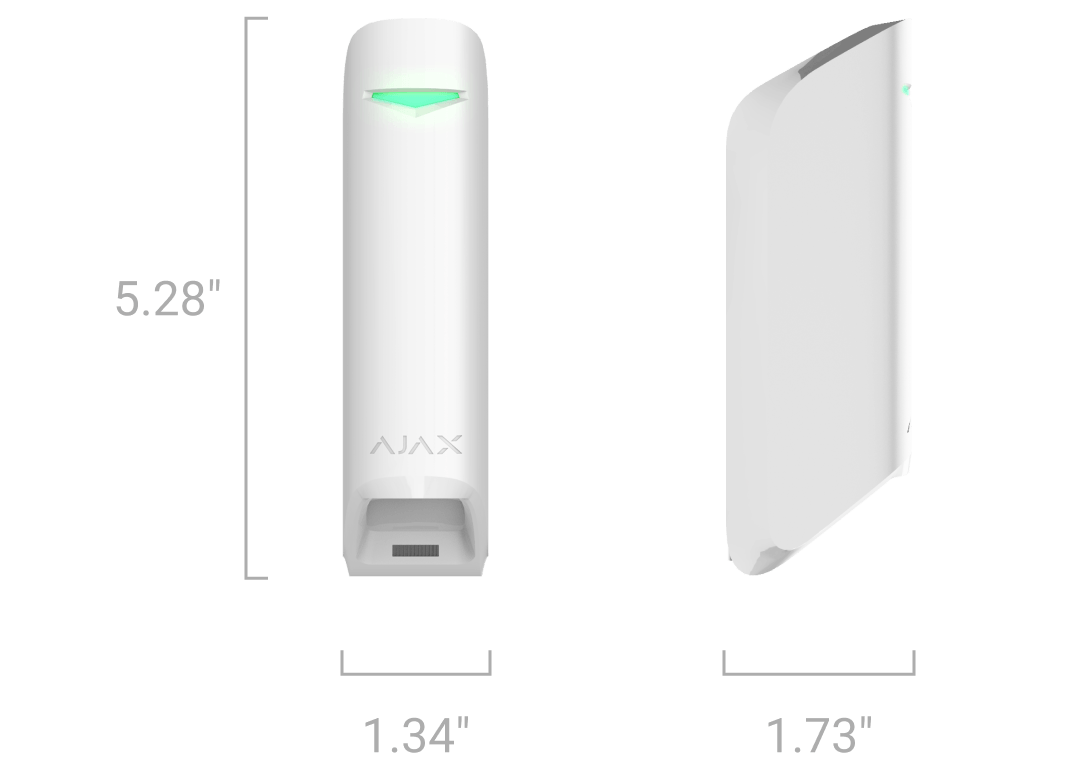

Dimensions

5.28″ × 1.73″ × 1.34″

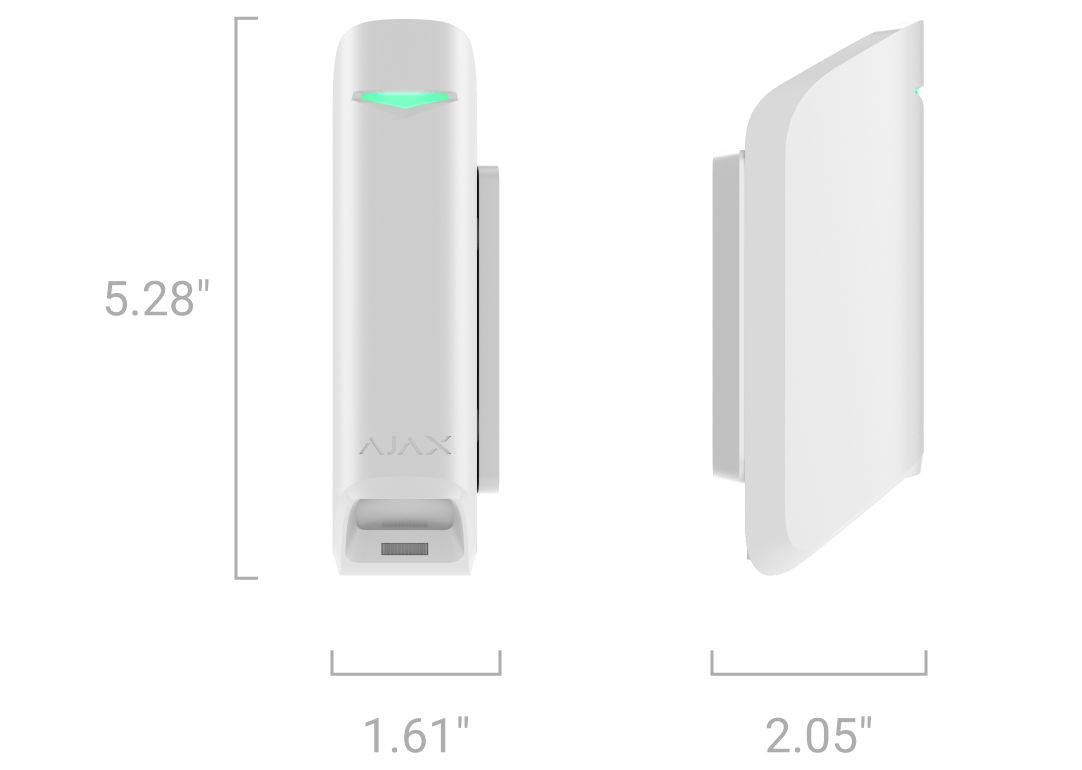

with bracket

5.28″ × 2.05″ × 1.61″

Weight

4.16 oz

Operating temperature range

from 14 °F to 104 °F

Temperature range from 32 °F (0 °C) to 120 °F (49 °C) is certified according to UL/ULC standards.

Operating humidity

up to 75%

Humidity of up to 93% is certified according to UL/ULC standards.

Protection class

IP54

MotionProtect Curtain Jeweller
MotionProtect Curtain Jeweller

Colors

Black

Black

White

White

Complete set

MotionProtect Curtain Jeweller

SmartBracket mounting panel

Bracket

Installation kit

CR123A battery (pre-installed)

Quick start guide

Certification and compliance with standards

MotionProtect Curtain Jeweller

MotionProtect Curtain Jeweller

Compliance with the security alarm standards

Certificate issued by TREZOR TEST s.r.o.

EN 50131-1:2006 / A1:2009 / A2:2017

EN 50131-2-2:2017

EN 50131-6:2017**

EN 50131-5-3:2017

PD 6662:2017*

Security Grade (SG)

Certificate issued by TREZOR TEST s.r.o.

2

Radio Equipment Directive (RED)

Certificate issued by MiCOM Labs

EN 300 220-1 V3.1.1

EN 300 220-2 V3.2.1

Restriction of Hazardous Substances Directive (RoHS)

Test report issued by Shenzhen NTEK Testing Technology Co.

EN IEC 63000:2018

Electromagnetic Compatibility Directive (EMC)

Certificate issued by MiCOM Labs

EN 301 489-1 V2.2.3

EN 301 489-3 V2.1.1

Low Voltage Directive (LVD)

Certificate issued by MiCOM Labs

EN 62479:2010

EN 62368-1:2014+A11:2017

Environmental class according to EN 50131

Certificate issued by TREZOR TEST s.r.o.

IV

FCC ID

Certificate issued by MiCOM Labs

2AX5VMOPRCU-NA

IC ID

Certificate issued by MiCOM Labs

26860-MOPRCUNA1

CSA

CSA Group Testing & Certification Inc.

ANSI/UL 62368-1:19

CSA C22.2 No. 62368-1:19

Standard for Intrusion-Detection Units

UL LLC

UL 639

ULC S306 (Canada)

Household Burglar-Alarm System Units

UL LLC

UL 1023

Commercial Premises Security Alarm Units and Systems

UL LLC

UL 2610

Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems

UL LLC

ULC S304 (Canada)

PSTI UK

BSI Assurance UK Limited

Schedule 1
