Superior Hub Hybrid 2
Hybrid control panel for medium to large setups. Works with up to 250 Fibra and Jeweller devices. Connectable via Ethernet and two SIM cards (2G/3G/LTE).
Product versions
Superior Hub Hybrid 2
Shipped with a standard casing
Features a built-in tamper button
Built-in LED indicators
Superior Hub Hybrid 2 (without casing)
Shipped as a board designed for installation into a compatible Ajax Case
Features a built-in tamper button with support for external tamper board connection
Comes with an external LED board
Explore the difference between generations
Superior Hub Hybrid | Superior Hub Hybrid 2 | |
|---|---|---|
Devices | up to 100 | up to 250 |
Users | up to 50 | up to 100 |
Security groups | up to 9 | up to 25 |
Automation scenarios | up to 36 | up to 64 |
Certificates |
|
IN PROGRESS
|
All-in-one powerhouse for high security
Designed for high-security projects, Superior Hub Hybrid 2 combines wired reliability with wireless freedom to protect medium and large-scale sites. Everything is built in: a high-efficiency power supply and modules for Ethernet, cellular, and radio communication. Flexible security group configuration makes it ideal for offices, schools, retail networks, and logistics facilities. With informative notifications, instant photo verification, real-time control via apps, and automation scenarios, it delivers pure performance that elevates security to a new level.
Performance that scales
Full functionality out of the box: built-in power supply as well as Ethernet, radio, and cellular communication modules.
Hybrid device connectivity: combine wired and wireless Ajax devices into one comprehensive solution.
Support for up to 250 devices: ideal for mid-size commercial projects.
Grade 3 certification: the device meets strict requirements for high-security installations.
Key features
Built-in connectivity
Ethernet
2 SIM cards
Cellular and radio modules
Power supply unit
Grade 3 certified
Up to
250 devices
wired or wireless
Fibra line topologies
Beam
Ring
Tree1
Communication range2
Wired
up to 6,550 ft
Wireless
up to 11,450 ft
8 lines
to connect wired Superior devices

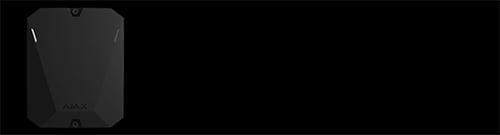

Up to 125 devices on a single line
for cost-effective cabling
Up to 60 hours of autonomous operation
on a 12 V⎓, 7 Ah backup battery
Support for ExternalAntenna
to overcome cellular signal interference
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
This is a device of the Superior product line. Only accredited Ajax Systems partners can sell, install, and maintain Superior products.
Discover future-proof hardware
Superior Hub Hybrid 2 comes either in its original casing or as a board for installation into Ajax Case in combination with other devices. In the original casing, the hub's current state is always visible via LED indication. If purchased without a casing, an external LED can be connected to the hub's board and mounted outside Ajax Case. This flexibility enables installers to efficiently combine the hub with other devices and arrange them neatly within a single enclosure.
Superior Hub Hybrid 2 in the original casing
Superior Hub Hybrid 2 without a casing
All communicators built in
Superior Hub Hybrid 2 comes fully equipped with all necessary communicators — no additional modules are needed. Built-in radio modules provide seamless connectivity between the hub and system devices. Alarms and events are sent to the monitoring station via Ethernet or cellular communication.
Communication between the hub and system devices
WIRED
Fibra communication technology allows installers to wire lines2 up to 6,550 ft long. A single Superior Hub Hybrid 2 can run up to 8 lines. Ajax modules that split, protect, and power the line can extend the connection distance by dozens of times.
Fibra lines are multifunctional and allow for connecting different types of devices at once. All alarms, events, and visual verification data are delivered over the same line without interference. Fibra also features robust encryption and device authentication to prevent sabotage, spoofing, and data theft.
WIRELESS
Superior Jeweller delivers Grade 3 level reliability with strong encryption and advanced frequency hopping. It provides a radio communication range of up to 11,450 ft in open space. The protocol transmits alarms, events, and readings to Ajax apps in just 0.15 seconds.
The protocol uses polling to display current device states, enabling real-time remote system control. Automatic power adjustment makes it energy efficient by avoiding the constant use of maximum transmitter power. This ensures long-lasting operation of wireless devices on pre-installed batteries.
WIRELESS
TurboWings is a wireless technology designed for delivering photo verification data over distances of up to 9,800 ft in open space. It also functions as a fallback communication channel that transmits large data packets if the main connection is lost. Once it is restored, TurboWings automatically sends data backups from cameras and detectors to the hub.
WIRELESS
VoRF is a proprietary audio communication protocol that ensures seamless and secure data exchange between the hub and devices (e.g., voice modules). It enables reliable voice communication between the secured site and the monitoring station. Based on time division duplex technology, the protocol provides simultaneous two-way communication over distances of up to 5,900 ft without requiring on-site activation.
Communication with Ajax server and apps
The hub can be connected to three internet providers simultaneously: one via Ethernet and two via cellular networks. Ethernet serves as the primary channel, while two SIM cards with 2G/3G/4G (LTE) support act as backups. If the primary connection is lost, the hub automatically switches to the SIM with the strongest signal — all within seconds.
Ethernet
Cellular: 2 × SIM 2G/3G/4G (LTE)
Add value and grow revenue with Ajax Services
Ajax SIM: stable connection with no effort
Ajax SIM provides instant and reliable cellular communication right out of the box. No complicated setup, no tricky activation — the SIM card does almost everything on its own. Unlimited traffic and reliable connection are available from the very first minute of operation.
Ajax Ultra DP: dual-path reliability with ready-to-use presets
Ajax Ultra DP offers a simple way to configure compliant dual-path alarm transmission (DP2, DP3, or DP4). It complements Ajax SIM to deliver reliable and uninterrupted system operation from the very start. All is up and running within minutes thanks to quick and intuitive in-app setup.
Reliable cellular communication through any barrier
When the hub is installed in a basement or metal-enclosed space, ExternalAntenna helps overcome cellular signal interference. The 9-foot cable allows for optimal antenna placement for the strongest possible signal. If the cable is cut or damaged, both the security company and users receive an instant alert.
Cellular communication boost
External antenna breakage detection
Cable length of 9 ft
ExternalAntenna
ExternalAntenna helps to get a more reliable and stable connection when the hub is installed in challenging environments. It enhances the signal strength of radio and cellular communication.
More freedom in project design
Fibra is easy and flexible all the way from installation to configuration. Three available topologies allow building setups of any configuration and complexity. Installers can design advanced wiring routes to enhance security, or even lay a separate line for each connected device.
Beam topology
Beam (radial wiring) uses one Fibra line and provides up to 6,550 ft of wired communication1 without line extenders. A single hub can support up to eight beams or a combination of beams and other topologies.
Ring topology
Ring2 uses two Fibra lines to form a hub–device–hub loop. If a line is broken, all devices remain operational — the system automatically splits into two beams. Ring offers up to 1,640 ft of wired communication and can also be combined with other topologies on the same hub.
Tree topology
Tree connection helps create more complex system layouts by branching the line with Fibra accessories. Superior LineSplit Fibra divides one line into four branches and extends each by 6,550 ft. Superior LineSupply Fibra provides additional power and extends the line as well.
PRO is king
The myth of wired systems being difficult to install is finally busted. Ajax has turned what used to be an expensive, time-consuming, and dusty process into a fast and flexible experience for PROs. A complete set of Ajax tools is meant to make every stage easy and convenient — from project design to client support and system maintenance.
The Superior Hub Hybrid 2 board can be installed into Ajax Case with a flick of the wrist. Intuitive Ajax apps guide installers through setup and help instantly integrate the device into the system. Once added, the device can be configured, tested, and maintained remotely at any time. No programming required — everything is ready to work out of the box.
Fibra power supply calculator
This online tool provides security professionals with detailed data on device power consumption, enabling quick and accurate pre-installation assessment of a wired system project. The tool helps design the project in real time, highlights potential issues, and offers solutions. Upon completion, results can be downloaded as a PDF file.

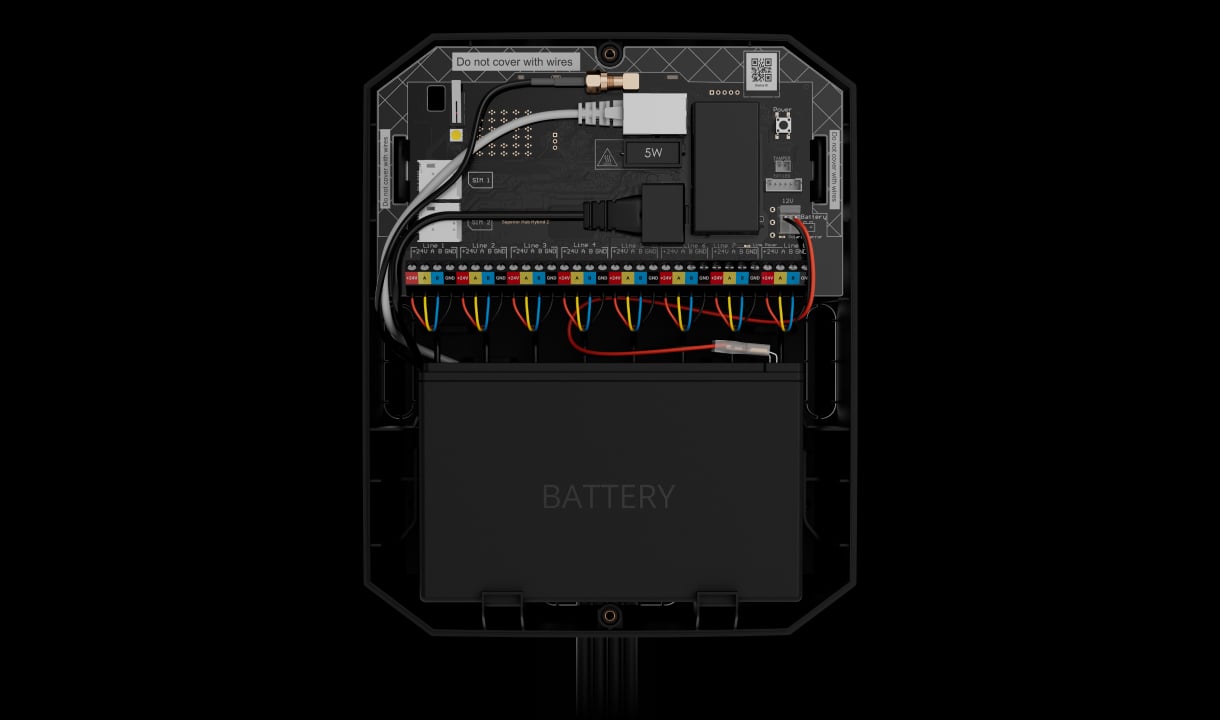

The hub is available for order either in its original casing or as a board installed into Ajax Case. The installation kit includes all necessary fasteners, allowing installers to mount the device on a wall effortlessly. The hub board is removable, which makes wiring quick and easy.
Removable terminal board
All necessary fasteners included in the installation kit
Thought-out cable management
The hub can be added to the system by scanning its QR code or entering the ID manually. Once added, the device is assigned a default name and settings optimized for common use cases.
Adding via QR code
Optimal default settings for most installations
Intuitive Ajax apps enable remote device setup and testing from anywhere with an internet connection, using a smartphone or computer. Installers can adjust settings and provide service promptly without visiting the site.
Remote or on-site configuration and testing
Apps for iOS, Android, macOS, and Windows
Accounts for companies and installers
Ajax systems transmit events and alarms to the Ajax PRO Desktop app or any third-party monitoring software. Both users and security companies receive notifications in less than a second. Each alert includes detailed information: the device name, event time, and exact location of the triggered device. Photo or video alarm verification is also available, allowing CMS operators to see exactly what happened.
Full addressability of connected devices
Instant fault and maintenance notifications
Alarm monitoring via Ajax PRO Desktop or third-party software
Stable performance even in a blackout
Main power supply
Superior Hub Hybrid 2 features a built-in 110–240 V~ power supply that connects to the mains. Wired Superior devices are highly energy-efficient, consuming significantly less energy than comparable products from other manufacturers. This allows the entire system to operate without additional modules.

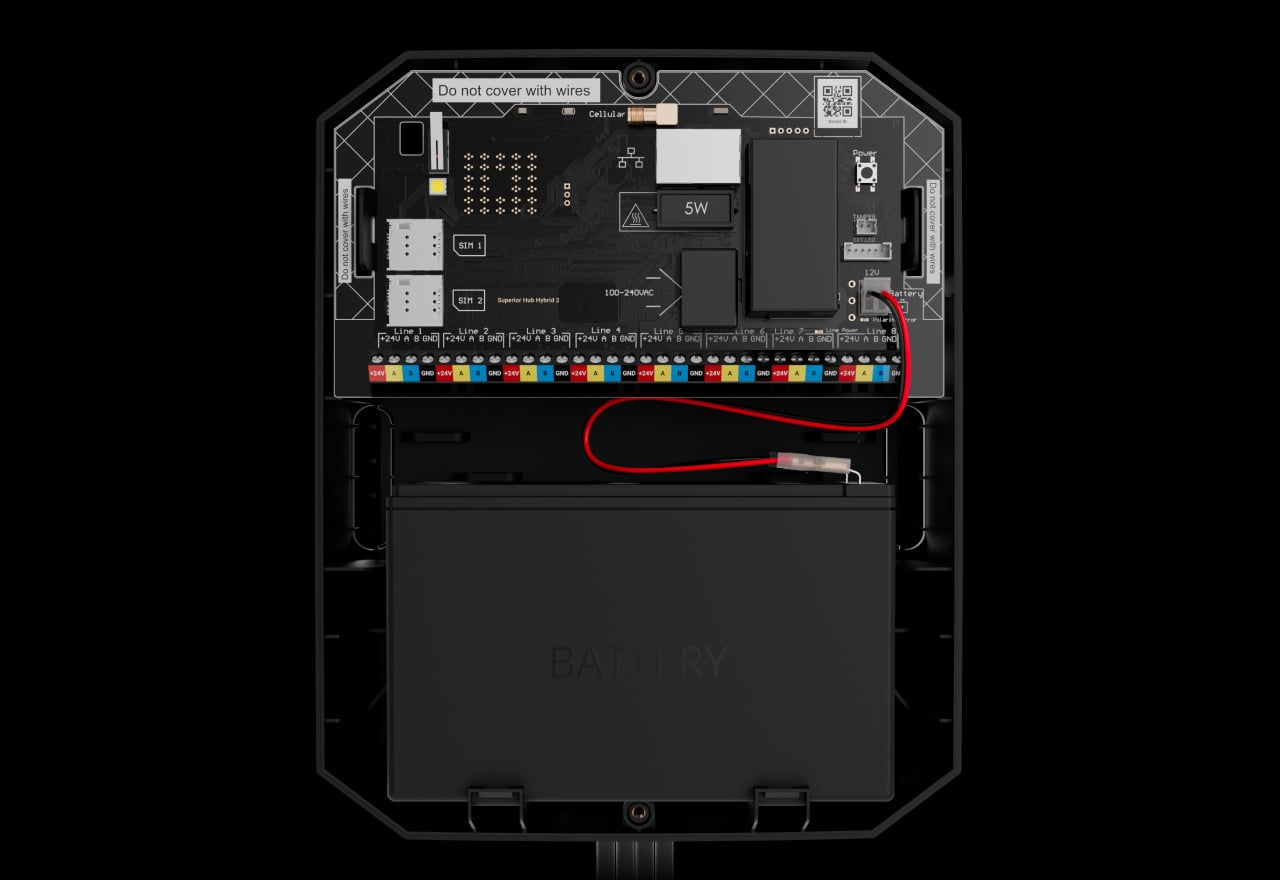

Backup battery
The hub can power 30 wired Superior devices for up to 60 hours while running on a 12 V⎓, 7 Ah backup battery. And when Battery Power Saver is enabled, the system can operate for 200 hours straight. Meanwhile, wireless Superior devices require no external power supply, as they are battery-operated.
Use the Fibra power supply calculator to check the system project and estimate the power consumption of wired devices.

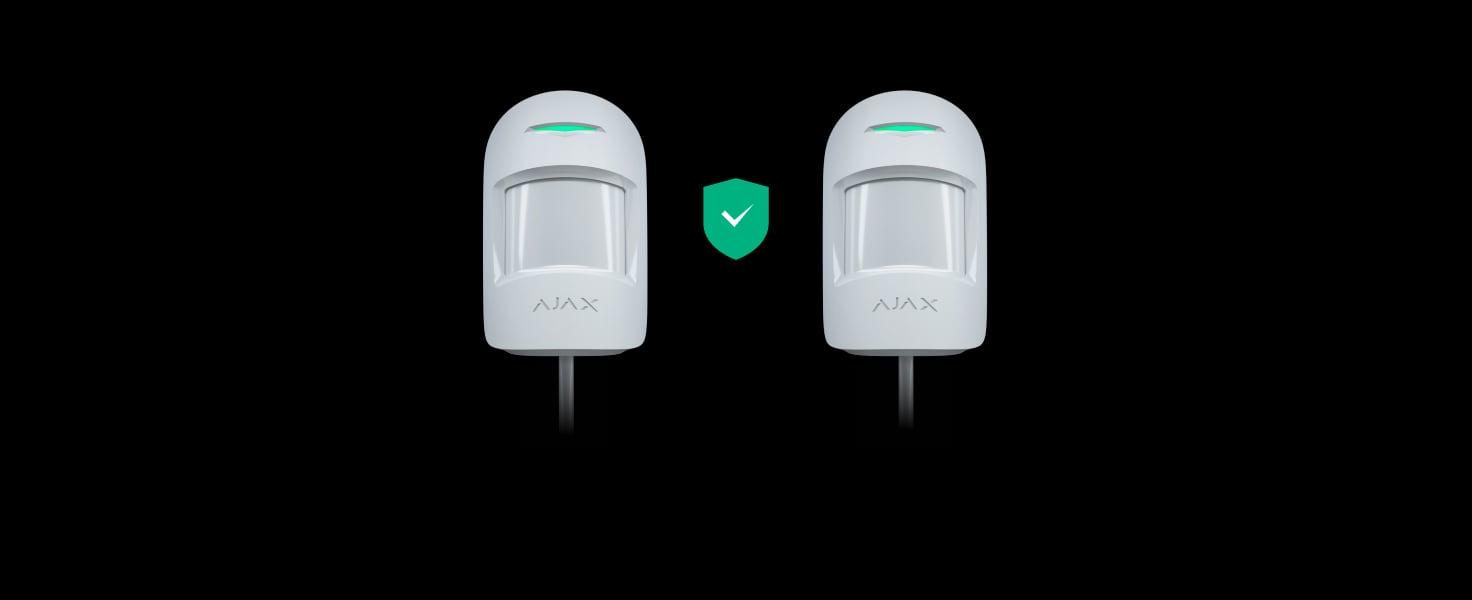

Sabotage resistance
More Ajax superpowers
Visual verification of alarms
The hub supports photo and video alarm verification via Ajax MotionCam detectors and security cameras. Integrated in one powerful system, this device combination does the trick. It helps quickly assess the situation, saving users from concerns and monitoring companies from unnecessary patrol dispatches.
Automation for greater safety
Superior Hub Hybrid 2 supports up to 64 automation scenarios, allowing flexible configuration to meet the specific safety requirements of each site. The hub can arm or disarm the system by schedule, and the system can automatically react to events — for example, activate a smoke machine when someone enters the premises, shut off water in case of a leak, or start ventilation if the CO₂ level rises. Lights, electric locks, roller shutters, and garage doors can be controlled by schedule, arming/disarming, button press, or detector alarm.
Operating system with immunity to lags and viruses
The hub runs on a real-time proprietary operating system OS Malevich. It's immune to viruses, resistant to cyberattacks, and extremely reliable. Loading and executing actions takes less than a second from tapping on a smartphone. Each automation scenario is executed within the same rapid timeframe.
The operating system can be automatically updated via the internet. The hub also transmits updates to other connected devices. Each update enhances the overall system performance and adds new features, so Ajax devices evolve and remain relevant for years.
Complete set of business tools
Ajax PRO: Tool for Engineers
Connect and configure devices remotely and on-site
Ajax PRO Desktop
Maintain Ajax systems, monitor alarms, and confirm them using a visual verification feature
Ready to withstand any setting
Manufacturing site
Warehouse
School
Office
The Tree topology is built using additional Fibra accessories: Superior LineSplit Fibra and Superior LineSupply (75 W) Fibra.
For wired communication, the value applies when a U/UTP cat.5 4×2×0.51 mm (24 AWG) cable is used. For wireless communication, the value applies in open space.
