Tech specs
Case B (175)
Casing for one or two Fibra modules
Compatibility
Devices installation
Number of devices
2
To install a different number of devices, select a model with the appropriate number of slots:
Plastic latches
to secure devices
Slide the latches to remove the device.
Cable fasteners
to hold the cables together with ties
Plastic stoppers
to protect the installed devices
During drilling, the instrument rests on the Case stoppers.
Bubble level
To check the inclination angle of the casing during installation.
Recesses for drilling
Ø16 mm or Ø20 mm
The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic.
Wider holes
To ensure that the casing is installed correctly, even if there are errors during installation.
Key features
Tamper board
Included in the Case complete set. The tamper board connects to the appropriate connector of one of the devices and protects the installed devices from sabotage.
Rotate devices
by 180°
The devices can be rotated by 180°, giving two options for fixation.
Holding screws
in the casing lid
Rotate the lid
by 180°
The lid of Case B (175) can be rotated by 180° during installation.
Latches
to secure the lid during installation
The latches prevent the lid from falling off Case until it is secured with screws.
Recomendations
The device is designed for indoor use only. Case is produced in several versions.
Product

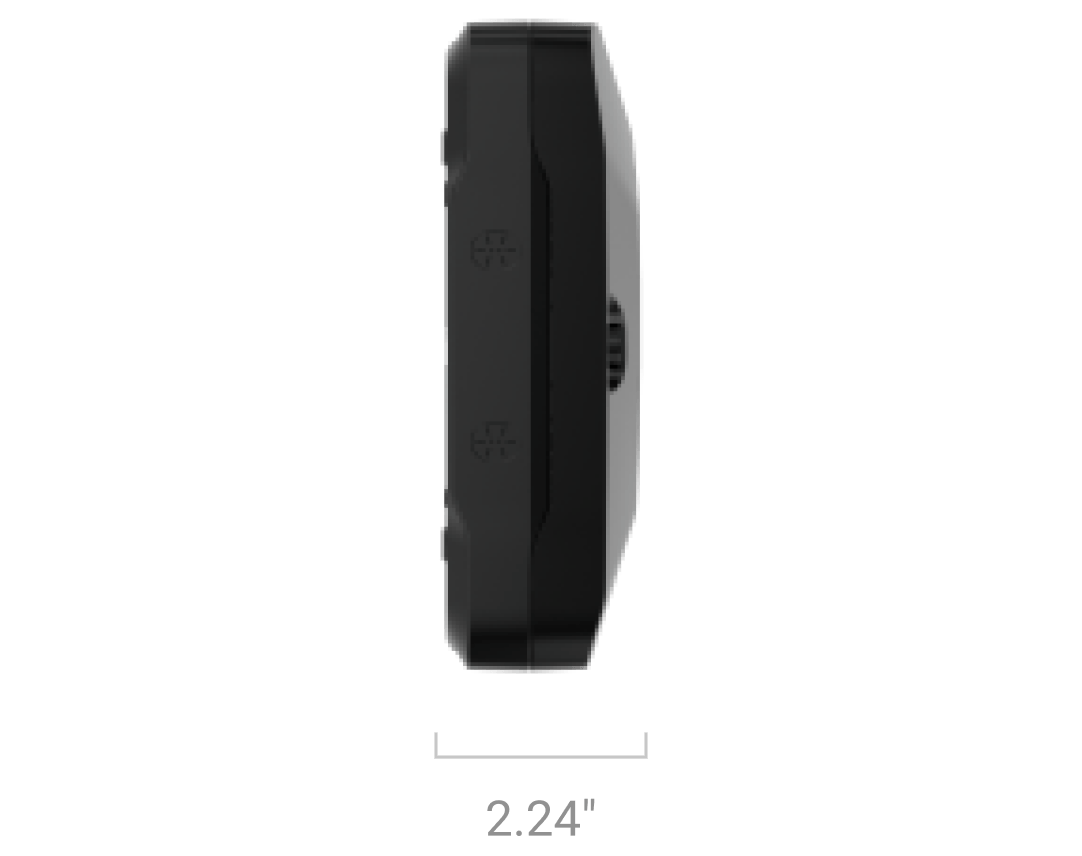

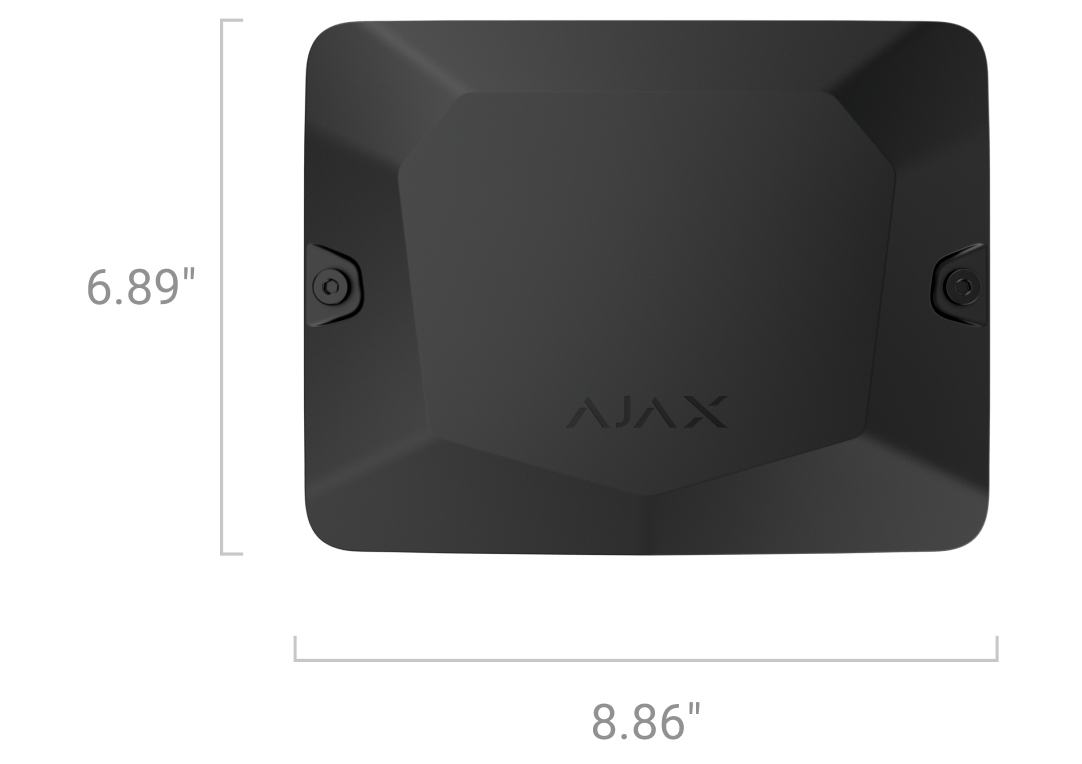

Dimensions
6.89″ × 8.86″ × 2.24″
Weight
14.6 oz
Operating temperature range
from 14 °F to 104 °F
Operating humidity
up to 75%
Colours
Black
White
Complete set
Case B (175)
Tamper board
Installation kit
Quick start guide
Certification and compliance with standards
Case B (175)
Case B (175)
Compliance with the security alarm standards
Certificate issued by TREZOR TEST s.r.o.
EN 50131-1:2006 / A1:2009 / А2:2017 / A3:2020
EN 50131-3:2009
Low Voltage Directive (LVD)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN 60670-1:2005
Restriction of Hazardous Substances (RoHS)
Test report issued by Shenzhen NTEK Testing Technology Co.
EN IEC 63000:2018
Security Grade (SG)
Certificate issued by TREZOR TEST s.r.o.
3
Environmental class according to EN 50131
Certificate issued by TREZOR TEST s.r.o.
II
