ManualCallPoint (Red) Jeweller
Red-colored wireless wall-mounted button for manual fire alarm activation
Compatibility
Communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration in the Ajax apps.
Frequency bands
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
868.0–868.6 MHz
868.7–869.2 MHz
905.0–926.5 MHz
915.85–926.5 MHz
921.0–922.0 MHz
Depends on the region of sale.
Maximum effective radiated power (ERP)
up to 25 mW
Automatic power control to reduce power consumption and noise interference.
Radio signal modulation
GFSK
Radio signal range
up to 5,500 ft
Between button and hub (or range extender) in an open space.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
Radio communication uses frequency hopping to prevent interception and jamming.
Key features
Resettable frangible element
activates the button

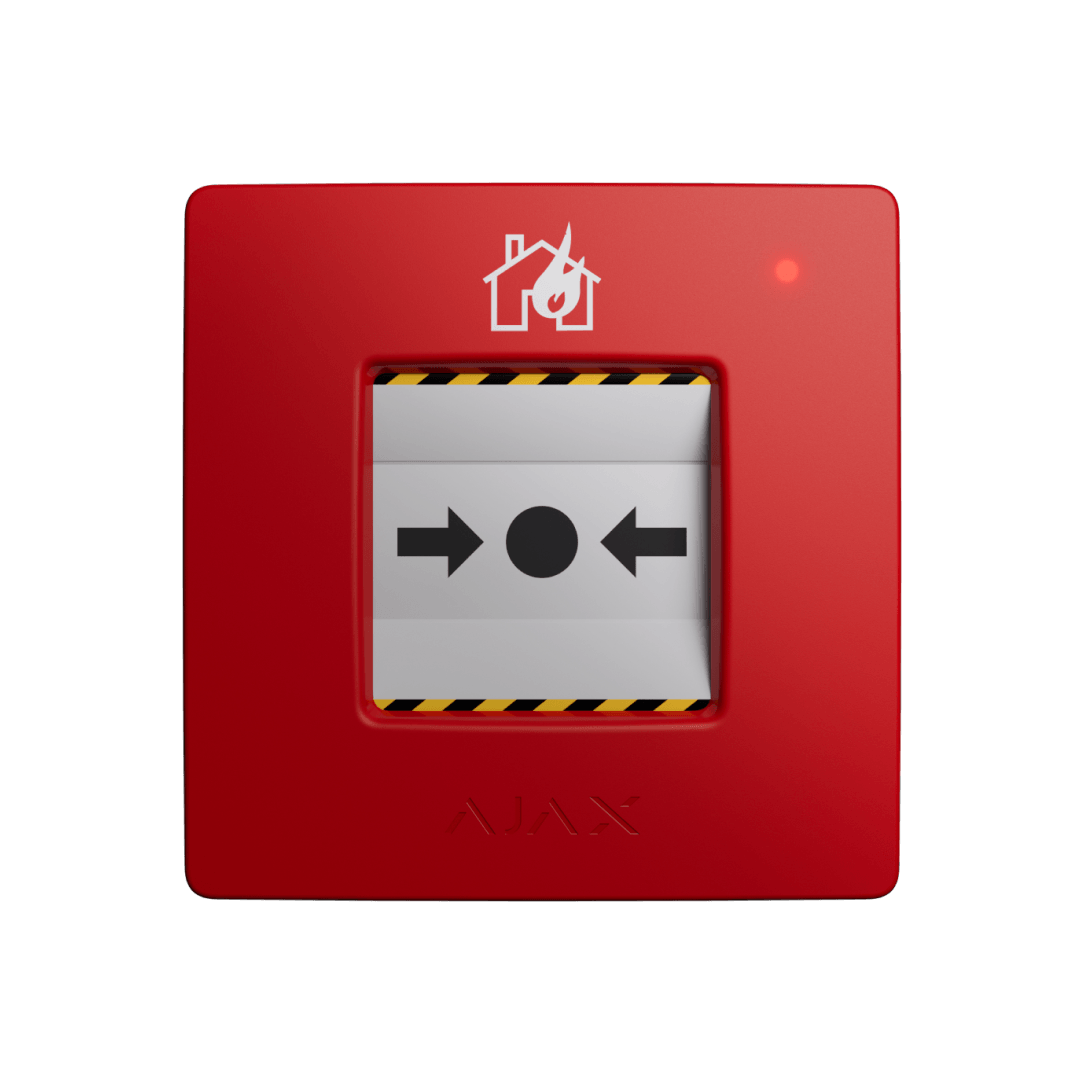

When the central part (frangible element) is pressed, the button depresses inward, triggering an alarm or initiating a scenario. Two yellow stripes appear at the top and bottom, indicating the device's state.
Operating modes
fire alarm
scenario trigger
scenario trigger
With appropriate settings, it activates an alarm or controls Ajax automation devices.
LED status indication
fire alarm
malfunctions
malfunctions
The LED indicator on the device enclosure lights up when a fire alarm is triggered or malfunctions are detected.
Interconnected fire detectors alarms
by pressing the button
By pressing the frangible element, fire detectors in the system trigger the built-in sirens.
Critical alerts
The system can activate intrusion sirens and send audible alarm notifications to users, even if the sound is muted, the Do Not Disturb mode is on, or headphones are connected.
Protection against accidental presses

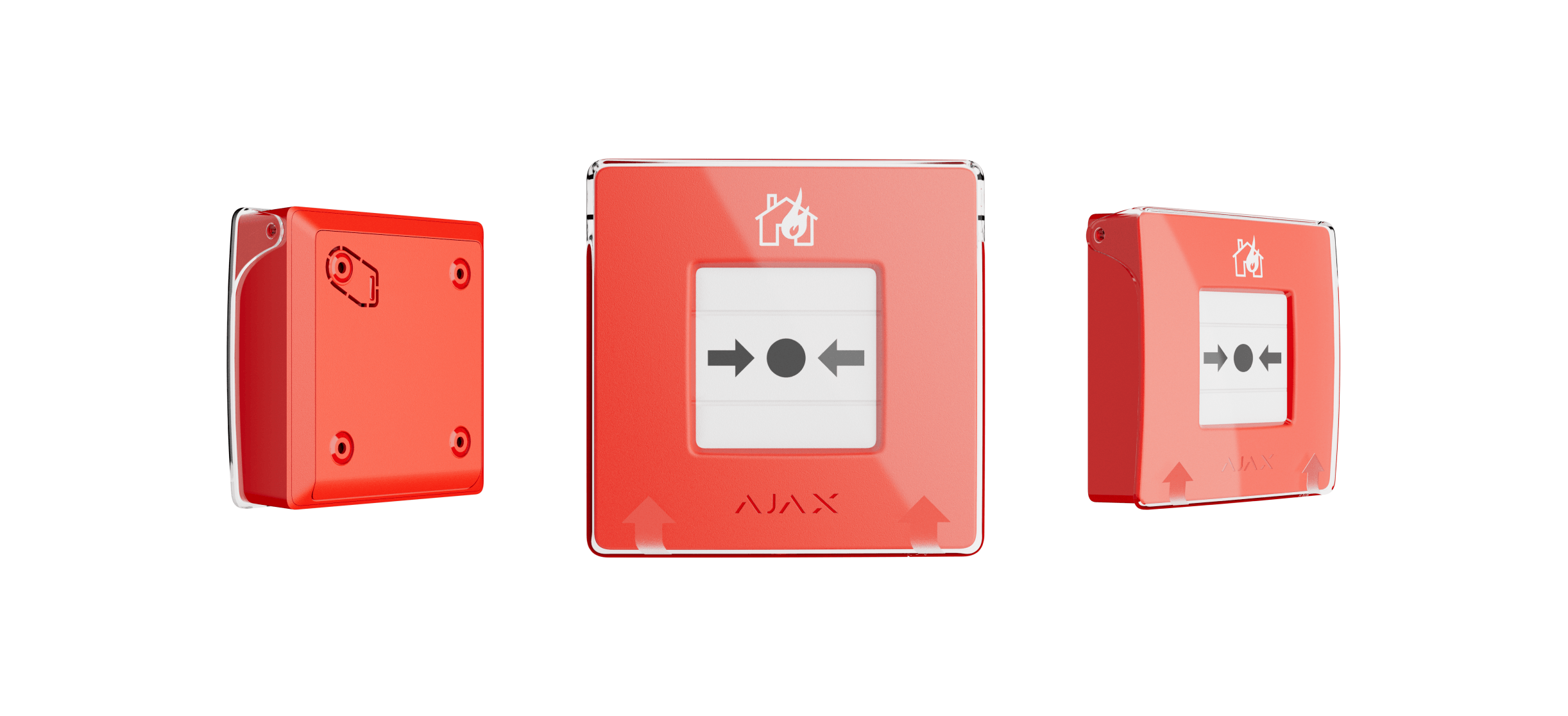

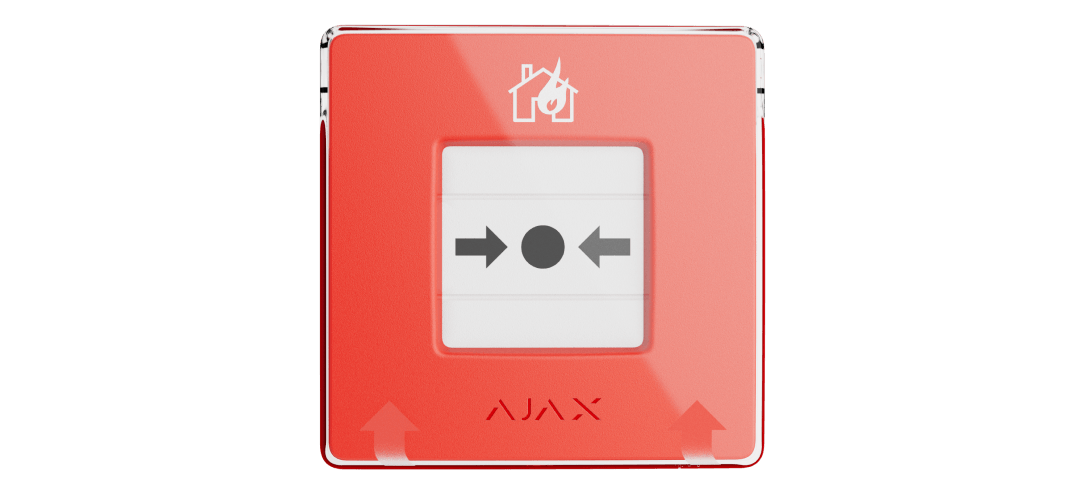

Lift the transparent lid to access the frangible element. The lid protects against false button presses.
Alarm transmission to CMS
can be disabled

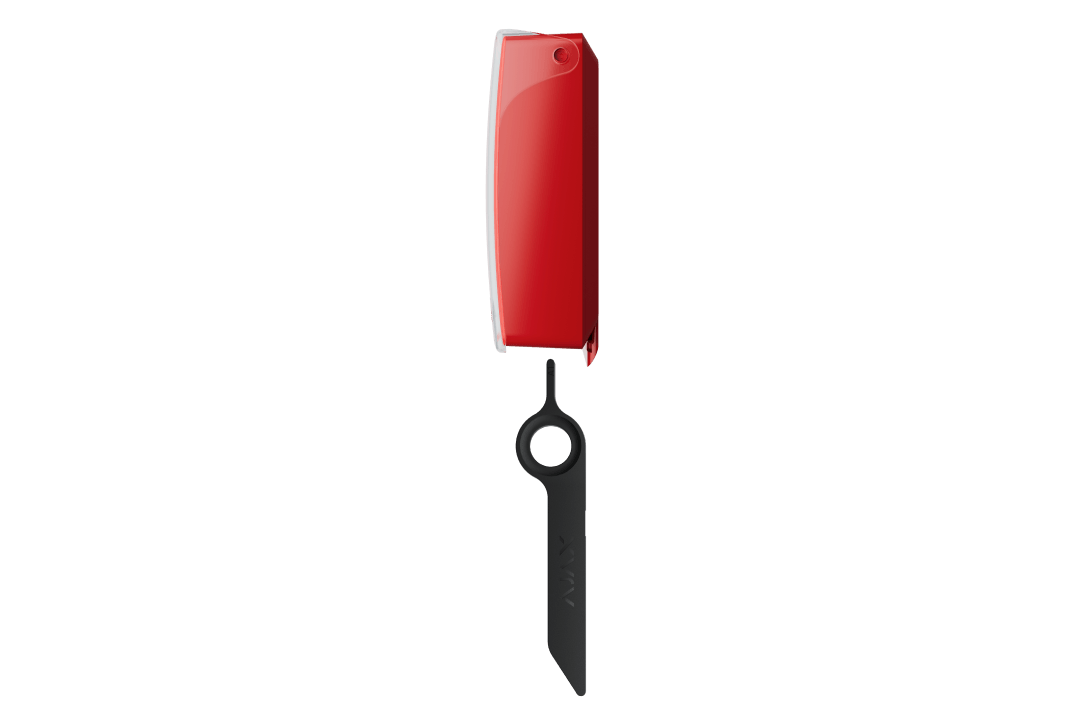

Special tool (key)
Button reset
after pressing
To reset the button, insert the special tool into the corresponding hole.

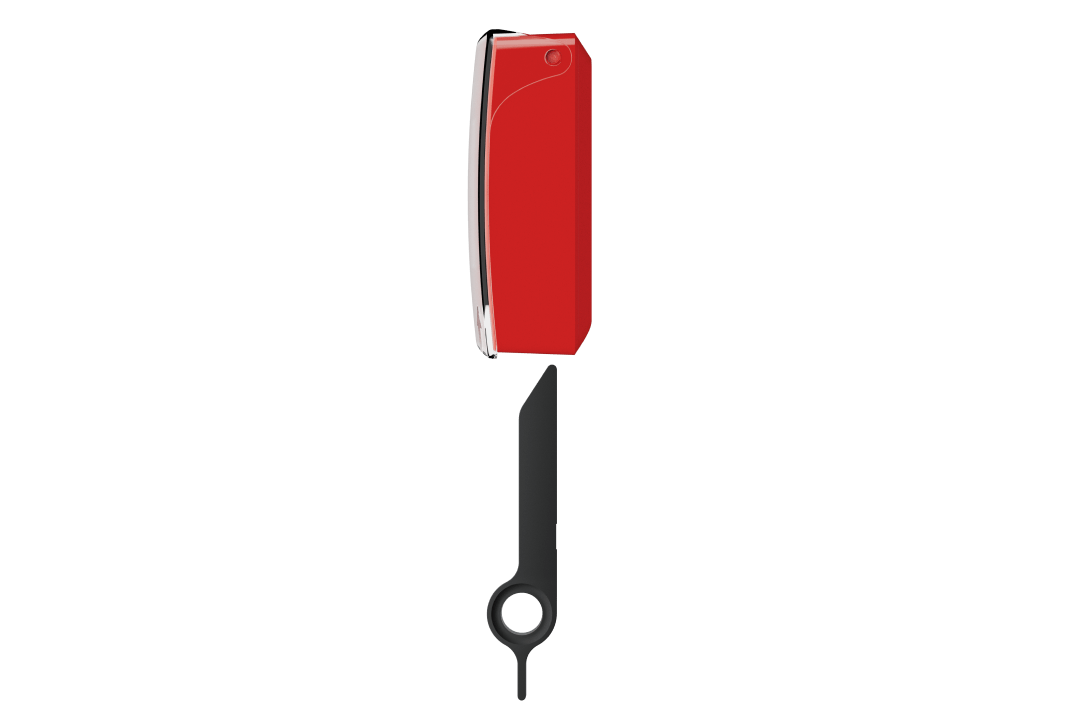

Hole in the enclosure
to hang on a ring from a keychain
The person responsible for fire safety can carry the special tool on their keychain.
Convenient dismantling
The special tool opens the lock to dismantle the device from SmartBracket mounting panel.
Recommendations
It is recommended to install the button in easily accessible places at a height of 1.4 m.
The device is designed for indoor installation only.
The device is designed for indoor installation only.
Sabotage protection
Tamper alarm
Notifies on attempts to detach the button from the surface or remove it from the mounting panel.
Protection against spoofing
device authentication
Communication loss detection
after 36 s
The detection time depends on the Jeweller or Jeweller/Fibra settings.
Power supply
Batteries
2 × CR123A
Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.
Enclosure
Dimensions

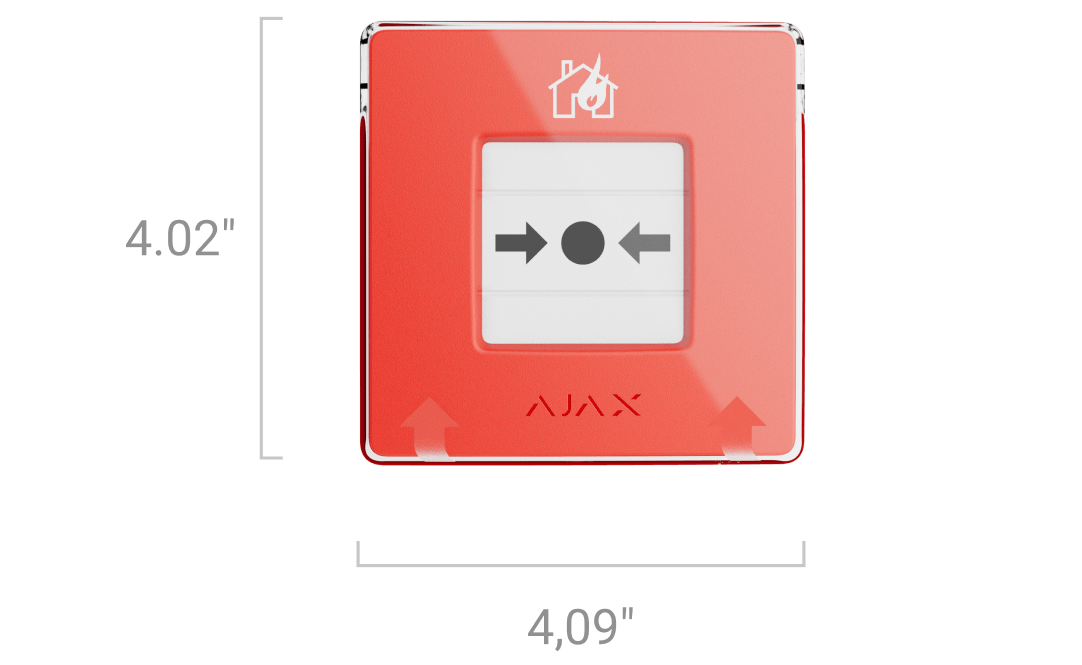

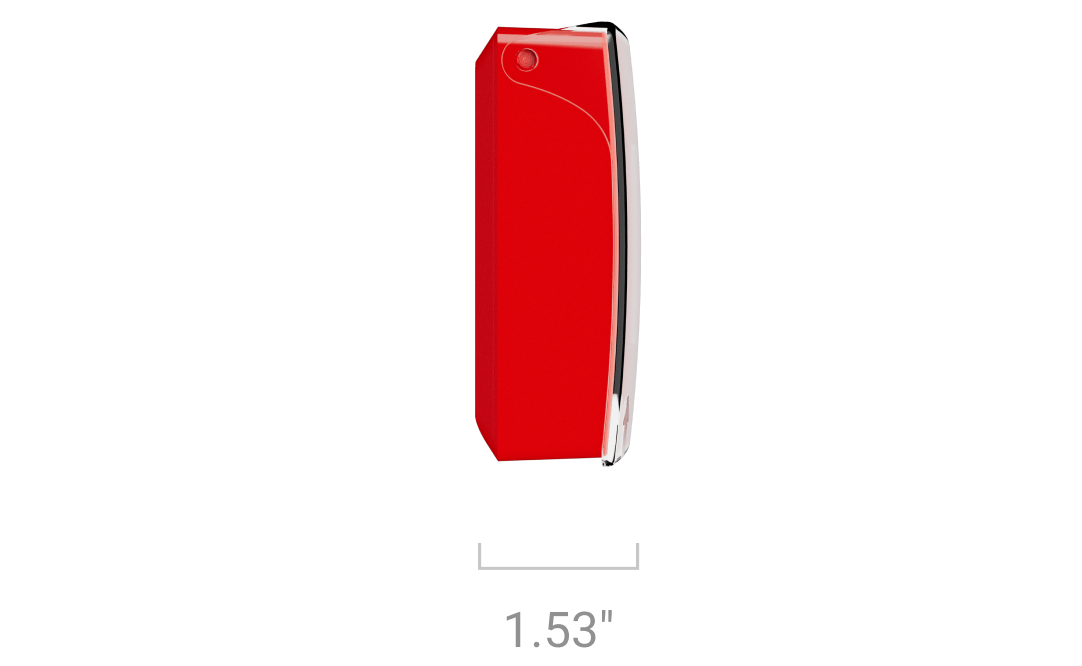

4.02″ × 4.09″ × 1.53″
Weight
7.55 oz
Operating temperature range
from 32 °F to 122 °F
Operating humidity
up to 80%
Complete set
ManualCallPoint (Red) Jeweller
SmartBracket mounting panel
Special tool (key)
2 × CR123A battery (pre-installed)
Installation kit
Quick start guide
