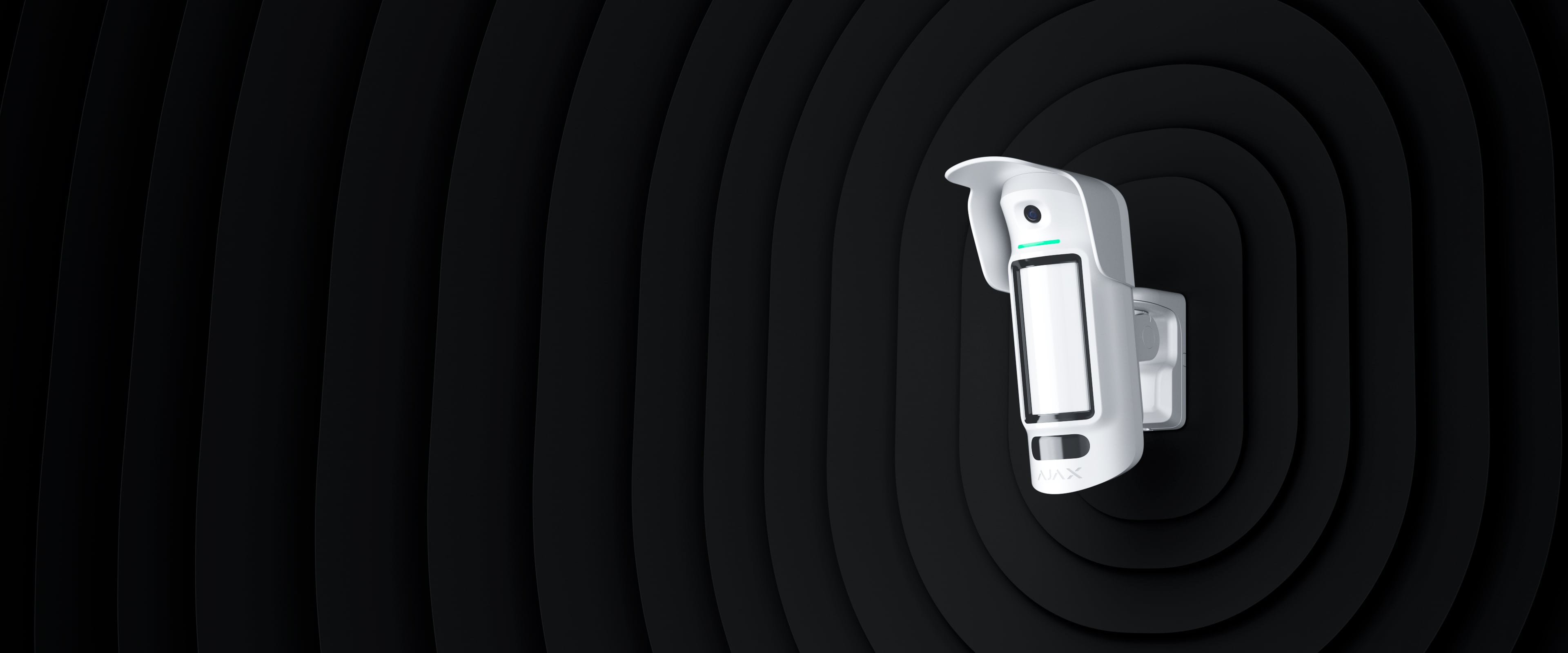

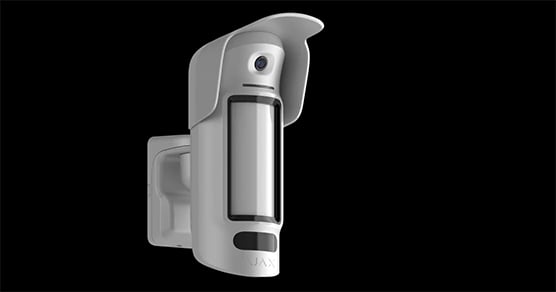

MotionCam Outdoor HighMount (PhOD) Jeweller
Wireless PIR motion detector with extended photo verification possibilities. For outdoor installation at a height of 2–4 m.
All threats detected and verified
MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless motion detector designed primarily for remote locations, warehouses, and industrial complexes, yet equally suited for offices and private houses. The device can be installed at heights ranging from 6.6 to 13 ft, providing extensive area coverage with no blind zones. With a built-in camera, it is easy to quickly assess the situation at the protected facility. This is possible thanks to several types of photo verification available: by alarm, by scenario, by schedule, by arming/disarming, and on demand. The false alarm filter distinguishes non-threatening factors, such as swaying tree branches or heat flows. The metal swivel mount allows for flexible adjustment of the viewing angle.
Discover MotionCam Outdoor HighMount (PhOD) Jeweller
Reliable protection for remote sites and industrial facilities
Watch on YoutubeKey features
6.6–13 ft
installation height

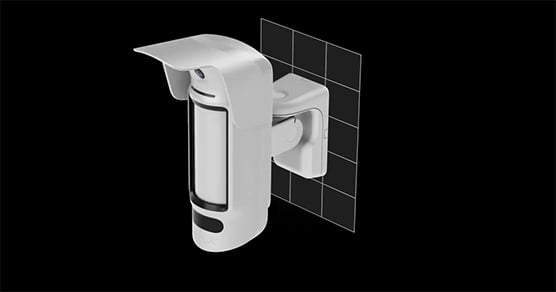

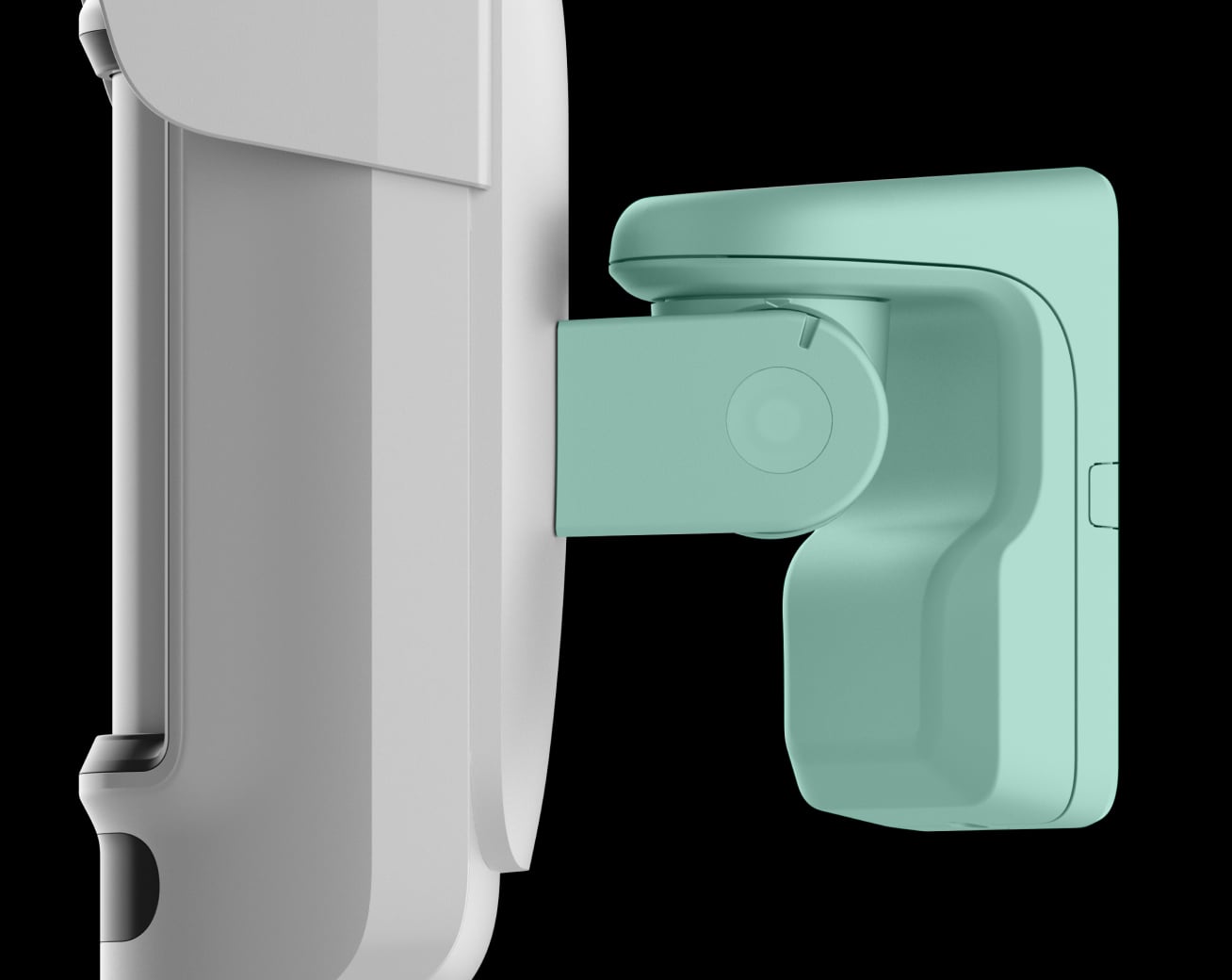

Swivel mount

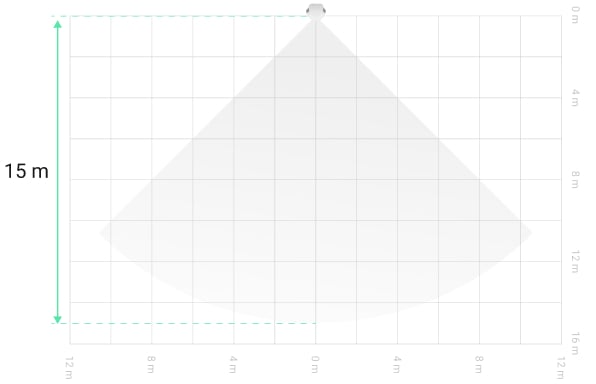

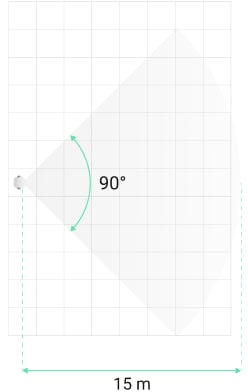

Up to 49 ft
movement detection distance
90° horizontal viewing angle
90° vertical viewing angle
Dual motion detection technology
to trigger the device only when both sensors detect movement
Software algorithm to prevent false alarms
Temperature compensation
for effective detection in heat and cold
Several types of photo verification
Photo by Alarm
Photo by Scenario
Photo on Demand
Photo by Schedule
Photo by arming/disarming

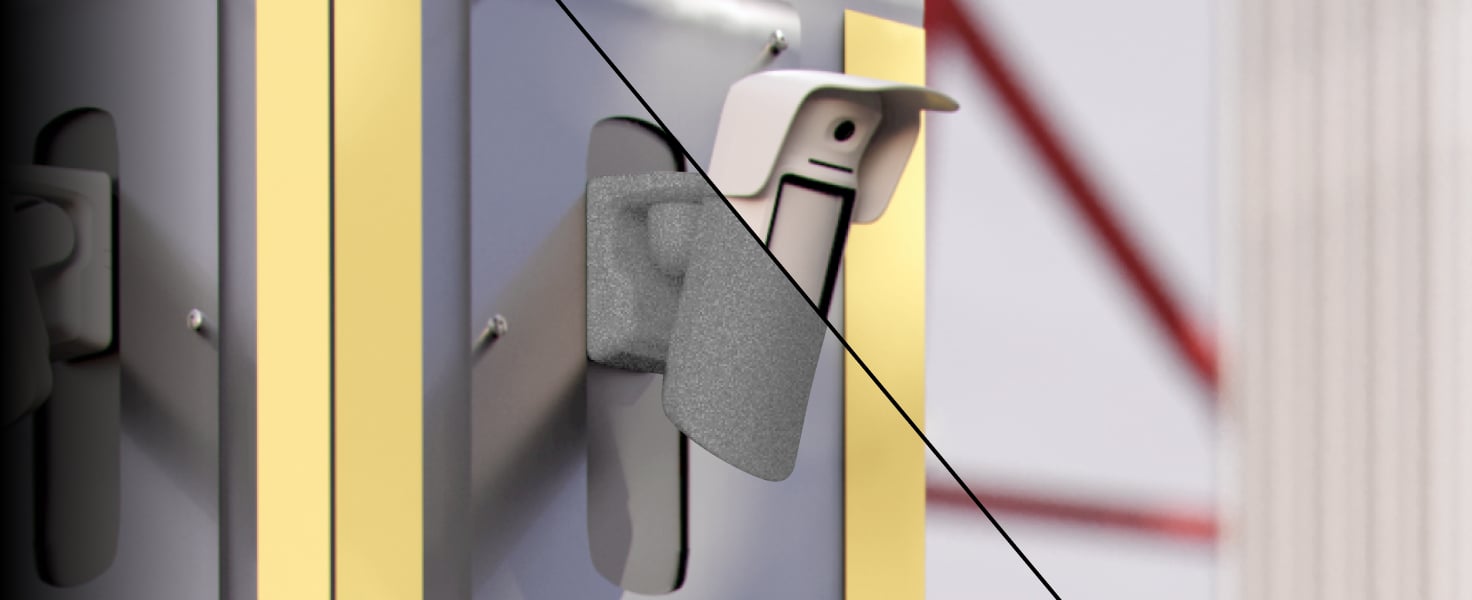

Anti-masking system
IR illumination

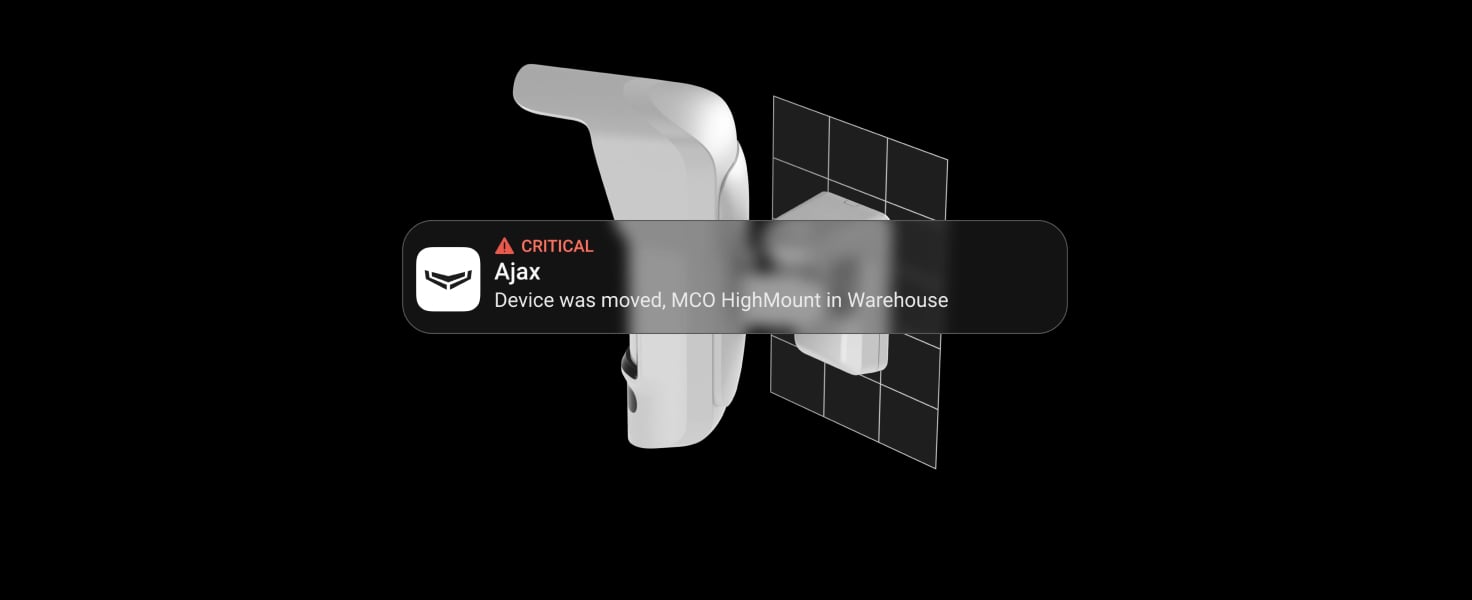

Magnetometer
to monitor the surrounding magnetic field
Critical
Ajax
Device was moved, MotionCam Outdoor HighMount (PhOD) Jeweller in Entrance
HDR technology for clear photos in any condition
Tamper alarm
to notify of attempts to dismantle the device

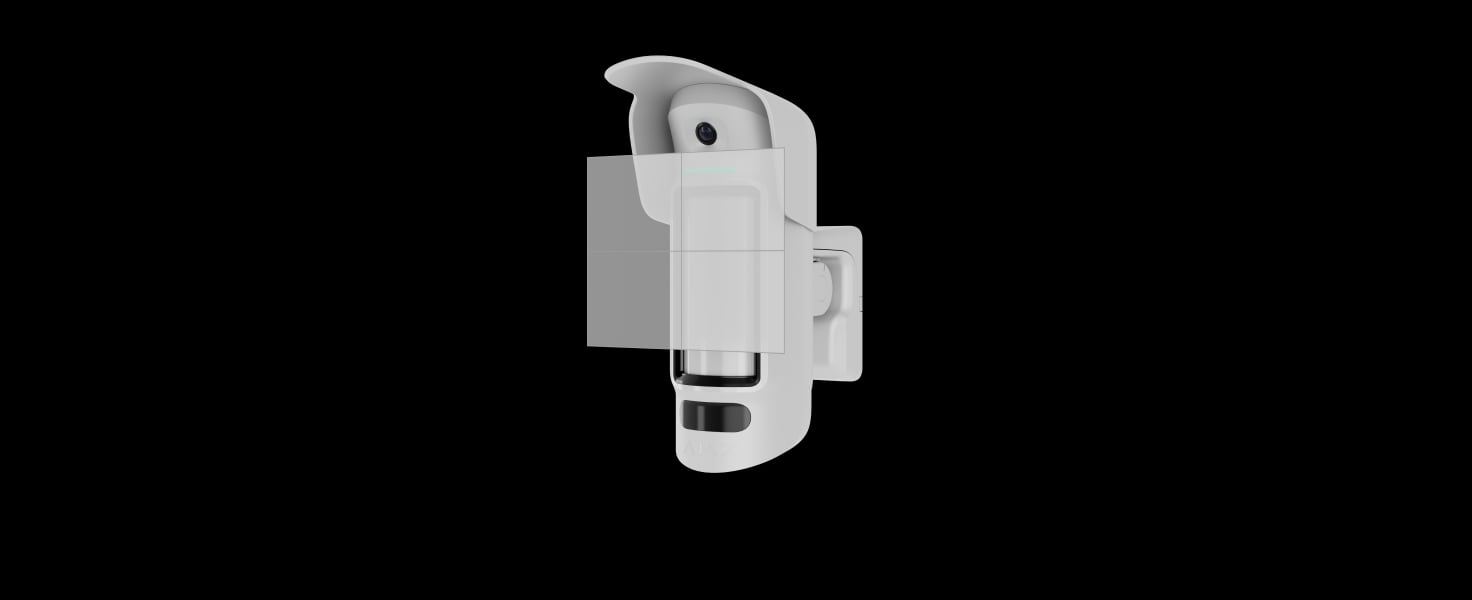

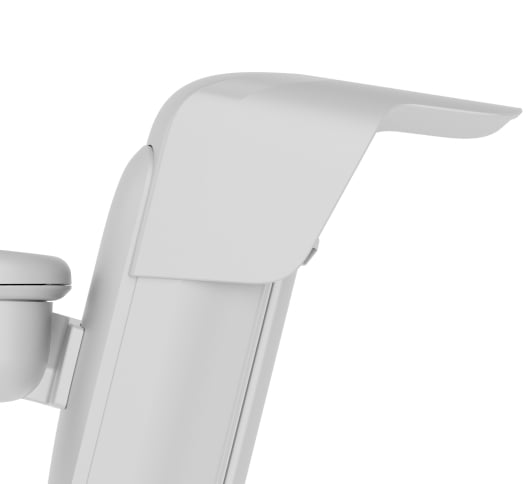

Hood
to protect masking sensors from rain and snow
enclosure protection
Over-the-air firmware updates
Up to 5,550 ft
of wireless communication range1
Jeweller and Wings radio communication
Power adjustment
Up to 3 years of operation
on pre-installed batteries
Possibility to connect a 12–24 V⎓
external power supply unit
Regular camera health checks
Informative push notifications
Critical
Ajax
Warehouse: Motion detected, MotionCam Outdoor HighMount (PhOD) in Storage area
Ajax
Office: MotionCam Outdoor HighMount (PhOD) in Office is online again. Connection via Jeweller channel restored.
Remote control and configuration

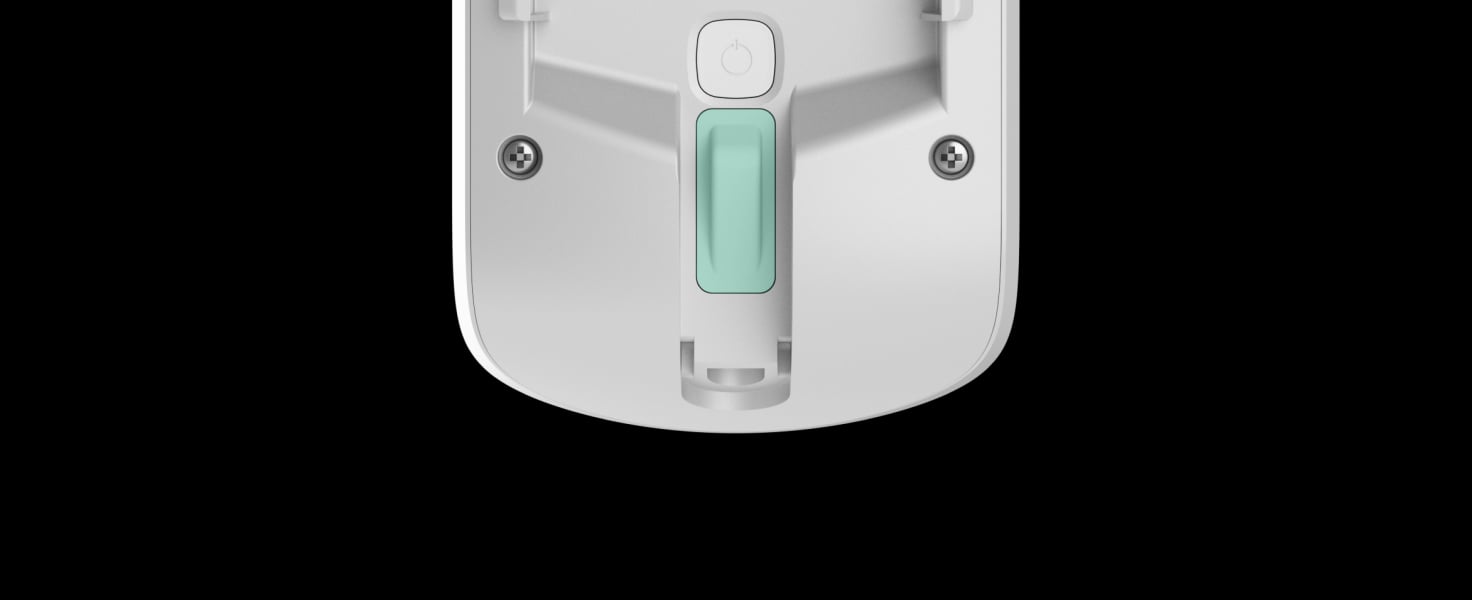

Hassle-free installation
QR code
SmartBracket
App
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Awards

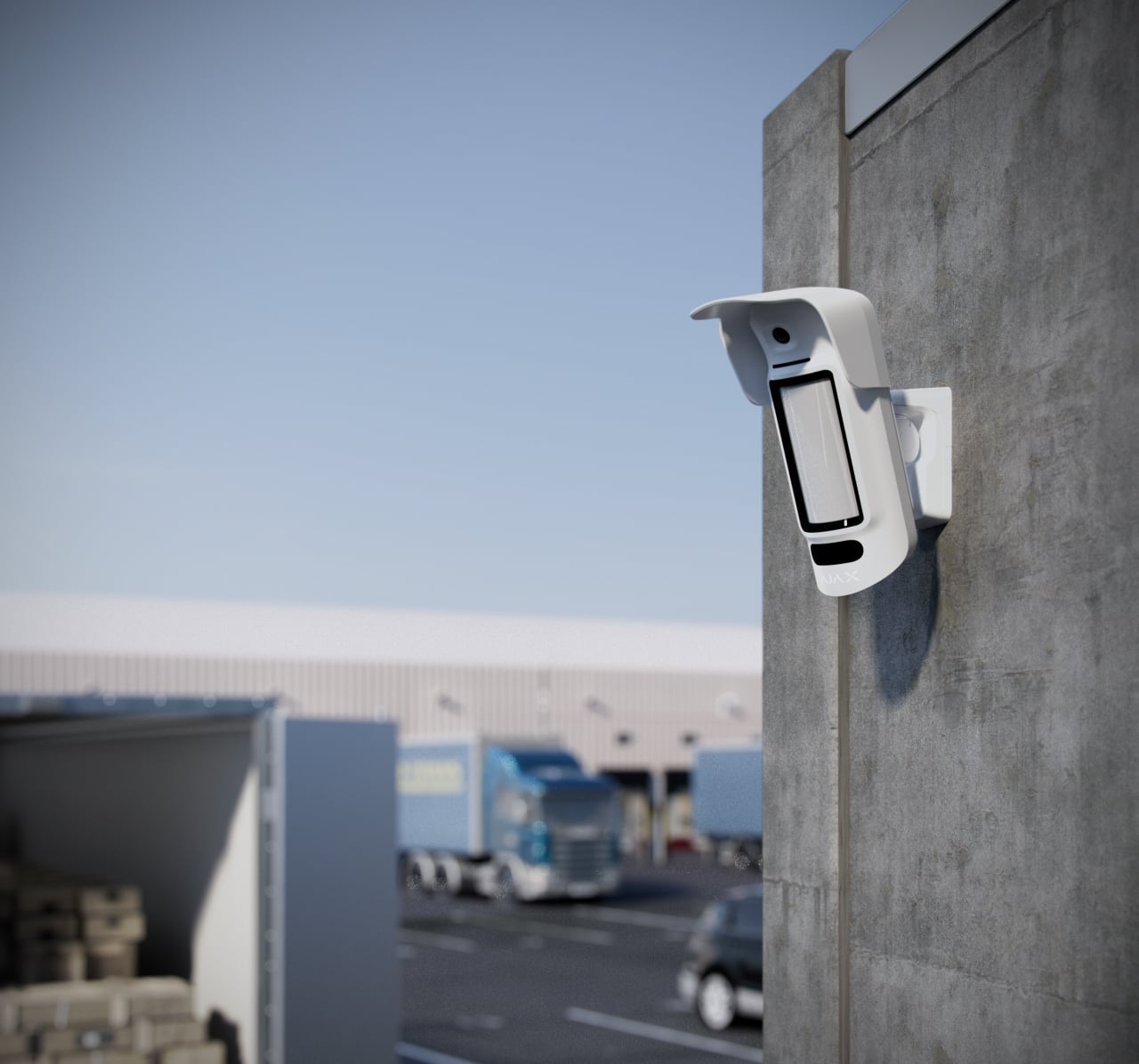

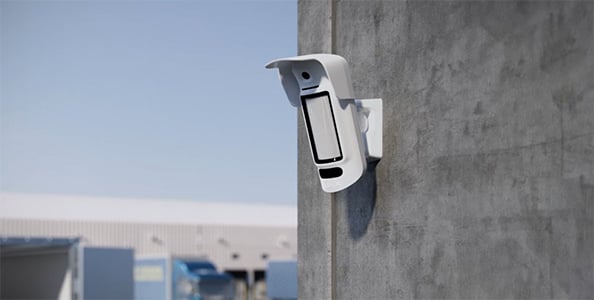

Captures movement where it is most needed
Keep any commercial premises secure day and night, with no blind zones or false alarms. MotionCam Outdoor HighMount (PhOD) Jeweller detects movement at a distance of 49 ft. The detector instantly takes a series of photos so the user can check the reason for the alarm. All alarms are thoroughly checked at both software and hardware levels. At the software level, the device uses algorithms such as SmartDetect and LISA. At the hardware level, it is equipped with two types of sensors — two PIR sensors and a microwave sensor — to provide dual motion detection. Also, a Fresnel lens differentiates between the PIR diagrams of people and thermal noise.

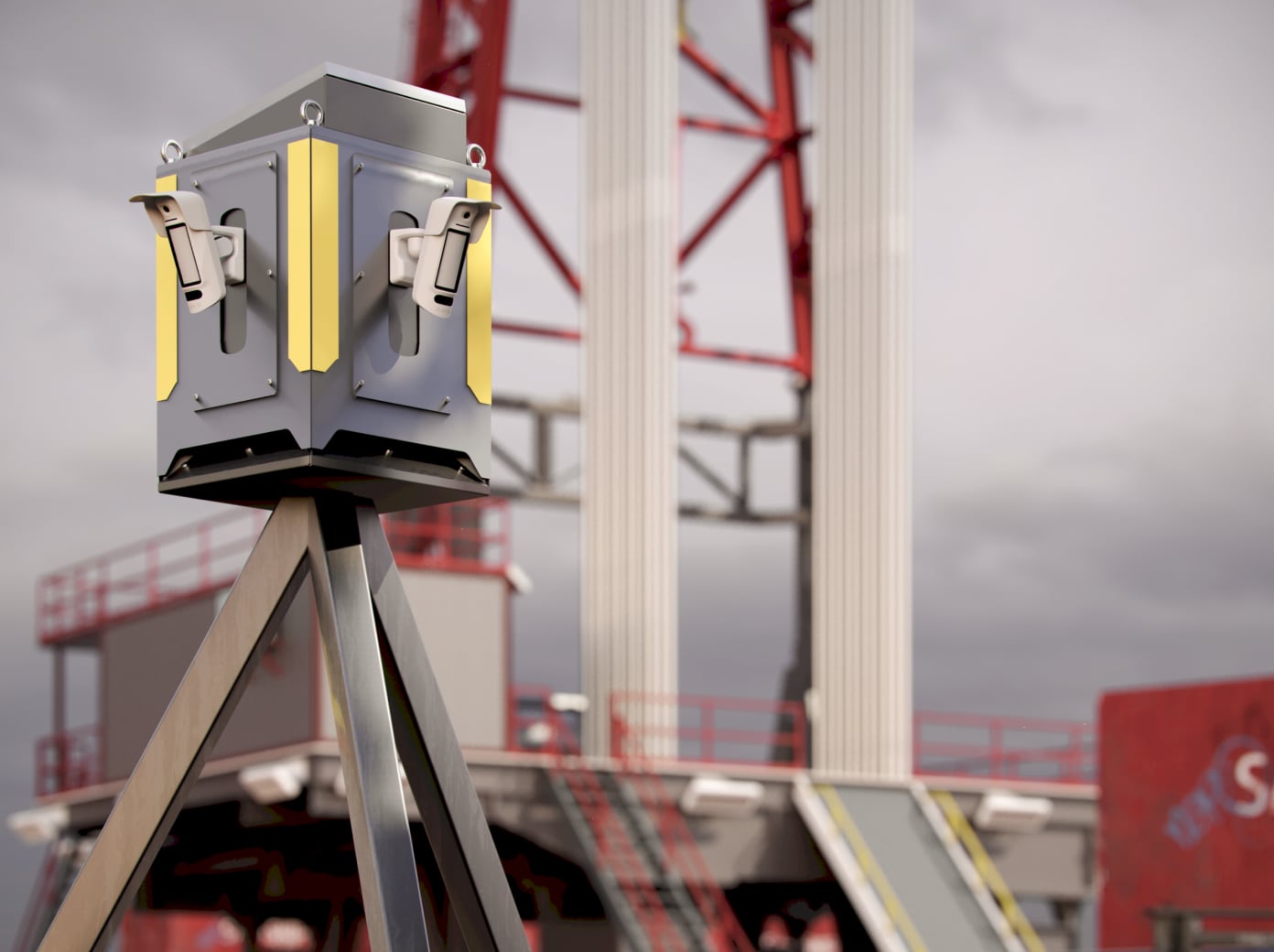

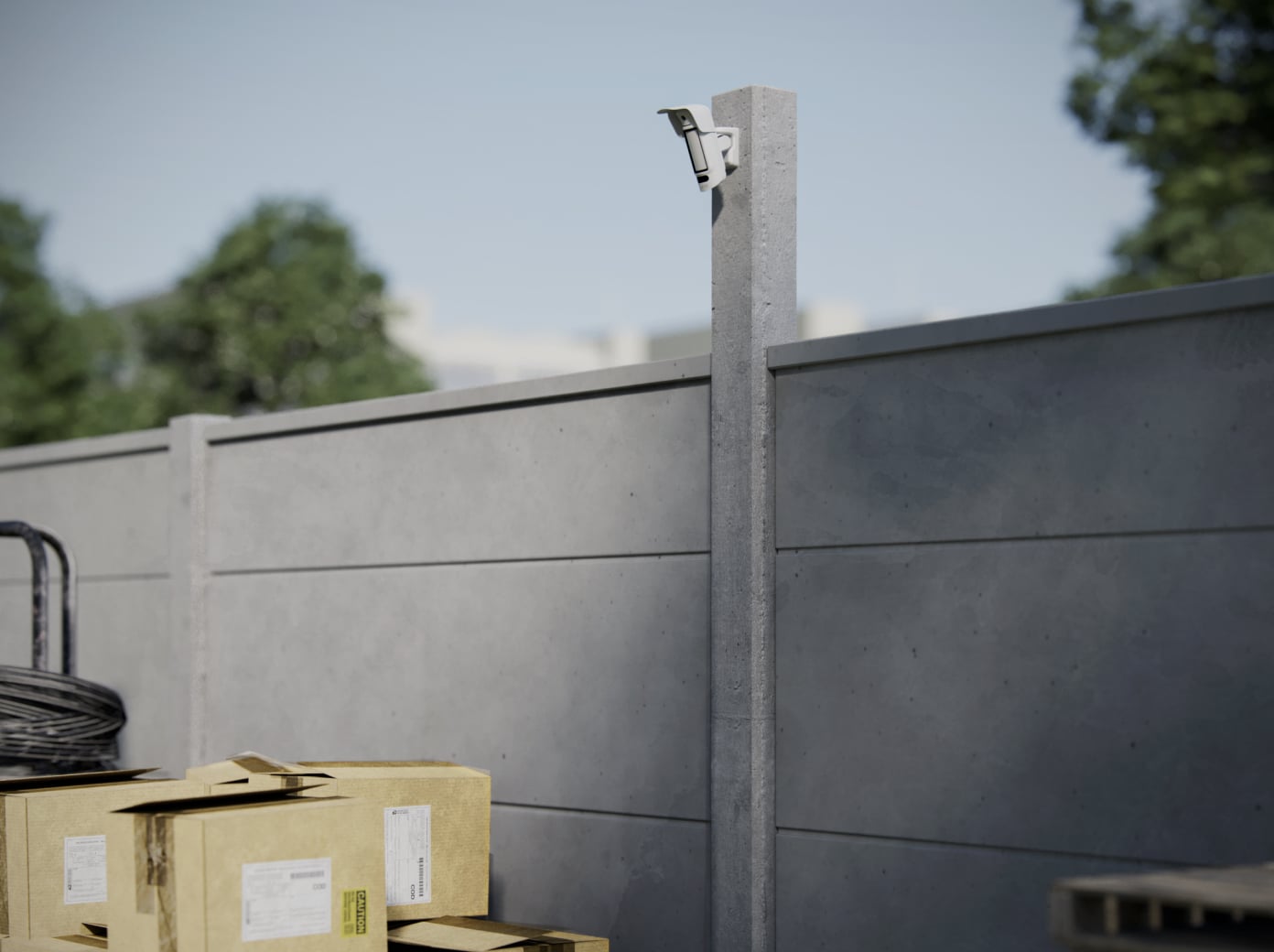

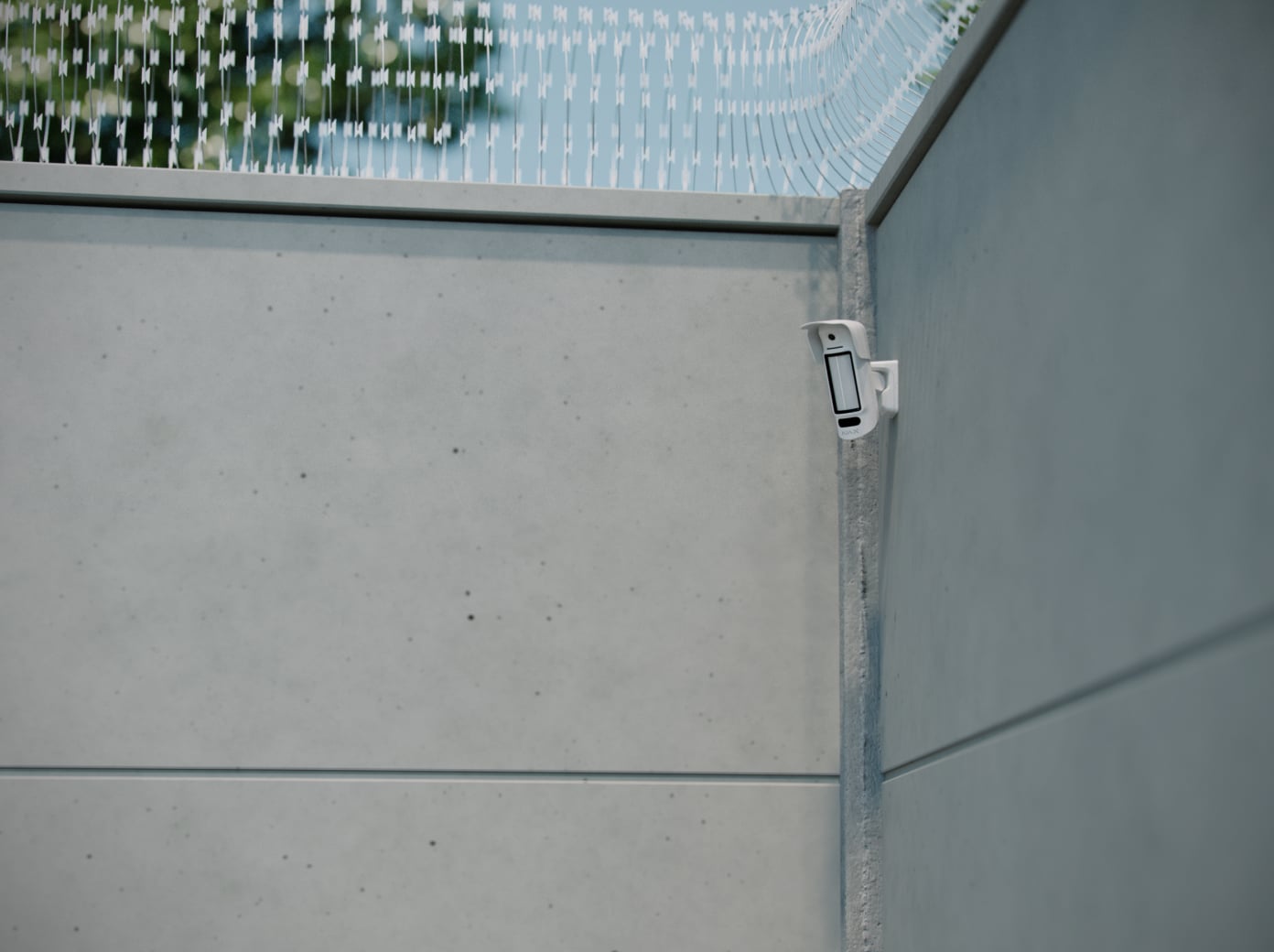

Wherever there is a risk of intrusion
Construction site
High-risk property
Gas production station
Production facility

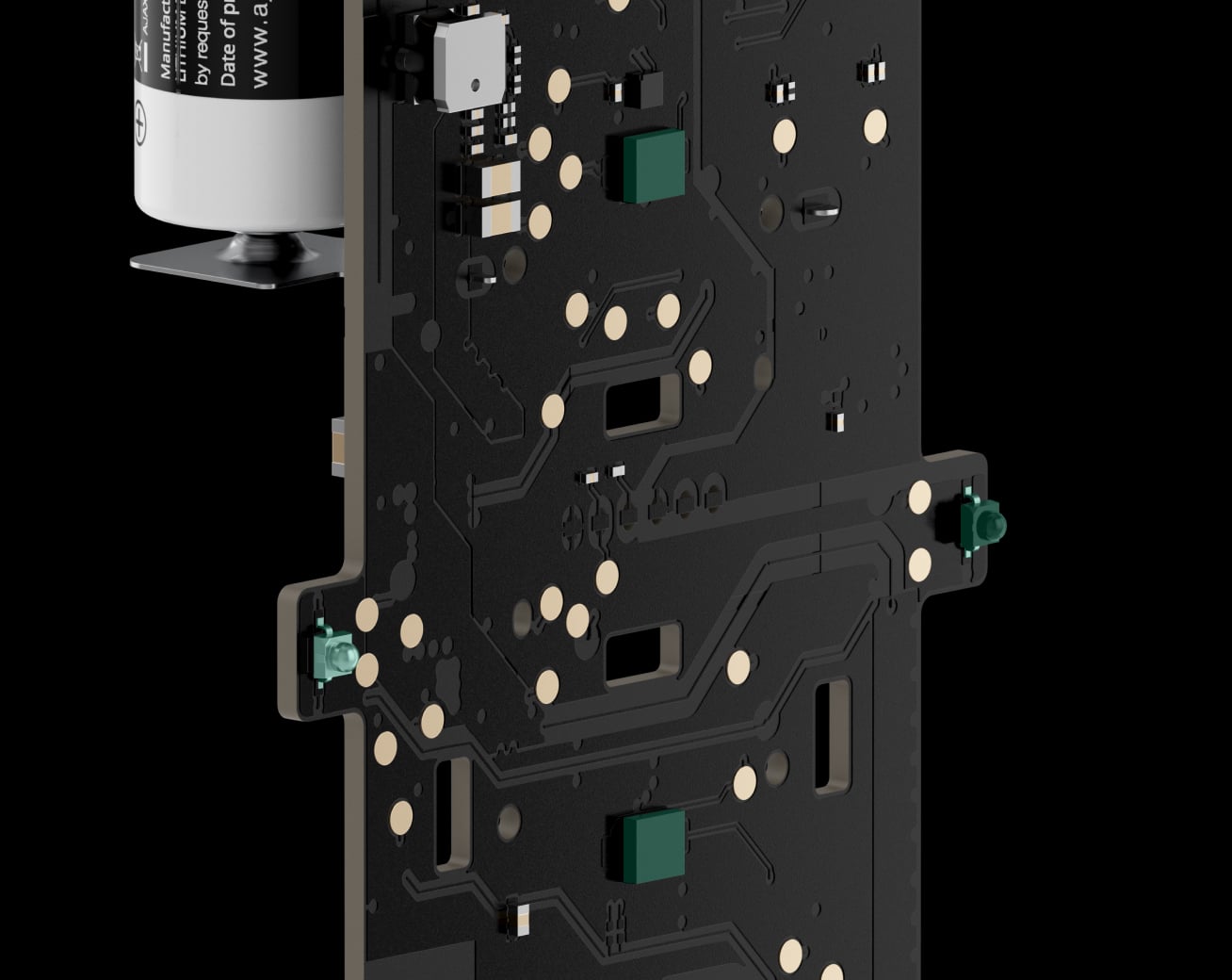

Discover future-proof hardware

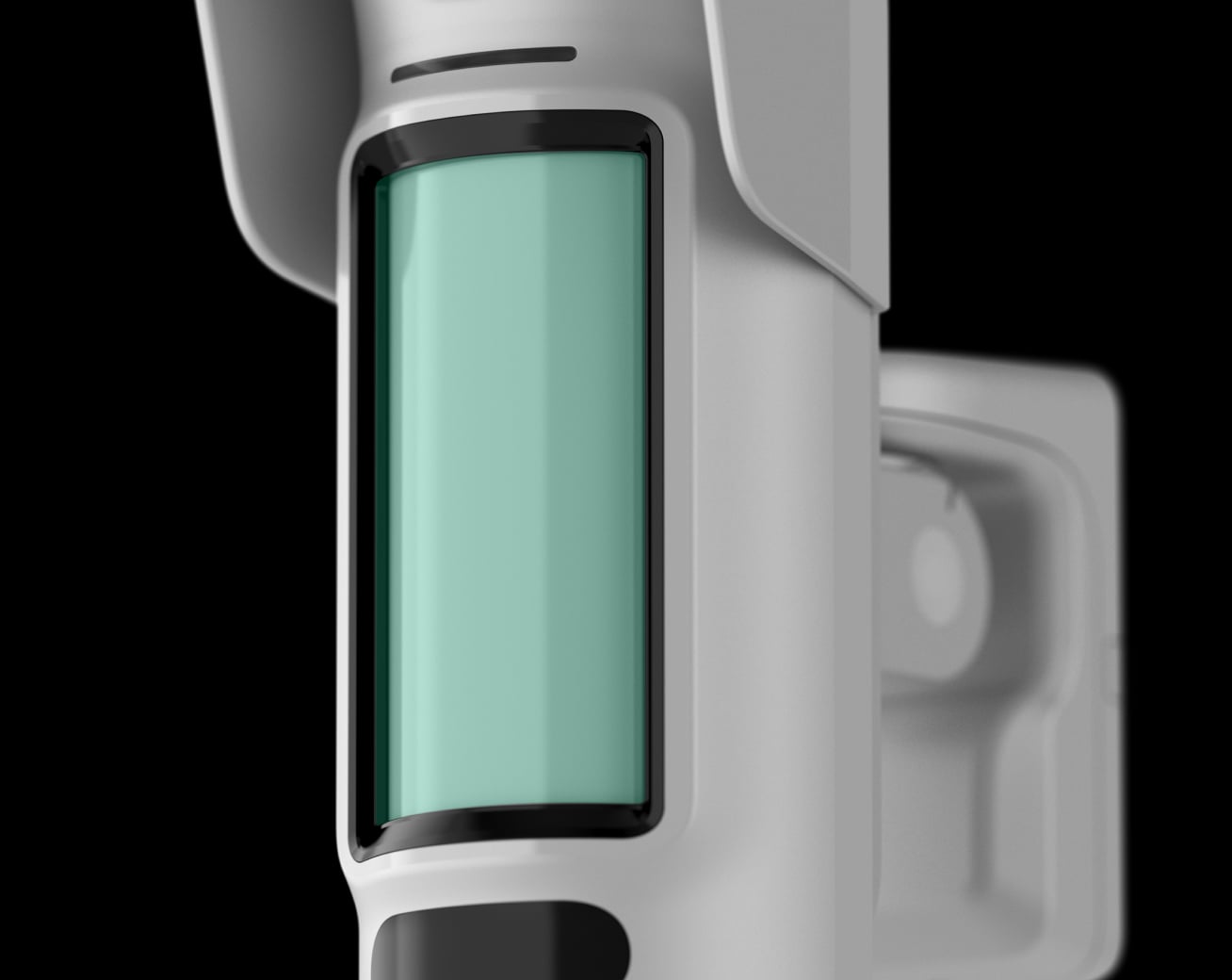

Fresnel lens
Two PIR sensors
K-band microwave sensor

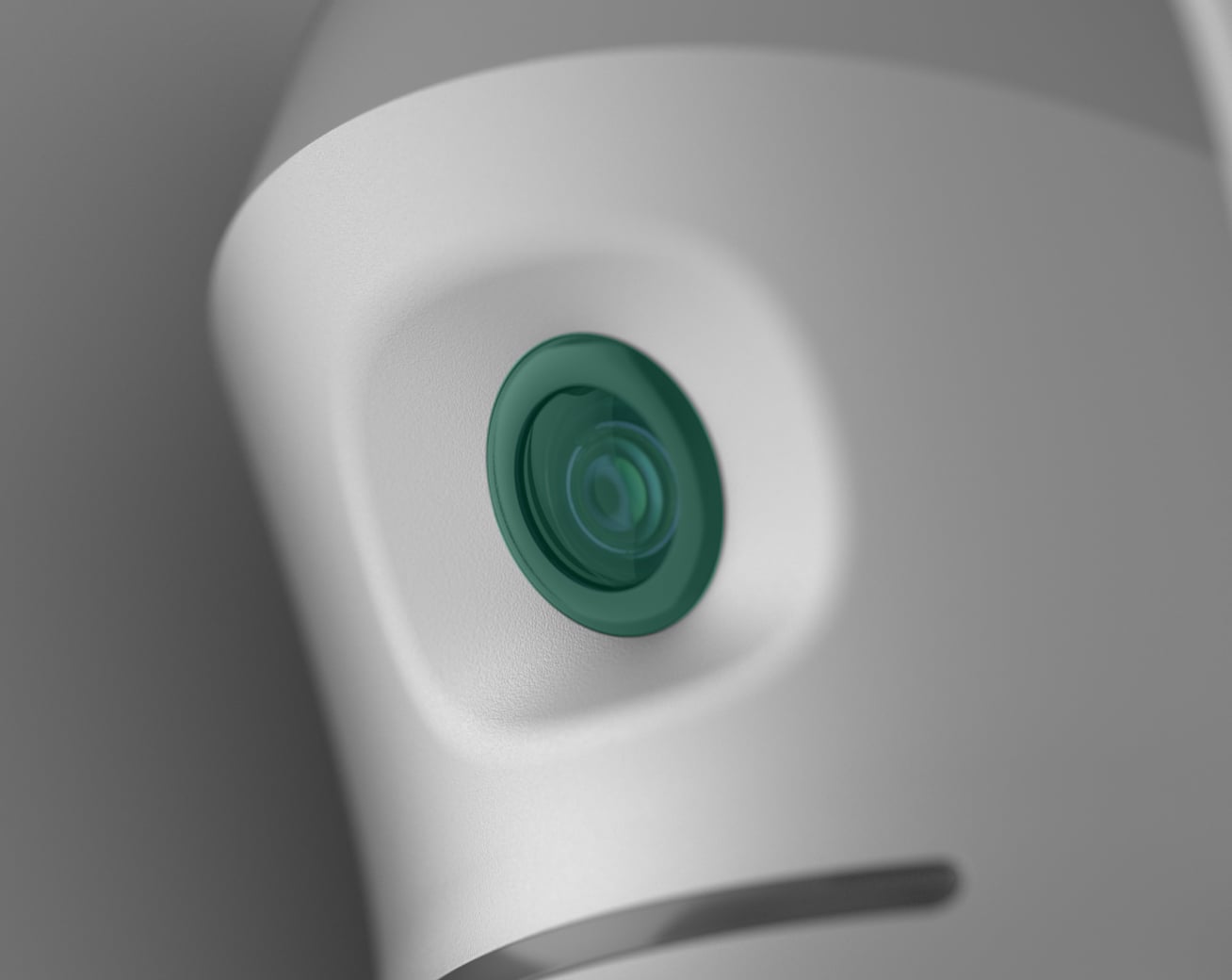

Camera
Masking sensors
Swivel mount
Magnetometer
Tamper

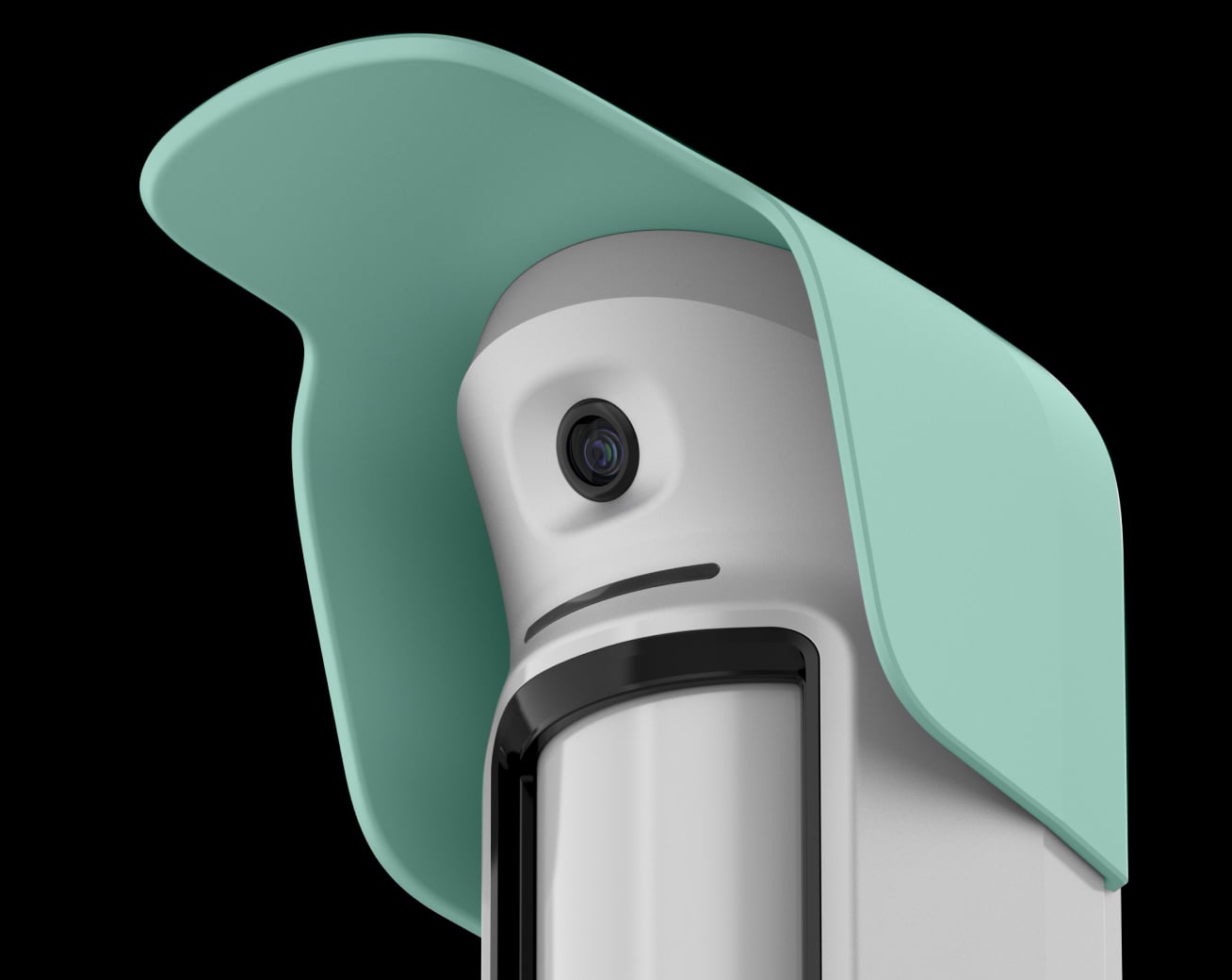

Hood
Jeweller and Wings antennas
No intruder goes unnoticed

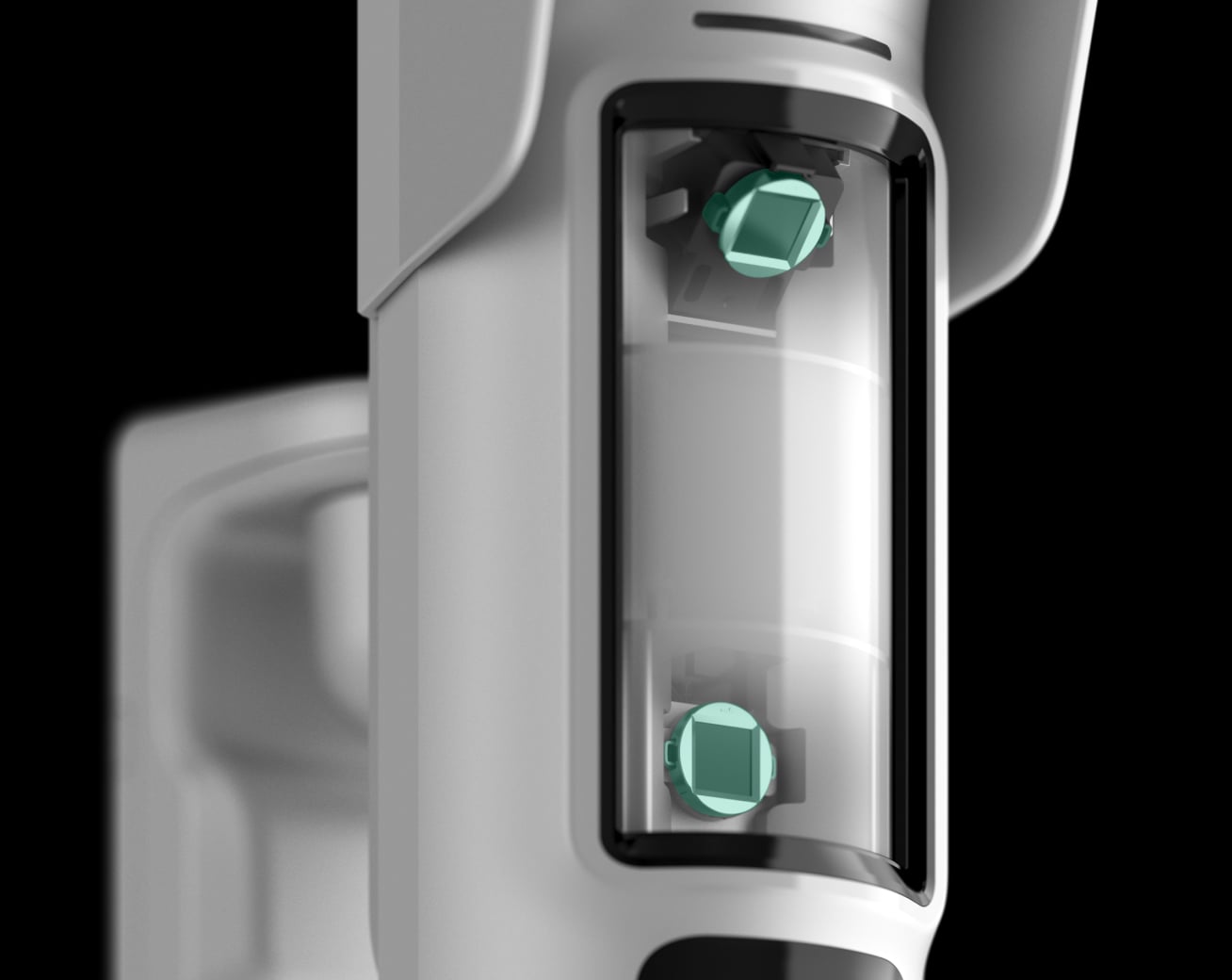

PIR sensors
MotionCam Outdoor HighMount (PhOD) Jeweller has two PIR sensors to ensure accurate movement detection. One sensor is responsible for near-field movement detection, while the other detects movement in the far-field movement detection zone.

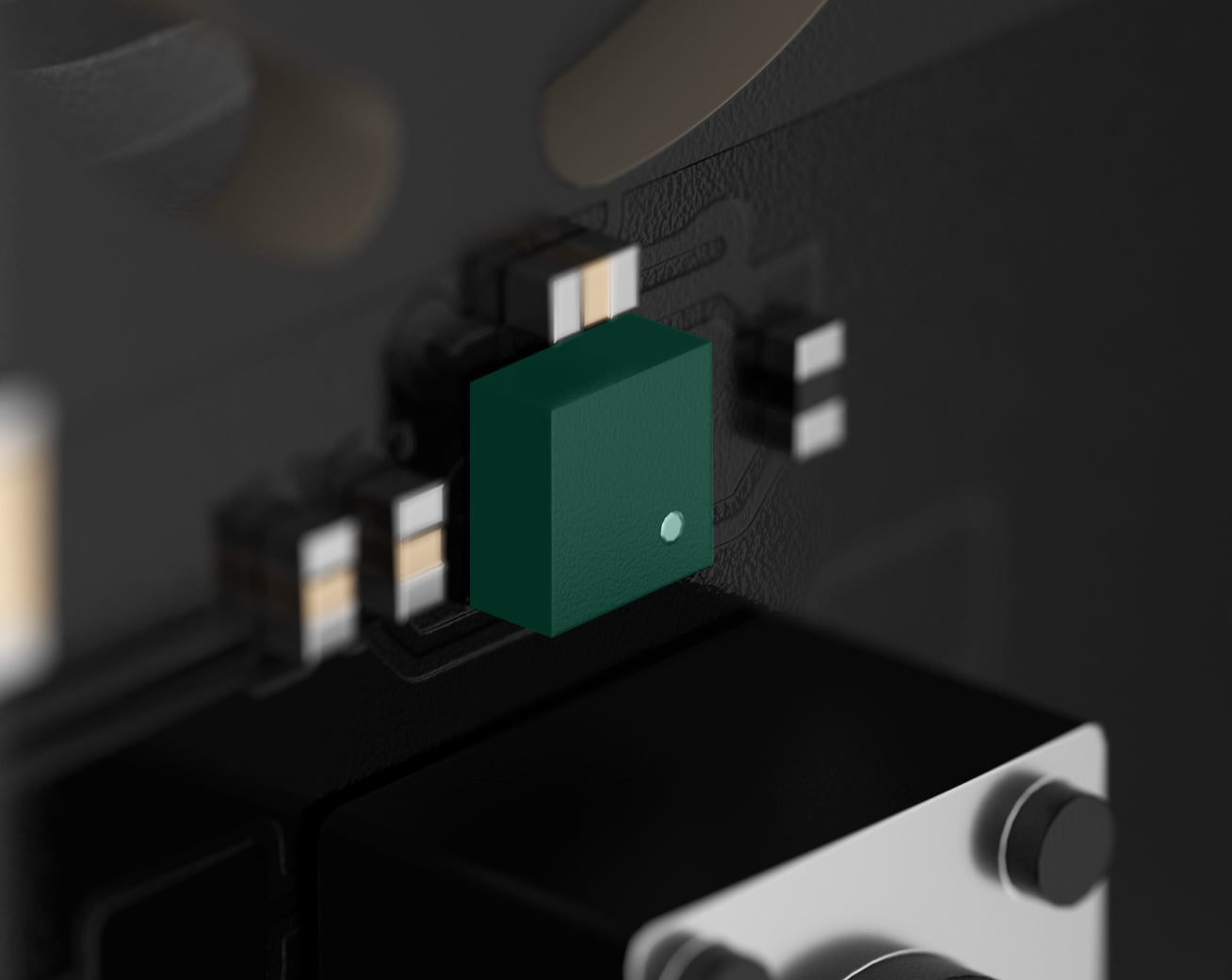

K-band microwave sensor
The device responds only when both PIR and microwave sensors are triggered. When the PIR sensor detects the movement of an object with a temperature similar to that of the human body, the device performs a radio wave scan using the K-band microwave sensor. This is how the dual motion detection technology works. Unlike traditional X-band sensors, the K-band sensor offers enhanced precision and Superior energy efficiency. This results in minimal impact on battery lifespan and significantly fewer false alarms. Additionally, the sensor is completely safe and does not harm human health.
K-band
X-band
Thermal interferences filter

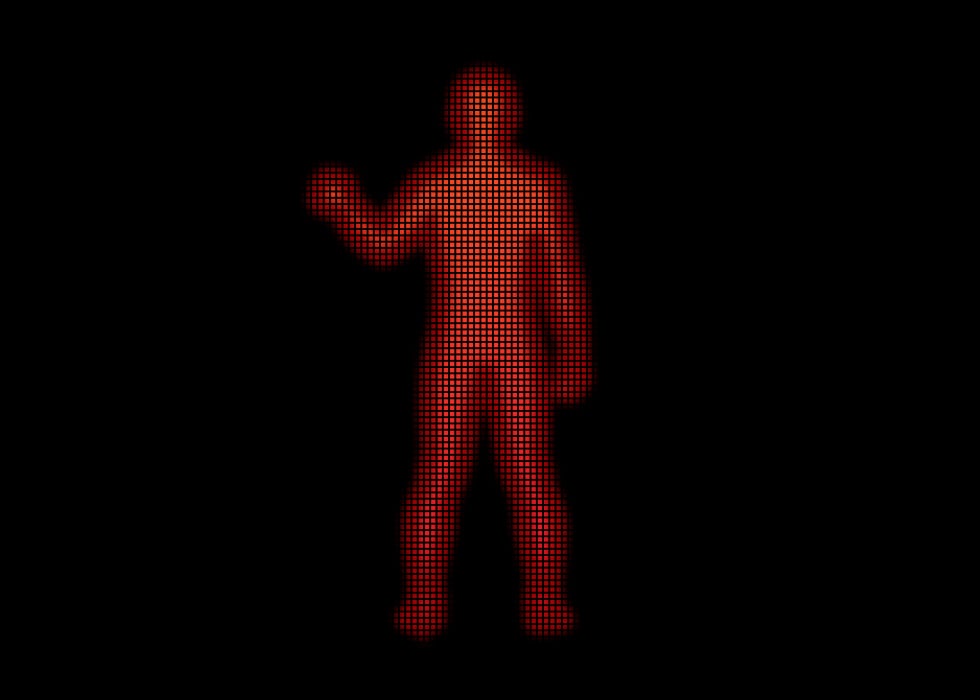

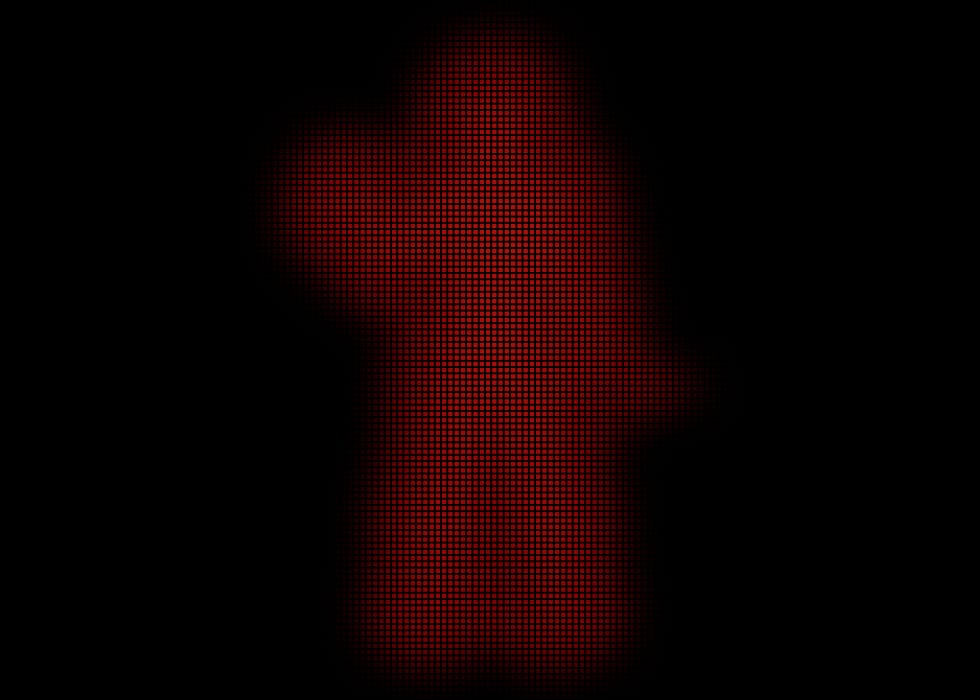

In armed mode, the detector constantly analyzes the thermal diagram from the PIR sensors, including the IR radiation intensity, thermal spot size, movement speed, time spent in the detection zone, and other parameters. The SmartDetect algorithm filters out potential false triggers such as headlights, lighting devices, and heat flows instantly and with high accuracy. As a result, the detector accurately responds to movement without false alarms.
False alarm
Real alarm
False alarm
Real alarm
False alarm
Real alarm

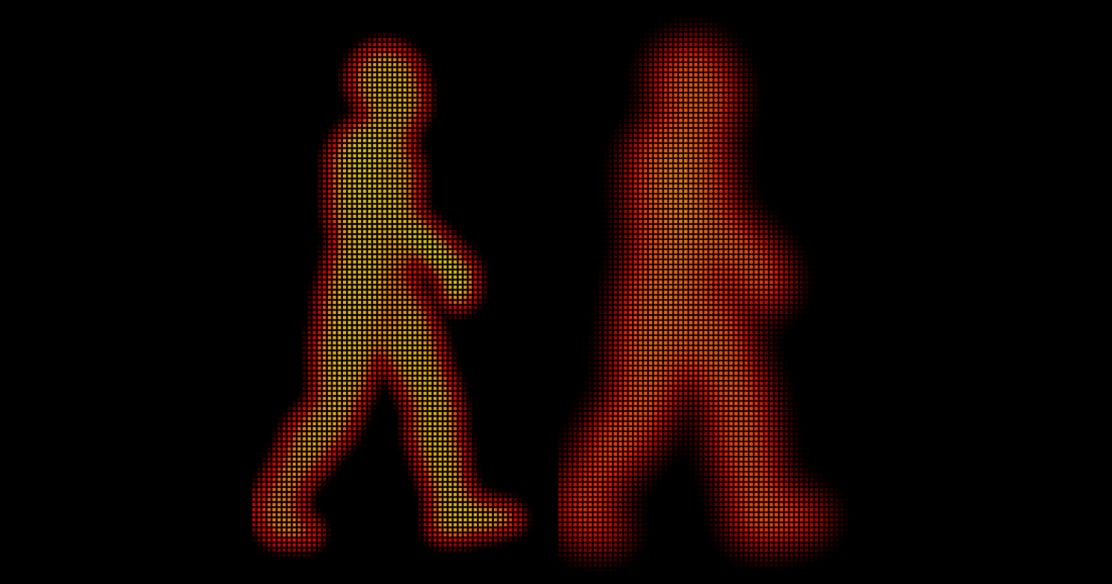

Temperature compensation
Temperature compensation is a software mechanism that maintains the contrast of the thermal diagram even if the ambient temperature is close to the temperature of the human body. With each ambient temperature measurement, the detector corrects the PIR sensors’ data according to the coefficient table stored in its memory. The detector is effective over the entire operating temperature range.
Sensitivity level
MotionCam Outdoor HighMount (PhOD) Jeweller features three sensitivity levels that can be adjusted through an Ajax app. The optimal sensitivity level depends on the facility type, the presence of potential sources of false alarms, and the specifics of the protected area. A low sensitivity level is suitable for areas prone to false alarms; normal sensitivity is ideal for most facilities, and high sensitivity is recommended for areas with no obstacles.
Professional installation

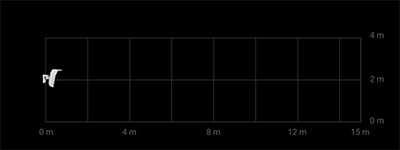

Proper installation and configuration of a motion detector are key to detecting threats quickly. MotionCam Outdoor HighMount (PhOD) Jeweller should be placed on a vertical surface at a height of 6.6–13 ft. The device’s tilt angle must be adjusted using the swivel mount. The detector sensors should be directed to the expected intrusion path.
MotionCam Outdoor HighMount (PhOD) Jeweller does not have a pet immunity feature.
Peace of mind on demand
HDR technology for clear photos
IR illumination for low light conditions
The first photo is delivered in less than 9 seconds2
Up to 5 photos in a series
MotionCam Outdoor HighMount (PhOD) Jeweller is equipped with a camera to quickly assess the situation at the site. The device takes a series of photos as soon as it detects movement. A series of photos is combined into a GIF or MP4 format to show how the situation develops in the dynamics. The outdoor detector can take a series of photos by request of the user from an Ajax mobile app, regardless of the security mode. Furthermore, the device can take photos on a set schedule, by arming/disarming, or when selected devices in the system activate an alarm.
Privacy first
Detailed event log
Encryption and GDPR
Strict permission distribution

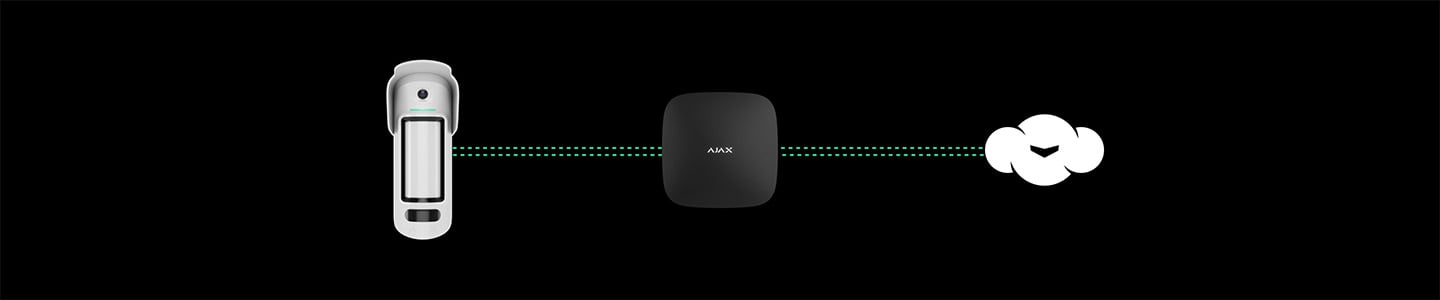

Jeweller | Wings
Unique wireless technologies
MotionCam Outdoor HighMount (PhOD) Jeweller uses Jeweller and Wings proprietary radio protocols for reliable communication.
Up to 5,550 ft of radio communication with a hub or range extender1
Encrypted two-way radio communication
Notifications of jamming and connection loss
Over-the-air firmware updates
Communication through steel and concrete
Some facilities have thick walls, metal partitions, or sheer distances that affect signal quality. Ajax range extenders are designed to increase the range of a wireless network and deliver stable connection with a hub despite the obstacles. And by choosing the model with an Ethernet cable connector, you get an additional communication channel. А single system can accommodate up to five range extenders.
Up to 5 range extenders within one system
Ethernet-equipped model available
System supervision
All Ajax devices perform automatic self-diagnosis and report their state to the hub. Essential parameters, including tamper, communication, power supply, as well as camera and sensor state, are continuously monitored. The Ajax Cloud server controls communication between the hub and Ajax apps, ensuring instant notifications for ARCs, security companies, and users. In case of any malfunction or communication failure, an engineer is informed immediately to provide necessary services.
Automatic device self-diagnosis with state reports
Regular polling to display the current device state in Ajax apps
Instant maintenance notifications

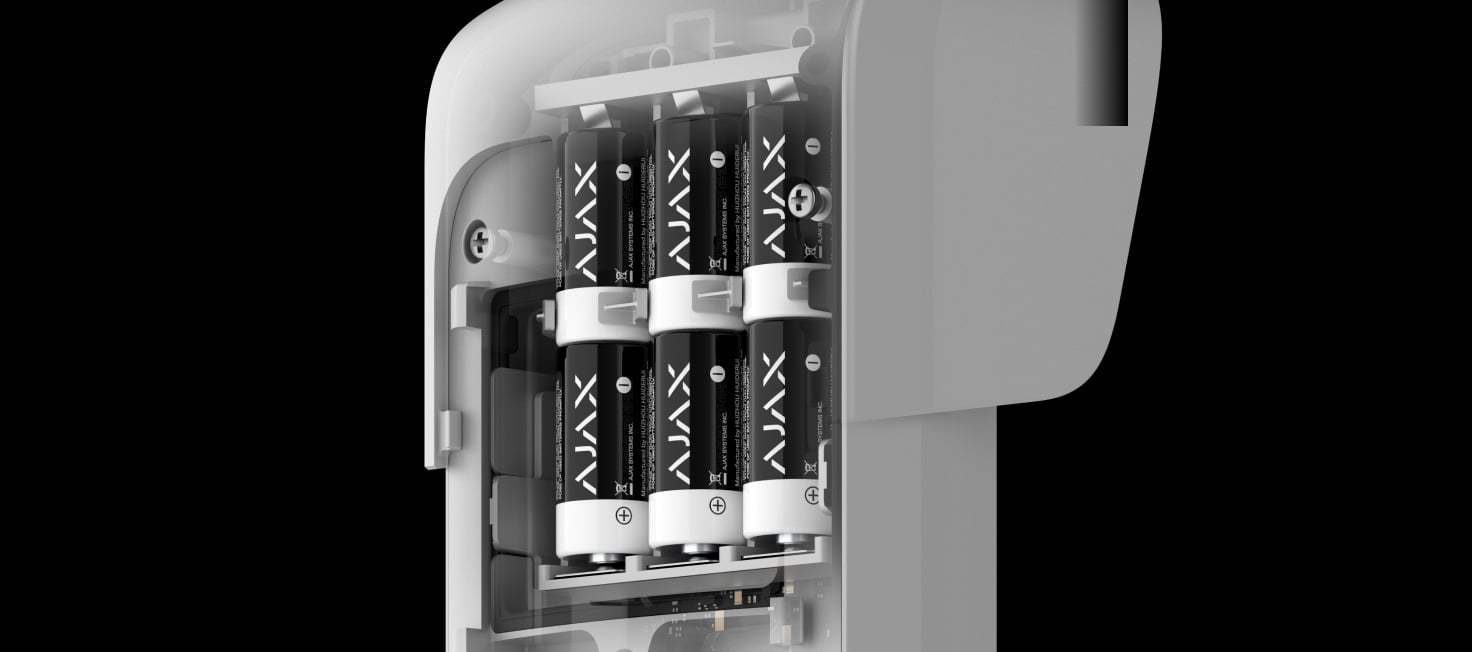

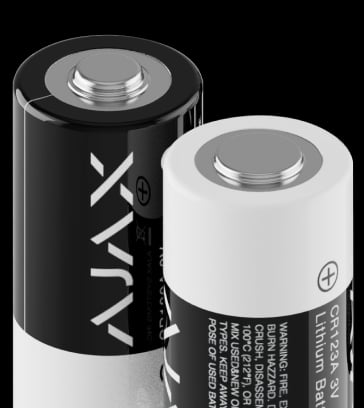

Outstanding autonomy
MotionCam Outdoor HighMount (PhOD) Jeweller delivers impressive autonomy: up to 3 years of operation on pre-installed batteries. The system will notify a security company and users of low battery levels in advance.

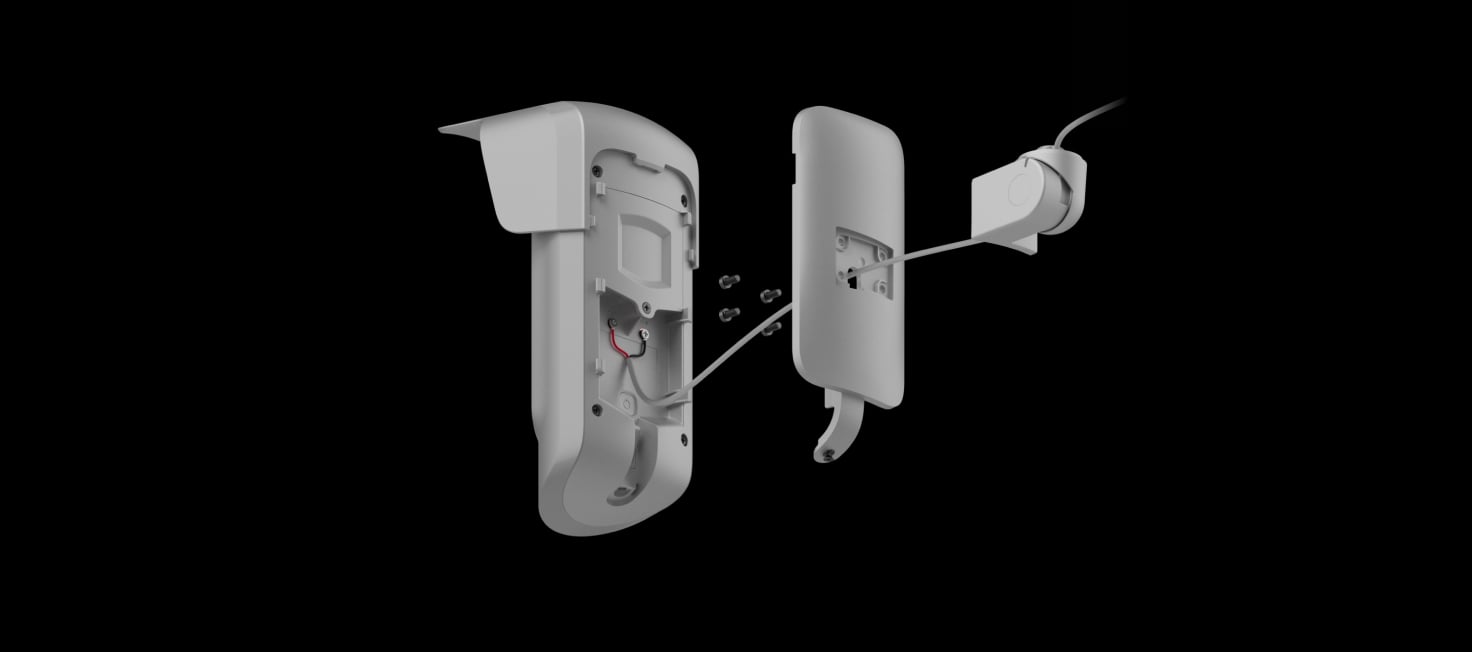

A 12–24 V⎓ external power supply unit can be connected to the detector. In this case, pre-installed batteries will serve as a backup power source. An external power supply is not required for the device to receive over-the-air updates.

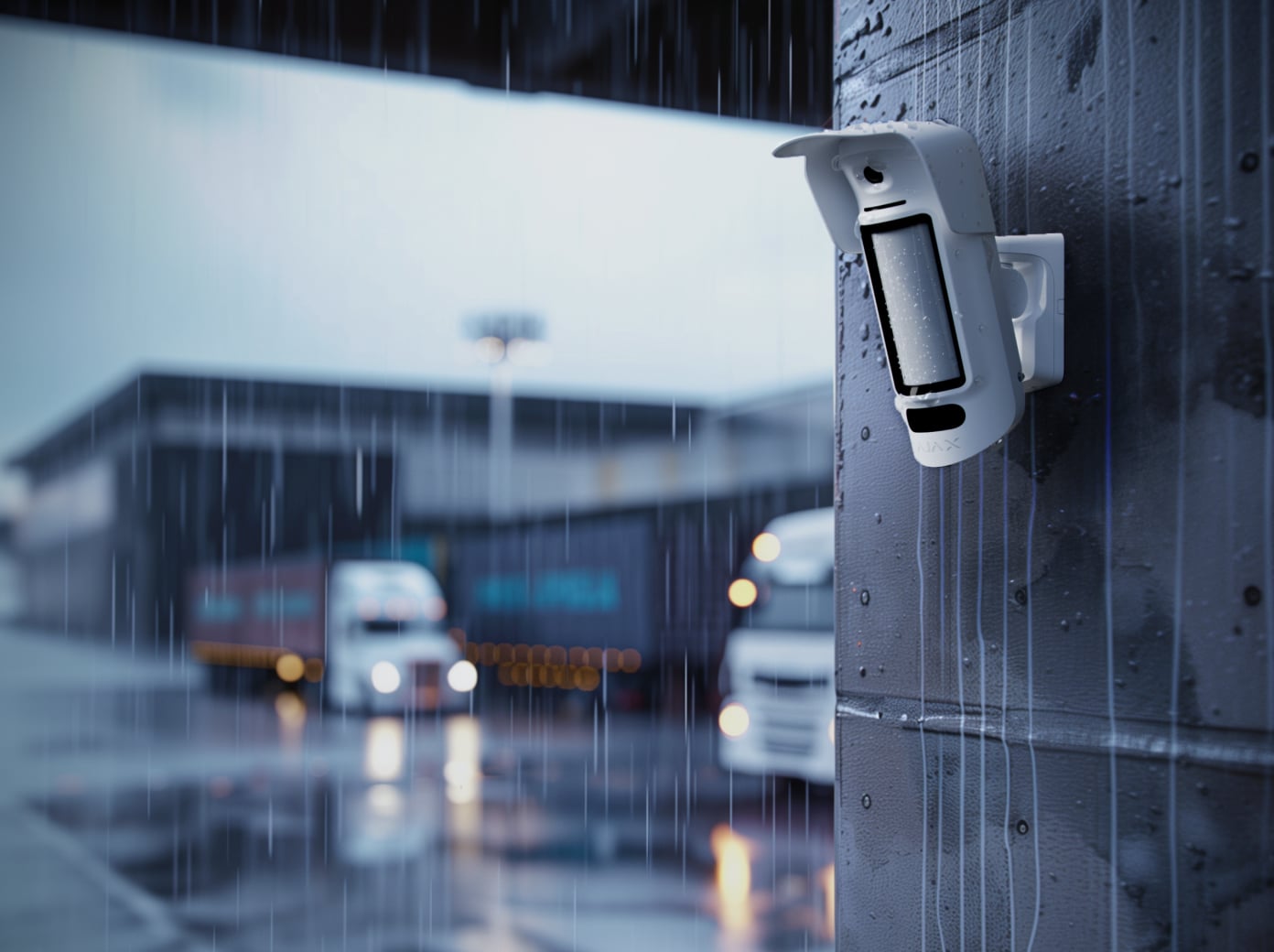

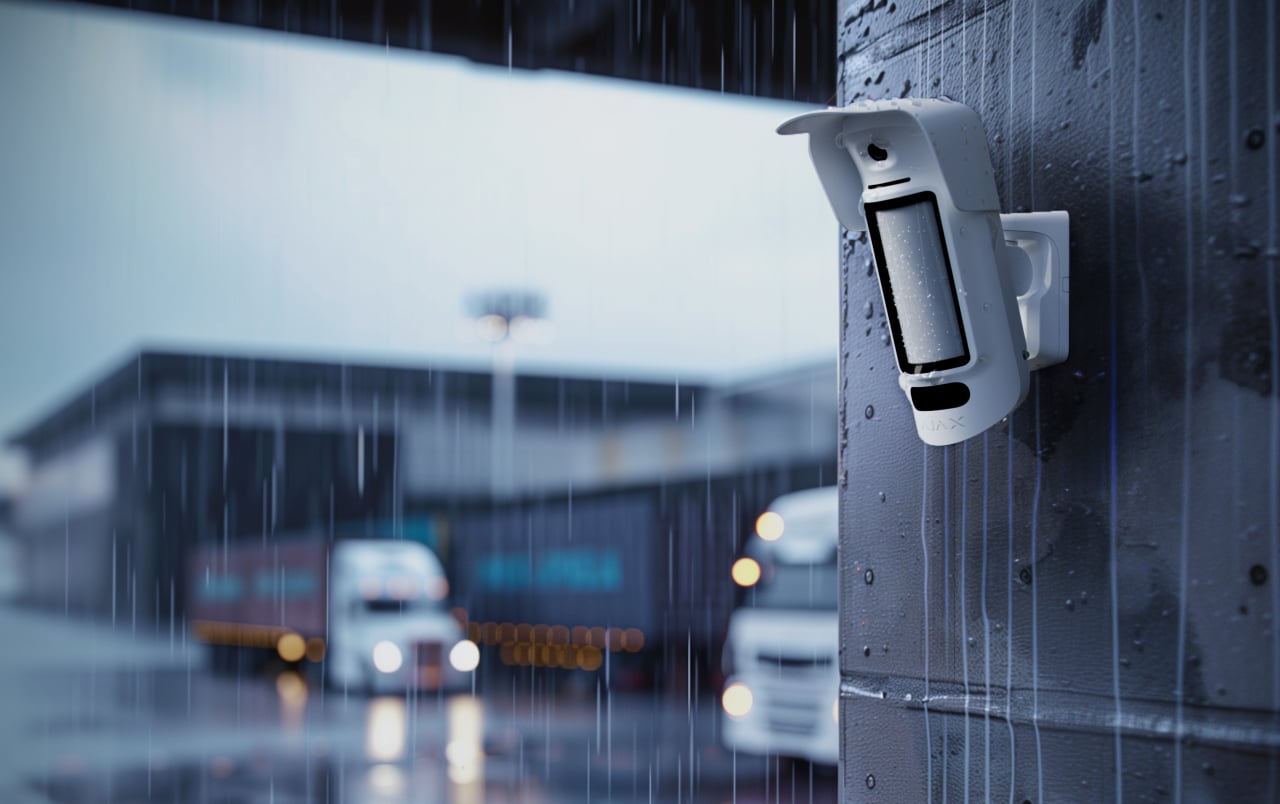

Ready for heat and cold
MotionCam Outdoor HighMount (PhOD) Jeweller is ready to operate in any weather. The device withstands heat up to 140 °F and cold down to −13 °F. Additionally, the detector can be installed with the hood to protect the anti-masking system from rain and snow.
IP55 protection rating
Efficiency in heat and cold
The hood to protect against rain and snow
Sabotage resistance

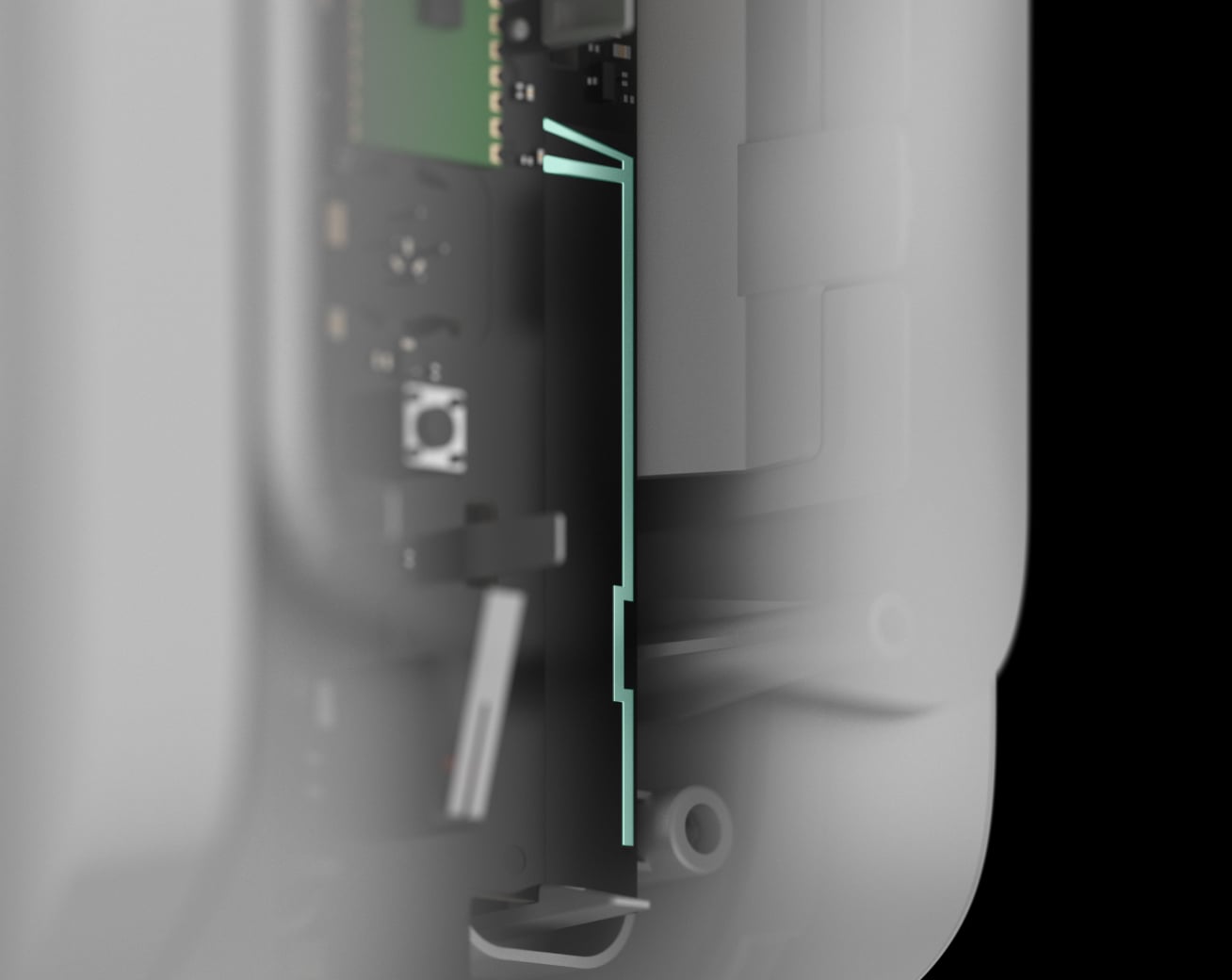

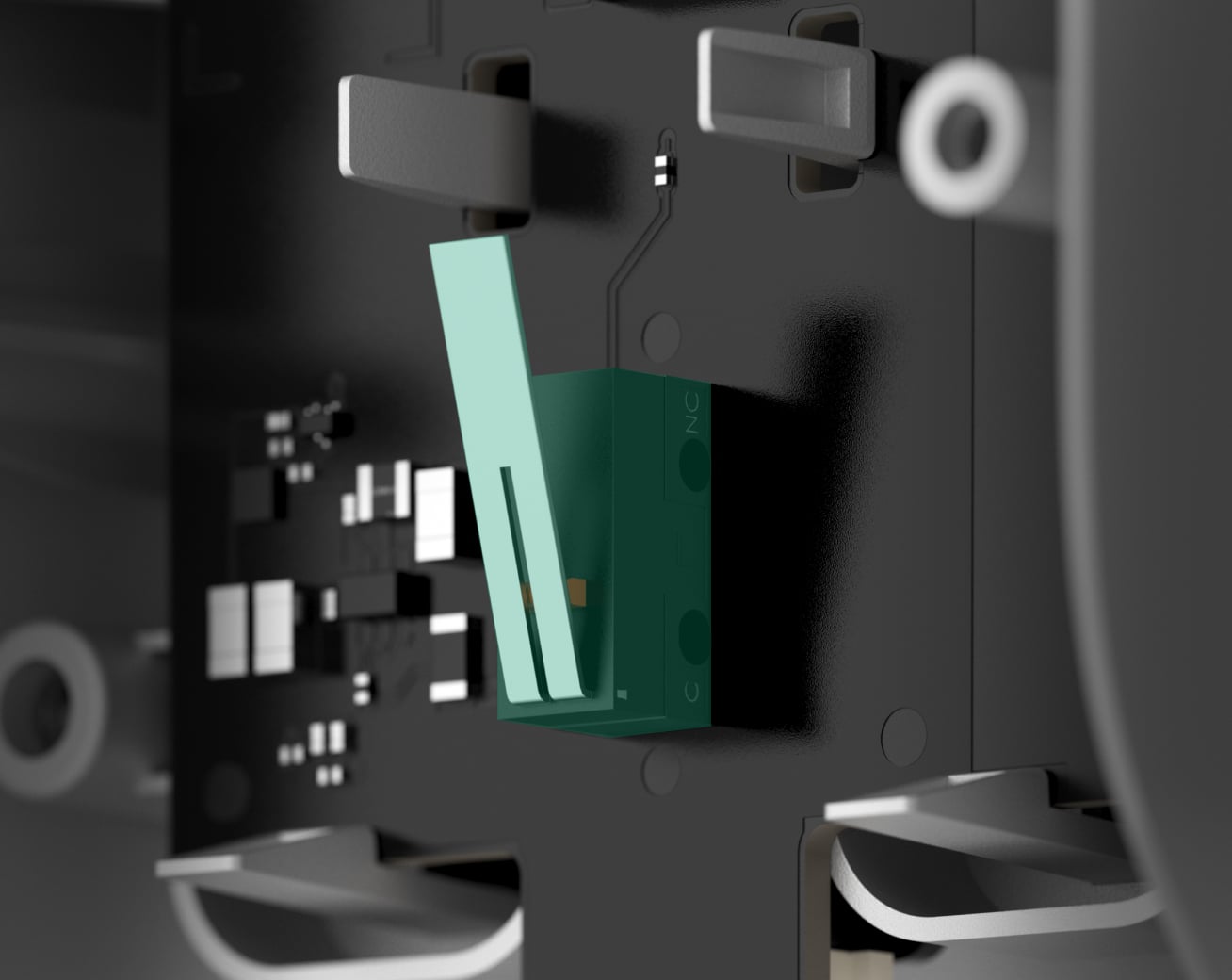

Tamper alarm
Magnetometer
Anti-masking system
Device authentication against spoofing
Data encryption
Regular polling
Informative notifications
Connection loss detection

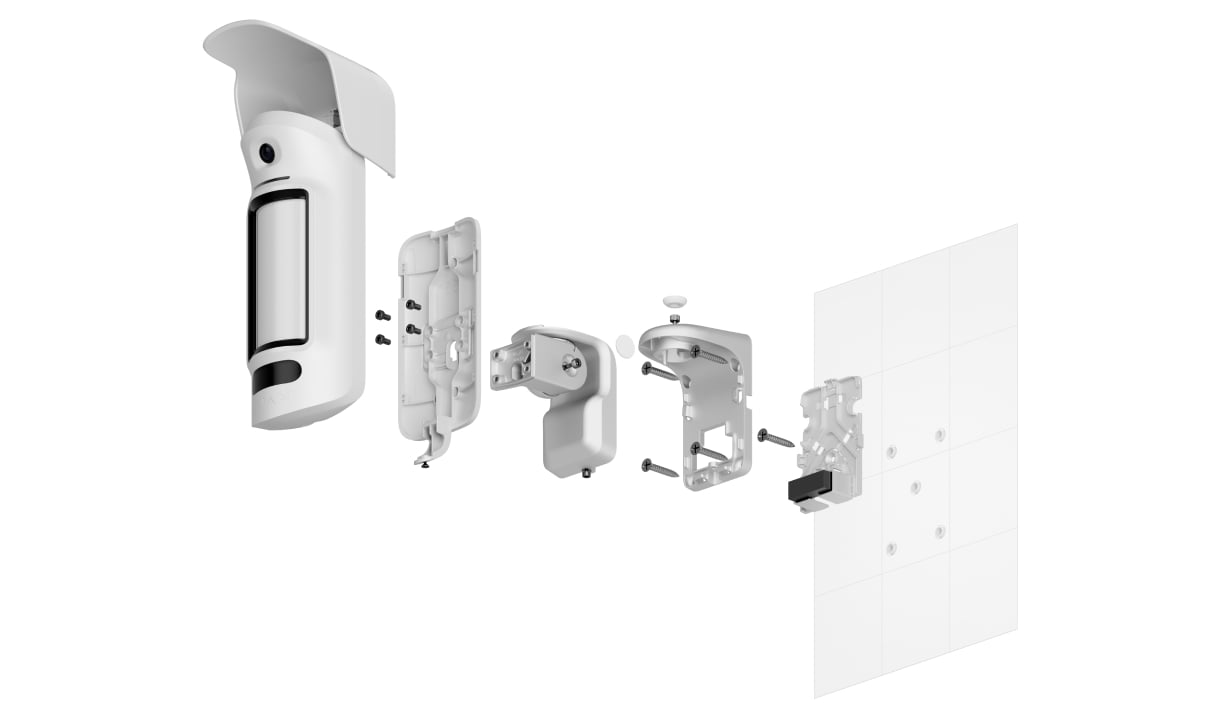

Effortless installation and setup
MotionCam Outdoor HighMount (PhOD) Jeweller is ready to operate straight out of the box. Ajax apps help quickly make the device a part of the system: simply pair the device with the hub by scanning the QR code. In the Ajax PRO app for installers, it is possible to check the camera’s field of view and maximum detection zone with the Motion detection area option. Remote configuration and monitoring are also available via PRO apps.
Pairing with an Ajax system via the QR code
Installing using the swivel mount only

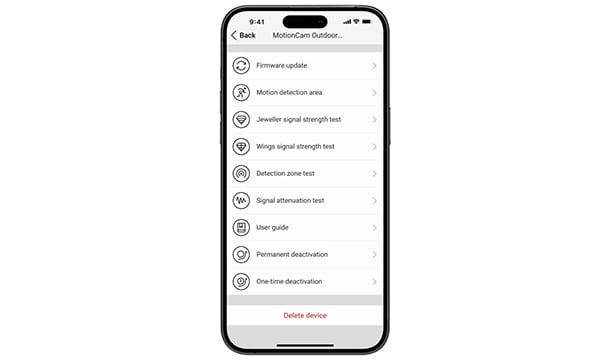

Configuring and testing in Ajax mobile and desktop apps
The Ajax PRO Desktop app for macOS and Windows3
In an open space.
With default settings (photo resolution is 320×240 px).
Monitoring through Ajax PRO Desktop will be available with future device updates.
Technical information
MotionCam Outdoor HighMount (PhOD) Jeweller
More outdoor motion detectors
Ajax product categories
In an Ajax system, you can combine devices of all product categories: Intrusion protection, Video surveillance, Fire and life safety, or Comfort and automation. Create the system to suit your needs and manage it in a single interface.
Protecting perimeter with MotionCam Outdoor HighMount (PhOD) Jeweller
The Ajax range of motion detectors, notably the MotionCam Outdoor HighMount (PhOD) Jeweller, exemplifies cutting-edge motion detection and photo verification technology. This article delves into the general benefits of outdoor motion detectors and highlights why the MotionCam Outdoor HighMount (PhOD) Jeweller stands out as the ultimate security solution.
Why choose outdoor motion detectors?
Motion detectors are essential to modern security systems, offering real-time alerts and deterring potential intruders. When strategically installed, outdoor motion detectors ensure that threats are detected before they breach the property’s perimeter, providing an added layer of protection.
Key advantages of outdoor motion detectors:
- Early threat detection. Outdoor detectors monitor real-time movement, enabling instant alerts when an intrusion is detected. This proactive security measure is essential for reducing response times and mitigating potential damages.
- False alarm prevention. Modern motion detectors have advanced algorithms and technologies to minimize false alarms caused by animals, environmental factors, or background movements.
- Photo verification capabilities. Devices with integrated cameras provide visual confirmation of alarms. This feature not only helps identify genuine threats but also aids in monitoring daily activities around your property.
- Enhanced coverage. With detection ranges of up to 15 meters and vast fields of view, outdoor detectors effectively cover expansive areas, making them ideal for securing large properties like parking lots, gardens, and construction sites.
- Integration with security systems. Seamlessly connecting to hubs and apps, these detectors provide real-time notifications and alerts. Their integration with central monitoring stations ensures a coordinated and immediate response.
MotionCam Outdoor HighMount (PhOD) Jeweller
Among the diverse range of outdoor motion detectors, the Ajax MotionCam Outdoor HighMount (PhOD) Jeweller sets itself apart with its innovative features, robust design, and unmatched reliability. This device ensures top-notch security and enhances user experience through intuitive operation and intelligent technologies.
SmartDetect algorithm for accuracy
The MotionCam Outdoor HighMount (PhOD) Jeweller leverages the SmartDetect algorithm to analyze thermal diagrams and detect human movement while ignoring irrelevant signals. The algorithm evaluates infrared radiation intensity, heat spot size, and time spent in the detection zone. Additionally, the K-band microwave sensor adds a secondary layer of analysis to prevent false alarms caused by environmental interferences like air currents, heated surfaces, or small animals.
Photo verification at its best
Photo verification is a standout feature of this device. The integrated camera captures up to 5 images with a resolution of 320 × 240 pixels or up to 3 images with 640 × 480 pixels. These photos provide clear visual evidence, helping users assess the situation promptly.
- Photo by alarm. Automatically triggered when movement is detected in armed mode.
- Photo on demand. Enables users to capture images manually for situational awareness.
- Photo by scenario. Configured scenarios trigger the camera during specific events.
- Photo by schedule. Periodic snapshots allow regular monitoring at predefined intervals.
Anti-masking system for tamper protection
The device’s anti-masking system promptly identifies any attempt to obstruct the detector’s view. It can detect actions like tapping, painting, or placing objects in front of its motion sensors, sending immediate alerts to users and monitoring stations.
Seamless communication with Jeweller and Wings protocols
The MotionCam Outdoor HighMount (PhOD) Jeweller uses Ajax’s proprietary Jeweller protocol for fast and reliable alarm transmissions and the Wings protocol for sending photos and firmware updates. These protocols guarantee stable and uninterrupted communication, even in challenging environments.
Temperature compensation for all-weather operation
One of the unique capabilities of the MotionCam Outdoor HighMount (PhOD) Jeweller is its ability to function optimally even when ambient temperatures closely match the human body’s temperature. This ensures consistent performance across a wide range of climates.
Easy installation and maintenance
The device is designed for effortless installation at heights of 2 – 4 meters using a swivel mount, which allows precise adjustments for optimal coverage. Its robust build ensures durability, and its maintenance requirements are minimal. With a battery life of up to three years, users can rely on its performance with minimal interruptions.
Customizable notifications and monitoring
Users receive detailed alerts containing the name of the space, device, and virtual room assigned to the detector. These notifications can be sent to mobile apps, monitoring stations, or PRO Desktop applications, ensuring all stakeholders are informed of any activity.
Comprehensive protection and monitoring
- Tamper and movement alarms. The built-in magnetometer detects attempts to tilt, move, or detach the detector, ensuring it remains secure at all times.
- Visual verification for peace of mind. The ability to save and share photos or animations provides an additional layer of assurance.
- Compliance and warranty. With a two-year warranty and adherence to industry standards, users can trust the quality and reliability of the MotionCam Outdoor HighMount (PhOD) Jeweller.
Why choose Ajax MotionCam Outdoor HighMount (PhOD) Jeweller?
The MotionCam Outdoor HighMount (PhOD) Jeweller is more than just a motion detector — it’s a comprehensive security solution designed to meet the diverse needs of modern users. Its combination of advanced detection algorithms, photo verification capabilities, and tamper-proof design makes it an invaluable asset for any security setup.
Whether you’re looking to safeguard your home, monitor your business premises, or secure outdoor areas, this device ensures that every movement is detected, analyzed, and verified with unparalleled precision. Invest in the Ajax MotionCam Outdoor HighMount (PhOD) Jeweller today and experience the ultimate perimeter security.
