Superior HomeSiren Jeweller user manual

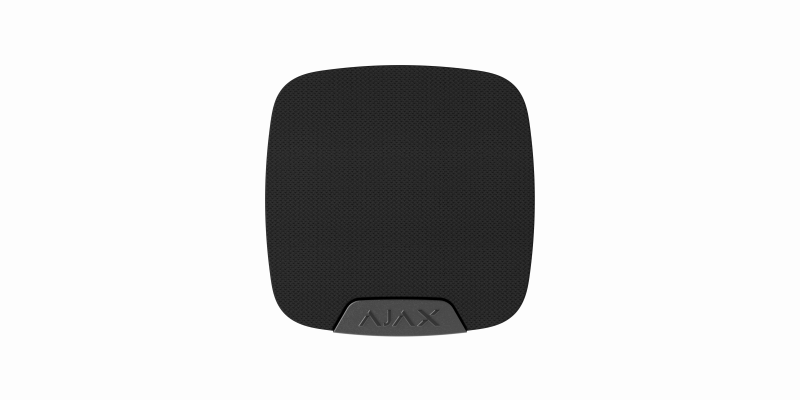

Superior HomeSiren Jeweller is a wireless siren for indoor installation. It informs users of events and alarms via an LED indicator and an audible signal with a sound level of up to 105 dB. The device supports connecting an additional wired LED and operates for up to five years on pre-installed batteries.

The siren communicates with a hub via Jeweller, a secure radio protocol for transmitting alarms and events. The communication range in open space is up to 6,550 ft.

Functional elements

1. LED indicator.
2. Siren buzzer covered with fabric.
3. SmartBracket mounting panel. Its perforated part activates a tamper alarm if any attempt to detach the device from the surface is detected. Do not break it off.
4. Hole to attach the SmartBracket mounting panel with a holding screw.
5. QR code with the device ID. It is used to add the device to the hub.
6. Tamper button. It is triggered when an attempt to detach the device from the surface or remove it from the mounting panel is detected.
7. Connector for an external LED indicator.
8. Power button.

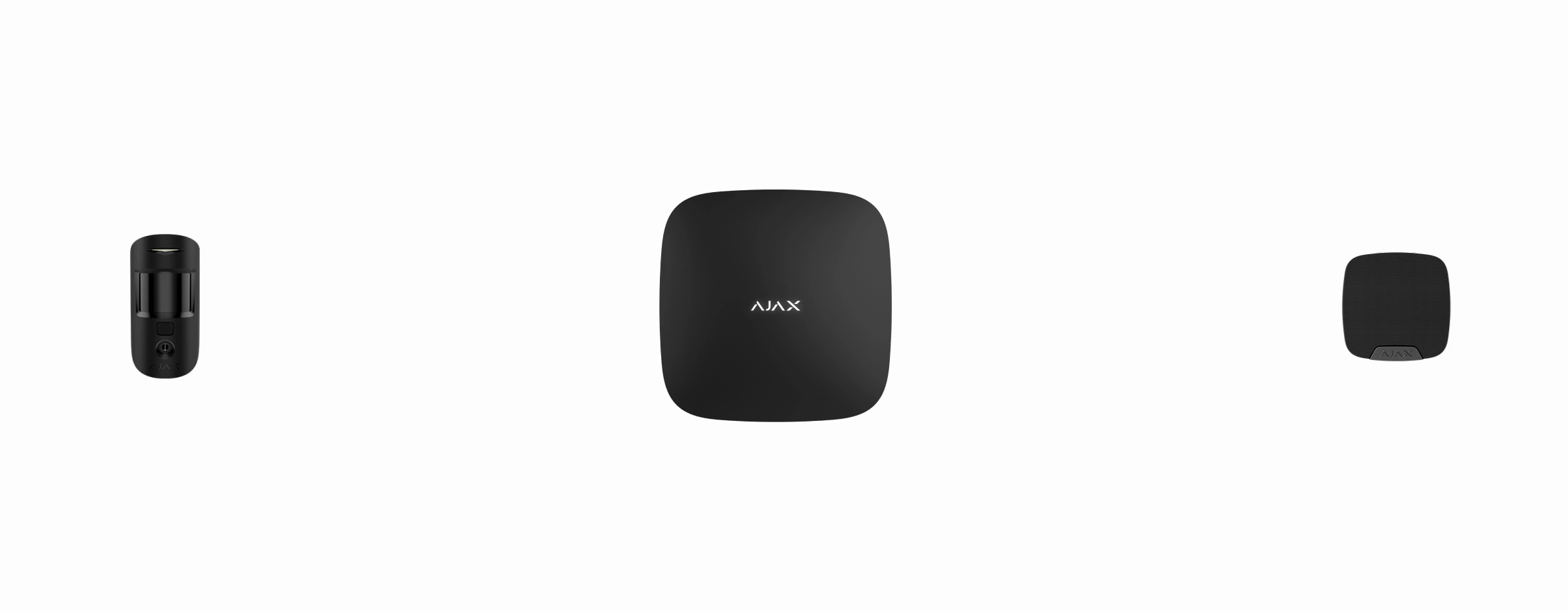

Compatible hubs and range extenders

The siren requires an Ajax hub running OS Malevich 2.16 or later.

Operating principle

The device is equipped with a loud buzzer, which allows the siren sound to be heard from a distance. If the siren is installed correctly, it will be difficult for an intruder to dismantle and deactivate it. Superior HomeSiren Jeweller has an autonomous power supply and a robust enclosure with a holding screw used for securing the device. The power button is blocked when the system is armed.

The siren performs four tasks:

1. Informs about alarms. The siren responds to tamper and system alarms. It is loud enough to scare away intruders and attract the neighbors' attention.
2. Indicates the security state. The siren uses LED indication to show that the facility is armed and an audible signal to inform about entry/exit delays. These features are helpful for systems controlled via key fobs or keypads: the siren reminds users to disarm the system upon entry.
3. Notifies users when a door is opened (Chime). Sirens inform users with a special sound that opening detectors have been triggered when the system is disarmed. The feature is used, for example, in stores to alert employees when customers enter.
4. Indicates an alarm until the system is disarmed. The siren's built-in LED and an external LED (if connected) flash after an audible signal is emitted. Thanks to this feature, users and passing security patrols can see that the siren has been triggered.

Jeweller data transfer protocol

Jeweller is a proprietary radio protocol that provides fast and reliable two-way communication between the hub and devices. The siren uses Jeweller to transmit alarms and events.

Learn more

Sending events to the monitoring station

An Ajax system transmits alarms and events to the Ajax PRO Desktop app and the monitoring station in the formats of SurGard (Contact ID), SIA (DC-09), ADEMCO 685, and other protocols.

Superior HomeSiren Jeweller can transmit the following events:

1. Tamper alarm / tamper button recovery.
2. Loss and restoration of connection with the hub (or the radio signal range extender).
3. Permanent siren deactivation/activation.
4. One-time siren deactivation/activation.

When an alarm is received, the monitoring station operator knows what has happened and where to dispatch a rapid response team. Ajax device addressability enables the system to send events to Ajax PRO Desktop and the monitoring station with the device type, name, security group, and virtual room specified. Note that the list of transmitted parameters may vary depending on monitoring software and the selected communication protocol.

Adding to the system

To add Superior HomeSiren Jeweller to the hub, locate the siren at the same secured facility as the system (within the range of ​​the hub radio network). If the siren operates via a radio signal range extender, first add the siren to the hub and then connect it to the required range extender in its settings.

Before adding the device

1. Install an Ajax PRO app.

2. Log in to your PRO account or create a new one.

3. Select a space or create a new one.

   What an Ajax space is

   How to create a space

   The space functionality is available for apps of such versions or later:

   • Ajax Security System 3.0 for iOS;
   • Ajax Security System 3.0 for Android;
   • Ajax PRO: Tool for Engineers 2.0 for iOS;
   • Ajax PRO: Tool for Engineers 2.0 for Android;
   • Ajax PRO Desktop 4.0 for macOS;
   • Ajax PRO Desktop 4.0 for Windows.

4. Add at least one virtual room.

5. Add a compatible hub to the space. Ensure the hub is switched on and has internet access via Ethernet, Wi-Fi, and/or mobile network.

6. Check the states in the app to ensure that the space is disarmed and the hub is not starting an update.

Adding to the hub

1. Open an Ajax PRO app. Select a space with the hub to which you want to add the siren.

2. Go to the Devices tab and tap Add Device.

3. Assign a name to the siren.

4. Scan a QR code or enter the device ID manually. The QR code with the device ID is located on the device enclosure. Also, it is duplicated on the device packaging.



5. Select a virtual room and a security group (if Group mode is enabled).

6. Tap Add, and the countdown will begin.

7. Switch on the siren by holding the power button for 3 seconds.



If the connection fails, turn off the siren and try again in 5 seconds. If the maximum number of devices has already been added to the hub (depending on the hub model), the system will send a notification when you try to add more.

Once added to the hub, the siren will appear in the list of hub devices in the Ajax app. The interval for updating device states depends on the Jeweller or Jeweller/Fibra settings and defaults to 36 seconds.

Malfunctions

When the device detects a malfunction (for example, there is no connection via the Jeweller protocol), a malfunction counter appears in the upper-left corner of the device icon in an Ajax app.

All malfunctions are displayed in the device states. Fields with malfunctions are highlighted in red.

A malfunction is displayed in the following cases:

• The device temperature is outside acceptable limits.
• The device enclosure is open (the tamper button has been triggered).
• There is no connection to the hub or radio signal range extender via Jeweller.
• The device battery is low.

Icons

The icons in an Ajax app display some Superior HomeSiren Jeweller states. You can view them in the Devices tab.

States

The states include information about the siren and its operating parameters. You can view the siren states in Ajax apps:

1. Go to the Devices tab.
2. Select Superior HomeSiren Jeweller from the list.

Settings

To change the Superior HomeSiren Jeweller settings, in an Ajax app:

1. Go to the Devices tab.
2. Select Superior HomeSiren Jeweller from the list.
3. Go to Settings by tapping the gear icon.
4. Set the required parameters.
5. Tap Back to save the new settings.

Beep settings

Setting the siren response to device alarms

In Ajax apps, you can separately configure the siren response to alarms from each system device. The feature is useful if you do not need to activate the siren when a specific device is triggered. For example, when LeaksProtect Jeweller activates an alarm.

To configure the siren response to a device alarm:

1. Open an Ajax app.
2. Go to the Devices tab.
3. Select the device for which you want to configure the siren response.
4. Go to the device Settings by tapping the gear icon.
5. Find the Alert with siren section and enable the required toggles.
6. Repeat steps 3–5 for the rest of the system devices.

Setting the siren response to tamper alarms

In Ajax apps, you can configure the siren response to tamper alarms from each system device. When the feature is activated, the siren will emit an audible signal when the device's tamper button or the accelerometer is triggered.

To configure the siren response to a tamper alarm:

1. Open an Ajax app.
2. Go to the Devices tab.
3. Select the hub and go to its Settings .
4. Select the Service menu.
5. Go to the Sounds and alerts section.
6. Enable the If lid of hub or any detector is open toggle.
7. Tap Back to save the new settings.

Setting the siren response to the in-app panic button press

In Ajax apps, you can configure the siren response to the in-app panic button press. To do this, follow these steps:

1. Open an Ajax app.
2. Go to the Devices tab.
3. Select the hub and go to its Settings .
4. Select the Service menu.
5. Go to the Sounds and alerts section.
6. Enable the If in-app panic button is pressed toggle.
7. Tap Back to save the new settings.

Setting the siren after-alarm indication

The siren can inform users about triggering in the armed system using LED indication.

The feature functions as follows:

1. The system registers an alarm.
2. The siren sounds an alarm signal. Its duration and volume depend on the device settings.
3. The siren's LED and external LED indicators (if connected) flash twice or once every 3 seconds until the system is disarmed.

This feature allows system users and security patrols to see that the alarm has been activated.

To enable the siren after-alarm indication, in an Ajax PRO app:

1. Go to the hub settings:

   • Hub → Settings → Service → LED indication.

2. Specify which events the sirens will indicate with a double LED flash before the system is disarmed:

   • Confirmed intrusion/hold-up alarm.
   • Single intrusion/hold-up alarm.
   • Lid opening.

3. Select the required siren in the Devices menu.

4. Tap Back to save the new settings.

Setting specific alerts on alarm cancellation and alarm abort

In the hub settings in an Ajax PRO app, you can select which devices should sound if an alarm is cancelled and which should sound if an alarm is aborted. The Alarm cancellation annunciation and Alarm abort annunciation features are required for systems that should comply with ANSI/SIA CP-01-2019 standard*.

To select the devices to alert on alarm cancellation and alarm abort, in the Ajax PRO app:

1. Select the required hub and go to:

   • Settings → Service → Arming/disarming process

2. Ensure that ANSI/SIA CP-01-2019 is selected for the Compliance with standard setting.

3. Select the devices for Specific alert on alarm cancellation and Specific alert on alarm abort options.

4. Tap Back to save the new settings.

Learn more about ANSI/SIA CP-01-2019 system requirements

* Superior HomeSiren Jeweller is not certified according to ANSI/SIA CP-01-2019.

Chime on opening or doorbell button press

If Chime on opening or doorbell button press is enabled, Superior HomeSiren Jeweller informs a user with a short beep that opening detectors are triggered or the DoorBell button is pressed while the system is disarmed. The feature is used, for example, in stores to notify employees that someone has entered.

Alarm signals are configured in two steps: setting up the siren and setting up opening detectors. This article provides more information about Chime and how to configure detectors.

To set the siren response:

1. Open an Ajax app.
2. Go to the Devices tab.
3. Select Superior HomeSiren Jeweller and go to its Settings .
4. Go to the Beep settings menu.
5. Enable the Chime on opening or doorbell button press toggle in the Beep when disarmed category.
6. Set the required alarm signal volume.
7. Tap Back to save the new settings.

If the settings are correct, a bell icon will appear in the Control tab of the Ajax app. Tap it to activate or deactivate Chime.

Indication

Functionality testing

An Ajax system provides several tests to help select the correct installation place for the siren. The tests do not start immediately. However, the waiting time does not exceed the duration of one device polling interval. The polling interval can be checked and configured in the hub settings (Hub → Settings → Jeweller or Jeweller/Fibra).

To run the test, in an Ajax app:

1. Select the required hub.

2. Go to the Devices tab.

3. Select Superior HomeSiren Jeweller from the list.

4. Go to Settings .

5. Select the test:

   1. Jeweller Signal Strength Test.

   2. Volume Test.

   3. Signal Attenuation Test.

6. Run the test.

Selecting the installation site

When choosing where to place Superior HomeSiren Jeweller, consider the parameters that affect its operation:

• Jeweller signal strength.
• Distance between the siren and the hub (or the radio signal range extender).
• Obstacles that may interfere with radio signal and sound transmission, such as walls, interfloor ceilings, and large objects on the premises.

Consider the recommendations for placement when developing a project for the security system of the facility. Only a specialist can design and install the system. A list of recommended partners is available here.

Recommended installation height is 2.5 m or more. This will make it more difficult for intruders to access the device.

Jeweller signal strength

The Jeweller signal strength is determined by the number of undelivered or corrupted data packets over a certain period of time. The icon in the Devices tab indicates the signal strength:

• Three bars — excellent signal strength.
• Two bars — good signal strength.
• One bar — low signal strength; stable operation is not guaranteed.
• Crossed-out icon — no signal.

Where not to install the siren

1. Outdoors. This may cause the siren to malfunction.
2. In places where an audible signal may be attenuated, such as inside furniture, behind thick curtains, etc.
3. Near any metal objects or mirrors that may cause signal attenuation or screening.
4. In places with temperature and humidity beyond the permissible limits. This may damage the siren.
5. Closer than 3.3 ft to the hub (or the radio signal range extender). This may result in communication loss between the siren and the hub.
6. In places with low signal strength. This may result in communication loss with the hub.

Installation

To install the siren:

1. Unscrew the holding screw. Then, remove the SmartBracket mounting panel from the siren by turning it counterclockwise.

2. Secure the SmartBracket panel using double-sided adhesive tape to the selected installation site.

   Double-sided adhesive tape should only be used for temporary installation. The device attached with the tape may come unstuck from the surface at any time. As long as the device is secured with the double-sided adhesive tape, the tamper button will not be triggered when the device is detached from the surface.

3. Place the siren on SmartBracket and turn it clockwise. The device LED indicator will start flashing, indicating that the tamper button on the siren is closed.

   If the LED indicator does not light up when the siren is placed on SmartBracket, check the tamper button state in the Ajax app, as well as the fastening integrity and the tightness of the siren fixation on the panel.

4. Run the Jeweller signal strength test. The recommended signal strength is two or three bars. If it is low, we do not guarantee the device's stable operation. Consider relocating the device, as repositioning even by 8" can significantly improve the signal strength. If the signal is still poor or unstable after the relocation, use a radio signal range extender.

5. Run Volume test.

6. Run Signal attenuation test. During the test, the signal strength is artificially reduced and increased to simulate different conditions at the installation location. If the installation site is chosen correctly, the siren will have a stable signal strength of 2–3 bars.

7. If the tests are successful, remove the siren from SmartBracket.

8. Secure the SmartBracket panel to the surface using bundled screws.

   When using other fasteners, ensure they do not damage or deform the mounting panel. To facilitate installation, you can pre-drill the screw holes while the mounting panel is still secured with the double-sided adhesive tape.

9. Place the siren on SmartBracket.

10. Tighten the holding screw on the bottom of the siren enclosure. The screw is needed for more reliable fastening and to protect the siren from quick dismantling.

Connecting an external LED

You can connect an external LED to Superior HomeSiren Jeweller. This indicator works in parallel with the device's built-in LED and fully replicates its signals.

To connect, use the connector on the rear side of the siren enclosure. Observe the polarity when connecting: the black terminal wire is the "+" contact.

The output power supply is 3 V⎓, 10 mA.

To connect an external LED:

1. Remove the siren from the mounting panel if it has already been installed.
2. Route the external LED cable into the Superior HomeSiren Jeweller enclosure.
3. Connect the external LED to Superior HomeSiren Jeweller using the provided connector.
4. Check the operation of the connected external LED.
5. Install the siren on the surface according to steps 3–10 described in the Installation section.

Maintenance

Check the siren regularly to ensure it is operating properly. The optimal check interval is once every three months. Clean the device enclosure of dust, cobwebs, and other contaminants as needed. Use a soft, dry wipe suitable for equipment care.

Do not use substances containing alcohol, acetone, petrol, or other active solvents to clean the siren.

The batteries installed in the siren ensure up to 5 years of autonomous operation with a polling interval of 1 minute or at least 6 hours of buzzer sound.

If the battery is low, the system will send an early notification that the battery needs to be replaced. When the system is armed, the LED will slowly light up green and go out.

How to replace batteries

Technical specifications

All technical specifications

Compliance with standards

Setup in compliance with EN 50131 requirements

Setup in compliance with ANSI/SIA CP-01-2019 requirements

Warranty

Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase.

If the device does not operate properly, we recommend contacting the support service first, as most technical issues can be resolved remotely.

Warranty obligations
